IBM C2180-276 Online Practice Questions and Exam Preparation

IBM C2180-276 Online Questions & Answers

• Question 11:

  An organization has built a service called "Employee Management Workflow", which was developed in IBM Business Process Manager V8.0. This service is required to be accessed by several external enterprise applications as a SOAP web service.

  How can BPM application developer meet this requirement?

  A. 1. Create a Web Service 2. Add the operation, associating it with the service
  B. 1. Create an Undercover Agent (UCA) 2. Attach the service
  C. 1. Create an External Implementation 2. Drag the "Web Service integration" from the palette to the canvas 3. Define the WSDL 4. Add the operation
  D. 1. Create an Integration Service 2. Drag the "Web Service integration" from the palette to the canvas 3. Define the WSDL 4. Add the operation
  A. 1. Create a Web Service 2. Add the operation, associating it with the service

• Question 12:

  A client executive has asked a BPM application developer to provide the focus areas for four playbacks. How should the BPM application developer respond?

  A. Playback 0: BlueworksLive model Playback 1: Process diagram in Process Designer Playback 2: User interfaces and integrations Playback 3: Error Handling
  B. Playback 0: BlueworksLive model Playback 1: Process discovery Playback 2: Human services and data mapping Playback 3: Integrations and consolidation of previous themes
  C. Playback 0: Process flow implementation Playback 1: Business rules Playback 2: Human services and data mapping Playback 3: Integrations, corner cases and error handling
  D. Playback 0: Process discovery and high level business process. Playback 1: Data model, process flow and human services Playback 2: Business rules and integrations Playback 3: Consolidation of previous themes
  D. Playback 0: Process discovery and high level business process. Playback 1: Data model, process flow and human services Playback 2: Business rules and integrations Playback 3: Consolidation of previous themes

• Question 13:

  In the IBM BPM playback methodology, who is responsible for the design and implementation of process applications and toolkits?

  A. BPM analyst
  B. BPM developer
  C. BPM administrator
  D. BPM program manager
  B. BPM developer

• Question 14:

  An engineering company has requested a process to handle its engineering reviews. The company breaks up its engineering reviews in the following ways:

  -

  Complex engineering efforts are handled by the Senior Engineers participant group (PG)

  -

  Moderate engineering efforts are handled by the Associate Engineers PG ?Simple engineering efforts are handled by the Apprentice Engineers PG

  -

  All other engineering efforts are handled by the All Engineers PG

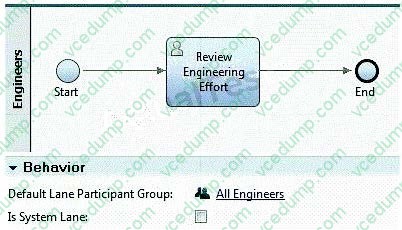

  Review the business process diagram (BPD) below and the specified behavior of the Engineers Swimlane.

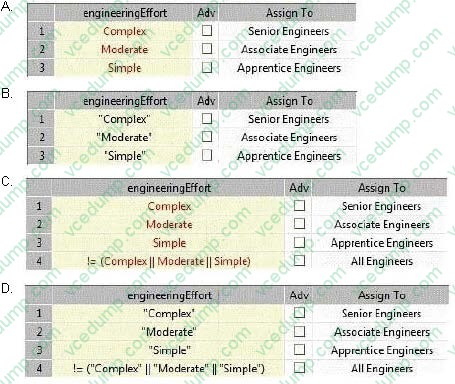

  The Review Engineering Effort activity's assignment is based on a routing policy. The routing policy is dictated by the value of the BPD's local variable engineeringEffort. Which one of the following routing conditions for the Review Engineering Effort activity will satisfy the company's request?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 15:

  A BPM application developer has completed the development of a high profile process application and is now ready to deploy the solution into the test environment. The application developer has been told to allow one peer developer and the technical team lead to review and approve the work before it can be installed onto the test server. The application developer's manager has requested that the process of gathering these approvals be automated for auditing purposes.

  What steps must the BPM application developer take in order to fulfill this requirement? The BPM application developer must:

  A. enable governance on the high profile process and use wsadmin to install the process.
  B. create a business process definition, inside of the high profile process application, to implement the approvals governance process.
  C. ask a user with the administrative authority to create a System Governance toolkit dependency to create a process application that will be used for governance.
  D. ensure that there is a task in the governance process that will allow a designated person to install the process, using Process Center, after all approvals have been received.
  C. ask a user with the administrative authority to create a System Governance toolkit dependency to create a process application that will be used for governance.

• Question 16:

  A BPM application developer needs to build a Java Integration that has to invoke Java code, which is packaged in a JAR file. The developer has the additional requirement to ensure that the response from the invoked method is returned as an XML element.

  What steps must the BPM application developer take in order to satisfy this requirement? The BPM application developer must:

  A. add the JAR file to the class path of the product installation and enable the translation of JavaBeans
  B. add the JAR file to the class path of the product installation and disable the translation of JavaBeans
  C. add the JAR file as a server file to the process application and enable the translation of JavaBeans
  D. add the JAR file as a server file to the process application and disable the translation of JavaBeans
  C. add the JAR file as a server file to the process application and enable the translation of JavaBeans

• Question 17:

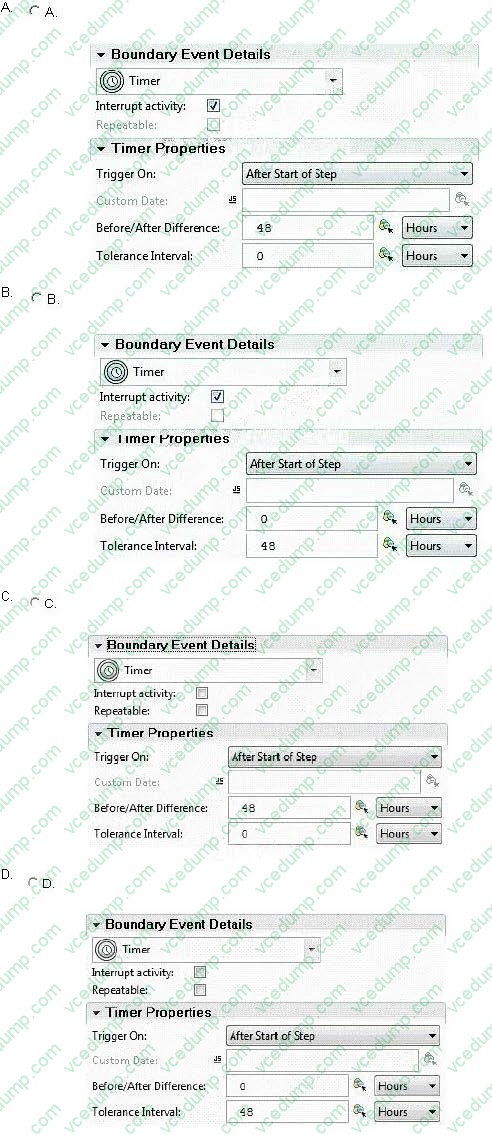

  In a loan origination process, the manager wants to be notified each time a loan approval activity takes more than 48 hours to complete regardless if work is in progress or not. The BPM application developer decides to implement the notification using a timer event attached to the loan approval activity.

  How should the BPM application developer configure the timer event without closing the task?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 18:

  A BPM application developer has to build code that allows users to follow business process definition instances from a human service.

  What is the REST API syntax that the BPM application developer needs to use?

  A. PUT /rest/bpm/wle/v1/social/instance/{instanceId}/following
  B. GET /rest/bpm/wle/v1/social/instance/{instanceId}/following
  C. POST /rest/bpm/wle/v1/social/instance/{instanceId}/following
  D. DELETE /rest/bpm/wle/v1/social/instance/{instanceId}/following
  C. POST /rest/bpm/wle/v1/social/instance/{instanceId}/following

• Question 19:

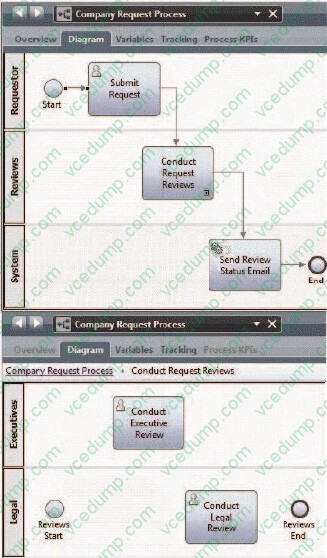

  A company requires all requests to be viewed by a member of the Executive Leadership and a member of its Legal Department. These reviews must be executed independently of each other. Once these reviews are completed, an email is sent out to all relevant process stakeholders informing them of the outcome of the reviews. Review the following business process definition.



  How should a BPM application developer model the remainder of the subprocess, "Conduct Request Reviews?"

  A. Draw two sequence flow lines from Reviews Start to Conduct Executive Review and Conduct Legal Review. From each review activity, draw a sequence flow to Reviews End.
  B. Draw a sequence flow line from Reviews Start to Conduct Executive Review. From Conduct Executive Review, draw a sequence flow line to Conduct Legal Review. From Conduct Legal Review, draw a sequence flow line to Reviews End.
  C. Draw a sequence flow line from Reviews Start to a Parallel Gateway. From the Parallel Gateway, draw two sequence flow lines to Conduct Executive Review and to Conduct Legal Review. From each review activity, draw a sequence flow line to Reviews End.
  D. Draw a sequence flow line from Reviews Start to an Exclusive Gateway. From the Exclusive Gateway, draw two sequence flow lines to Conduct Executive Review and to Conduct Legal Review. From each review activity, draw a sequence flow to Reviews End.
  C. Draw a sequence flow line from Reviews Start to a Parallel Gateway. From the Parallel Gateway, draw two sequence flow lines to Conduct Executive Review and to Conduct Legal Review. From each review activity, draw a sequence flow line to Reviews End.

• Question 20:

  Which IBM BPM playback methodology milestone helps enable the implementation to be successful?

  A. Process discovery
  B. Production environment validation
  C. Prototyping of complex integrations
  D. Requirements contract negotiations
  A. Process discovery
