Axis Communications AX0-100 Online Practice Questions and Exam Preparation

Axis Communications AX0-100 Online Questions & Answers

• Question 81:

  What are the effects of changing the capture mode on an AXIS P1346 from 2048x1536 (3 MP) to 1920x1080 (HDTV)? (Choose two)

  A. Minimum illumination decreases
  B. Vertical angle of view decreases
  C. Maximum frame rate decreases
  D. Maximum frame rate increases
  E. Motion blur increases
  B. Vertical angle of view decreases
  D. Maximum frame rate increases

• Question 82:

  An installer wants to connect and power a P|R sensor from an Axis camera's I/O port. What would be the output DC voltage?

  A. 1, 5V
  B. 3. 3 V
  C. 5V
  D. 7 V
  B. 3. 3 V

• Question 83:

  In order to comply with SMPTE standards of HDTV, the camera must meet the following:

  A. Light sensitivity, aspect ratio, resolution, color fidelity
  B. Aspect ratio, resolution, light sensitivity, frame rate
  C. Light sensitivity, color fidelity, frame rate, aspect ratio
  D. Frame rate, aspect ratio, resolution, color fidelity
  D. Frame rate, aspect ratio, resolution, color fidelity

• Question 84:

  A camera can deliver two full resolution 30 fps H.264 streams. The customer wants to have four H.264 streams at 30 fps, from the same product. How can this be achieved?

  A. By changing the codec
  B. By increasing the bandwidth
  C. By decreasing the resolution
  D. By increasing the frame rate
  C. By decreasing the resolution

• Question 85:

  A VPN

  A. Is required to enable viewing network surveillance video on mobile devices.
  B. Is a network specially optimized to handle video data packets.
  C. Creates a secure tunnel through the network, where your information travels encrypted.
  D. Translates domain names to IP addresses, according to the IPv4 standard.
  C. Creates a secure tunnel through the network, where your information travels encrypted.

• Question 86:

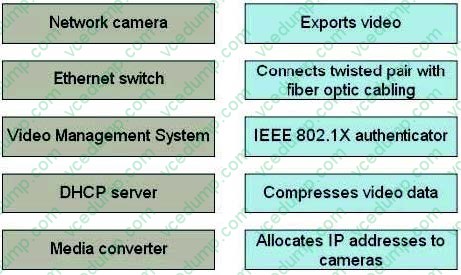

  Match each function to the correct video surveillance system component. Drag each gray box from the left column to the matching blue box in the right column.

  Select and Place:





• Question 87:

  A customer asks for a fixed mini dome with a DC-iris lens. 2.8-10 mm varifocal lens and wide dynamic range. Which of the following cameras is the only choice to fit all of the requirements?

  A. AXIS P3301
  B. AXIS M3203
  C. AXIS Q1604
  D. AXIS M5014
  A. AXIS P3301

• Question 88:

  This image represents an enlargement of an actual surveillance image. How could you improve the overall quality of the image? (Choose two)



  A. Decrease image compression setting
  B. Increase the gain setting in the camera
  C. Increase the image compression setting
  D. Decrease the gain setting in the camera
  E. Change to a camera with higher resolution
  A. Decrease image compression setting
  E. Change to a camera with higher resolution

• Question 89:

  In a network surveillance installation, the purpose of a router is to

  A. Forward the video stream between networks.
  B. Forward the video stream to the correct receiver within a network.
  C. Separate audio and video traffic to reduce audio latency.
  D. Separate the video stream from the camera control signaling.
  A. Forward the video stream between networks.

• Question 90:

  To get the best accuracy for a people counting application for customers entering a store, the camera should be mounted

  A. Facing the entrance.
  B. Facing the entrance at eye level.
  C. Directly above the entrance.
  D. Facing away from the entrance.
  C. Directly above the entrance.
