• Question 91:

  How much voltage has a typical home outlet?

  A. 120 volts

  B. 200 volts

  C. 60 volts

  D. 100 volts

  Correct Answer: A

  A typical residential electrical outlet has 120 volts.

• Question 92:

  The measurement "mil" refers to __________.

  A. a quarter or an inch

  B. one thousandth of an inch

  C. a millionth of an inch

  D. a hundredth of an inch

  Correct Answer: B

  A "mil" (from milli) refers to one thousandth.

• Question 93:

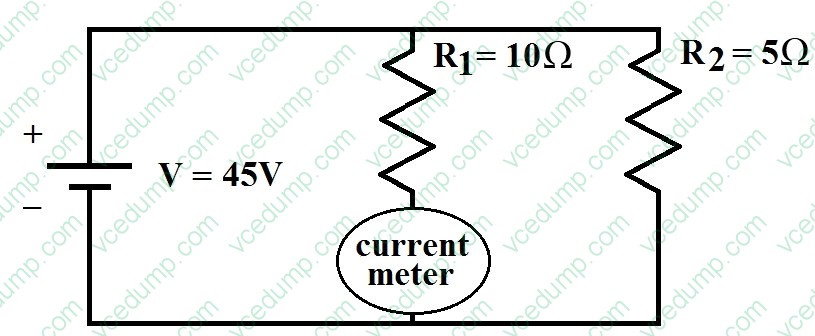

  A circuit contains three parallel resistors. Each resistor has 3 amps flowing through them.

  What is the total current flowing through the circuit?

  A. 1 A

  B. 3 A

  C. 9 A

  D. 1.5 A

  Correct Answer: C

  For resistors in parallel, the total current is equal to the sum of the currents through each resistor.

• Question 94:

  Using a fuse rated higher than the required current rating of a circuit can __________.

  A. protect your circuit better

  B. cause the fuse to blow more often

  C. lower your power usage for that circuit

  D. result in serious damage to your circuit

  Correct Answer: D

  Using a higher rated fuse is dangerous and can result in serious damage to your circuit.

• Question 95:

  What is the total resistance when two 10 ohm resistors are connected in series?

  A. 5 ohms

  B. 10 ohms

  C. 20 ohms

  D. 100 ohms

  Correct Answer: C

  When resistors are in series, you simply add their resistance together to find a total resistance. 10 + 10 = 20 ohms.

• Question 96:

  Resistance is measured in __________.

  A. Watts

  B. Volts

  C. Ohms

  D. Farads

  Correct Answer: C

  Resistance is measure in ohms.

• Question 97:

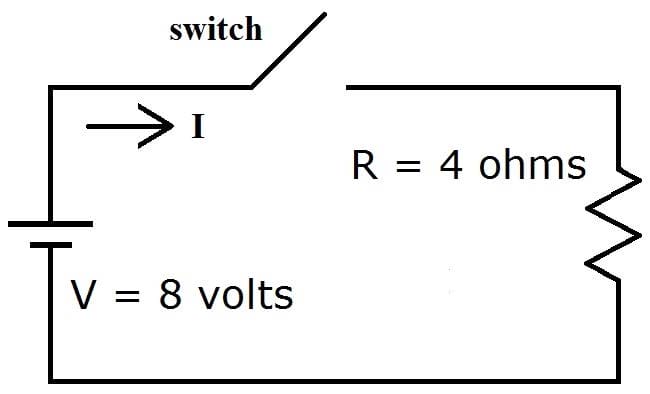

  What is the voltage across and current through the resistor R when the switch is open?

  A. 0 A Current; 8 V voltage

  B. 2 A Current; 2 V voltage

  C. 0 A Current; 0 V voltage

  D. 2 A Current; 8 V voltage

  Correct Answer: C

  When the switch is open, there is no voltage or current.

• Question 98:

  What is the reading on the kilowatt-hour meter shown below?



  A. 5703

  B. 5692

  C. 5693

  D. 5793

  Correct Answer: B

  The meter has four dials with the numbers 0 to 9. The pointers rotate in different directions. Read the dials from the left, using the number the dial pointer just passed.

• Question 99:

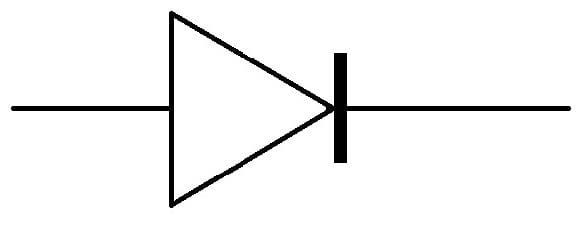

  The electronic symbol shown below represents a(n) __________.

  A. Capacitor

  B. Transistor

  C. Inductor

  D. Diode

  Correct Answer: D

  The symbol is a standard representation of a diode.

• Question 100:

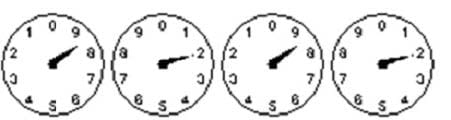

  What is the reading on the kilowatt-hour meter shown below?



  A. 9282

  B. 2828

  C. 8282

  D. 9292

  Correct Answer: C

  The meter has four dials with the numbers 0 to 9. The pointers rotate in different directions. Read the dials from the left, using the number the dial pointer just passed.
