  • Question 111:

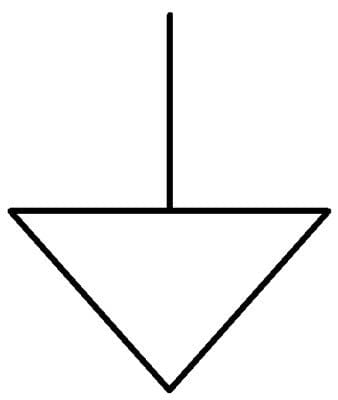

    The symbol in this diagram is the symbol for ___________.

    A. lightning

    B. Earth ground

    C. power source

    D. signal ground

  • Question 112:

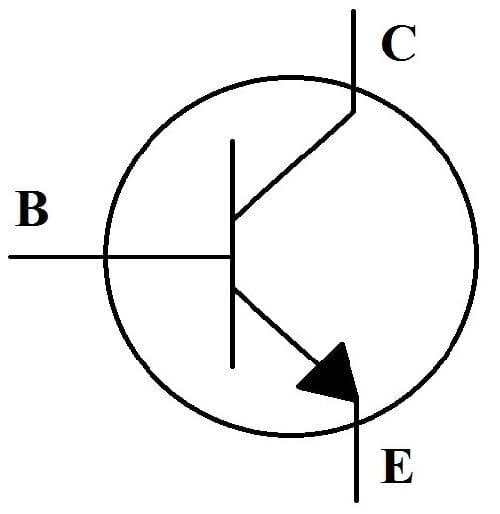

    In the diagram of a transistor provided, the letter B corresponds with the ___________.

    A. controller

    B. emitter

    C. base

    D. collector

  • Question 113:

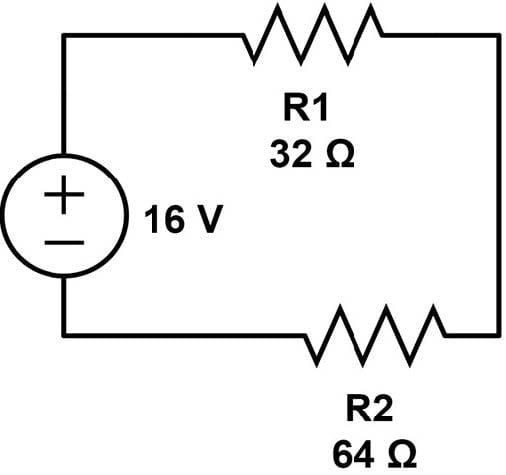

    Given the electrical circuit in the image provided, what is the current in resistor R1?

    A. 0.5 amperes

    B. 7.66666666661 amperes

    C. 0.25 amperes

    D. 0.16666666667 amperes

  • Question 114:

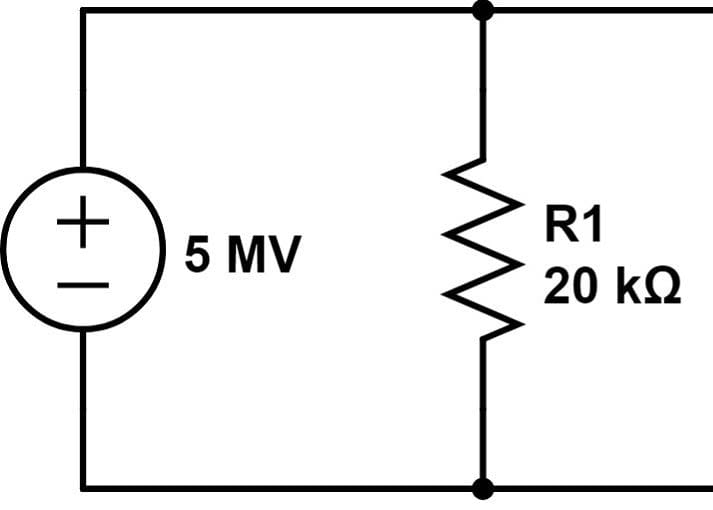

    Given the electronic circuit diagram, what is the current flowing through resistor at position R2? (MV = megavolts, k = kilo)

    A. 250 amperes

    B. 0 amperes

    C. 100 milliamperes

    D. 125 amperes

  • Question 115:

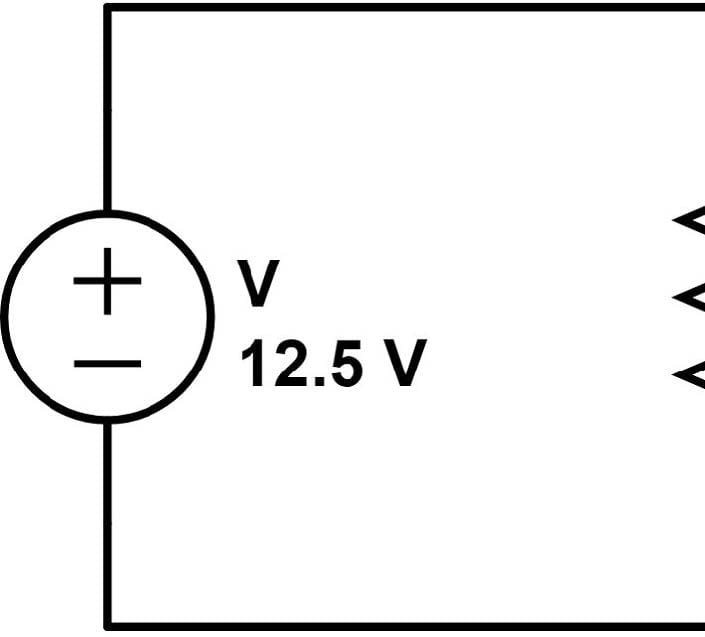

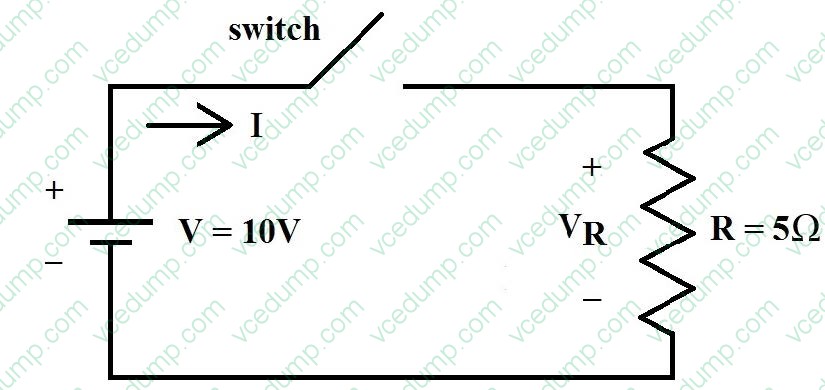

    In this diagram, how much current is flowing through the circuit?

    A. 0.625 milliamperes

    B. 0.625 amperes

    C. 62.5 milliamperes

    D. 625 amperes

  • Question 116:

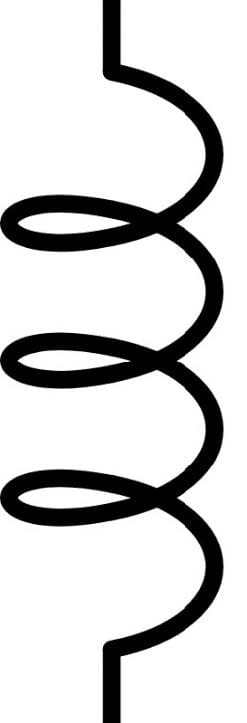

    This symbol is the symbol for which of these electrical circuit components?

    A. inductor

    B. elevator

    C. conductor

    D. resistor

  • Question 117:

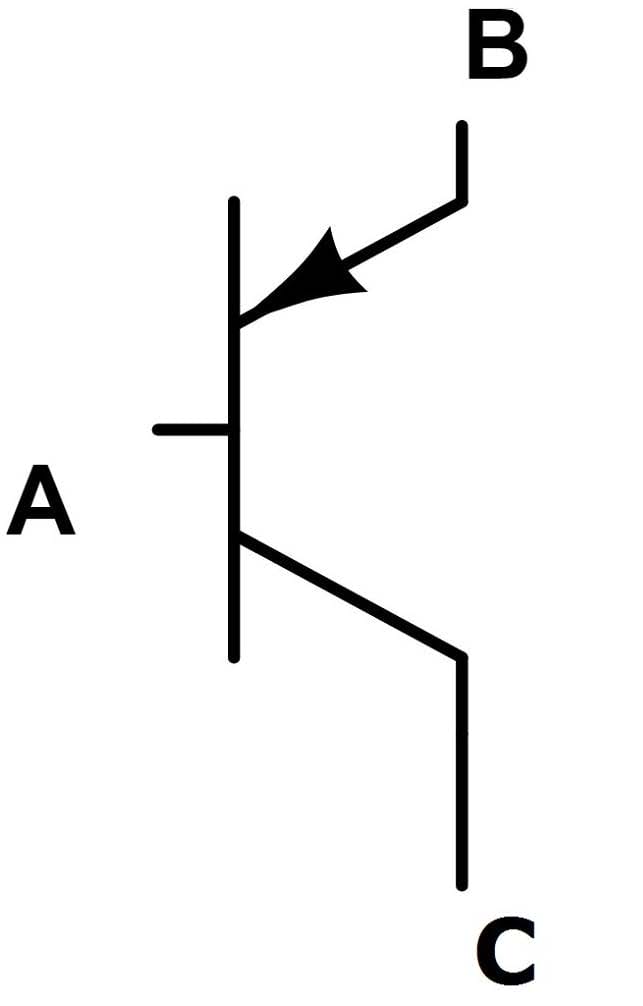

    This symbol represents what electronic circuit component?

    A. power source

    B. load

    C. transistor

    D. conductor

  • Question 118:

    This diagram illustrates an electrical circuit wired in ___________.

    A. series-parallel

    B. parallel-parallel

    C. series

    D. parallel

  • Question 119:

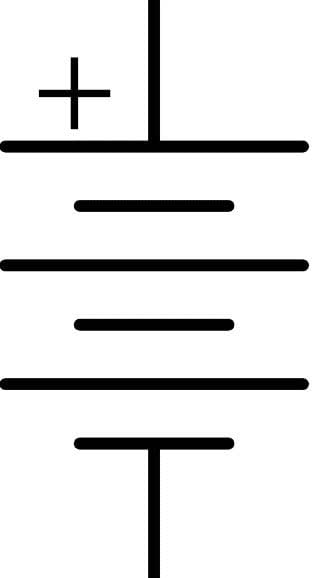

    The symbol in this image represents a ___________ in an electrical circuit.

    A. relay

    B. switch

    C. fuse

    D. battery

  • Question 120:

    Given Ohm's law, if voltage increases and current remains the same, then ___________.

    A. induction increases

    B. resistance decreases

    C. power decreases

    D. resistance increases
