Acme Packet AP0-001 Online Practice Questions and Exam Preparation

Acme Packet AP0-001 Online Questions & Answers

• Question 71:

  The Net-Net 4000 will release media between SIP endpoints that are located in the same realm when the ____________parameter is set to____________.

  A. msm-network disabled
  B. mm-in-realm disabled
  C. mm-in-network enabled
  D. mm-in-realm enabled
  B. mm-in-realm disabled

• Question 72:

  You have changed a parameter in the realm-config element and have issued the done command. The change has now been committed to the __________ configuration.

  A. saved
  B. active
  C. edited
  D. running
  C. edited

• Question 73:

  In a high availability (HA) scenario, if peers boot simultaneously and their health scores are equivalent, which node automatically assumes the role of Active?

  A. The node that had the role of active last.
  B. The node that had the role of standby last.
  C. The node with the highest Wancom IP address.
  D. The node with the lowest Wancom IP address.
  D. The node with the lowest Wancom IP address.

• Question 74:

  The Net-Net 4000 supports __________ VLANs per physical interface.

  A. 1024
  B. 6000
  C. 999
  D. 4095
  A. 1024

• Question 75:

  The Net-Net 4000 is the source and destination for all signaling messages and media streams coming into and leaving the provider's network. Which two of the following SIP functions does it provide?

  A. edge proxy
  B. registrar
  C. Back to Back User Agent
  D. media gateway
  A. edge proxy
  C. Back to Back User Agent

• Question 76:

  In this scenario, the User Agents (UAs) are both SIP-enabled phones.

  What is the correct order of this basic SIP message flow?

  1)The UAC initiates the session with an INVITE.

  2)The UAS sends a 200 OK message indicating that the request has succeeded.

  3)Media is exchanged bidirectionally.

  4)The UAS sends a 100 Trying response back to the UAC

  5)The UAC sends a BYE message. This is followed by a 200 OK final response message sent by the UAS.

  6)The UAS sends a 180 Ringing message.

  7)The UAC sends an ACK message confirming that it has received a final response to INVITE.

  A. 1,2,4,6,7,5,3
  B. 1,4,6,2,7,3,5
  C. 1,7,4,6,3,2,5
  D. 1,4,2,7,6,3,5
  B. 1,4,6,2,7,3,5

• Question 77:

  Which one of the following statements about the Net-Net 4000 is TRUE?

  A. When the status LED, which is located on the front of the chassis control panel is lit yellow, it is an indication that the Net-Net system is experiencing a major malfunction such as a power supply failure.
  B. You can have up to two simultaneous console connections.
  C. By default, you can only Telnet to the wancom0 interface on the Net-Net 4000.
  D. By default, the Net-Net 4000 media interfaces will respond to PING.
  C. By default, you can only Telnet to the wancom0 interface on the Net-Net 4000.

• Question 78:

  What sip-config option will suppress the inclusion of a registration cache cookie in the Contact header of messages forwarded?

  A. reg-mode=no cache
  B. reg-cache-mode=none
  C. reg-mode=none
  D. reg-cache-mode=no cache
  B. reg-cache-mode=none

• Question 79:

  Which one of the following statements about the SIP-NAT is TRUE?

  A. The Net-Net 4000 uses the SIP-NAT element to rewrite the contact-URI, the Via header and the SDP.
  B. The Net-Net 4000 uses the SIP-NAT to provide translation between a home address space and an external address space.
  C. The Net-Net 4000 uses the SIP-NAT to act as a service pipe to SIPD.
  D. You must have at least one SIP-NAT to route traffic between realms.
  B. The Net-Net 4000 uses the SIP-NAT to provide translation between a home address space and an external address space.

• Question 80:

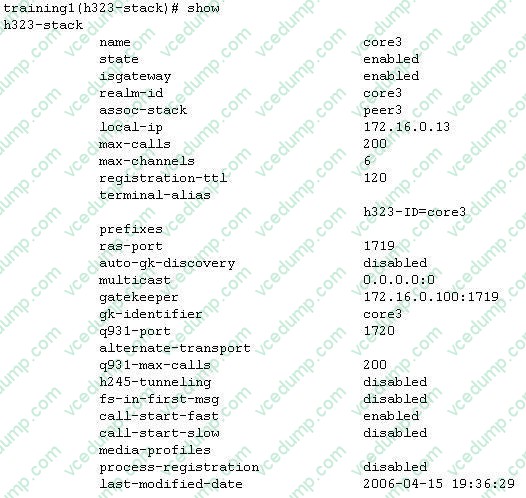

  Examine the H323 stack configuration below.



  Based on the information above, which one of the following IP addresses should be configured as a hip-ip-address in the appropriate network interface?

  A. 0.0.0.0
  B. 172.16.0.100
  C. 172.16.0.13
  D. 172.16.0.0
  C. 172.16.0.13
