Acme Packet AP0-001 Online Practice Questions and Exam Preparation

Acme Packet AP0-001 Online Questions & Answers

• Question 41:

  In a Net-Net 4000 high availability (HA) architecture, the standby Net-Net 4000 sends ARP requests using which one of the following?

  A. The utility IP address and its hard coded MAC address.
  B. The IP address and its hard coded MAC address.
  C. The virtual IP address and its virtual MAC address.
  D. The utility IP address and the configured virtual MAC address.
  A. The utility IP address and its hard coded MAC address.

• Question 42:

  __________ is the Net-Net 4000 internal SIP proxy, responsible for processing the SIP header addressing information and passing the signaling to the egress realm

  A. Sipd
  B. Mbcd
  C. Algd
  D. Sipp
  A. Sipd

• Question 43:

  High availability (HA) nodes identify one another by their __________ names.

  A. Identifier
  B. Host
  C. mib-system-name
  D. target
  D. target

• Question 44:

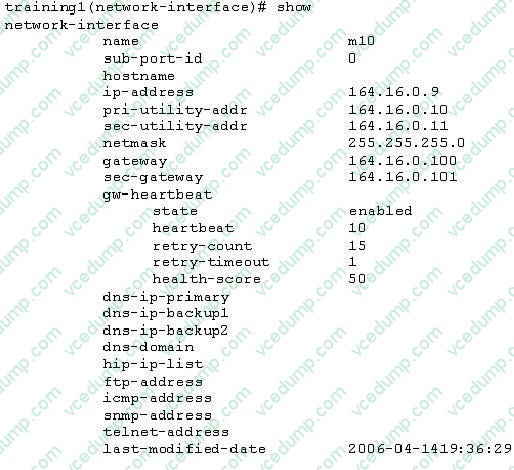

  Examine the output below from the network interface configuration.



  When the Net-Net 4000 does not get an ARP response from the device configured as its gateway in the configured retry time period, it will____________.

  A. send traffic to the device configured in the sec-gateway field
  B. decrement its health score to 50 which may result in a failover to the standby
  C. use the Virtual Router Redundancy Protocol (VRRP) to determine a new default gateway
  D. use the Virtual Router Redundancy Protocol (VRRP) to the host(s) instead of the primary gateway
  B. decrement its health score to 50 which may result in a failover to the standby

• Question 45:

  To view an existing multiple instance element configuration you can go to the correct branch of the configuration tree and _______________.

  A. select the element and then issue the show command
  B. enter the name of the element and then issue the show command
  C. type show and select from the displayed list
  D. type show
  A. select the element and then issue the show command

• Question 46:

  What sip-config option will limit the number of routes that the Net-Net 4000 attempts after prioritizing all local policies for a new inbound SIP call?

  A. max-routes
  B. route-limit
  C. next-hops
  D. hop-limit
  A. max-routes

• Question 47:

  Which of the following is not a potential cause for a switchover in a high availability (HA) scenario?

  A. The notify berpd force command was issued.
  B. The standby Net-Net 4000 did not receive a heartbeat packet within the configured advertisement time.
  C. A failure decremented the heath score below a configured threshold.
  D. The CPU utilization exceeded 90%.
  D. The CPU utilization exceeded 90%.

• Question 48:

  When associating network interfaces to a physical interface on the Net-Net 4000, the ___________ fields must contain the same unique ID.

  A. sub-port-id
  B. name
  C. unique-id
  D. identifier
  B. name

• Question 49:

  When configuring the Net-Net 4000, __________ SIP interface(s) is/are allowed per realm, and __________ SIP port(s) is/are allowed for a SIP interface.

  A. multiple multiple
  B. 1 1024
  C. multiple 999
  D. 1 multiple
  D. 1 multiple

• Question 50:

  To enable the Net-Net 4000 to provide next hop signaling load balancing, which two of the following licenses must be installed?

  A. session agent group
  B. load balancing
  C. routing
  D. local policy
  B. load balancing
  C. routing
