Cisco 800-150 Online Practice Questions and Exam Preparation

Cisco 800-150 Online Questions & Answers

• Question 1:

  DRAG DROP

  Drag and drop the TFTP statements from the left onto the corresponding categories on the right.

  Select and Place:





  Explanation

• Question 2:

  DRAG DROP

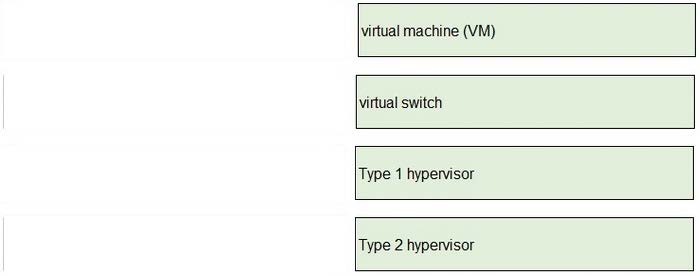

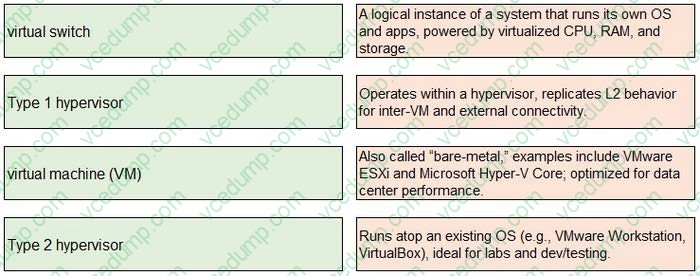

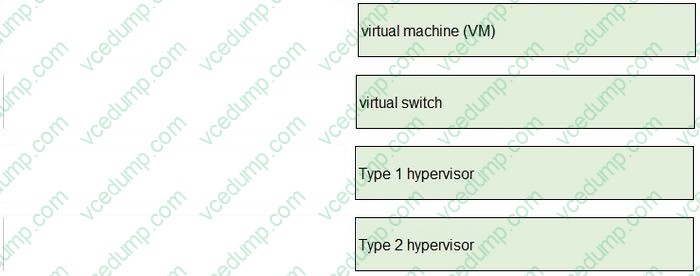

  Drag and drop the virtualized data center components from the left onto the corresponding descriptions on the right.

  Select and Place:





  Explanation

• Question 3:

  DRAG DROP

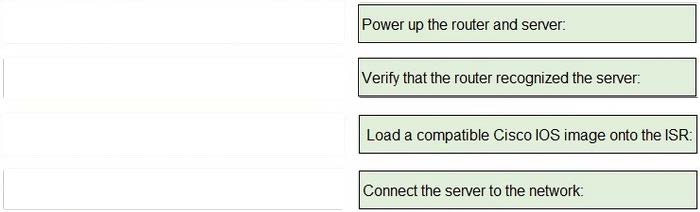

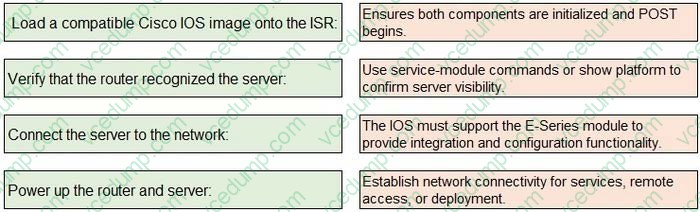

  Drag and drop the actions that must be taken after installing an E-Series server from the left into order on the right.

  Select and Place:





  Explanation

  In the FLDTEC course, underMaintenance and RMA Procedures, Cisco outlines a specific sequence for bringing up anE-Series server modulein an ISR router. The sequenceensures proper recognition, IOS compatibility, and network readiness:

  Power up the router and server: Ensures both components are initialized and POST begins.

  Verify that the router recognized the server: Use service-module commands or show platform to confirm server visibility.

  Load a compatible Cisco IOS image onto the ISR: The IOS must support the E-Series module to provide integration and configuration functionality.

  Connect the server to the network: Establish network connectivity for services, remote access, or deployment.

  This structured approach is essential for minimizing errors duringmodular hardware upgrades or RMAsin the field.

• Question 4:

  DRAG DROP

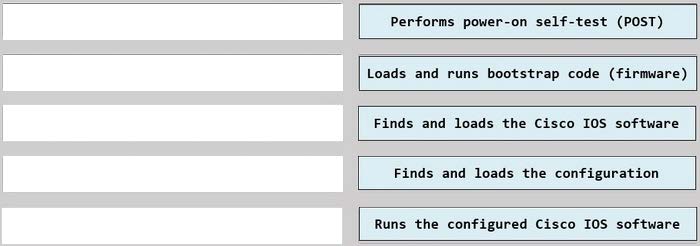

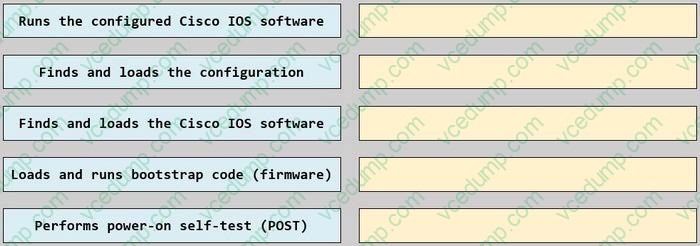

  Drag and drop the steps of the boot sequence process of a Cisco device into order on the right.

  Select and Place:





  Explanation

  This startup process is thoroughly described in theFLDTECcourse and alignswith Cisco's standard IOS boot process:

  POST (Power-On Self-Test):Verifies hardware functionality including memory and interfaces. This occurs immediately upon powering the device.

  Bootstrap Code Execution:Bootstrap is a small program in ROM that initiates the boot process.

  Cisco IOS Loading:Bootstrap locates and loads the IOS from flash memory or another source (e.g., TFTP).

  Configuration Loading:The router then loads the startup-config from NVRAM (if available).

  IOS Execution:Once the configuration is loaded, the device enters operational mode and executes the IOS with the loaded config.

  This sequence is vital for field technicians to understand for troubleshooting boot failures or performing device recoveries.

• Question 5:

  DRAG DROP

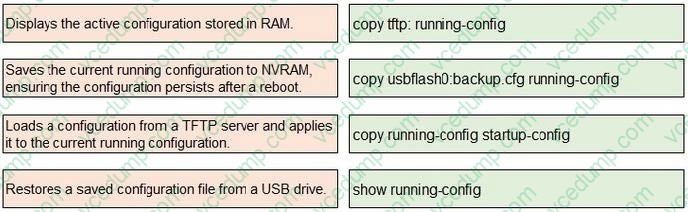

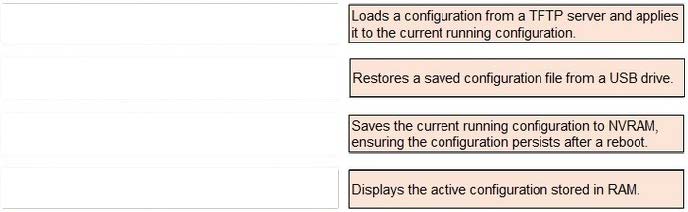

  Drag and drop the configuration tasks for restoring software from the left onto the corresponding commands on the right.

  Select and Place:





  Explanation

  These command associations are part of Cisco IOS essentials taught in FLDTEC's "Device Configuration and Verification" topic.

  Here's how each command functions:

  show running-config

  Displays the active configuration stored in RAM.

  This command is used to verify the current settings on a Cisco device.

  copy running-config startup-config

  Saves the current running configuration to NVRAM, ensuring the configuration persists after a reboot.

  This is critical after making changes to devicesettings.

  copy tftp: running-config

  Loads a configuration from a TFTP server and applies it to the current running configuration.

  Often used during remote device setup or restoration.

  copy usbflash0:backup.cfg running-config

  Restores a saved configuration file from a USB drive.

  Useful in field operations where physical backup media is used during maintenance.

  These tasks are routine for field technicians performing configuration backups, restorations, and diagnostics in Cisco environments.

• Question 6:

  DRAG DROP

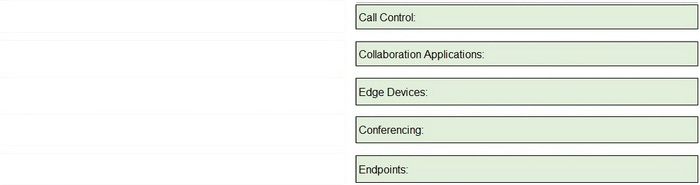

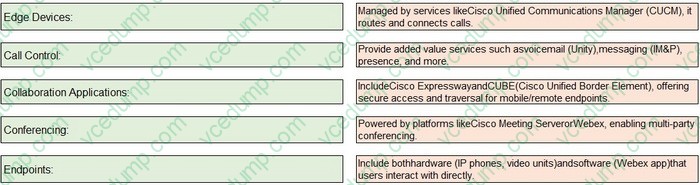

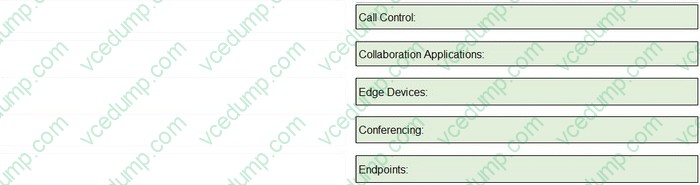

  Drag and drop the Cisco collaboration components from the left onto the corresponding descriptions on the right.

  Select and Place:





  Explanation

• Question 7:

  DRAG DROP

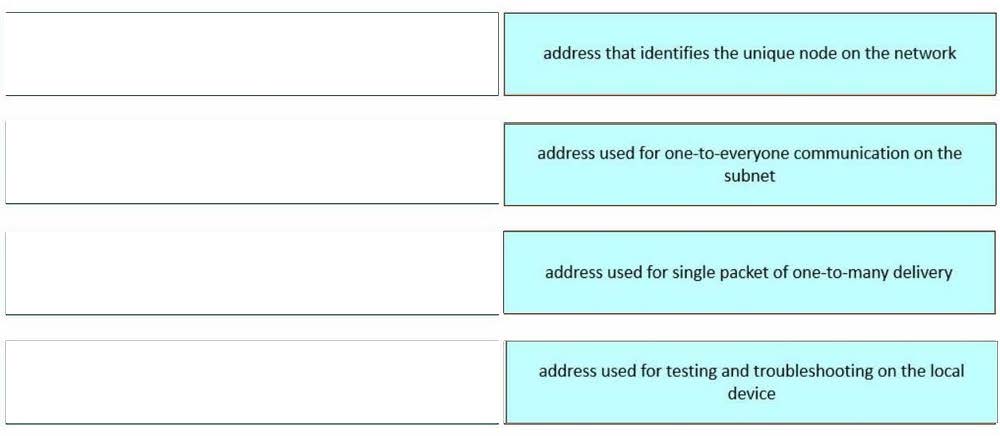

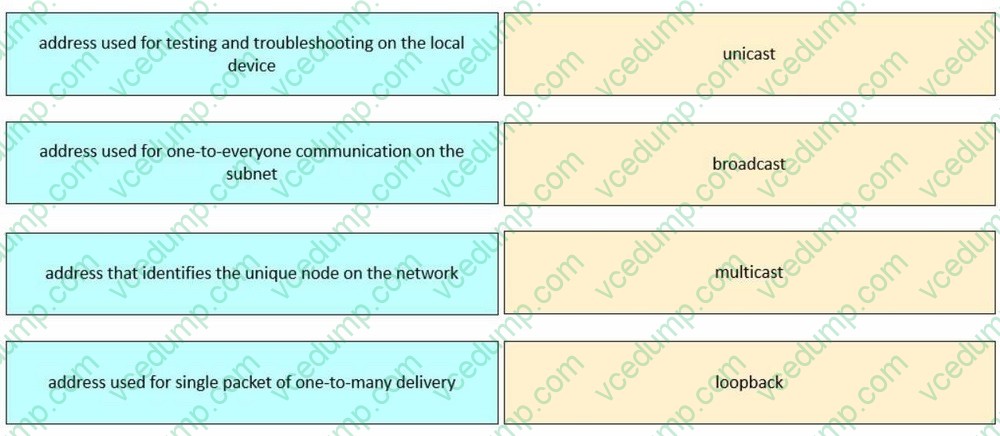

  Drag and drop the descriptions from the left onto the corresponding IPv4 addressing modes on the right.

  Select and Place:





  Explanation

• Question 8:

  DRAG DROP

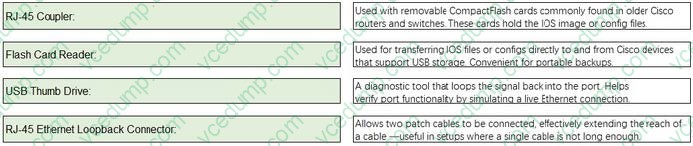

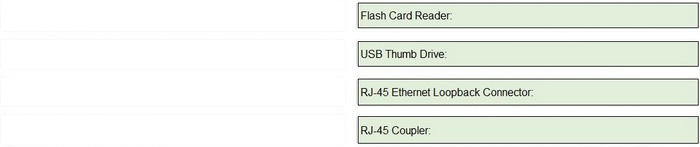

  Drag and drop the tools from the left onto the corresponding primary functions on the right.

  Select and Place:





  Explanation

• Question 9:

  DRAG DROP

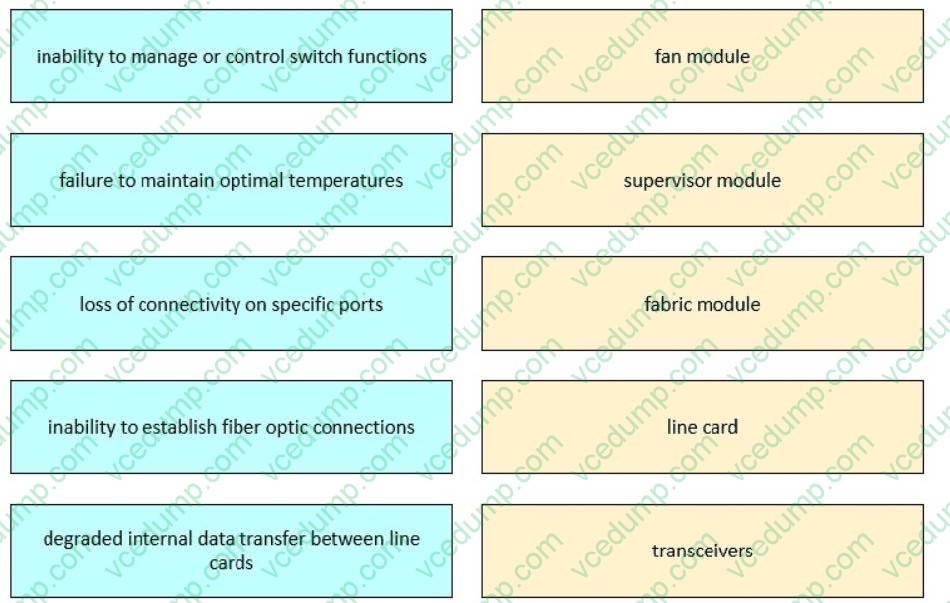

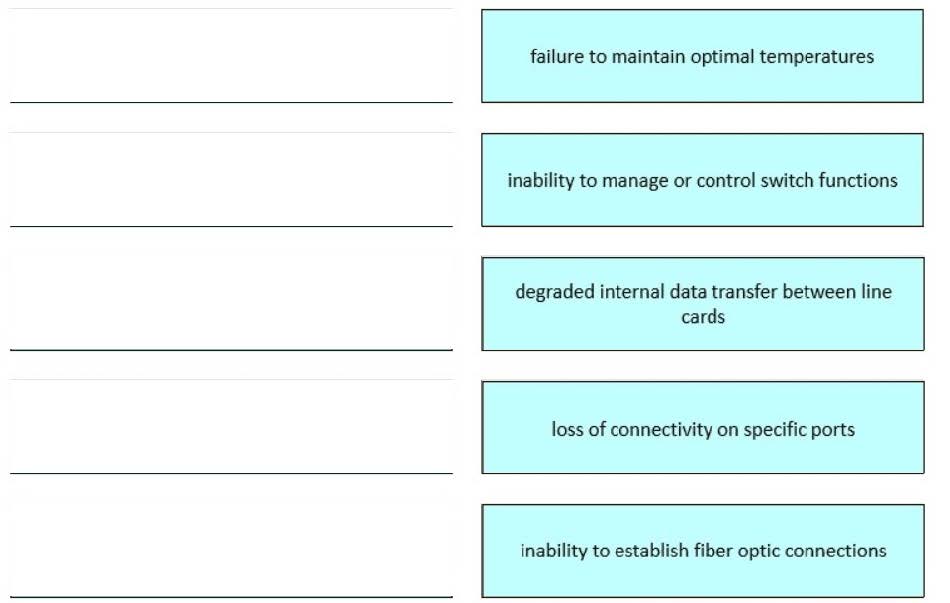

  Drag and drop the failures from the left onto the responsible devices in the MDS field- replaceable unit on the right.

  Select and Place:





  Explanation

• Question 10:

  DRAG DROP

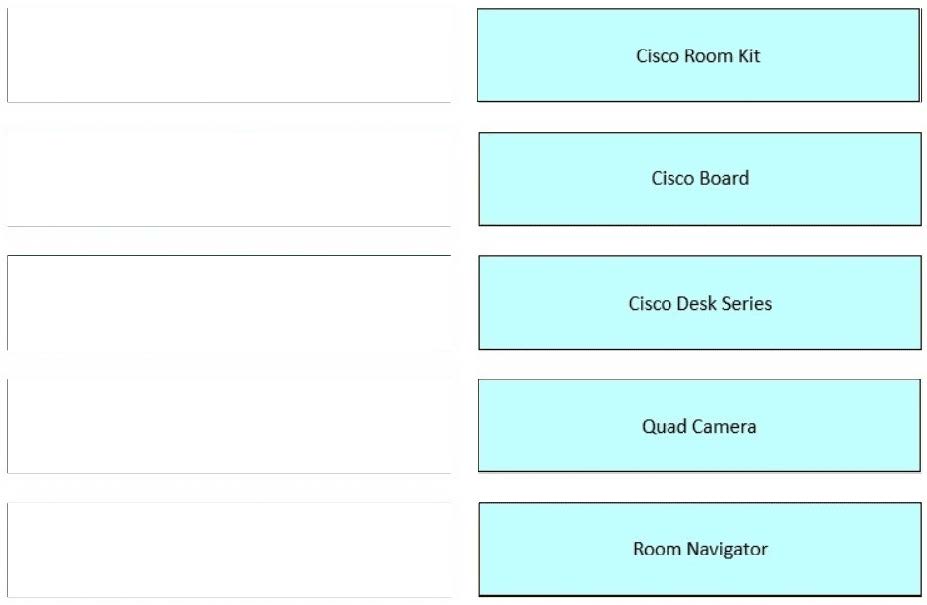

  Drag and drop the Cisco collaboration endpoints from the left onto the corresponding descriptions on the right.

  Select and Place:





  Explanation
