• Question 51:

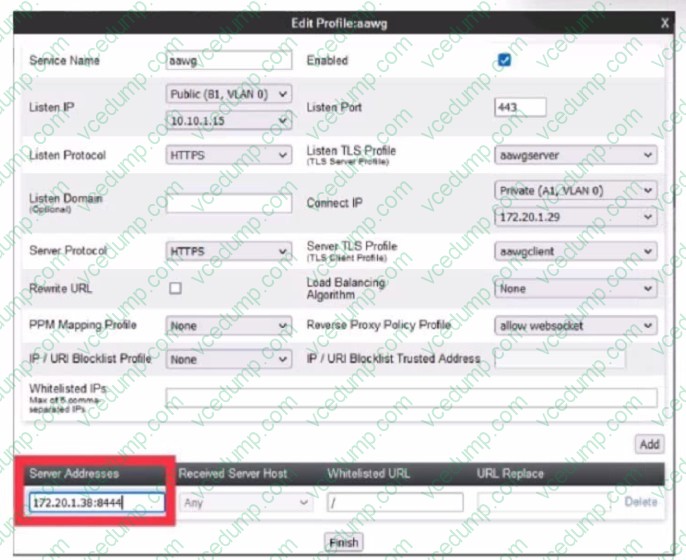

  Refer to the exhibit.



  When configuring a Reverse Proxy for the Avaya Aura Web Gateway (AAWG) in the Avaya Session Border Controller for Enterprise (ASBCE), what is the significance of using port 8444 in the Server Address field?

  A. This port should match the Front-end port for external access on the AAWG so that AAWG sends the media path for external calls through the ASBCE STUN/TURN server.
  B. It is the default listen port on the AAWG used for all WebRTC call signalling.
  C. It's the default port used for ICE/STUN/TURN messages on the AAWG.
  D. It's used for remote access to the AAWG web interface.
  B. It is the default listen port on the AAWG used for all WebRTC call signalling.

  ---

  Explanation/Reference:

  When configuring a Reverse Proxy for the Avaya Aura Web Gateway (AAWG) in the Avaya Session Border Controller for Enterprise (ASBCE), the Server Address field is used to specify the IP address or FQDN and port of the AAWG server. The port used in this field shouldmatch the listen port on the AAWG server that is used for all WebRTC call signalling. The default listen port on the AAWG server is 8444, which is also used by default in the Server Address field of the ASBCE Reverse Proxy configuration. The Reverse Proxy allows external clients to access the AAWG server securely and transparently through the ASBCE

• Question 52:

  Which statement about the Avaya Aura Media Server (AAMS) associated with the Avaya Aura Web Gateway (AAWG) is true?

  A. The AAMS is only used for calls to Avaya Spaces Calling from outside the corporate network.
  B. When a call is established using Avaya Spaces Calling, the AAMS processes the media until the Avaya Communication Manager shuffles the call.
  C. When Avaya Spaces Calling is used by a User to make a call to another User, the media path is always direct, bypassing the AAMS.
  D. For a call established to or from Avaya Spaces Calling, the AAMS processes the media for the duration of the call.
  D. For a call established to or from Avaya Spaces Calling, the AAMS processes the media for the duration of the call.

  ---

  Explanation/Reference:

  The Avaya Aura Media Server (AAMS) associated with the Avaya Aura Web Gateway (AAWG) is used for media processing for calls to or from Avaya Spaces Calling. Avaya Spaces Calling is a softphone that provides calling features to users of Avaya Spaces by leveraging their existing Avaya infrastructure. When a user makes or receives a call using Avaya Spaces Calling, the AAWG handles the WebRTC call signaling and the AAMS handles the media. The AAMS converts the WebRTC media to SIP media and vice versa, and provides services such as announcements, music on hold, conferencing, transcoding, and recording. The AAMS processes the media for the duration of the call, regardless of whether the call is shuffled or not by Communication Manager

• Question 53:

  You are deploying the Avaya Aura Presence Services on Avaya Breeze?

  When looking under Elements > Avaya Breeze> Service Management > Services in Avaya Aura System Manager, which status would you expect to see for a Presence Services snap-in that is ready to support Presence and IM?

  A. Active
  B. Installed
  C. Loaded
  D. Accepting
  A. Active

  ---

  Explanation/Reference:

  When deploying the Avaya Aura Presence Services on Avaya Breeze? you can check the status of the Presence Services snap-in in System Manager, under Elements > Avaya Breeze> Service Management > Services. The status indicates the state of the snap-in on the Avaya Breeze?cluster. The status Active means that the snap-in is running and ready to support Presence and IM. The other statuses are either intermediate or error states that indicate that the snap-in is not fully functional or operational.

• Question 54:

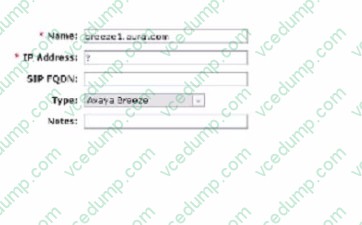

  Refer to the exhibit.



  You are creating a SIP Entity for Avaya Breeze?hosting the Avaya Aura Presence Services in System Manager > Elements > Routing > SIP Entities.

  What must be entered in the field labeled IP Address?

  A. General Purpose Cluster IP Address or FQDN
  B. Core Platform Cluster IP Address or FQDN
  C. Avaya Breeze?server Security Module IP Address or FQDN
  D. Avaya Breeze?server Management IP Address or FQDN
  C. Avaya Breeze?server Security Module IP Address or FQDN

  ---

  Explanation/Reference:

  When creating a SIP Entity for Avaya Breeze?hosting the Avaya Aura Presence Services, you need to enter the IP address or FQDN of the Avaya Breeze?server Security Module (SM100) in the field labeled IP Address. The SM100 is a component of the Avaya Breeze?server that provides security and encryption functions for SIP signaling and media. The SM100 IP address or FQDN is used by the Presence Services snap-in to communicate with other SIP entities in the network, such as Session Manager or Communication Manager

• Question 55:

  Which CLI tool is used to trace messages in real-time as they pass through the Avaya Session Border Controller for Enterprise (ASBCE)?

  A. start trace
  B. tracesbc
  C. tracePackets
  D. SIPtracer start
  B. tracesbc

  ---

  Explanation/Reference:

  The CLI tool that is used to trace messages in real-time as they pass through the Avaya Session Border Controller for Enterprise (ASBCE) is tracesbc. The tracesbc tool is a CLI tool that runs on the SBC component of the ASBCE server and captures and displays SIP messages and media statistics for calls that traverse the ASBCE server. You can use various filters and options to specify which calls or messages you want to trace. For example, you can filter by source or destination IP address, port, protocol, or call ID. You can also specify how long you want to run the trace and how many messages you want to display. The tracesbc tool can help you troubleshoot and diagnose issues with SIP registration and call setup.

• Question 56:

  What is the correct procedure for connecting to the Application Enablement Services (AES) command-line interface (CLI), and the default login ID?

  A. Use PuTTY or equivalent to SSH to < AES IP address > using port 22, then enter login=cust.
  B. Use PuTTY or equivalent to SSH to < AES IP address > using port 22, then enter login=craft.
  C. Use PuTTY or equivalent to connect to < AES IP address > using port 21, then enter login=admin.
  D. Use PuTTY or equivalent to SSH to < AES IP address > using port 222, then enter login = ipcs.
  B. Use PuTTY or equivalent to SSH to < AES IP address > using port 22, then enter login=craft.

  ---

  Explanation/Reference:

  To connect to the Application Enablement Services (AES) command-line interface (CLI), you need to use a secure shell (SSH) client, such as PuTTY, and thedefault login ID. The AES CLI is a text-based interface that allows you to configure

  and manage the AES server and its features. You can access the AES CLI using any SSH client that supports SSH version 2. The procedure for connecting to the AES CLI is as follows:

  Launch the SSH client on your administrative workstation. Enter the IP address of the AES server that you want to connect to, and specify port 22 for SSH communication.

  Click Connect or Open to initiate the connection. The server displays a security alert window the first time you connect. If you see this window, click Yes or Accept to accept the server's host key. The system displays a login prompt. Enter the

  login ID for accessing the AES CLI. The default login ID for the AES CLI is craft, which is a system administrator account that has full access to all features and functions of the AES server. The system displays a password prompt. Enter the

  password for the craft account. The default password for the craft account is craft. You can change the password or create other user accounts with different access levels using the Security Database feature of the AES web interface.

• Question 57:

  To trace SIP messages exchanged during a Remote Worker registration in real-time, which Avaya Session Border Controller for Enterprise (ASBCE) CLI tool is used?

  A. tracesbc
  B. traceRW
  C. tracexu
  D. traceReg
  A. tracesbc

  ---

  Explanation/Reference:

  To trace SIP messages exchanged during a Remote Worker registration in real-time, you can use the tracesbc CLI tool on the Avaya Session Border Controller for Enterprise (ASBCE). The tracesbc tool is used to capture and display SIP messages and media statistics for calls that traverse the ASBCE server. You can use various filters and options to specify which calls or messages you want to trace. For example, you can filter by source or destination IP address, port, protocol, or call ID. You can also specify how long you want to run the trace and how many messages you want to display. The tracesbc tool can help you troubleshoot and diagnose issues with Remote Worker registration and call setup

• Question 58:

  When deploying a Survivable Communication Manager (CM), which statement about the Server ID value is true?

  A. The Server ID of a Survivable CM needs to match the server ID of the Main CM. The Server IDs must be an even/odd pair (N, N+l).
  B. Every CM server in the network needs to be assigned a unique Server ID including servers in a duplex pair.
  C. Every CM server in the network needs to be assigned a unique server ID, but both servers in a duplex pair must have the same Server ID.
  D. The Server ID Is a value found in the license file.
  B. Every CM server in the network needs to be assigned a unique Server ID including servers in a duplex pair.

• Question 59:

  Which statement describes the purpose of the tracePS CLI tool?

  A. It captures voice and video media packets in real-time.
  B. It captures real-time XMPP traffic.
  C. It captures packet size statistics for every call in Avaya Aura
  D. It captures contact details for every user subscribed to Avaya Aura Presence Services.
  B. It captures real-time XMPP traffic.

  ---

  Explanation/Reference:

  The tracePS CLI tool is a command-line interface tool that allows you to capture and analyze XMPP traffic between Avaya Aura Presence Services and other XMPP servers or clients. You can use this tool to troubleshoot issues related to presence, instant messaging, federation, or integration with third-party applications. You can also use this tool to generate reports on XMPP traffic statistics, such as message count, message size, message type, and message direction1

• Question 60:

  Refer to the exhibit.



  With Dynamic Licensing configured in the Avaya Session Border Controller for Enterprise (ASBCE), when will the ASBCE issue a request to the WebLM server to allocate additional licenses based on "Fetch Count" value?

  A. when the percentage of free (available) standard sessions licenses reaches 50% (High Watermark)
  B. when the percentage of free (available) standard sessions licenses reaches 30% (Low Watermark)
  C. when the percentage of free (available) standard sessions licenses drops below 30% (Low Watermark)
  D. when the percentage of free (available) standard sessions licenses drops below 50% (High Watermark)
  C. when the percentage of free (available) standard sessions licenses drops below 30% (Low Watermark)

  ---

  Explanation/Reference:

  With Dynamic Licensing configured in the Avaya Session Border Controller for Enterprise (ASBCE), the ASBCE will issue a request to the WebLM server to allocate additional licenses based on the Fetch Count value when the percentage of free (available) standard sessions licenses drops below 30% (Low Watermark). Dynamic Licensing is a feature that allows the ASBCE to dynamically allocate and release licenses from a pool of licenses managed by the WebLM server. The Fetch Count value is a parameter that specifies how many licenses are requested from the WebLM server at a time. The Low Watermark value is a parameter that specifies the threshold percentage of free licenses that triggers a request for more licenses from the WebLM server. The High Watermark value is a parameter that specifies the threshold percentage of free licenses that triggers a release of unused licenses to the WebLM server
