Microsoft 70-743 Online Practice Questions and Exam Preparation

Microsoft 70-743 Online Questions & Answers

• Question 131:

  You have a Windows Server 2016 Hyper-V failover cluster that contains two nodes named Node1 and Node2.

  On Node1, you create a virtual machine named VM01 by using Hyper-V Manager.

  You need to configure VM01 to move to Node2 automatically if Node1 becomes unavailable.

  What should you do?

  A. Form Failover Cluster Manager, run the Configure Role actions.
  B. From Windows PowerShell, run the Enable-VMReplication cmdlet.
  C. From Hyper-V Manager, click Node1, and then modify the Hyper-V settings.
  D. From Hyper-V Manager, click VM01, and click Enable Replication.
  A. Form Failover Cluster Manager, run the Configure Role actions.

  ---

  References: http://windowsitpro.com/hyper-v/make-vm-highly-available-windows-server-2012

• Question 132:

  Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some questions sets might have more than one correct solutions,

  while others might not have a correct solution.

  After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

  You have a server named Server1 that runs Windows Server 2016.

  Server1 is configured as a VPN server. Server1 is configured to allow domain users to establish VPN connections from 06:00 to 18:00, every day of the week.

  You need to ensure that domain users can establish VPN connections only between Monday and Friday.

  Solution: From Active Directory Users and Computers, you modify the Dial-in properties of the user accounts.

  Does this meet the goal?

  A. Yes
  B. No
  B. No

• Question 133:

  You have a Hyper-V host named Server1 that runs Windows Server 2016. Server1 has two virtual machines named VM1 and VM2.

  You discover that VM1 and VM2 can communicate with Server1 over the network.

  You need to ensure that VM1 and VM2 can communicate with each other only. The solution must prevent VM1 and VM2 from communicating with Server1.

  Which cmdlet should you use?

  A. Enable-VMSwitchExtension
  B. Set-NetNeighbor
  C. Set-VMSwitch
  D. Remove-VMSwitchTeamMember
  C. Set-VMSwitch

  ---

  The virtual switch needs to be configured as an "Private" switch.

  Explanation:

  PS C:\> Set-VMSwitch WA -SwitchType Private

  This example converts a virtual switch named WA to an Private switch.

  -SwitchType

  Converts a virtual switch from one type to another. Allowed values are Internal or Private.

  The virtual switch needs to be configured as an "Private" switch.

• Question 134:

  Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2016.

  Server1 has IP Address Management (IPAM) installed. IPAM is configured to use the Group Policy based provisioning method. The prefix for the IPAM Group Policy objects (GPOs) is IP.

  From Group Policy Management, you manually rename the IPAM GPOs to have a prefix of IPAM.

  You need to modify the GPO prefix used by IPAM.

  What should you do?

  A. Click Configure server discovery in Server Manager.
  B. Run the Set-IpamConfiguration cmdlet.
  C. Run the Invoke-IpamGpoProvisioning cmdlet.
  D. Click Provision the IPAM server in Server Manager.
  B. Run the Set-IpamConfiguration cmdlet.

  ---

  The Set-IpamConfiguration cmdlet modifies the configuration for the computer that runs the IPAM server.

  The -GpoPrefix parameter specifies the unique Group Policy object (GPO) prefix name that IPAM uses to create the group policy objects. Use this parameter only when the value of the ProvisioningMethod parameter is set to Automatic.

  References: https://docs.microsoft.com/en-us/powershell/module/ipamserver/set-ipamconfiguration?view=win10-ps

• Question 135:

  Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while

  others might not have a correct solution.

  After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

  Your network contains an Active Directory forest named contoso.com. The forest contains a child domain named eu.contoso.com.

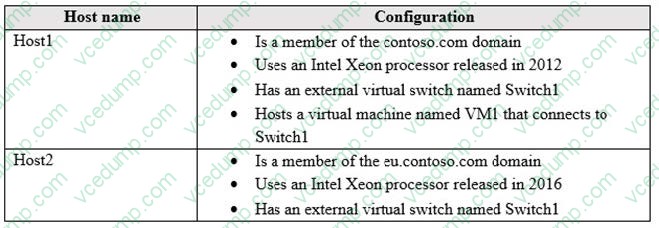

  You plan to implement live migration between two Hyper-V hosts that run Windows Server 2016. The hosts are configured as shown in the following table.



  You need to ensure that you can perform a live migration of VM1 from Host1 to Host2.

  Solution: On Host1 and Host2, you create a private switch named Priv1, and then you connect VM1 to Priv1.

  Does this meet the goal?

  A. Yes
  B. No
  B. No

  ---

  To set up non-clustered hosts for live migration, you'll need:

  A user account with permission to perform the various steps.

  The Hyper-V role installed on the source and destination servers.

  Source and destination computers that either belong to the same Active Directory domain, or belong to domains that trust each other.

  The Hyper-V management tools installed on a computer running Windows Server 2016 or Windows 10, unless the tools are installed on the source or destination server and you'll run the tools from the server.

  References:

  https://docs.microsoft.com/en-us/windows-server/virtualization/hyper-v/deploy/set-up-hosts-for-live-migration-without-failover-clustering

• Question 136:

  Your company has 10 offices. Each office has a local network that contains several Hyper-V hosts that run Windows Server 2016. All of the offices are connected by high speed, low latency WAN links.

  You need to ensure that you can use QoS policies for Live Migration traffic between the offices.

  Which component should you install?

  A. the Canary Network Diagnostics feature
  B. the Network Controller server role
  C. the Data Center Bridging feature
  D. the Multipath I/O feature
  E. the Routing role service
  C. the Data Center Bridging feature

  ---

  NICs with a standard NIC team and two RDMA NICs

  This configuration emphasizes the use of RDMA. To converge other workloads such as Live Migration, Cluster and Management on the same RDMA NICs, the NICs must also support Data Center Bridging (DCB). To provide high availability

  to Storage, you can enable Microsoft Multipath I/O (MPIO).

  With this configuration, you can apply all QoS features, including Bandwidth Management, Classification and Tagging, and PFC in the management operating system.

  References: https://technet.microsoft.com/en-us/library/jj735302(v=ws.11).aspx

• Question 137:

  HOTSPOT

  You have a DNS server named Server1 that runs Windows Server 2016. Server1 has network interfaces that have the following IP addresses:

  131.107.0.100

  The internal network uses an IP address space of 10.0.0.0/16.

  Server1 provides DNS name resolution to both internal and external clients. Server1 hosts the primary zone for contoso.com.

  You need to configure Server1 to meet the following requirements:

  Internal clients must be able to use Server 1 to resolve internal-based DNS names.

  * External clients must not be able to use Server1 to resolve Internal-based DNS names.

  * External clients must able to use Server1 to resolve names in the contoso.com zone.

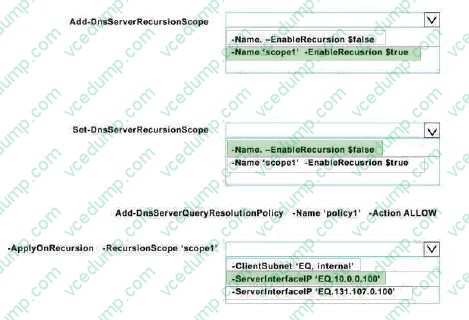

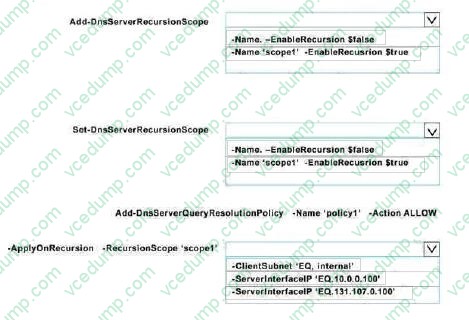

  Which commands should you run on Server1.? To answer select the appropriate option in answer area.

  Hot Area:





• Question 138:

  Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some questions sets might have more than one correct solutions,

  while others might not have a correct solution.

  After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

  You have a Hyper-V named Server1. The network adapters on Server1 have single root I/O virtualization (SR-IOV) enabled.

  Server1 hosts a virtual machine named VM1 that runs Windows Server 2016.

  You need to identify whether SR-IOV is used by VM1.

  Solution: On Server1, you open Hyper-V Manager and view the integration Services settings of VM1.

  Does this meet the goal?

  A. Yes
  B. No
  B. No

• Question 139:

  HOTSPOT

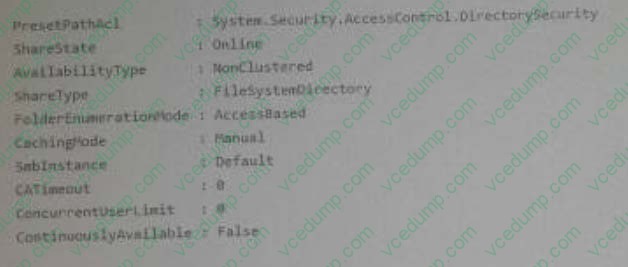

  Your network contains an Active Directory domain named adatum.com. The domain contains two servers named Server1 and Server2 that run Windows Server 2016. The domain contains three users named User1, User 2 and User 3. Server 1 has a share named Share1 that has the following configurations.

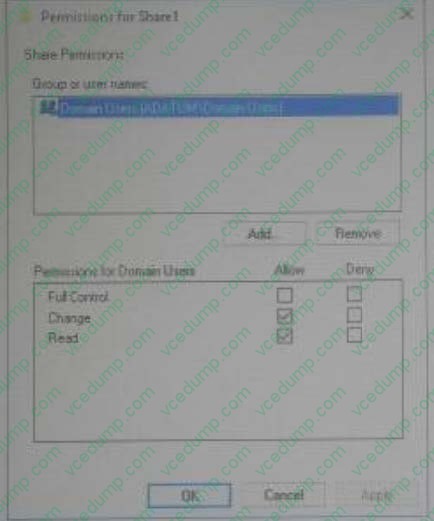

  The Share permissions for Share1 are configured as shown in Share1 Exhibit.

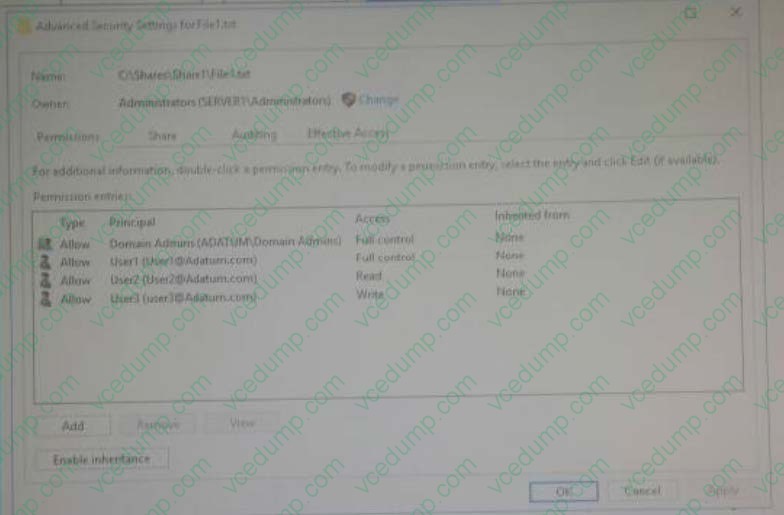

  Share1 contains a file named File1.txt. The Advanced Security settings for File1.txt are configured as shown in the File1.txt exhibit.

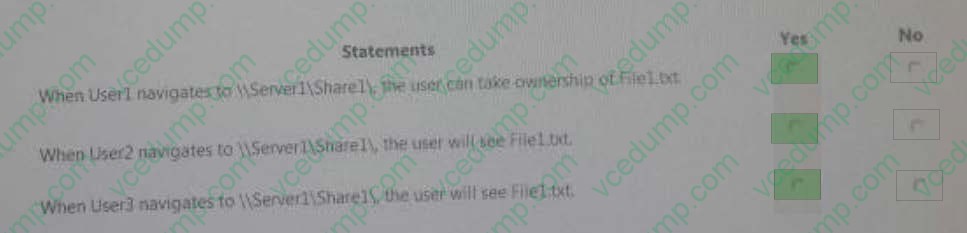

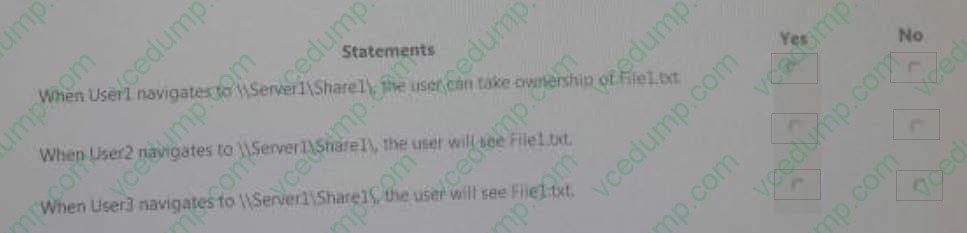

  Select the appropriate statement from below. Select Yes if the state is true , otherwise no.

  Hot Area:





• Question 140:

  Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some questions sets might have more than one correct solutions,

  while others might not have a correct solution.

  After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

  You have a Hyper-V named Server1. The network adapters on Server1 have single root I/O virtualization (SR-IOV) enabled.

  Server1 hosts a virtual machine named VM1 that runs Windows Server 2016.

  You need to identify whether SR-IOV is used by VM1.

  Solution: You sign in to VM1. You open Device Manager and view the properties of the network adapters.

  Does this meet the goal?

  A. Yes
  B. No
  A. Yes
