Microsoft 70-743 Online Practice Questions and Exam Preparation

Microsoft 70-743 Online Questions & Answers

• Question 111:

  You have a server named Server1 that runs Windows Server 2016.

  Server1 has two network cards. One network card connects to your internal network and the other network card connects to the Internet.

  You plan to use Server1 to provide Internet connectivity for client computers on the internal network.

  You need to configure Server1 as a network address translation (NAT) server.

  Which server role or role service should you install on Server1 first?

  A. Network Controller
  B. Web Application Proxy
  C. Routing
  D. DirectAccess and VPN (RAS)
  C. Routing

  ---

  References: https://www.experiencingit.net/windows/windows-server-2016-nat-router/

• Question 112:

  You have a server named Server1 that runs Windows Server 2016.

  You need to install the DNS Server role on Server1.

  What should you run?

  A. the dnscmd.exe command
  B. the Install-Package cmdlet
  C. the Add-WindowsPackage cmdlet
  D. the Add-WindowsFeature cmdlet
  D. the Add-WindowsFeature cmdlet

• Question 113:

  You have a server named Server1 that runs Windows Server 2016. You need to configure Server1 as a multitenant RAS Gateway. What should you install on Server1?

  A. the Network Controller server role
  B. the Remote Access server role
  C. the Data Center Bridging feature
  D. the Network Policy and Access Services server role
  B. the Remote Access server role

  ---

  RAS Gateway - Multitenant. You can deploy RAS Gateway as a multitenant, software-based edge gateway and router when you are using Hyper-V Network Virtualization or you have VM networks deployed with virtual Local Area Networks (VLANs). With the RAS Gateway, Cloud Service Providers (CSPs) and Enterprises can enable datacenter and cloud network traffic routing between virtual and physical networks, including the Internet. With the RAS Gateway, your tenants can use point-so-site VPN connections to access their VM network resources in the datacenter from anywhere. You can also provide tenants with site-to-site VPN connections between their remote sites and your CSP datacenter. In addition, you can configure the RAS Gateway with BGP for dynamic routing, and you can enable Network Address Translation (NAT) to provide Internet access for VMs on VM networks.

  References: https://technet.microsoft.com/en-us/windows-server-docs/networking/remote-access/remote-access

• Question 114:

  You have an Active Directory domain that contains several Hyper-V hosts that run Windows Server 2016.

  You plan to deploy network virtualization and to centrally manage Datacenter Firewall policies.

  Which component must you install for the planned deployment?

  A. the Routing role service
  B. the Canary Network Diagnostics feature
  C. the Network Controller server role
  D. the Data Center Bridging feature
  C. the Network Controller server role

  ---

  Using Windows PowerShell, the REST API, or a management application, you can use Network Controller to manage the following physical and virtual network infrastructure:

  *

  Datacenter Firewall This Network Controller feature allows you to configure and manage allow/deny firewall Access Control rules for your workload VMs for both East/West and North/South network traffic in your datacenter. The firewall rules are plumbed in the vSwitch port of workload VMs, and so they are distributed across your workload in the datacenter. Using the Northbound API, you can define the firewall rules for both incoming and outgoing traffic from the workload VM. You can also configure each firewall rule to log the traffic that was allowed or denied by the rule.

  *

  Hyper-V VMs and virtual switches

  *

  Remote Access Service (RAS) Multitenant Gateways, Virtual Gateways, and gateway pools

  *

  Load Balancers

  References: https://technet.microsoft.com/en-us/library/dn859239.aspx

  https://docs.microsoft.com/en-us/windows-server/networking/sdn/technologies/network-controller/network-controller

• Question 115:

  You have a server named Server1 that runs Windows Server 2016 and has the Hyper-V server role installed.

  On Server1, you plan to create a virtual machine named VM1.

  You need to ensure that you can start VM1 from the network.

  What are two possible ways to achieve the goal? Each correct answer presents a complete solution.

  A. Create a generation 1 virtual machine that has a legacy network adapter.
  B. Create a generation 1 virtual machine and run the Enable-NetAdapterPackageDirect cmdlet.
  C. Create a generation 1 virtual machine and configure a single root I/O virtualization (SR-IOV) interface for the network adapter.
  D. Create a generation 2 virtual machine.
  A. Create a generation 1 virtual machine that has a legacy network adapter.
  D. Create a generation 2 virtual machine.

• Question 116:

  HOTSPOT

  Your network contains an Active Directory domain named contoso.com. The domain contains a member server named Server1 that runs Windows Server 2016.

  Server1 has IP Address Management (IPAM) installed. IPAM uses a Windows Internal Database.

  You install Microsoft SQL Server on Server1.

  You plan to move the IPAM database to SQL Server.

  You need to create a SQL Server login for the IPAM service account.

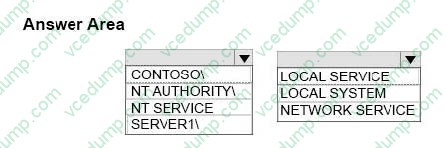

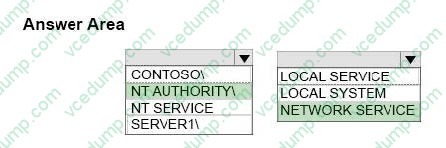

  For which user should you create the login? To answer, select the appropriate options in the answer area.

  Hot Area:





  ---

  References: https://blogs.technet.microsoft.com/yagmurs/2014/07/31/moving-ipam-database-from-windows-internal-database-wid-to-sql-server-located-on-the-same-server/

• Question 117:

  HOTSPOT

  You have a server named Server1 that runs Windows Server 2016 server.

  Server1 has the Docker daemon configured and has a container named Container1.

  You need to mount the folder C:\Folder1 on Server1 to C:\ContainerFolder in Container1.

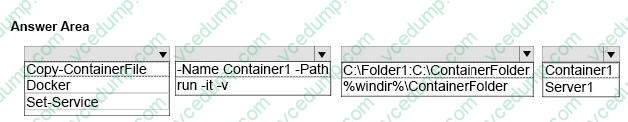

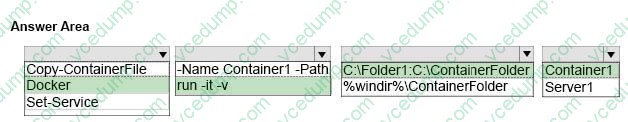

  Which command should you run? To answer, select the appropriate options in the answer area.

  Hot Area:





• Question 118:

  HOTSPOT

  Your network contains an Active Directory domain named contoso.com. The domain contains four servers named Server1, Server2, Server3, and Server4 that run Windows Server 2016.

  Server1 has IP Address Management (IPAM) installed. Server2, Server3, and Server 4 have the DHCP Server role installed. IPAM manages Server2, Server3, and Server4.

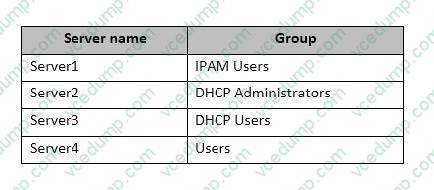

  A domain user named User1 is a member of the groups shown in the following table.

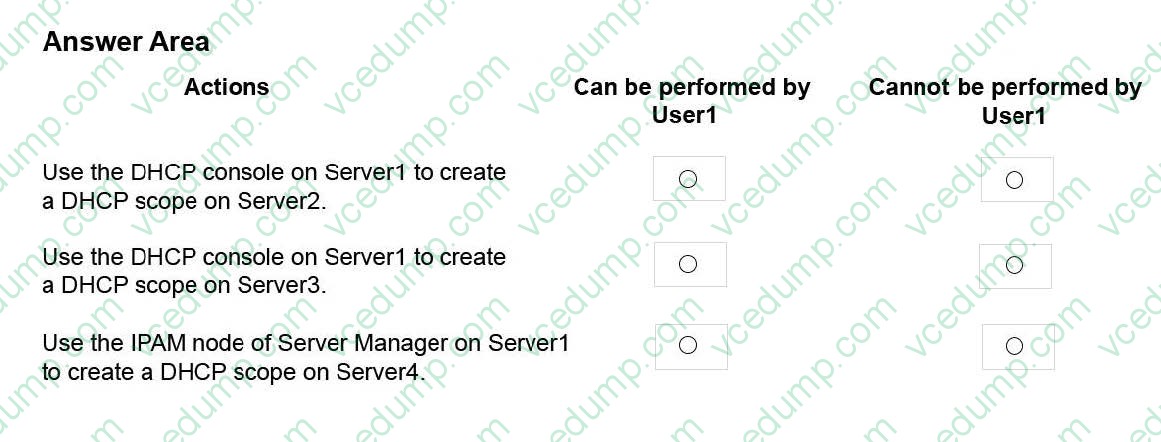

  Which actions can User1 perform? To answer, select the appropriate options in the answer area.

  Hot Area:





  ---

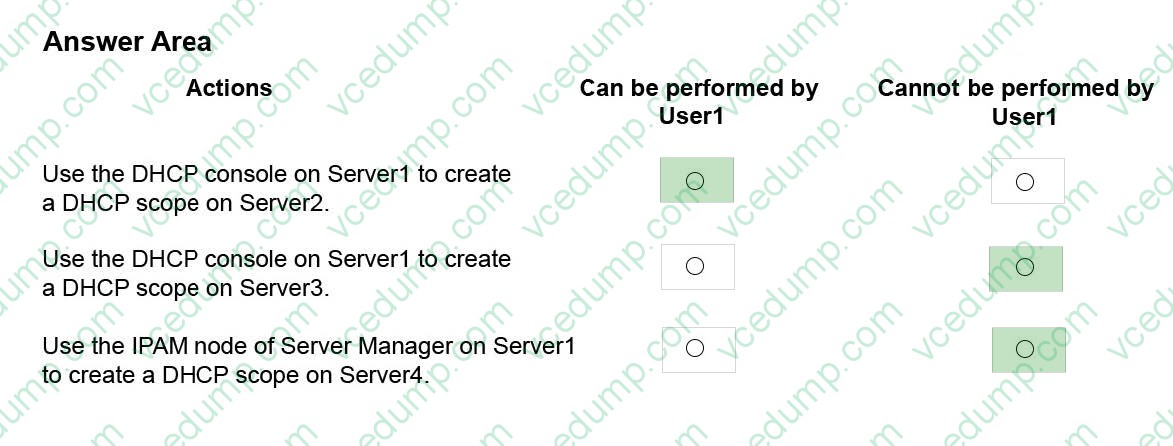

  Box 1: Can be performed by User1 DHCP Administrators can create DHCP scopes.

  Box 2: Cannot be performed by User1 DHCP Users cannot create scopes.

  Box 3: Cannot be performed by User1 IPAM users cannot creates copes. References: https://technet.microsoft.com/en-us/library/dn741281(v=ws.11).aspx#create_access_scope

• Question 119:

  Note: This question is part of a series of questions that use the same or similar answer choices. An answer choice may be correct for more than one question in the series. Each question is independent of the other questions in this series.

  Information and details provided in a question apply only to that question.

  You have a two-node Hyper-V cluster named Cluster1 at a primary location and a stand-alone Hyper-V host named Server1 at a secondary location.

  A virtual machine named VM1 runs on Cluster1.

  You configure a Hyper-V Replica of VM1 to Server1.

  You need to perform a Test Failover of VM1.

  Which tool should you use?

  A. the clussvc.exe command
  B. the cluster.exe command
  C. the Computer Management snap-in
  D. the configurehyperv.exe command
  E. the Disk Management snap-in
  F. the Failover Cluster Manager snap-in
  G. the Hyper-V Manager snap-in
  H. the Server Manager app
  G. the Hyper-V Manager snap-in

• Question 120:

  HOTSPOT

  Scenario:

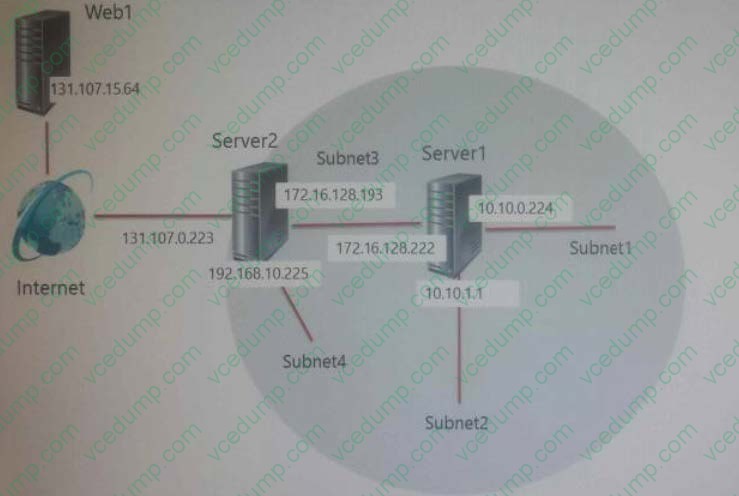

  You are a network administrator for a company named Contoso,Ltd. The network is configured as shown in the exhibit.



  You install the Remote Access server role on Server2.

  Server2 has the following configured.

  *Network address translation (NAT)

  *The DHCP Server server role

  The Security Policy of Contoso states that only TCP ports 80 and 443 are allowed from the internet to server2

  You identify the following requirements:

  * Add 28 devices to subnet2 for a temporary project.

  * Configure Server2 to accept VPN connections from the internet.

  * Ensure that devices on Subnet2 obtain TCP/IP settings from DHCP on Server2.

  End of Scenario:

  You deploy a computer named Computer8 to subnet4. Computer8 has an IP address of 192.168.10.230 and a subnet mask of 255.255.255.240 What is the broadcast address for Subnet4? To answer, select the appropriate options in the answer area.

  Hot Area:
