Microsoft 70-417 Online Questions & Answers

• Question 591:

  You have a server named Server1 that runs Windows Server 2012 R2. Server1 has the Hyper-V server role installed. On Server1, you create a virtual machine named VM1.

  VM1 has a legacy network adapter.

  You need to assign a specific amount of available network bandwidth to VM1.

  What should you do first?

  A. Add a second legacy network adapter, and then run the Set-VMNetworkAdaptercmdlet.
  B. Add a second legacy network adapter, and then configure network adapter teaming.
  C. Remove the legacy network adapter, and then run the Set-VMNetworkAdaptercmdlet.
  D. Remove the legacy network adapter, and then add a network adapter.
  D. Remove the legacy network adapter, and then add a network adapter.

  ---

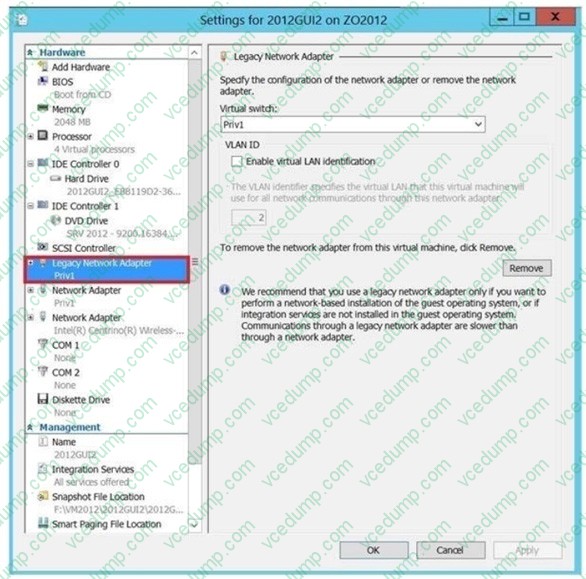

  The legacy adapter doesn't support bandwidth management (check screenshots below). and if we remove the legacy network adapter without adding a new one, what would we set with Set-VMNetworkAdapter? so the complete answer should be "Remove the legacy network adapter, then add a network adapter, and then run the Set -VMNetworkAdapter cmdlet" but we're asked for what we should do FIRST.

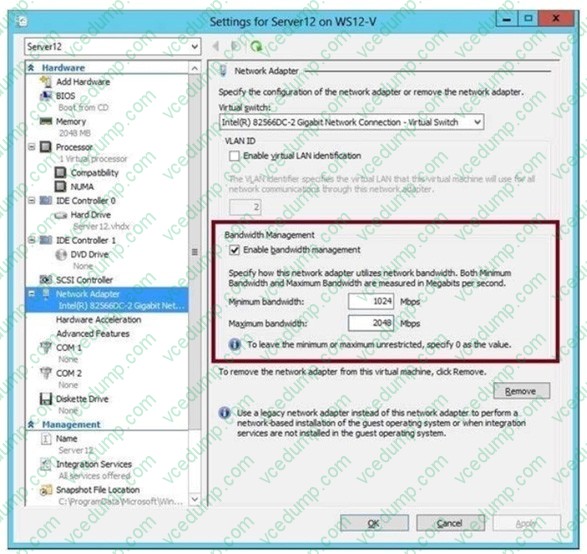

  (You'll see in the next screenshot that for a "Network adapter, bandwidth is managed here) http://technet.microsoft.com/en-us/library/hh848457.aspx Set-VMNetworkAdapter Configures features of the virtual network adapter in a virtual machine or the management operating system.[...] -MaximumBandwidthSpecifies the maximum bandwidth, in bits per second, for the virtual network adapter. The specified value is rounded to the nearest multple of eight. Specify zero to disable the feature. Bandwidth management Bandwidth management is a new feature in Windows Server 2012 R2 Hyper -V that enables you to set both a minimum and maximum Mbps of throughput for any virtual network adapter. In Windows Server 2008 R2, you could configure a maximum bandwidth but not a minimum. Now you can configure both a minimum and a maximum for each virtual network adapter. You enable and configure bandwidth management on a virtual network adapter in the settings of a VM, as shown in Figure 3-12. For either the Minimum Bandwidth or Maximum Bandwidth setting, configuring a value of 0 leaves that setting unrestricted.



  You can also use the Set-VMNetworkAdapter to configure minimum and maximum bandwidth on a virtual network adapter. As an alternative to specifying a value for Mbps, you can use this cmdlet to specify a relative bandwidth weight between 0 and 100 relative to other virtual network adapters. To ensure that all virtual network adapters are given an equal minimum or maximum bandwidth, you can assign the same bandwidth weight to all adapters.

• Question 592:

  Your network contains an Active Directory domain named contoso.com. The domain contains two servers named Server1 and Server2. Server1 runs Windows Server 2012 R2. 5erver2 runs Windows Server 2008 R2 Service Pack 1 (SP1)

  and has the DHCP Server server role installed.

  You need to manage DHCP on Server2 by using the DHCP console on Server1.

  What should you do first?

  A. From the Microsoft Management Console on Server1, add a snap-in.
  B. From Server Manager on Server2, enable Windows Remote Management.
  C. From Windows PowerShell on Server2, run Enable-PSRemoting.
  D. From Server Manager on Server1, install a feature.
  B. From Server Manager on Server2, enable Windows Remote Management.

  ---

  References: https://technet.microsoft.com/en-us/library/hh127071.aspx

• Question 593:

  Your role of Network Administrator at ABC.com includes the management of the Active Directory Domain Services (AD DS) domain named ABC.com. All domain controllers in the network run Windows Server 2012.

  You need to configure a UNIX-based DNS server. The UNIX server supports the SRV resource record but does not support dynamic updates.

  You log in to a Windows Server 2012 domain controller named ABC-DC8. ABC-DC8 is not configured as a DNS server.

  You need to import the SRV records required for ABC-DC8 into a primary DNS zone on the UNIX DNS server.

  How can you obtain a copy of the DNS SRV records for ABC-DC8?

  A. By running the ipconfig /displaydns command on ABC-DC8.
  B. By opening the ABC.com.dns file on ABC-DC8.
  C. By opening the netlogon.dns file on ABC-DC8.
  D. By running the nbtstat r command on ABC-DC8.
  C. By opening the netlogon.dns file on ABC-DC8.

• Question 594:

  Your network contains an Active Directory domain named contoso.com.

  The domain contains a domain controller named DC1 that runs Windows Server 2012 R2. DC1 has the DNS Server server role installed.

  The network contains client computers that run either Linux, Windows 7, or Windows 8.

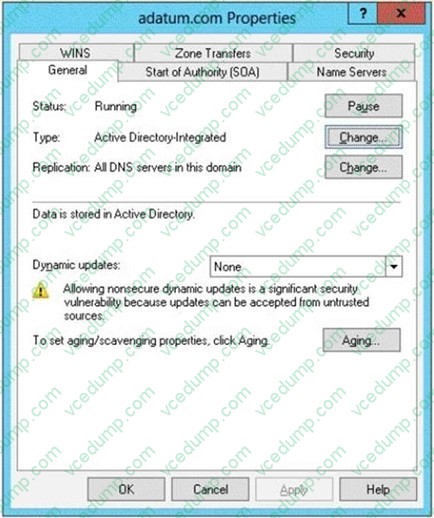

  You have a zone named adatum.com as shown in the exhibit. (Click the Exhibit button.)



  You plan to configure Name Protection on all of the DHCP servers.

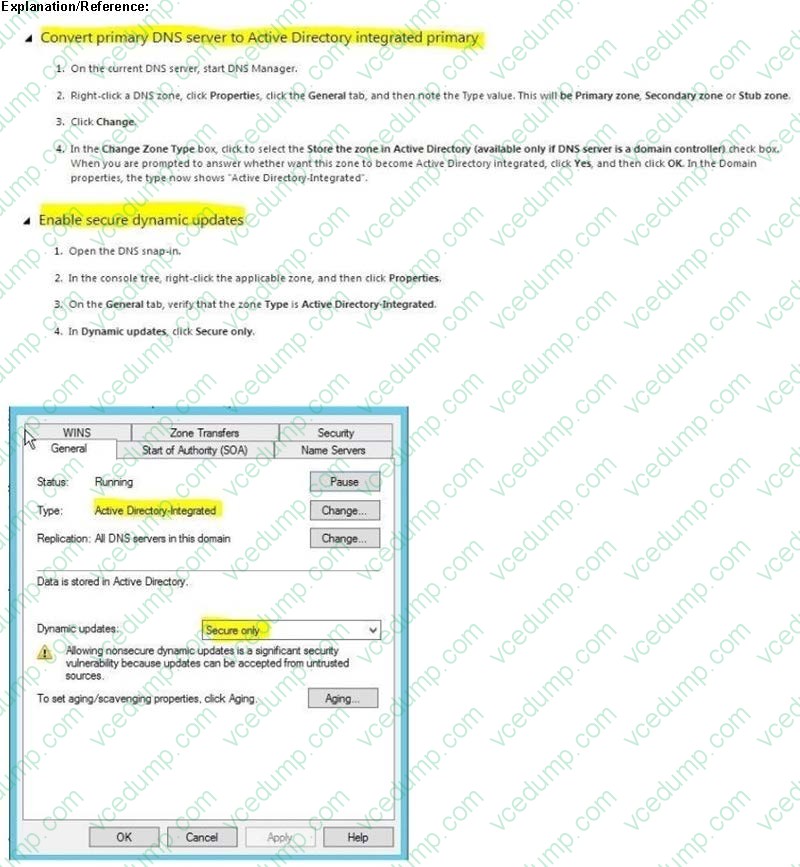

  You need to configure the adatum.com zone to support Name Protection.

  Which two configurations should you perform from DNS Manager? (Each correct answer presents part of the solution. (Choose two.)

  A. Sign the zone.
  B. Store the zone in Active Directory.
  C. Modify the Security settings of the zone.
  D. Configure Dynamic updates.
  E. Add a DNS key record.
  C. Modify the Security settings of the zone.
  D. Configure Dynamic updates.

  ---



  References: http://technet.microsoft.com/en-us/library/ee941152(v=ws.10).aspx

• Question 595:

  Note: This question is part of series of questions that use the same or similar answer choices. An answer choice may be correct for more than one question in the series. Each question is independent of the other questions in this series. Information and details provided in a question apply only to that question.

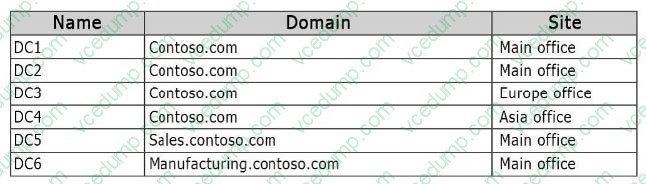

  Your network contains one Active Directory forest named contoso.com. The forest contains two child domains and six domain controllers. The domain controllers are configured as shown in the following table.



  You need ensure that all Active Directory changes are replicated to all of the domain controllers in the forest within 30 minutes. What should you use?

  A. Set-ADSite
  B. Set-ADReplicationSite
  C. Set-ADDomain
  D. Set-ADReplicationSiteLink
  E. Set-ADGroup
  F. Set-ADForest
  G. Netdom
  D. Set-ADReplicationSiteLink

  ---

  This command gets all the site links in the directory with replication frequency greater than or equal to 60 minutes, and then sets the Cost property on these site link objects to 200.

  References: https://technet.microsoft.com/en-us/%5Clibrary/Hh852257(v=WPS.630).aspx

• Question 596:

  Your network contains an Active Directory domain named contoso.com. The domain contains six domain controllers. The domain controllers are configured as shown in the following table.



  The network contains a server named Server1 that has the Hyper-V server role installed. DC6 is a virtual machine that is hosted on Server1.

  You need to ensure that you can clone DC6.

  What should you do?

  A. Transfer the PDC emulator to DC5
  B. Transfer the schema master to DC4
  C. Transfer the PDC emulator to DC2
  D. Transfer the schema master to DC6
  C. Transfer the PDC emulator to DC2

  ---

  A Windows Server 2012 Server running the PDC emulator is required.

  The requirements for virtualized DC cloninginclude:

  The PDC emulator must run Windows Server 2012. You can clone PDC emulator if it is virtualized.

  The virtualized DC that is used as a source for cloning must run Windows Server 2012 and be a member of the Cloneable Domain Controllers group.

  Note: Using virtualized domain controller cloning in Windows Server 2012 to expedite forest recovery

  Virtualized domain controller (DC) cloning simplifies and expedites the process for installing additional virtualized DCs in a domain, especially in centralized locations such as datacenters where several DCs run on hypervisors. After you

  restore one virtual DC in each domain from backup, additional DCs in each domain can be rapidly brought online by using the virtualized DC cloning process. You can prepare the first virtualized DC that you recover, shut it down, and then

  copy that virtual hard disk as many times as is necessary in order to create cloned virtualized DCs to build out the domain.

• Question 597:

  You have a server named Server1 that runs Windows Server 2012 R2.

  You plan to create an image of Server1.

  You need to remove the source files for all server roles that are not installed on Server1.

  Which tool should you use?

  A. dism.exe
  B. servermanagercmd.exe
  C. ocsetup.exe
  D. imagex.exe
  A. dism.exe

  ---

  The Dism utility can be used to create and mount an image of Server1.

  Incorrect Answers:

  B: The ServerManagerCmd.exe command-line tool has been deprecated in Windows Server 2008 R2.

  C: The Ocsetup.exe tool isused as a wrapper for Package Manager (Pkgmgr.exe) and for Windows Installer (Msiexec.exe). Ocsetup.exe is a command-line utility that can be used to perform scripted installs and scripted uninstalls of Windows optional components. The Ocsetup.exe tool replaces the Sysocmgr.exe tool that Windows XP and Windows Server 2003 use.

  D: ImageX is a command-line tool in Windows Vista that you can use to create and manage Windows image (.wim) files. A .wim file contains one or more volume images, disk volumes that contain images of an installed Windows operating system.

  References: http://technet.microsoft.com/en-us/library/hh824822.aspx http://blogs.technet.com/b/joscon/archive/2010/08/26/adding-features-with- dism.aspx http://technet.microsoft.com/en-us/library/hh831809.aspx http://technet.microsoft.com/en-us/library/hh825265.aspx http://technet.microsoft.com/en-us/library/cc749447(v=ws.10).aspx http://technet.microsoft.com/en-us/library/dd744382(v=ws.10).asp

• Question 598:

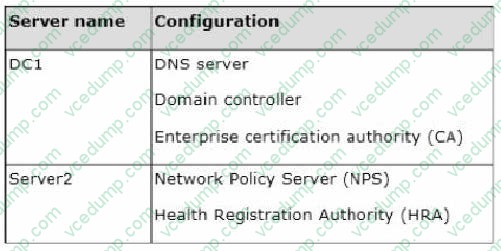

  Your network contains an Active Directory domain named contoso.com. All servers run Windows Server 2012 R2. The domain contains two servers. The servers are configured as shown in the following table.



  All client computers run Windows 8.1 Enterprise.

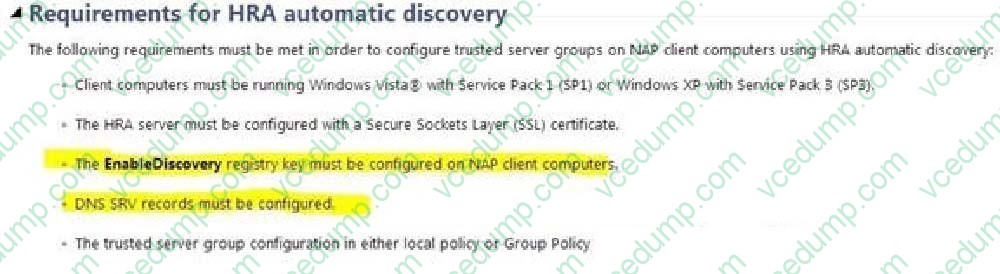

  You plan to deploy Network Access Protection (NAP) by using IPSec enforcement.

  A Group Policy object (GPO) named GPO1 is configured to deploy a trusted server group to all of the client computers.

  You need to ensure that the client computers can discover HRA servers automatically.

  Which three actions should you perform? (Each correct answer presents part of the solution. (Choose three.)

  A. On Server2, configure the EnableDiscovery registry key.
  B. On DC1, create an alias (CNAME) record.
  C. On DC1, create a service location (SRV) record.
  D. In a GPO, modify the Request Policy setting for the NAP Client Configuration.
  E. On all of the client computers, configure the EnableDiscovery registry key.
  C. On DC1, create a service location (SRV) record.
  D. In a GPO, modify the Request Policy setting for the NAP Client Configuration.
  E. On all of the client computers, configure the EnableDiscovery registry key.

  ---



  References: http://technet.microsoft.com/en-us/library/dd296901(v=ws.10).aspx

• Question 599:

  DRAG DROP

  Your network contains an Active Directory domain named contoso.com. The domain contains four member servers named Server 1, Server2, Server3, and Server4. All servers run Windows Server 2012 R2.

  Server1 and Server2 are located in a site named Site1. Server3 and Server4 are located in a site named Site2. The servers are configured as nodes in a failover cluster named Cluster1.

  Cluster1 is configured to use the Node Majority quorum configuration.

  You need to ensure that Server1 is the only server in Site1 that can vote to maintain quorum.

  What should you run from Windows PowerShell?

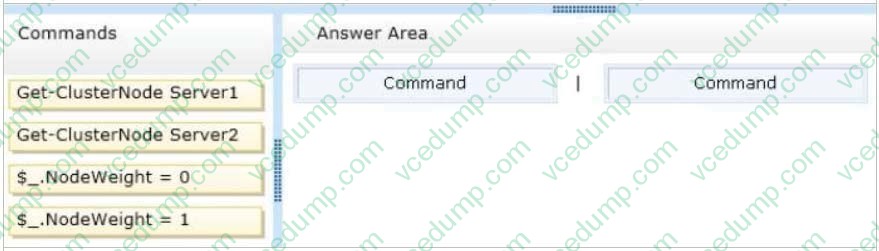

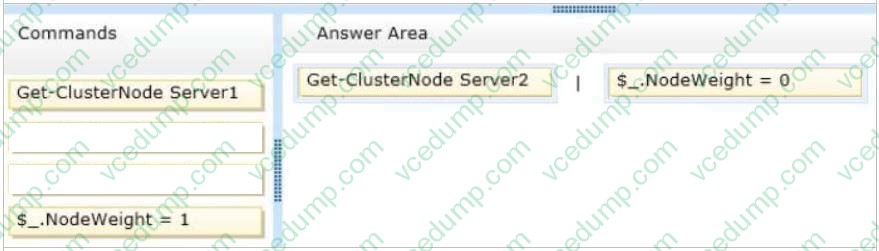

  To answer, drag the appropriate commands to the correct location. Each command may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

  Select and Place:





  ---

  http://technet.microsoft.com/en-us/library/ee460990.aspx

• Question 600:

  HOTSPOT

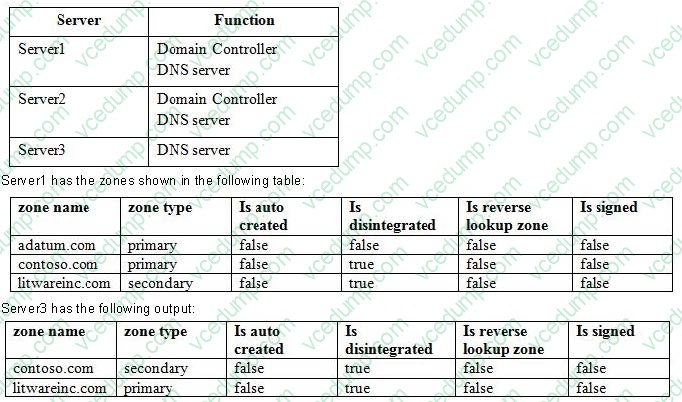

  Your network contains one active directory domain. The domain contains the servers configured as shown in the following table.

  The domain contains the servers configured as shown in the following table:



  Server1 has the zones shown in the following table: Server3 has the following output:

  Use the drop-down list to select the answer choice that completes each assignment.

  Hot Area:





  ---

  https://technet.microsoft.com/en-au/library/dn593657.aspx
