Microsoft 70-417 Online Practice Questions and Exam Preparation

Microsoft 70-417 Online Questions & Answers

• Question 401:

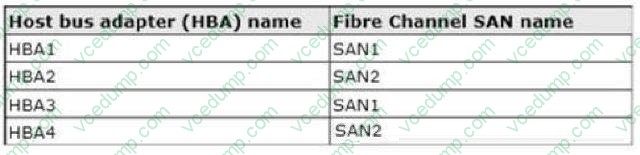

  You have a server named Server1 that runs Windows Server 2012 R2. Server1 has the HyperV server role installed. Server1 is connected to two Fibre Channel SANs and is configured as shown in the following table.



  You have a virtual machine named VM1. You need to configure VM1 to connect to SAN1. What should you do first?

  A. Create a virtual Fibre Channel SAN.
  B. Configure network adapter teaming.
  C. Add one HBA.
  D. Create a Hyper-V virtual switch.

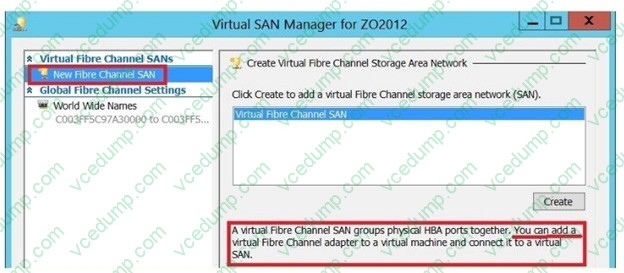

  A. Create a virtual Fibre Channel SAN.

  ---



• Question 402:

  Managing Group Policy objects is a tiresome task. Which of the following Windows Server 2012 R2 features could you use to save time when creating GPO's with similar settings?

  A. UAC
  B. PXE boot
  C. IFM
  D. Starter GPO
  D. Starter GPO

  ---

  Starter Group Policy objects derive from a Group Policy object (GPO), and provide the ability to store a collection of Administrative Template policy settings in a single object. You can import and export Starter GPOs, which makes them easy to distribute to other environments. When you create a new GPO from a Starter GPO, the new GPO has all of the Administrative Template policy settings and their values that were defined in the Starter GPO.

• Question 403:

  Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1. Server1 runs Windows Server 2012 R2 and has the Hyper-V server role installed. On Server1, you create and start a virtual machine named VM1. VM1 is configured as shown in the following table.



  You plan to create a checkpoint of VM1.

  You need to recommend a solution to minimize the amount of disk space used for the checkpoint of VM1.

  What should you do before you create the checkpoint?

  A. Decrease the Minimum RAM.
  B. Convert Disk1.vhd to a dynamically expanding disk.
  C. Shut down VM1.
  D. Run the Convert-VHD cmdlet.
  C. Shut down VM1.

  ---

  For checkpoints created when the virtual machine is stopped

  The checkpoint contains the state of the hard disks only.

  For checkpoints created when the virtual machine is running

  The checkpoint contains the state of the hard disks and the data in memory.

  Note: A checkpoint saves the state of each virtual hard disk that is attached to a virtual machine and all of the hard disk's contents, including application data files. For virtual machines on Hyper-V and VMware ESX Server hosts, a checkpoint

  also saves the hardware configuration information. By creating checkpoints for a virtual machine, you can restore the virtual machine to a previous state.

• Question 404:

  HOTSPOT

  The domain contains an organizational unit (OU) named Groups that contains a universal security named Group1.

  You run the following command from Windows PowerShell.

  Get-ADGroup Group1 -properties managedby | New-ADGroup -name "Group2"-SamAccountName group2 -groupcategory distribution -groupscope global

  You need to identify which properties of group1 will be copied to Group2.

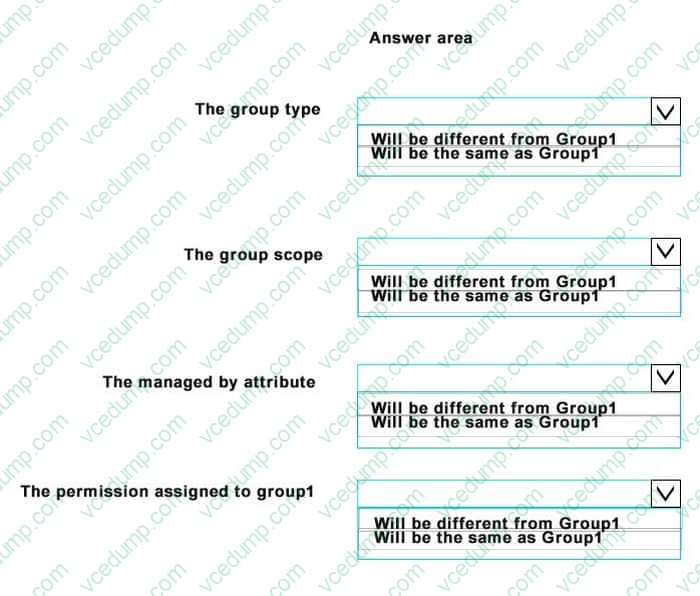

  What should you identify? To answer, select the appropriate options in the answer area.

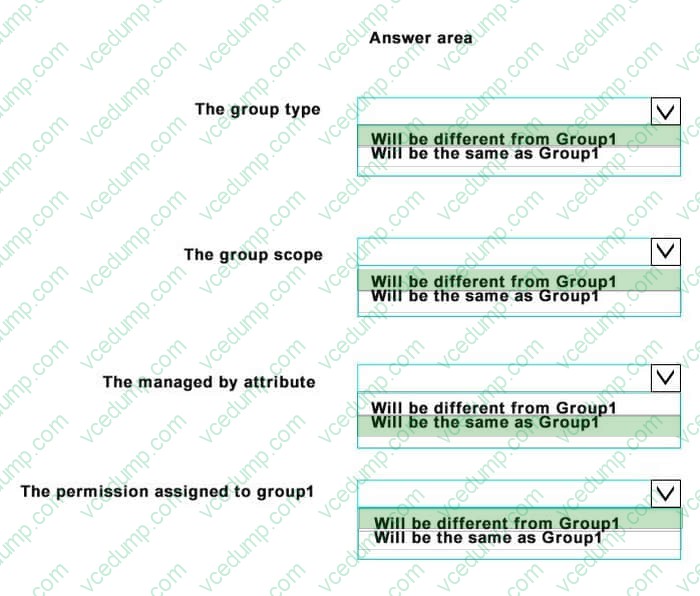

  Hot Area:





  ---

  The permission assigned to group1 - Will be different from Group1

• Question 405:

  You have a server named Server2 that runs Windows Server 2012 R2.

  You need to configure the storage so that it appears in Windows Explorer as a drive letter on Server1.

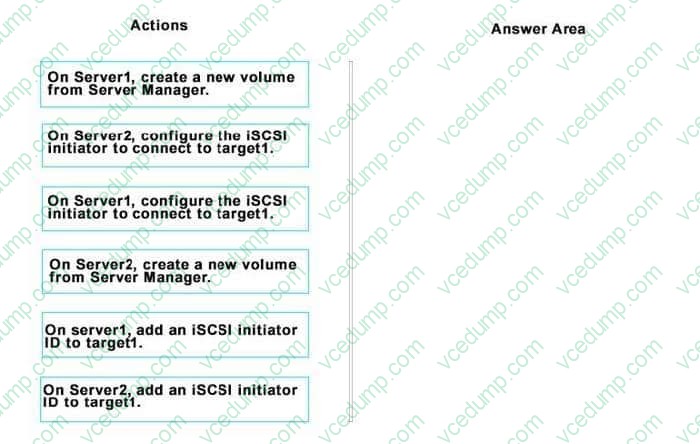

  Which three actions should you perform in sequence? To answer, move the three appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:





  ---

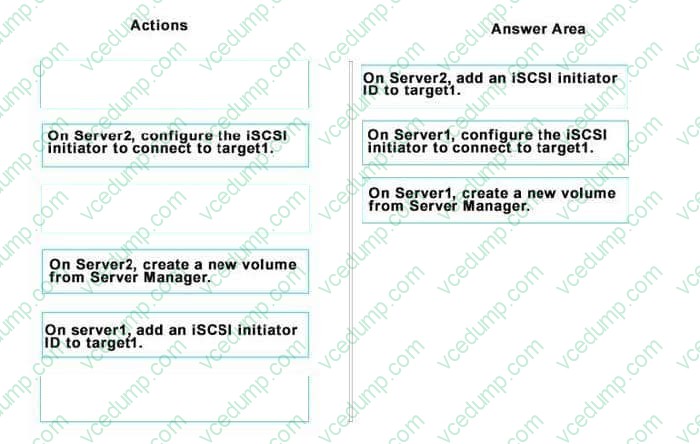

  Step 1 (on Server2): Target: It is an object which allows the iSCSI initiator to make a connection. The Target keeps track of the initiators which are allowed to be connected to it. The Target also keeps track of the iSCSI virtual disks which are

  associated with it. Once the initiator establishes the connection to the Target, all the iSCSI virtual disks associated with the Target will be accessible by the initiator.

  Step 2 (on server 1): Configure iSCSI initiator to logon the Target

  Once the iSCSI Virtual disk is created and assigned, it is ready for the initiator to logon.

  Note: Typically, the iSCSI initiator and iSCSI Target are on different machines (physical or virtual). You will need to provide the iSCSI Target server IP or host name to the initiator, and the initiator will be able to do a discovery of the iSCSI

  Target.

  Step 3 (on server1): Create new volume

  Once the connection is established, the iSCSI virtual disk will be presented to the initiator as a disk.

  By default, this disk will be offline. For typical usage, you want to create a volume, format the volume and assign with a drive letter so it can be used just like a local hard disk.

  Introduction of iSCSI Target in Windows Server 2012

• Question 406:

  You work for a company named ABC.com. Your role of Network Administrator includes the management of the company's physical and virtual infrastructure.

  The network includes servers running Windows Server 2008 R2 Service Pack 1 (SP1) and Windows Server 2012.

  Virtual machines (VMs) are hosted on Windows Server 2012 servers running the Hyper-V role. You are in the process of upgrading server hardware. A Hyper-V server named ABC-HVHost1 has two quad-core Intel processors, 16GB RAM

  and four 300GB 10,000 RPM hard disks.

  You install a new Hyper-V server named ABC-HVHost2. The new server has four hex-core AMD processors, 64GB RAM and six 1 Terabyte 15,000 RPM hard disks. You need to move four VMs from ABC-HVHost1 to ABC-HVHost2. VM

  downtime must be minimized during the move.

  How should you move the VMs?

  A. By using the storage migration method.
  B. By using the import/export method.
  C. By using the Move method.
  D. By using the Live Migrate method.
  E. By using the Quick Migrate methods.
  B. By using the import/export method.

• Question 407:

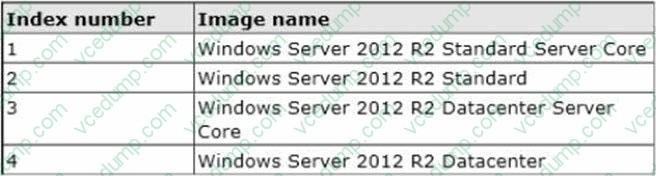

  Your network contains a Windows Server 2012 R2 image named Server12.wim. Server12.wim contains the images shown in the following table.



  Server12.wim is located in C:\.

  You need to enable the Windows Server Migration Tools feature in the Windows Server 2012 R2 Datacenter image. You want to achieve this goal by using the minimum amount of administrative effort.

  Which command should you run first?

  A. imagex.exe /apply c:\server12.wim 4 c:\
  B. dism.exe /image:c:\server12.wim /enable-feature /featurename:servermigration
  C. imagex.exe /capture c: c:\Server12.wim "windows server 2012 r2 datacenter"
  D. dism.exe /mount-wim /wimfile:c:\Server12.wim /index:4 /mountdir:c:\mount
  D. dism.exe /mount-wim /wimfile:c:\Server12.wim /index:4 /mountdir:c:\mount

  ---

  This command will mount the image before making any changes.

  The Deployment Image Servicing and Management (DISM) tool is a command-line tool that is used to modify Windows images.

  You can use DISM to enable or disable Windows features directly from the commandprompt, or by App1ying an answer file to the image. You can enable or disable Windows features offline on a WIM or VHD file, or online on a running

  operating system. You can also use the DISM image management command to list the image index numbers or to verify the architecture for the image that you are mounting.ex: Dism /Mount-Image /ImageFile:C:\test\images\install.wim /

  Name:"Base Windows Image" /MountDir:C:\test \offline By default, DISM is installed at C:\Program Files (x86)\Windows Kits\8.0\Assessment and Deployment Kit\Deployment Tools\

  References:

  http://technet.microsoft.com/en-us/library/cc749447(v=ws.10).aspx

  http://technet.microsoft.com/en-us/library/dd744382(v=ws.10).aspx

  http://technet.microsoft.com/en-us/library/hh824822.aspx

  http://technet.microsoft.com/en-us/library/hh825258.aspx

• Question 408:

  Your network contains an Active Directory domain named adatum.com.

  A network administrator creates a Group Policy central store.

  After the central store is created, you discover that when you create new Group Policy objects (GPOs), the GPOs do not contain any Administrative Templates.

  You need to ensure that the Administrative Templates appear in new GPOs.

  What should you do?

  A. Add your user account to the Group Policy Creator Owners group.
  B. Configure all domain controllers as global catalog servers.
  C. Copy files from %Windir%\Policydefinitions to the central store.
  D. Modify the Delegation settings of the new GPOs.
  C. Copy files from %Windir%\Policydefinitions to the central store.

  ---

  To take advantage of the benefits of .admx files, you must create a Central Store in the SYSVOL folder on a domain controller. The Central Store is a file location that is checked by the Group Policy tools. The Group Policy tools use any .admx files that are in the Central Store. The files that are in the Central Store are later replicated to all domain controllers in the domain.

• Question 409:

  You have a group managed Service Account name Account01. Only three servers named Server01, Server02 and Server03 are allowed to use Account01 service account. You plan to decommission Server01. You need to prevent Server01 from using the Account01 service account. The solution must ensure that Server02 and Server03 continue to use the Account01 service account.

  What command should you run?

  A. Set-ADServiceAccount
  B. Uninstall-ADServiceAccount
  C. Remove-ADServiceAccount
  D. Reset-ADServiceAccountPassword
  D. Reset-ADServiceAccountPassword

  ---

  References: https://technet.microsoft.com/en-us/library/ee617190.aspx https://www.petri.com/restrict-privileged-accounts-with-authentication-silos-in-windows-server-2012-r2

• Question 410:

  You work for a company named ABC.com. The ABC.com network consists of a single Active Directory forest named ABC.com. The forest contains a single Active Directory Domain Services (AD DS) domain named ABC.com. All servers in

  the ABC.com domain run Windows Server 2012. ABC.com works with a partner company named Redbridge Logistics. The Redbridge Logistics network consists of a single Active Directory forest named RedbridgeLogistics.com. The forest

  contains a single Active Directory Domain Services (AD DS) domain named RedbridgeLogistics.com. All servers in the RedbridgeLogistics.com domain run Windows Server 2012.

  A forest trust exists between the two forests. The two networks are connected by a WAN link. A server named ABC-DNS1 hosts an Active Directory-integrated zone for ABC.com. A server named RL-DNS1 hosts an Active Directory-integrated

  zone for RedbridgeLogistics.com. RedbridgeLogistics.com plans to install additional DNS servers for the RedbridgeLogistics.com domain.

  Users in the ABC.com domain need to be able to resolve names of servers in the RedbridgeLogistics.com domain.

  You need to configure a name resolution solution that will ensure that name resolution requests are automatically forwarded to the new RedbridgeLogistics.com DNS servers when they are installed.

  What should you do?

  A. You should configure a forwarder on ABC-DNS1.
  B. You should configure a forwarder on RL-DNS1.
  C. You should configure a secondary zone on ABC-DNS1.
  D. You should configure a stub zone on RL-DNS1.
  E. You should configure a stub zone on ABC-DNS1.
  F. You should configure a conditional forwarder on ABC-DNS1.
  E. You should configure a stub zone on ABC-DNS1.
