• Question 241:

  Your company is testing DirectAccess on Windows Server 2012 R2.

  Users report that when they connect to the corporate network by using DirectAccess, access to Internet websites and Internet hosts is slow. The users report that when they disconnect from DirectAccess to the Internet websites and the

  Internet hosts is much faster.

  You need to identify the most likely cause of the performance issues.

  What should you identify?

  A. Force tunneling is enabled.
  B. DirectAccess uses a self-signed certificate.
  C. The corporate firewall blocks TCP port 8080.
  D. The DNS suffix list is empty.
  A. Force tunneling is enabled.

  ---

  If Direct Access is configured for Force tunneling, compounds of the DirectAccess client to the internal network and the Internet via the remote access server are routed. The "detour" via the company network, can slow down access to websites and hosts on the Internet.

  References: http://www.ironnetworks.com/blog/common-directaccess-implementation-mistakes#.V_4weckpoaM

• Question 242:

  You have a server named Server1 that has a Server Core installation of Windows Server 2008 R2 Service Pack 1.

  Server1 has the DHCP Server server role and the File Server server role installed.

  You need to upgrade Server1 to Windows Server 2012 R2 with the graphical user interface (GUI).

  The solution must meet the following requirements:

  Preserve the server roles and their configurations.

  Minimize administrative effort.

  What should you do?

  A. Start Server1 from the Windows Server 2012 R2 installation media and select Server Core Installation. When the installation is complete, add the Server Graphical Shell feature.
  B. On Server1, run setup.exe from the Windows Server 2012 R2 installation media and select Server Core Installation. When the installation is complete, add the Server Graphical Shell feature.
  C. On Server1, run setup.exe from the Windows Server 2012 R2 installation media and select Server with a GUI.
  D. Start Server1 from the Windows Server 2012 R2 installation media and select Server with a GUI.
  B. On Server1, run setup.exe from the Windows Server 2012 R2 installation media and select Server Core Installation. When the installation is complete, add the Server Graphical Shell feature.

  ---

  To do an in place upgrade of a Server, boot Windows Server 2008 R2,insert the Windows Server 2012 media and run setup.exe from the root of the media.Aftertheupgrade is complete, Windows Server 2012 R2 allows you to switch freely

  between Server Core and Server with a GUI modes.

  Incorrect:

  Not A: First boot Windows Server 2008 R2.

  Not C, not D:Upgrades that switch from a Server Core installation to the Server with a GUI mode of Windows Server 2012 R2 in one step (and vice versa) are not supported. However, after upgrade is complete, Windows Server 2012 R2

  allows you to switch freely between Server Core and Server with a GUI modes.

• Question 243:

  Your role of Network Administrator at ABC.com includes the management of the Active Directory Domain Services (AD DS) domain named ABC.com. The network includes servers that run Windows Server 2012.

  The Active Directory contains a global security group named AllUsers. All users in the company are members of the AllUsers group. The Active Directory contains another global security group named Managers. All managers in the company

  are members of the managers group. A server named ABC-Print1 runs the Print and Document Services server role and hosts shared printers for all company users.

  You install a new network print device. The print device will be used by all company users. You need to ensure that print jobs sent to the new print device by company managers are printed before print jobs sent by other company users.

  Which three of the following actions should you perform? (Choose three)

  A. Configure one shared printer with a priority of 50 and enable printer pooling.
  B. Configure two shared printers; one with a priority of 10 and one with a priority of 50.
  C. Configure the printer permissions so that the AllUsers group can print to the printer with a priority of 10.
  D. Configure the printer permissions so that the AllUsers group can print to the printer with a priority of 50.
  E. Configure the printer permissions so that only the Managers group can print to the printer with a priority of 10.
  F. Configure the printer permissions so that only the Managers group can print to the printer with a priority of 50.
  B. Configure two shared printers; one with a priority of 10 and one with a priority of 50.
  C. Configure the printer permissions so that the AllUsers group can print to the printer with a priority of 10.
  F. Configure the printer permissions so that only the Managers group can print to the printer with a priority of 50.

• Question 244:

  Your network contains an Active Directory domain named contoso.com. The domain contains a domain controller named DC4 that runs Windows Server 2012 R2.

  You create a DCCIoneConfig.xml file. You need to clone DC4.

  Where should you place DCCIoneConfig.xml on DC4?

  A. %Systemroot%\SYSVOL
  B. %Systemdrive%
  C. %Systemroot%\NTDS
  D. %Programdata%\Microsoft
  C. %Systemroot%\NTDS

  ---

  The done domain controller uses the following criteria to detect that it is a copy of another domain controller:

  1.

  The value of the VM-Generation ID supplied by the virtual machine is different than the value of the VM-Generation ID stored in the DIT. The hypervisor platform must support VM-Generation ID (Windows Server 2012 Hyper-V supports VM-Generation ID)

  2.

  Presence of a file called DCClone-Config.xml in one of the following locations: The directory where the DIT resides %windir%\NTDS

  The root of a removable media drive References: http://technet.microsoft.com/de-de/library/hh831734.aspx

• Question 245:

  Your network contains three Active Directory forests. Each forest contains an Active Directory Rights Management Services (AD RMS) root cluster.

  All of the users in all of the forests must be able to access protected content from any of the forests.

  You need to identify the minimum number of AD RMS trusts required.

  How many trusts should you identify?

  A. 2
  B. 3
  C. 4
  D. 6
  D. 6

  ---

  AD RMS Multi-forest Considerations

  References: http://technet.microsoft.com/en-us/library/dd772648%28v=ws.10%29.aspx

• Question 246:

  Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1.

  Server1 runs Windows Server 2012 R2 and has the Hyper-V server role installed.

  You have a virtual machine named VM1. VM1 has a checkpoint.You need to modify the Checkpoint File Location of VM1.

  What should you do first?

  A. Copy the checkpoint file
  B. Delete the checkpoint
  C. Shut down VM1
  D. Pause VM1
  B. Delete the checkpoint

• Question 247:

  Your network contains an Active Directory domain named contoso.com.

  The domain contains a server named Server1 that runs Windows Server 2008 R2.

  You plan to test Windows Server 2012 R2 by using native-boot virtual hard disks (VHDs).

  You have a Windows image file named file1.wim. You need to add an image of a volume to file1.wim.

  What should you do?

  A. Run imagex.exe and specify the /append parameter.
  B. Run imagex.exe and specify the /export parameter.
  C. Run dism.exe and specify the /image parameter.
  D. Run dism.exe and specify the /append-image parameter.
  D. Run dism.exe and specify the /append-image parameter.

  ---

  The Deployment Image Servicing and Management (DISM) tool is a command-line tool that enables the creation of Windows image (.wim) files for deployment in a manufacturing or corporate IT environment. The /Append-Image option

  appends a volume image to an existing .wim file allowing you to store many customized Windows images in a fraction of the space. When you combine two or more Windows image files into a single .wim, any files that are duplicated between

  the images are only stored once.

  Incorrect Answers:

  A, B: Imagex has been retired and replaced by dism.

  References: Append a Volume Image to an Existing Image Using DISM

  https://technet.microsoft.com/en-us/library/hh824916.aspx

• Question 248:

  You have a server named Server1 that runs Windows Server 2012 R2.

  You discover that the performance of Server1 is poor.

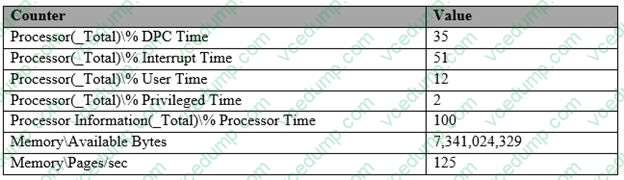

  The results of a performance report generated on Server1 are shown in the following table.



  You need to identify the cause of the performance issue.

  What should you identify?

  A. Insufficient RAM
  B. Excessive paging
  C. NUMA fragmentation
  D. driver malfunction
  D. driver malfunction

  ---

  Processor: %DPC Time. Much like the other values, this counter shows the amount of time that the processor spends servicing DPC requests.

  DPC requests are more often than not associated with the network interface.

  Processor: % Interrupt Time. This is the percentage of time that the processor is spending on handling Interrupts. Generally, if this value exceeds 50% of the processor time you may have a hardware issue. Some components on the

  computer can force this issue and not really be a problem. For example, a programmable I/O card like an old disk controller card, can take up to 40% of the CPU time. A NIC on a busy IIS server can likewise generate a large percentage of

  processor activity.

  Processor: % User Time. The value of this counter helps to determine the kind of processing that is affecting the system. Of course the resulting value is the total amount of non-idle time that was spent on User mode operations. This

  generally means application code.

  Processor: %Privilege Time. This is the amount of time the processor was busy with Kernel mode operations. If the processor is very busy and this mode is high, it is usually an indication of some type of NT service having difficulty, although

  user mode programs can make calls to the Kernel mode NT components to occasionally cause this type of performance issue.

  Memory: Pages/sac This value is often confused with Page Faults/sec.

  The Pages/sec counter is a combination of Pages Input/sec and Pages

  Output/sec counters. Recall that Page Faults/sec is a combination of hard page faults and soft page faults. This counter, however, is a general indicator of how often the system is using the hard drive to store or retrieve memory associated

  data.

  References:

  http://technet.microsoft.com/en-us/library/cc768048.aspx

• Question 249:

  Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2.

  Server1 has the IP Address Management (IPAM) Server feature installed. IPAM is configured currently for Group Policy-based provisioning.

  You need to change the IPAM provisioning method on Server1.

  What should you do?

  A. Run the ipamgc.exe command.
  B. Run the ipamgc.exe command.
  C. Run the Set-IPAMConfigurationcmdlet.
  D. Reinstall the IP Address Management (IPAM) Server feature.
  E. Delete IPAM Group Policy objects (GPOs) from the domain.
  D. Reinstall the IP Address Management (IPAM) Server feature.

  ---

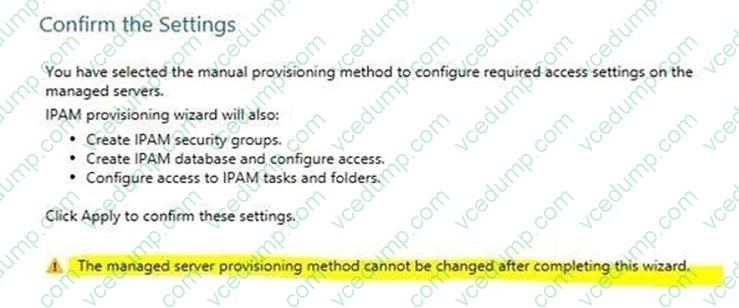

  You cannot change the provisioning method after completing the initial setup. When you install IPAM and configure either manual OR GPO, you receive the same message about not being able to change the provisioning method. As a matter of fact, I set it up in my lab and configured it as GPO. Here is a copy/paste of the message that is presently on the IPAM home page in server manager:

  "The access configuration mode cannot be modified after completing the IPAM provisioning wizard" Also, the help console in IPAM displays this when searching about provisioning methods: "The managed server provisioning method cannot be changed after you complete the IPAM provisioning wizard."



• Question 250:

  You have a server named Server1. Server1 runs Windows Server 2012 R2.

  Server1 has a thin provisioned disk named Disk1.

  You need to expand Disk1.

  Which two actions should you perform? (Each correct answer presents part of the solution. Choose two.)

  A. From File and Storage Services, extend Disk1.
  B. From Disk Management, delete the volume, create a new volume, and then format the volume.
  C. From File and Storage Services, add a physical disk to the storage pool.
  D. From File and Storage Services, detach Disk1.
  E. From Disk Management, extend the volume.
  A. From File and Storage Services, extend Disk1.
  C. From File and Storage Services, add a physical disk to the storage pool.

  ---

  https://technet.microsoft.com/en-us/library/hh831487(v=ws.11).aspx
