Microsoft 70-417 Online Questions & Answers

• Question 111:

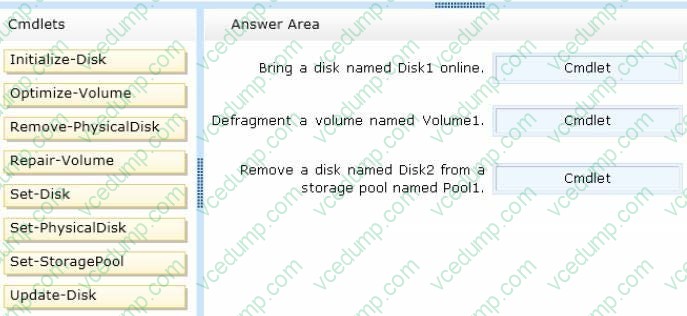

  DRAG DROP

  You have a server named Server1 that runs Windows Server 2012 R2.

  You need to perform the following storage configuration tasks on Server1:

  Bring a disk named Disk1 online.

  Defragment a volume named Volume1.

  Remove a disk named Disk2 from a storage pool named Pool1.

  Which cmdlet should you use to perform each task?

  To answer, drag the appropriate cmdlets to the correct tasks. Each cmdlet may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

  Select and Place:





  ---

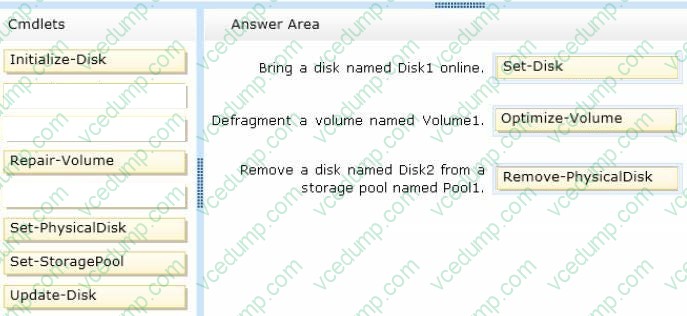

  https://docs.microsoft.com/en-us/powershell/module/storage/set-disk?view=winserver2012r2-ps https://docs.microsoft.com/en-us/powershell/module/storage/optimize-volume?view=winserver2012r2-ps https://docs.microsoft.com/en-us/powershell/module/storage/remove-physicaldisk?view=winserver2012r2-ps

• Question 112:

  HOTSPOT

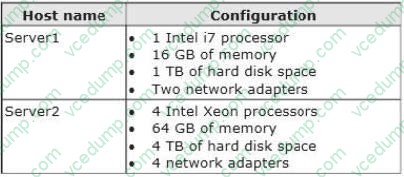

  Your network contains two Hyper-V hosts that are configured as shown in the following table.

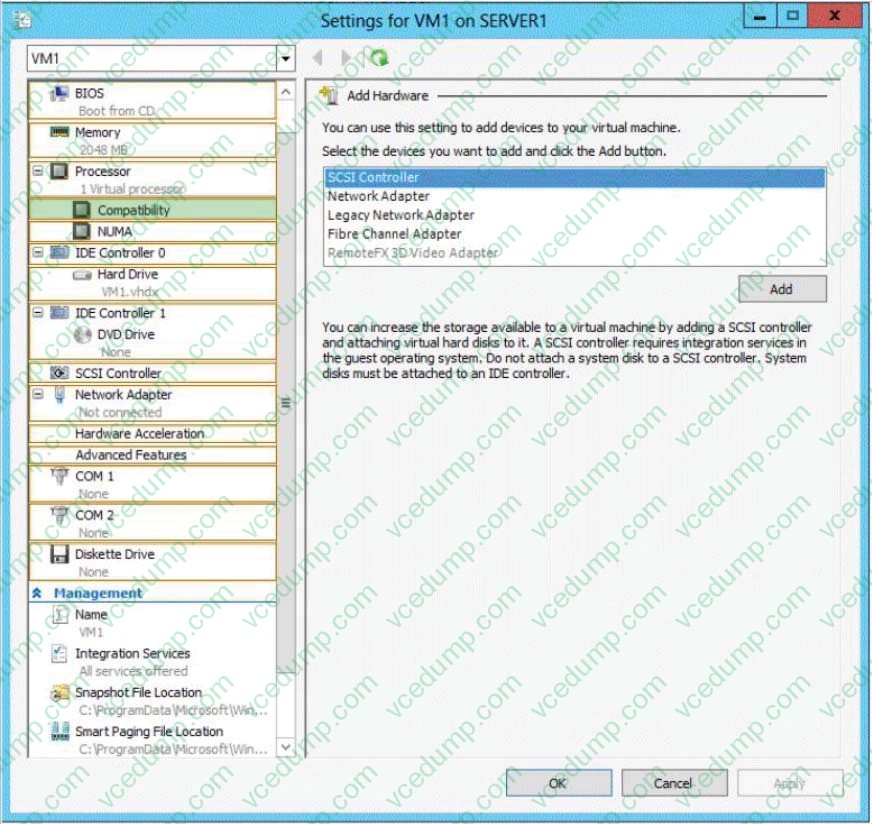

  You create a virtual machine on Server1 named VM1.

  You plan to export VM1 from Server1 and import VM1 to Server2.

  You need to ensure that you can start the imported copy of VM1 from snapshots.

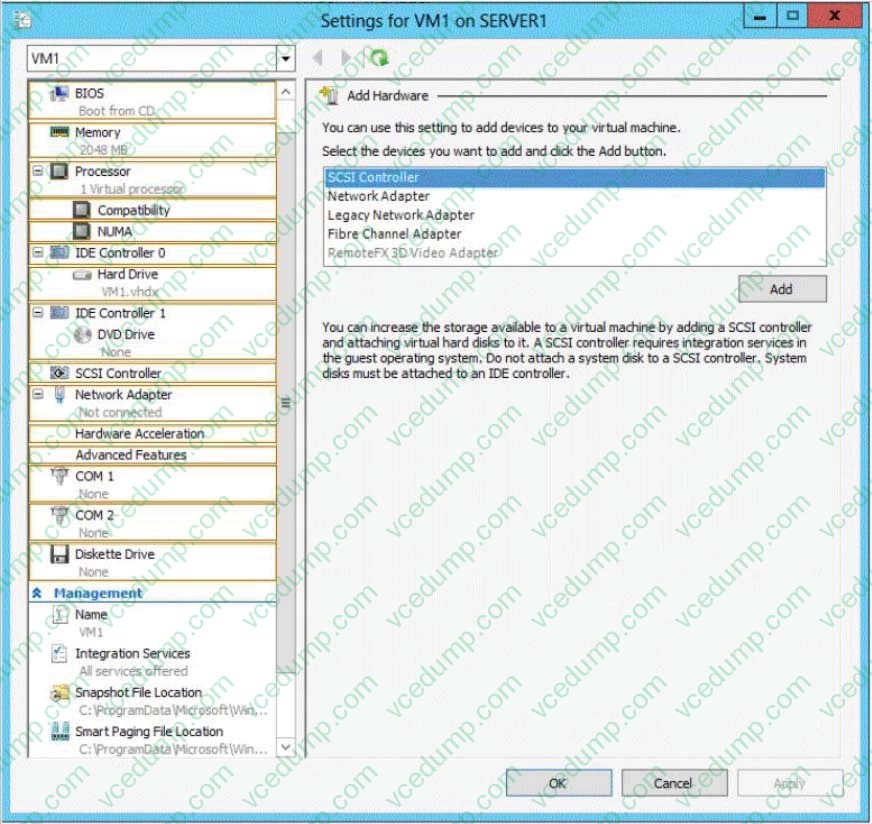

  What should you configure on VM1?

  To answer, select the appropriate node in the answer area.

  Hot Area:





  ---

  Note:

  If the CPUs are from the same manufacturer but not from the same type, you may need to use Processor Compatibility.

  (Incorrect) The network adapter is already disconnected.

• Question 113:

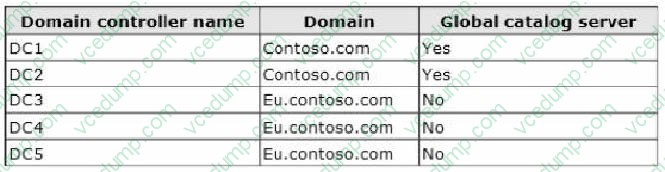

  Your network contains an Active Directory forest that contains two domains. The forest contains five domain controllers. The domain controllers are configured as shown in the following table.



  You need to configure DC5 as a global catalog server. Which tool should you use?

  A. Active Directory Administrative Center
  B. Active Directory Users and Computers
  C. Active Directory Sites and Services
  D. Active Directory Domains and Trusts
  C. Active Directory Sites and Services

  ---

  Active Directory Sites and Services can be used to Add or remove the global catalog read-only directory partitions from a domain controller in the site. Confirm that all read-only directory partitions have been replicated to the new global catalog server. As well as verify that the global catalog server is being advertised in Domain Name System (DNS).

  References: http://technet.microsoft.com/en-us/library/cc730868.aspx http://technet.microsoft.com/en-us/library/cc770674.aspx

• Question 114:

  HOTSPOT

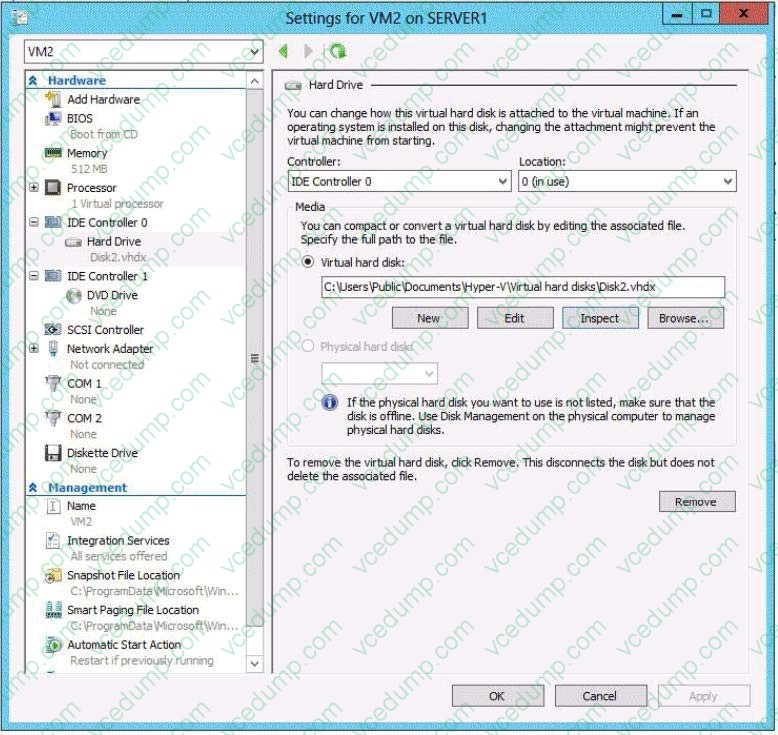

  The settings for a virtual machine named VM2 are configured as shown in the VM2 exhibit.(Click the Exhibit button.)

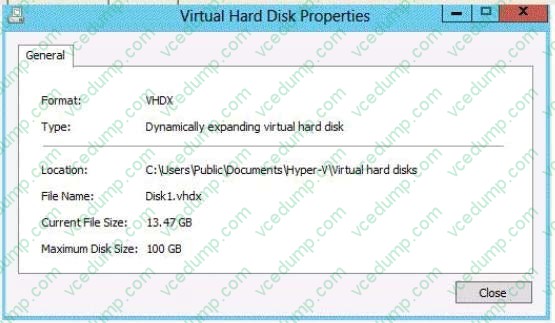

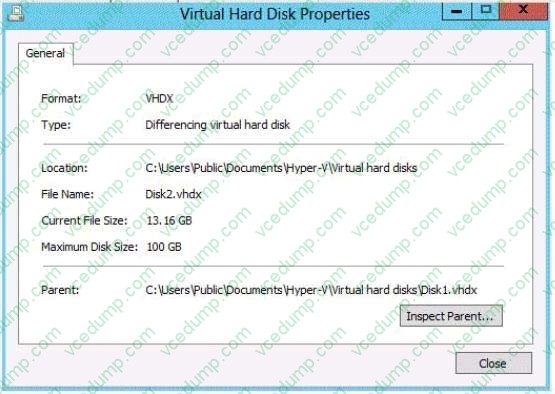

  The settings for Disk1.vhdx are configured as shown in the Disk1.vhdx exhibit. (Click the Exhibit button.)



  The settings for Disk2.vhdx are configured as shown in the Disk2.vhdx exhibit.(Click the Exhibit button.)

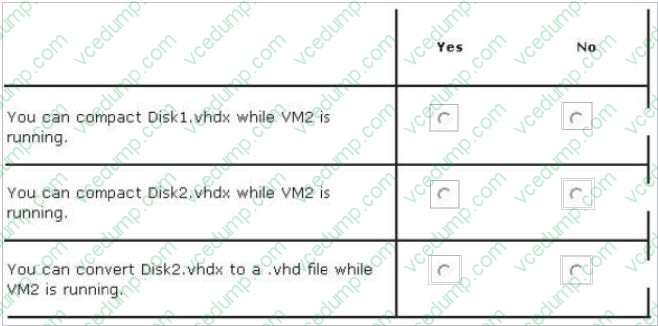

  Select Yes if the statement can be shown to be true based on the available information; otherwise select No.Each correct selection is worth one point.

  Hot Area:





  ---

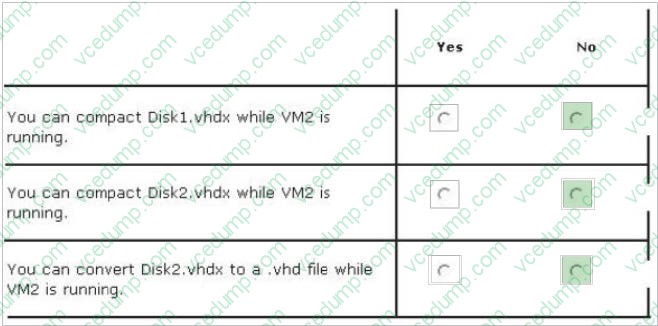

  If you want to compact a differencing virtual hard disk or an undo disk, you must merge the changes to the parent disk and then compact the parent disk, if it is a dynamically expanding virtual hard disk. You can compact a dynamically expanding virtual hard disk.You cannot compact any other type of virtual hard disk.However, you can convert a fixed-size virtual hard disk to a dynamically expanding virtual hard disk and then compact the disk.If you want to compact a differencing virtual hard disk or an undo disk, you must merge the changes to the parent disk and then compact the parent disk, if it is a dynamically expanding virtual hard disk

  References: http://technet.microsoft.com/en-us/library/cc708394(v=ws.10).aspx

• Question 115:

  Your network contains an Active Directory domain named contoso.com. All domain controllers run Windows Server 2012 R2. The domain contains two organizational units (OUs) named OU1 and OU2 in the root of the domain. Two Group

  Policy objects (GPOs) named GPO1 and GPO2 are created.

  GPO1 is linked to OU1.

  GPO2 is linked to OU2.

  OU1 contains a client computer named Computer1.

  OU2 contains a user named User1.

  You need to ensure that the GPOs applied to Computer1 are applied to User1 when User1 logs on.

  What should you configure?

  A. The GPO Status
  B. WMI Filtering
  C. GPO links
  D. Item-level targeting
  C. GPO links

  ---

  A GPO can be associated (linked) to one or more Active Directory containers, such as a site, domain, or organizational unit. Multiple containers can be linked to the same GPO, and a single container can have more than one GPO linked to it. If multiple GPOs are linked to one container, you can prioritize the order in which GPOs are applied. Linking GPOs to Active Directory containers enables an administrator to implement Group Policy settings for a broad or narrow portion of the organization, as required.

• Question 116:

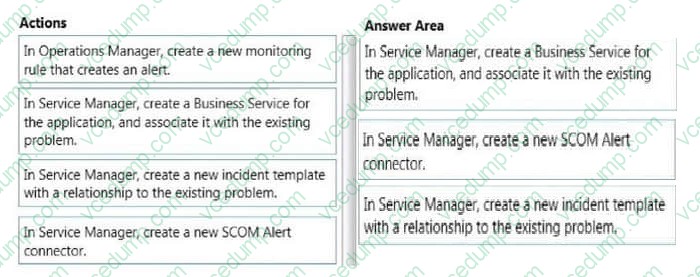

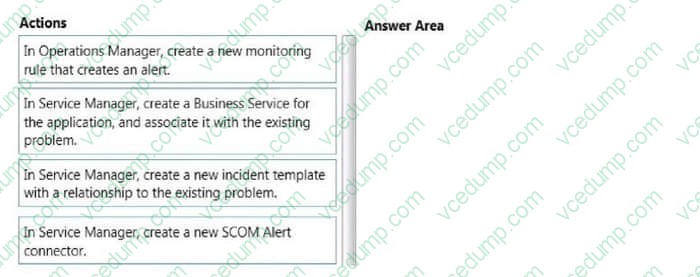

  DRAG DROP You use the entire System Center suite. You integrate Service Manager with Operations Manager. Virtual Machine Manager, Orchestrator, and Active Directory. You perform all remediation by using Orchestrator runbooks. An application experiences performance problems on a periodic basis.

  You have the following requirements:



  A new incident must be opened when System Center Operations Manager (SCOM) detects a performance problem.



  The incident must be closed when the performance problem is resolved.



  The incident must be associated with the HR performance problem in Service

  You need to configure the environment.

  Select and Place:





  ---

  References: https://valentincristea.com/2013/11/25/automating-incident-problem-management-part-i-creating-a-scom-monitor-and-generating-fake-alerts/ https://valentincristea.com/2013/11/28/automating-incident-problem-management-part-ii-configuring-the-scomscsm-connector/

• Question 117:

  Your network contains an Active Directory domain named contoso.com. The domain contains a main office and a branch office. An Active Directory site exists for each office. The domain contains two servers named Server1 and Server2 that run Windows Server 2012 R2.

  Both servers have the DHCP Server server role installed. Server1 is located in the main office site.

  Server2 is located in the branch office site. Server1 provides IPv4 addresses to the client computers in the main office site. Server2 provides IPv4 addresses to the client computers in the branch office site.

  You need to ensure that if either Server1 or Server2 are offline, the client computers can still obtain IPv4 addresses. The solution must meet the following requirements:

  The storage location of the DHCP databases must not be a single point of failure.

  Server1 must provide IPv4 addresses to the client computers in the branch office site only if Server2 is offline.

  Server2 must provide IPv4addresses to the client computers in the main office site only if Server1 is offline.

  Which configuration should you use?

  A. Load sharing mode failover partners
  B. Hot standby mode failover partners
  C. A Network Load Balancing (NLB) cluster
  D. A failover cluster
  B. Hot standby mode failover partners

  ---

  http://blogs.technet.com/b/teamdhcp/archive/2012/06/28/ensuring-high-availability-of-dhcpusingwindowsserver-2012-dhcp-failover.aspx Ensuring High Availability of DHCP using Windows Server 2012 R2 DHCP Failover The Hot Standby mode results in an Active-Passive configuration. You will be required to designate one of the two DHCP servers as the active server and the other as standby. The standby server is dormant with regard to serving client requests as long as the active server is up.

  However, the standby server receives all the inbound lease updates from the active DHCP server and keeps its database up to date.http://blogs.technet.com/b/teamdhcp/archive/2012/09/03/dhcp-failover-hot-standbymode.aspxDHCP Failover Hot-Standby Mode In the previous blog on DHCP Failover, we discussed the DHCP failover load balance mode where both DHCP servers respond to client requests and load balance the requests between them based on an admin specified load distribution ratio. In the other mode of a failover relationship, known as the Hot-Standby mode (ActivePassive), only one of the servers actively leases IP addresses and option configuration to clients in given subnet(s)/scope(s) while the other server (standby) is passive.

  The standby server services the clients, only in event of active server being down. The clients fallback to the active server once the active server becomes available again post the outage. The Load balance mode is more suited for single site deployment where the 2 DHCP servers in a failover relationship are co-located with the subnets/scopes being served by them. As the servers are in network proximity with the clients, the clients do not experience any latency while acquiring or renewing an IP address. Hot-Standby mode is more suited for multisite deployment topologies. Each site would have a local DHCP server which is configured to provide the DHCP service to the clients on the local network and DHCP server at a remote site would be standby server. In a normal state of operation, computers and devices on a given site receive IP addresses and other network configuration from the DHCP server located at the same site as the clients. However, in the event of the local DHCP server being down, the DHCP server from the remote site would provide the service to the clients. You could choose to deploy hot standby mode in a single-site deployment also if you need to.

• Question 118:

  Your network contains an Active Directory domain named contoso.com. All servers run Windows Server 2012. The domain contains a server named Server1.

  You open Review Options in the Active Directory Domain Services Configuration Wizard, and then you click View script.

  You need to ensure that you can use the script to promote Server1 to a domain controller.

  Which file extension should you use to save the script?

  A. .bat
  B. .ps1
  C. .xml
  D. .cmd
  B. .ps1

  ---

  The View Script button is used to view the corresponding PowerShell script The PowerShell script extension is .ps1, The Answer could logically be either a .cmd file or a .bat file.

  According to http://www.fileinfo.com/:

  PAL Settings file created by Corel Painter or Palette of colors used by Dr. Halo bitmap images BAT DOS batch file used to execute commands with the Windows Command Prompt (cmd.exe); contains aseries of line commands that typically

  might be entered at the DOS command prompt; most commonly used tostart programs and run maintenance utilities within Windows. XML XML (Extensible Markup Language) data file that uses tags to define objects and object

  attributes;formatted much like an .HTML document, but uses custom tags to define objects and the data within eachobject; can be thought of as a text-based database. CMD Batch file that contains a series of commands executed in order;

  introduced with Windows NT, but canbe run by DOS or Windows NT systems; similar to a .BAT file, but is run by CMD.EXE instead of COMMAND.COM.

• Question 119:

  You have a failover cluster named Cluster1 that contains four nodes. All of the nodes run Windows Server 2012 R2.

  You need to schedule the installation of Windows updates on the cluster nodes.

  Which tool should you use?

  A. The Add-CauClusterRole cmdlet
  B. The Wuauclt command
  C. The Wusa command
  D. The Invoke-CauScan cmdlet
  D. The Invoke-CauScan cmdlet

  ---

  The Invoke-CauScancmdlet performs a scan of cluster nodes for applicable updates and returns a list of the initial set of updates that would be applied to each node in a specified cluster.

  http://technet.microsoft.com/en-us/library/hh847235(v=wps.620).aspx http://technet.microsoft.com/en-us/library/cc720477(v=ws.10).aspx http://support.microsoft.com/kb/934307 http://technet.microsoft.com/en-us/library/hh847228(v=wps.620).aspx

• Question 120:

  You have a server named Core1 that has a Server Core Installation of Windows Server 2012 R2. Core1 has the Hyper-V server role installed. Core1 has two network adapters from different third-party hardware vendors.

  You need to configure network traffic failover to prevent connectivity loss if a network adapter fails.

  What should you use?

  A. New-NetSwitchTeam
  B. Install-Feature
  C. Add-NetSwitchTeamMember
  D. netsh.exe
  A. New-NetSwitchTeam

  ---

  The New-NetSwitchTeam cmdlet creates a new switch team. A switch team must have a name for the team and must be created with one or more members, or network adapters. The network switch team is a team that is controlled by a Hyper-V extensible switch forwarding extension. No other cmdlets can be used to manage a switch team and the NetSwitchTeam cmdlets must not be used to manage standard, or non-switch, network adapter teams.

  References: http://technet.microsoft.com/en-us/library/jj553814.aspx
