Cisco 648-238 Online Practice Questions and Exam Preparation

Cisco 648-238 Online Questions & Answers

• Question 131:

  Refer to the exhibit.



  Which statement can be determined from the output shown?

  A. This is the output from the show power inline command.
  B. The connected device is an 802.af class 2 PoE camera.
  C. The switch management IP address is 10.10.10.202.
  D. The PoE device is connected to switch port 7.
  D. The PoE device is connected to switch port 7.

• Question 132:

  When should a parent-child proxy be used?

  A. When you are watching the same camera feed multiple times at a remote site that also has a media server
  B. When you are watching multiple camera feeds simultaneously at a remote site that also has a media server
  C. When you are watching the same camera feed multiple times at the local site
  D. When you are watching multiple camera feeds at the same time at the local site
  A. When you are watching the same camera feed multiple times at a remote site that also has a media server

• Question 133:

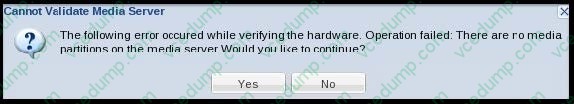

  Refer to the exhibit.



  You just deployed a virtual, co-located Cisco VSM 7 OVA image and added a 1 TB virtual disk for media storage. You are trying to add a media server via Cisco VSOM and get the error message shown.

  What is causing this issue?

  A. The server should be rebooted.
  B. The Cisco VSM services on the server must be restarted.
  C. Media storage partitions were not created in the virtual machine.
  D. There was an issue with the import of the OVA image. The image should be reimported, new virtual hard drive should be added, and /media# directory created.
  C. Media storage partitions were not created in the virtual machine.

• Question 134:

  Users are is complaining of an error message when they first log into VSOM. The message is red on a black background. What should be done?

  A. Their workstations are not powerful enough. Replace their workstations.
  B. This is not an error. A default view has not been selected.
  C. They are using an unsupported browser, and should switch to Internet Explorer.
  D. They are not using Microsoft Windows, and only Windows PCs are supported.
  B. This is not an error. A default view has not been selected.

• Question 135:

  Mr. Cooper, branch security manager at a retail bank, is asked to create a centralized surveillance solution using Cisco VSM. However, the WAN link between HQ and some of the branches has very limited bandwidth. Using Cisco VSM, flexibility of deployment is broad.

  Which three changes make more efficient use of the limited bandwidth? (Choose three.)

  A. Deploy centralized Cisco VSM solution using H.264 instead of MJPEG encoding in branches with limited WAN speed.
  B. Retain camera recordings on local branch servers, and access video from HQ only when needed.
  C. Configure cameras for H.264 encoding and 15 FPS, store video locally on a server, then transcode the same video stream to 5 FPS before sending it to HQ security center.
  D. Configure dual streaming on each camera, one for high-quality local recording and the other for streaming to HQ over WAN.
  E. Enable multicast within the branch network and unicast video streams when traversing the WAN.
  A. Deploy centralized Cisco VSM solution using H.264 instead of MJPEG encoding in branches with limited WAN speed.
  B. Retain camera recordings on local branch servers, and access video from HQ only when needed.
  D. Configure dual streaming on each camera, one for high-quality local recording and the other for streaming to HQ over WAN.

• Question 136:

  After initial setup, a system administrator enters the IP address of the Cisco VSM server into the URL bar of the web browser and the Cisco VSMC login page is loaded.

  Which two situations is causing the issue? (Choose two.)

  A. Cisco VSOM is not the selected default login view.
  B. Cisco VSOM is not running on this server.
  C. Cisco VSMS is being managed by a separate Cisco VSOM server.
  D. Under the Operations Manager menu in Cisco VSMC, the default home page is set to Cisco VSMC instead of Cisco VSOM.
  B. Cisco VSOM is not running on this server.
  C. Cisco VSMS is being managed by a separate Cisco VSOM server.

• Question 137:

  What is the correct camera and lens setup for the use of IR lighting?

  A. Color camera with IR corrected lens
  B. A camera with day/night mode and IR corrected lens
  C. A camera with day/night mode and varifocal lens
  D. Color camera with varifocal lens
  B. A camera with day/night mode and IR corrected lens

• Question 138:

  Which configuration is valid for recording video in the Cisco VSM 7.x solution?

  A. Continuous Recording mode
  B. Simple Schedule mode
  C. Recurring Loop mode
  D. Continuous Recording, Simple Schedule, and Recurring Loop are valid configurations for archiving.
  A. Continuous Recording mode

• Question 139:

  On a VSMS server, what is YaST used for?

  A. To check the status of the RAID storage
  B. To configure the network settings
  C. To monitor the network performance
  D. To troubleshoot video stream errors
  B. To configure the network settings

• Question 140:

  How should the camera capacity for media servers be calculated?

  A. Cisco UCS Express can handle up to 32 cameras, CPS-MSP-1RU-K9 can handle up to 64 cameras, the CPS-MSP-2RU-K9 can handle up to 200 cameras, Cisco UCS C-Series can handle up to 1000 cameras, and Cisco UCS B-Series can handle up to 1000 cameras per blade.
  B. Camera capacity should be calculated by the maximum storage space on the media server when configured with full HDD utilization.
  C. Camera capacity should be calculated by the aggregate bit rate of all video streams, both inbound and outbound, on a media server.
  D. Camera capacity cannot be calculated, and must be configured on site.
  C. Camera capacity should be calculated by the aggregate bit rate of all video streams, both inbound and outbound, on a media server.
