• Question 111:

  You are configuring integration between the Cisco UCS Manager and the VMware vCenter Server

  Appliance. Which three actions must you perform from the Cisco Configure VMware Integration

  Wizard? (Choose three.)

  A. Define the virtual machine port profile in the Cisco UCS Manager for virtual machine traffic.
  B. Install and register the Cisco UCS Manager extension as a plug-in in the VMware vCenter.
  C. Install and register the VMware VM Console plug-in in the Cisco UCS Manager.
  D. Apply a port profile (port group) to the virtual machines on the VMware vCenter server.
  E. Apply the Firewall Services Module UCS service profile to Cisco UCS B-Series Blade Server.
  F. Apply a fabric profile to both Cisco Fabric Interconnect uplink ports.
  A. Define the virtual machine port profile in the Cisco UCS Manager for virtual machine traffic.
  B. Install and register the Cisco UCS Manager extension as a plug-in in the VMware vCenter.
  D. Apply a port profile (port group) to the virtual machines on the VMware vCenter server.

• Question 112:

  While configuring communication between vCenter and Cisco UCS, which two items are contained in the extension file? (Choose two.)

  A. extension key
  B. plug-in version information
  C. SSL private certificate
  D. Cisco UCS Manager SSL public certificate
  E. SSH public key
  F. Cisco UCS Manager admin credentials
  G. IP address of the hosts utilizing VM link
  H. vCenter SSL public certificate
  A. extension key
  D. Cisco UCS Manager SSL public certificate

• Question 113:

  Which option describes the possible result of a customer configuring a server pool that contains Cisco UCS B200 M2 and B250 M2 blades?

  A. A service profile cannot migrate automatically from one blade to another blade within the server pool due to hardware failure.
  B. You must decommission a blade server for the associated service profile to migrate to another blade in the server pool successfully.
  C. You must uncheck the Restrict Migration box in the service profile to allow service profile migration between blades in the server pool.
  D. After service profile migration, the server fails in boot from SAN due to differences in PCI device IDs.
  D. After service profile migration, the server fails in boot from SAN due to differences in PCI device IDs.

• Question 114:

  Which two items can you provision in a vHBA Template? (Choose two.)

  A. Max Data Field Size
  B. SCSI I/O Queues
  C. FCoE VLAN
  D. vHBA Interrupt Mode
  E. Stats Threshold Policy
  F. FLOGI Timeout
  A. Max Data Field Size
  E. Stats Threshold Policy

• Question 115:

  Which policy is used to specify how Cisco UCS Manager should proceed for configuration changes that will have a service impact?

  A. host firmware policy
  B. maintenance policy
  C. local disk policy
  D. BIOS policy
  B. maintenance policy

• Question 116:

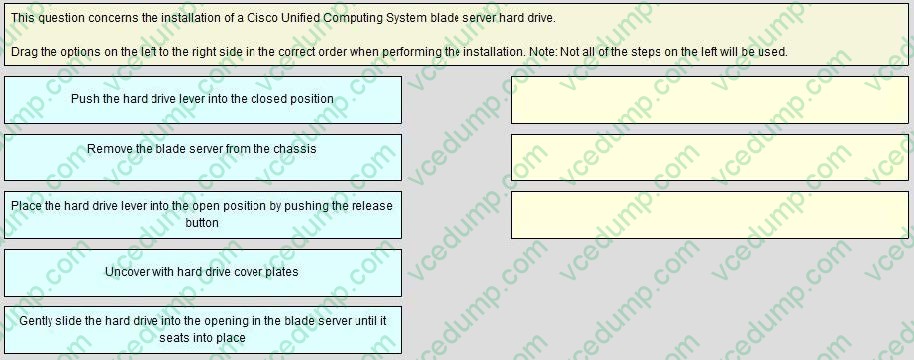

  DRAG DROP

  Select and Place:





• Question 117:

  Which two statements about Call Home are true? (Choose two.)

  A. The virtual IP address of the Cisco UCS Manager in a cluster is the source of the email.
  B. In a cluster configuration, at least one fabric interconnect must have IP connectivity.
  C. The fabric interconnect must have IP connectivity to email server or the destination HTTP server
  D. At least one destination profile must be configured.
  E. Call Home requires SCP to transfer the files securely.
  C. The fabric interconnect must have IP connectivity to email server or the destination HTTP server
  D. At least one destination profile must be configured.

• Question 118:

  When adding a VMware ESXi host to the Distributed Virtual Switch, what are two risks of migrating a VMNIC that is associated to vSwitch 0? (Choose two.)

  A. loss of access to the management IP interface
  B. duplicate IP address error
  C. duplicate MAC address error
  D. loss of VMware ESXi communication with VMware vCenter
  E. DVS port group will not appear in the VM network settings
  F. DVS port group will overwrite the port groups in vSwitch 0
  A. loss of access to the management IP interface
  D. loss of VMware ESXi communication with VMware vCenter

• Question 119:

  How does a Cisco Unified Computing System react when configured for disjoint Layer 2 domains?

  A. Automatic pinning is disabled; VLAN membership must be statically pinned to the uplink ports.
  B. VLANs must be divided between the fabric interconnects using PIN groups.
  C. The VLAN traffic for a disjoint network can only travel along an uplink that is specifically assigned to this VLAN and is selectively excluded from all other uplinks.
  D. When you configure disjoint Layer 2 networks, you must assign VLANs to uplink interfaces.
  C. The VLAN traffic for a disjoint network can only travel along an uplink that is specifically assigned to this VLAN and is selectively excluded from all other uplinks.

• Question 120:

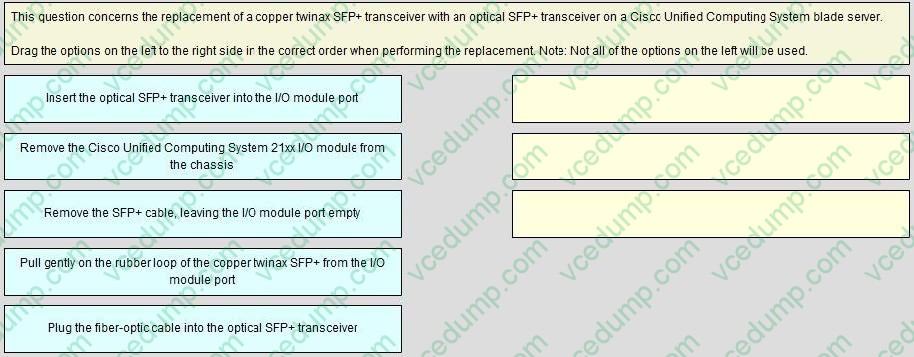

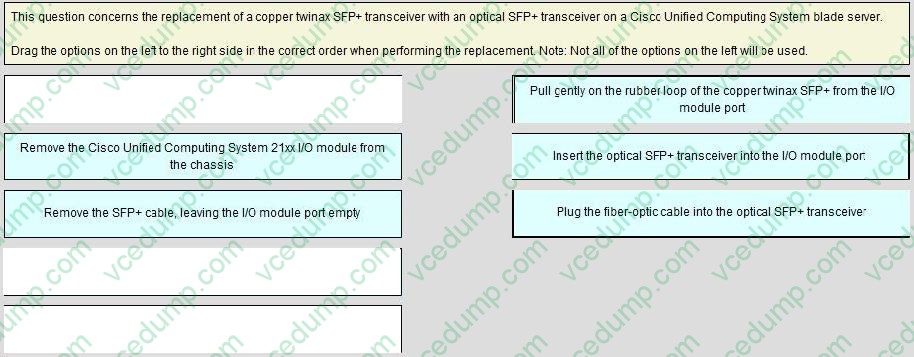

  DRAG DROP

  Select and Place:
