• Question 71:

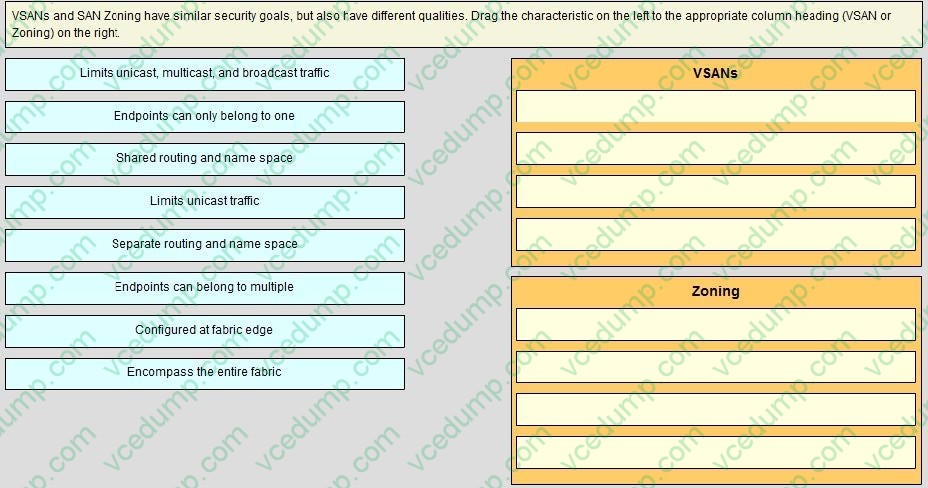

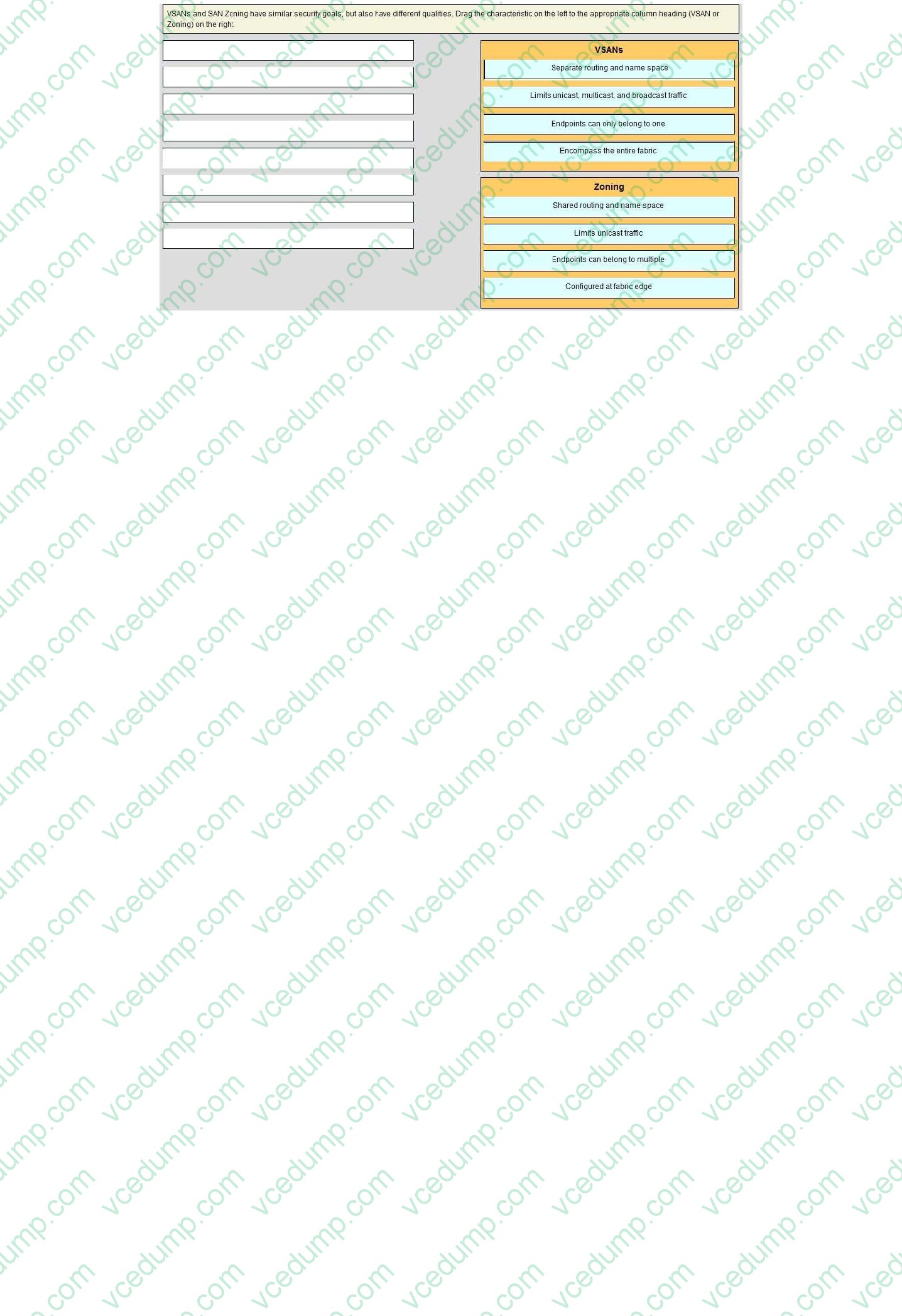

  VSANs and SAN Zoning have similar security goals, but also have different qualities. Drag the characteristic on the left to the appropriate column heading (VSAN or Zoning) on the right.

  Select and Place:





• Question 72:

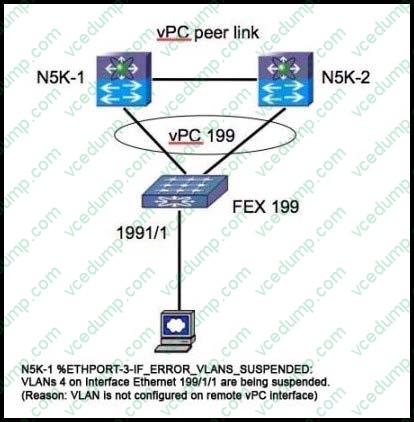

  Refer to the exhibit.



  Which corrective action is taken to resolve the problem?

  A. Trunk four VLANs on interface ethernet 199/1/1.
  B. Use the shut and no shut interface ethernet 199/1/1so that the VLANs come up.
  C. Place interface ethernet 199/1/1 in VLAN 4 in the N5K-2 configuration.
  D. Prune all but four VLANs from vPC 199.
  E. Add VLAN 4 to vPC 199.
  C. Place interface ethernet 199/1/1 in VLAN 4 in the N5K-2 configuration.

  ---

  Place interface ethernet 199/1/1 in VLAN 4 in the N5K-2 configuration.

• Question 73:

  Which standard has Cisco used to implement VM-FEX?

  A. IEEE 802.1BR
  B. IEEE 802.1Qbb
  C. IEEE 802.1Qaz
  D. IEEE 802.1p
  E. IEEE 802.1x
  A. IEEE 802.1BR

• Question 74:

  Which feature allows routing protocols to remain in the data path during a supervisor failover?

  A. Cisco Nonstop Forwarding
  B. Cisco Stateful Switchover
  C. Cisco Express Forwarding
  D. Cisco Route Processor Redundancy
  A. Cisco Nonstop Forwarding

• Question 75:

  Which two items are services that are provided by Cisco Fabric Services? (Choose two.)

  A. device alias distribution
  B. VLAN database distribution
  C. Kerberos proxy distribution
  D. RSA key pair distribution
  E. DPVM configuration distribution
  A. device alias distribution
  E. DPVM configuration distribution

  ---

  The device alias application uses the Cisco Fabric Services (CFS) infrastructure to enable efficient database management and distribution. Device aliases use the coordinated distribution mode and the fabric-wide distribution scope. DPVM

  can use CFS to distribute the database to all switches in the fabric. This allows devices to move anywhere and keep the same VSAN membership. You should enable CFS distribution on all switches in the fabric. Using the CFS infrastructure,

  each DPVM server learns the DPVM database from each of its neighboring switches during the ISL bring-up process. If you change the database locally, the DPVM server notifies its neighboring switches, and that database is updated by all

  switches in the fabric.

  Reference:

  http://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/configuration/guid e/cli/CLIConfigurationGuide/ddas.html and

  http://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/nx- os/san_switching/configuration/guide/b_Cisco_Nexus_7000_NX- OS_SAN_Switching_Configuration_Guide/Cisco_Nexus_7000_NXOS_SAN_Switching_Configuration_Guide_chapter4.html#concept_2B83E16506C845B39 BDF96F9CAFFAEC3

• Question 76:



  What is the status of FCoE license on Cisco Nexus 5548 switch?

  A. FCoE license is not installed
  B. FCoE license is installed, but it is expired
  C. FCoE license is installed and status is enabled
  D. FCoE license does not need to be installed because it is part of ENTERPRISE_PKG
  A. FCoE license is not installed

• Question 77:

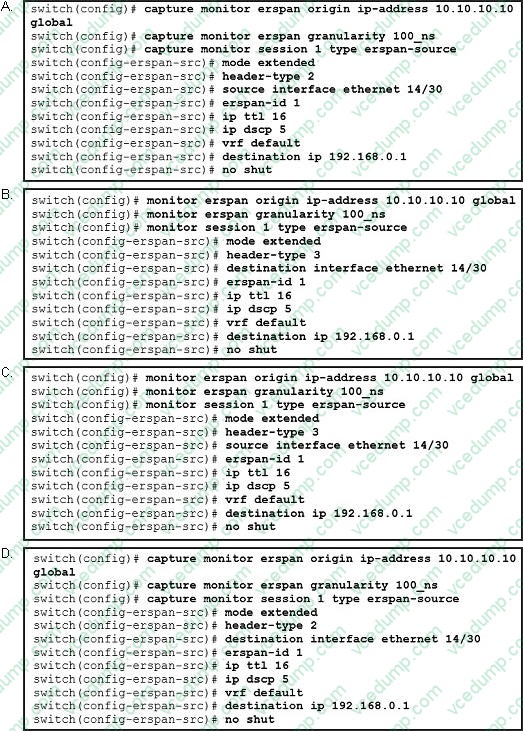

  Which option shows how to configure an ERSPAN Type III source session in Cisco NX-OS 6.2?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 78:

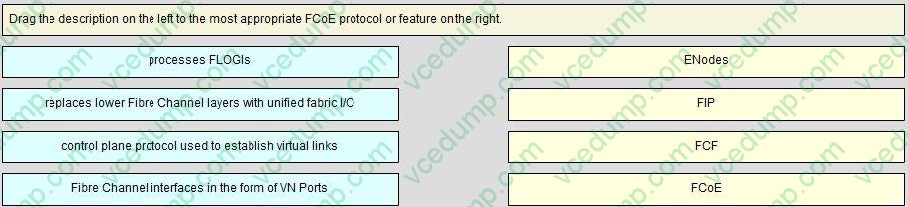

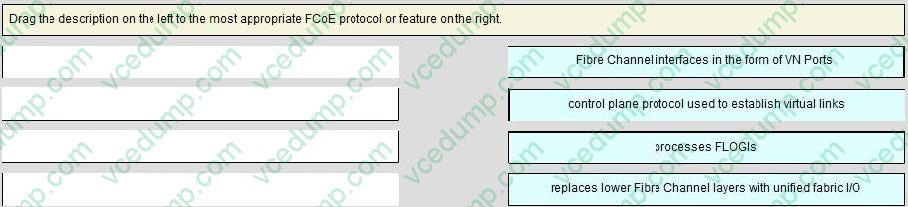

  Drag the description on the left to the most appropriate FCoE protocol or feature on the right.

  Select and Place:





• Question 79:

  Which command activates the port security database for VSAN 1 regardless of conflicts?

  A. port-security commit vsan 1
  B. no port-security auto-learn vsan 1
  C. port-security activate vsan 1 force
  D. port-security database vsan 1
  C. port-security activate vsan 1 force

• Question 80:

  When implementing Cisco Adapter FEX, which setting on the virtual interface card on the Cisco UCS C-Series Server must be configured?

  A. uplink failover
  B. PXE boot
  C. network interface virtualization
  D. VM-FEX
  C. network interface virtualization
