• Question 111:

  In OTV, how are the VLANs split when a site has two edge devices?

  A. They are configured manually by user.
  B. They are split in half among each edge device.
  C. They are split as odd and even VLAN IDs on each edge device.
  D. It is not possible to have two edge devices in same site.
  C. They are split as odd and even VLAN IDs on each edge device.

• Question 112:

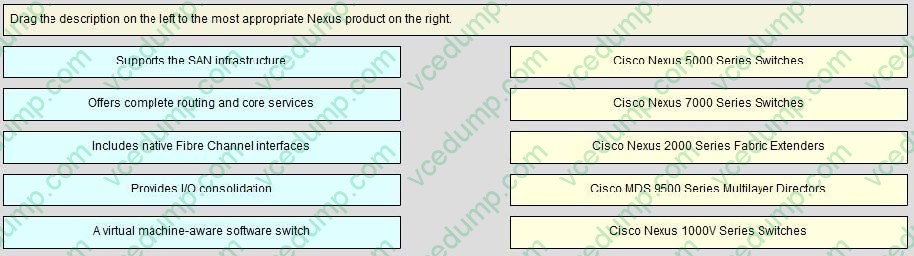

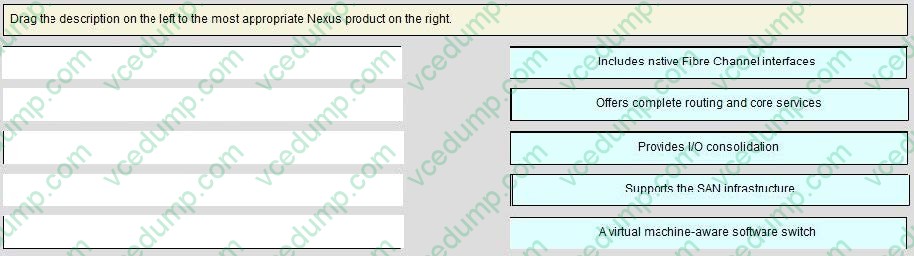

  Drag the description on the left to the most appropriate Nexus product on the right.

  Select and Place:





• Question 113:

  On a Cisco Nexus 7000 Series router, which statement about HSRP and VRRP is true?

  A. When VDCs are in use, only VRRP is supported.
  B. HSRP and VRRP both use the same multicast IP address with different port numbers.
  C. HSRP has shorter default hold and hello times.
  D. The VRRP group IP address can be the same as the router-specific IP address.
  D. The VRRP group IP address can be the same as the router-specific IP address.

  ---

  VRRP allows for transparent failover at the first-hop IP router by configuring a group of routers to share a virtual IP address. VRRP selects a master router in that group to handle all packets for the virtual IP address. The remaining routers are in standby and take over if the master router fails.

  Reference: http://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/5_x/nx- os/unicast/configuration/guide/l3_cli_nxos/l3_vrrp.html

• Question 114:

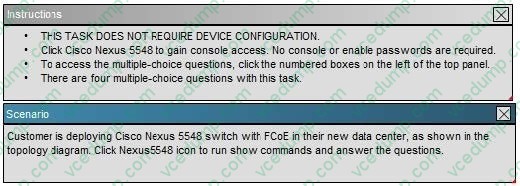

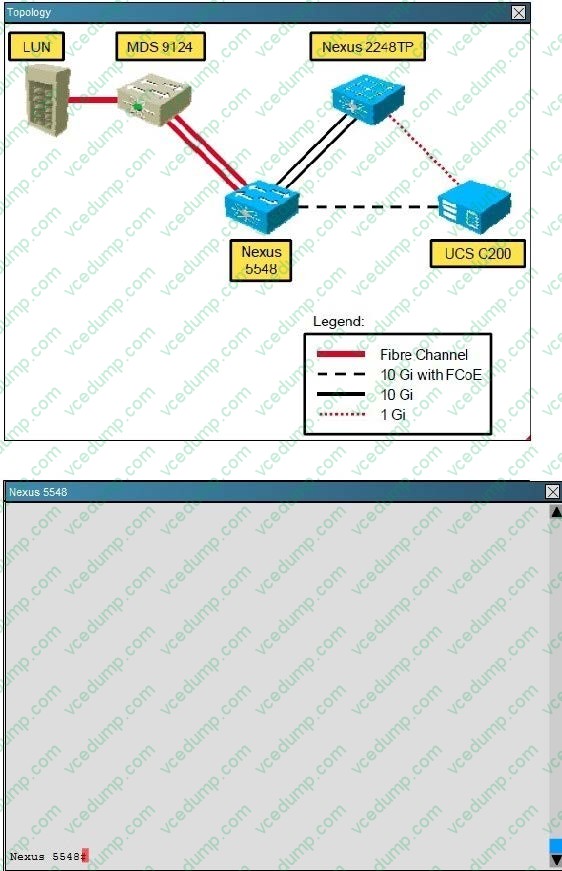

  What is the status of FC interface associated with ethernet 1/5 indicate?

  A. Trunk VSAN 11 is isolated
  B. Inteface vfc 5 is up and running for the assigned VSAN
  C. Trunk VSAN 11 is intializing
  D. VSAN to FC mapping is not working as expected
  B. Inteface vfc 5 is up and running for the assigned VSAN

• Question 115:

  Refer to the command below. When configuring an SVS connection on the Cisco Nexus 5000 Series Switch, which device is being referenced as the remote IP address?

  nexus5500-2(config-svs-conn)# remote ip address 10.10.1.15 port 80 vrf management

  A. ESX or ESXi host
  B. vCenter
  C. vPC peer switch
  D. Cisco IMC management
  B. vCenter

  ---

  This command specifies the hostname or IP address for the vCenter Server. Optionally, specifies the port number and VRF.

  Reference:

  http://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5500/sw/layer2/6x/b_5500 _Layer2_Config_6x/b_5500_Layer2_Config_602N12_chapter_010000.html

• Question 116:

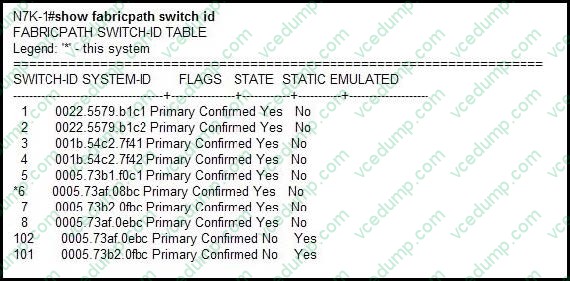

  Refer to the exhibit.



  Which three statements about the Cisco Nexus 7000 switch are true? (Choose three.)

  A. An emulated switch ID must be unique when the vPC+ feature is used.
  B. Switches with FabricPath and vPC+ consume two switch IDs.
  C. Emulated switch IDs must be numbered from 1 to 99.
  D. Each switch ID must be unique in the FabricPath topology.
  E. Switch IDs must be configured manually.
  B. Switches with FabricPath and vPC+ consume two switch IDs.
  D. Each switch ID must be unique in the FabricPath topology.
  E. Switch IDs must be configured manually.

  ---

  To understand this feature, please refer to the link given below.

  Reference: http://www.cisco.com/c/en/us/products/collateral/switches/nexus-5000-series- switches/guide_c07-690079.html#wp9000065

• Question 117:

  After enabling strong, reversible 128-bit Advanced Encryption Standard password type-6 encryption on a Cisco Nexus 7000, which command would convert existing plain or weakly encrypted passwords to type-6 encrypted passwords?

  A. switch# key config-key ascii
  B. switch(config)# feature password encryption aes
  C. switch# encryption re-encrypt obfuscated
  D. switch# encryption decrypt type6
  C. switch# encryption re-encrypt obfuscated

  ---

  This command converts existing plain or weakly encrypted passwords to type-6 encrypted passwords.

  Reference: http://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/5_x/nx- os/security/configuration/guide/b_Cisco_Nexus_7000_NX- OS_Security_Configuration_Guide__Release_5-x/b_Cisco_Nexus_7000_NXOS_Security_Configuration_Guide__Release_5-x_chapter_010101.html

• Question 118:

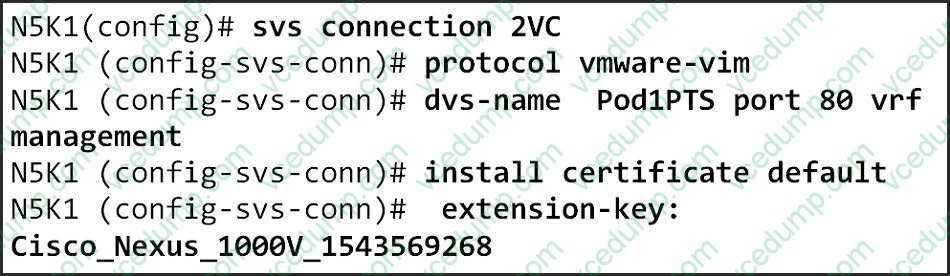

  Refer to the exhibit.



  Which two commands are missing from this configuration that an admin needs to integrate a Cisco Nexus 5000 switch with vCenter to leverage VM-FEX? (Choose two.)

  A. vmware dvs datacenter-name
  B. vmware dvs
  C. remote ip address port 80 vrf
  D. connection-type vmware
  E. installation-method auto
  A. vmware dvs datacenter-name
  C. remote ip address port 80 vrf

• Question 119:

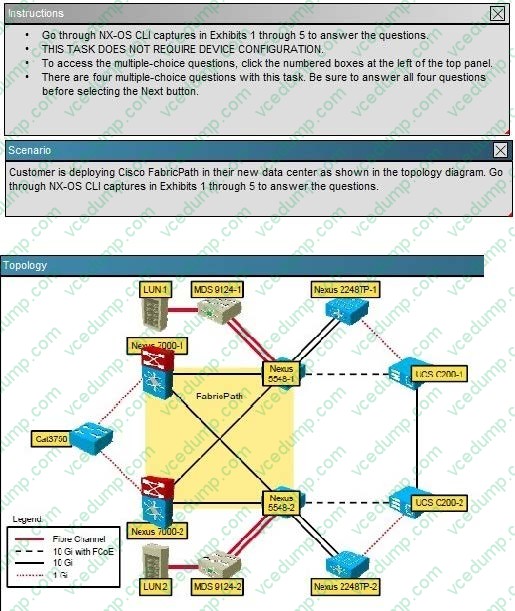

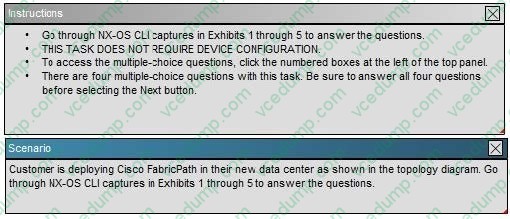

  Customer has configured fabricpath allocate-delay to 600. What is the effect of this?

  A. The allocate-delay is the time for FP to go into forwarding state
  B. It specifies the time delay for a transitioned value to be propagated throughout the network
  C. It specifies the time delay for a link bringup to detect conflicts
  D. The allocate-delay is the time delay for a new resource to be propagated throughout the network
  D. The allocate-delay is the time delay for a new resource to be propagated throughout the network

  ---

  Specifies the time delay for a new resource to be propagated throughout the network. Reference: http://www.cisco.com/web/techdoc/dc/reference/cli/nxos/commands/fpath/fabricpath_timers .html

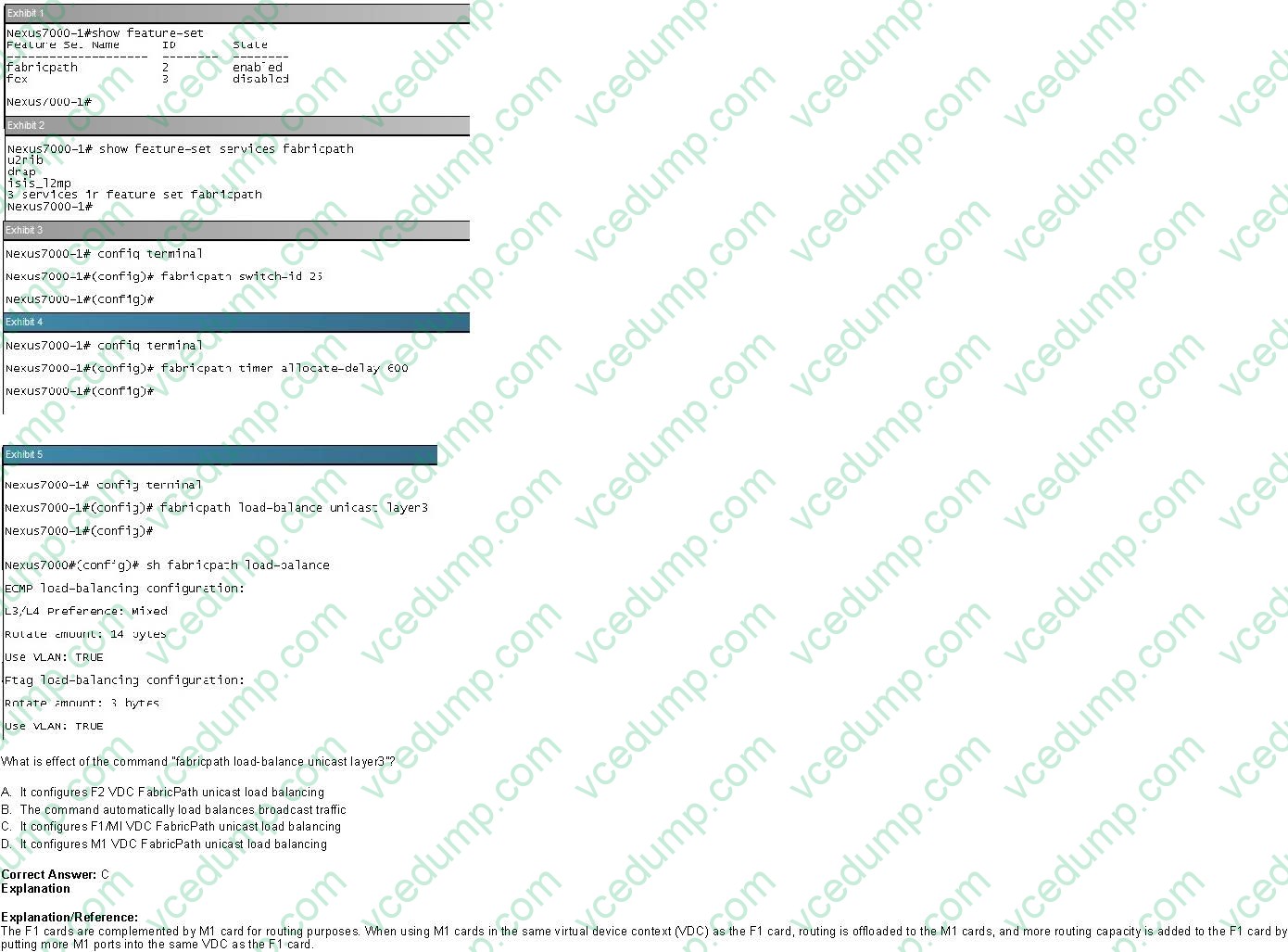

• Question 120:





  The F1 cards are complemented by M1 card for routing purposes. When using M1 cards in the same virtual device context (VDC) as the F1 card, routing is offloaded to the M1 cards, and more routing capacity is added to the F1 card by putting more M1 ports into the same VDC as the F1 card.

  What is effect of the command "fabricpath load-balance unicast Iayer3"?

  A. It configures F2 VDC FabricPath unicast load balancing
  B. The command automatically load balances broadcast traffic
  C. It configures F1/MI VDC FabricPath unicast load balancing
  D. It configures M1 VDC FabricPath unicast load balancing
  C. It configures F1/MI VDC FabricPath unicast load balancing
