Cisco 642-996 Online Practice Questions and Exam Preparation

Cisco 642-996 Online Questions & Answers

• Question 131:

  Which software runs on a device that is connected to a TrustSec-enabled port?

  A. Initiator
  B. Authenticator
  C. Supplicant
  D. Requester
  E. Authentication Proxy
  C. Supplicant

• Question 132:

  What design will effect traffic flows in the Data Center Core layer?

  A. The domain needed to extend a VLAN from one switch to another is determined at the core layer
  B. With a 3 layer (Access, Aggregation, Core) design the Layer 2 domain must be configured across the Core for VLAN extension to occur
  C. Extending Layer 2 through a core causes path blocking by STP and has the risk of uncontrollable broadcast issues related to extending Layer 2 domains, and therefore should be avoided
  D. Server-to-server traffic typically travels between aggregation modules by way of the core, while backup and replication traffic remains within the aggregation module
  C. Extending Layer 2 through a core causes path blocking by STP and has the risk of uncontrollable broadcast issues related to extending Layer 2 domains, and therefore should be avoided

• Question 133:

  You have many servers that connect by using EtherChannels. Which two design options increase high availability? (Choose two.)

  A. LISP protocol
  B. Cisco Nexus vPCs
  C. IS-IS routing protocol
  D. Cisco Catalyst 6500 Series VSS
  E. Cisco Catalyst 3750X Series
  F. STP
  C. IS-IS routing protocol
  D. Cisco Catalyst 6500 Series VSS

• Question 134:

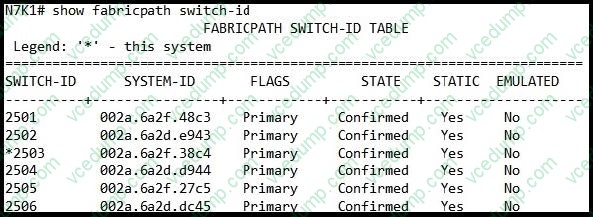

  Refer to the exhibit.



  How does FabricPath behave if a new spine is added to this network with switch-ID 2504?

  A. Traffic to switch-ID 2504 is load balanced.
  B. The existing switch-ID 2504 is assigned a new switch-ID.
  C. The new spine fails to join FabricPath.
  D. The existing switch-ID 2504 is removed from FabricPath.
  C. The new spine fails to join FabricPath.

• Question 135:

  Which two technologies can overcome the link blocking feature that STP implements to ensure a loop-free topology? (Choose two.)

  A. vPC
  B. ISSU
  C. MEC
  D. NX-OS HA
  E. GLBP
  A. vPC
  C. MEC

• Question 136:

  When designing a collapsed core data center, which two technologies are used to virtualize the core and aggregation layers? (Choose two.)

  A. FCoE
  B. LISP
  C. HSRP
  D. VDC
  E. VRF
  D. VDC
  E. VRF

• Question 137:

  Which three elements form a 24-bit Fibre Channel address? (Choose three.)

  A. switch ID
  B. domain ID
  C. AS number
  D. port ID
  E. area ID
  F. bridge ID
  B. domain ID
  D. port ID
  E. area ID

• Question 138:

  Your customer is designing a new data center and would like the aggregation layer to be able to route and have Layer 3 capability. What Cisco platform will meet this requirement?

  A. Cisco Nexus 1000v
  B. Cisco Nexus 5596 without Layer 3 daughter card
  C. Cisco MDS 9506 chassis with supervisor engine
  D. Cisco Nexus 7010 switch with Enterprise Services Package
  D. Cisco Nexus 7010 switch with Enterprise Services Package

• Question 139:

  Which type of 40 Gigabit Ethernet optics should be used for interconnect when the number of multimode fiber strands used should be kept as low as possible?

  A. 40GBASE-SR4
  B. 40GBASE-LR4-Lite
  C. 40GBASE-SR-BiDi
  D. 40GBASE-CR4
  C. 40GBASE-SR-BiDi

• Question 140:

  Which two devices would you recommend to implement at the EoR in your data center design for access layer connectivity? (Choose two.)

  A. Cisco Nexus 2000 Series
  B. Cisco Nexus 7000 Series
  C. Cisco Nexus 4000 Series
  D. Cisco Nexus 5500 Series
  E. Cisco Nexus 3000 Series
  B. Cisco Nexus 7000 Series
  D. Cisco Nexus 5500 Series
