• Question 61:

  What happens by default if the Log Partition Monitor's high-water mark is exceeded?

  A. An alert is sent to RTMT Alert Central and log files are purged until the low-water mark is reached.
  B. An e-mail alert is sent to the administrator and logs are purged, starting with those in the inactive partition and followed by the oldest files in the active partition, until the low-water mark is reached.
  C. An alarm message is sent to the syslog, an alert is generated in RTMT Alert Central, and log files are purged until the low-water mark is reached.
  D. An e-mail alert is sent to alert the administrator and the system starts to purge log files starting with the oldest first.
  C. An alarm message is sent to the syslog, an alert is generated in RTMT Alert Central, and log files are purged until the low-water mark is reached.

  ---

  Cisco Unified Communications Manager Real-Time Monitoring Tool Administration Guide LogPartitionHighWaterMarkExceeded (% disk space)

  If the percentage of disk usage is above the high water mark that you configured, the system sends an alarm message to syslog, generates a corresponding alert in RTMT Alert Central, and automatically purges log files until the value

  reaches the low water mark.

• Question 62:

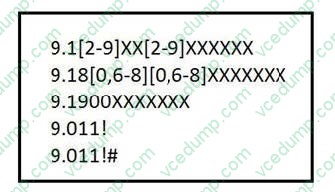

  Refer to Exhibit.



  To reach an external number, a user first dials a 9. Which route pattern will be matched if a user dials an international number 011442288223001 and terminates the interdigit timeout?

  A. 9.1[2-9]XX[2-9]XXXXXX
  B. 9.18[0, 6-8][0, 6-8]XXXXXXX
  C. 9.1900XXXXXXX
  D. 9.011!
  E. 9.011!#
  E. 9.011!#

• Question 63:

  Which two call routing tools can be applied to a device pool? (Choose two.)

  A. Called and Calling Party Translation patterns
  B. Called and Calling Party Transformation CSS
  C. Incoming Called and Calling Party Localization
  D. Local Route Group
  E. Application of time-of-day call routing
  B. Called and Calling Party Transformation CSS
  D. Local Route Group

  ---

  Link : http://www.cisco.com/en/US/docs/voice_ip_comm/cucm/admin/8_5_1/ccmfeat/fscallpn.html

  : Called party transformation patterns do not have any effect on phones. The called party transformation pattern CSS of the device pool does not impart any effects on the phones to which it is assigned. Reference : Cisco Unified Communications Manager Features and Services Guide for Cisco Unified Communications Manager Release 8.5(1), page- 212

• Question 64:

  At the very minimum which settings should be set on a Cisco ip phone that is placed in a public Space like a lobby? (Choose two)

  A. Enable GARP
  B. Disable Settings button on the IP phone
  C. Disable PC Port access
  D. disable PC voice VLAN access
  E. Disable Web access on the IP phone
  B. Disable Settings button on the IP phone
  C. Disable PC Port access

• Question 65:

  Which resources can include MRGL?

  A. MoH
  B. Cisco IP Phone service
  C. soft key template
  D. Annunciator
  E. MTP
  F. Something about CTI
  A. MoH
  D. Annunciator
  E. MTP

• Question 66:

  What is one difference between Cisco inline power and 802.3af PoE?

  A. Cisco inline power should only be activated for those ports that require PoE to avoid oversubscription.
  B. You must determine the total number of IP phones the switch can support with 802.3af to avoid oversubscription.
  C. You must specify which set of pins the powered device is going to accept power on for 802.3af.
  D. Cisco inline power provides a variable amount of power by using CDP.
  B. You must determine the total number of IP phones the switch can support with 802.3af to avoid oversubscription.

• Question 67:

  Keeping the default settings for conferencing resources can lead to toll fraud, because the default settings allow conferences to do which of these?

  A. include both on-net and off-net attendees
  B. be created between attendees that are all off-net
  C. continue if all on-net attendees have left the call
  D. continue if only one on-net attendee remains on the call
  C. continue if all on-net attendees have left the call

  ---

  : Call clasification route pattern can be used to prevent toll fraud by prohibiting off- net to off- net call transfers or by tearing down a conference bridge when no on-net parties are present Reference : Cisco Unified Communications System Release 8.x SRND, page-411

• Question 68:

  You have two clusters with six Cisco Unified CallManager systems in each. How many ICTs must be configured to provide full server redundancy if a gatekeeper is present in the network?

  A. 4
  B. 6
  C. 5
  D. 1
  D. 1

• Question 69:

  What is the accessibility of a DN assigned to the partition?

  A. accessible by all devices regardless of the CSS configured on the device on the calling device
  B. not accessible by any device
  C. only accessible by devices that have the None CSS configured
  D. not accessible by any device by default, unless enabled in the Cisco Unified Communications Manager service parameters
  A. accessible by all devices regardless of the CSS configured on the device on the calling device

  ---

  : Before configure any partitions or calling search spaces, all directory numbers (DN) reside in a special partition named , and all devices are assigned a calling search space also named .

  When you create custom partitions and calling search spaces, any calling search space that you create also contains the partition, while the calling search space contains only the partition.

  Link :

  http://www.cisco.com/en/US/docs/voice_ip_comm/cucm/admin/8_5_1/ccmsys/a03ptcss.html Reference :

  Cisco Unified Communications Manager System Guide Release 8.5(1), page-172.

• Question 70:

  Which two wildcard characters are allowed only once in the route pattern that you create? (Choose two.)

  A. * (asterisk)
  B. + (plus)
  C. X
  D. . (decimal point)
  E. @ (at)
  F. # (octothorpe)
  D. . (decimal point)
  E. @ (at)
