Cisco 642-447 Online Practice Questions and Exam Preparation

Cisco 642-447 Online Questions & Answers

• Question 11:

  What is the minimum number of partitions that must be defined given the dial-plan rules listed below?

  All employees can call local and service numbers.

  Managers can call long-distance and international numbers. Executives can call all PSTN numbers including premium numbers.

  Only administrative assistants can call executives.

  Incoming calls can only be routed to phones, not to trunks.

  A. 3
  B. 4
  C. 5
  D. 6
  E. 7
  F. 8
  C. 5

• Question 12:

  Which two steps must a user take to use a prepared stock quote XML application on an IP phone? (Choose two.)

  A. Initiate an application TFTP request.
  B. Select the Services button and choose the stock option application.
  C. Use the Settings button to activate the application on the phone.
  D. Request that the administrator add their directory number to the application list.
  E. Subscribe, or have the Cisco Unified CallManager administrator subscribe, the phone to the service using the User Options web page.
  F. Dial the directory number for the service.
  B. Select the Services button and choose the stock option application.
  E. Subscribe, or have the Cisco Unified CallManager administrator subscribe, the phone to the service using the User Options web page.

• Question 13:

  Which three events describe the relationship of an IP phone to its secondary subscriber in a Cisco Unified Communications Manager system? (Choose three.)

  A. The IP Phone sends a TCP connect message.
  B. The IP Phone sends a TCP keepalive message every 30 seconds.
  C. The IP Phone sends a TCP keepalive message every 60 seconds.
  D. The IP Phone registers with the primary system when the secondary system is unavailable.
  E. The IP Phone attempts to register with the secondary system when the primary system is unavailable.
  F. The IP Phone registers with all the Cisco Unified Communications Manager subscribers in the group simultaneously, including the secondary subscriber.
  A. The IP Phone sends a TCP connect message.
  B. The IP Phone sends a TCP keepalive message every 30 seconds.
  E. The IP Phone attempts to register with the secondary system when the primary system is unavailable.

• Question 14:

  Which statement about the relationship between gateways and route groups is true?

  A. Each gateway can belong to only one route group and can be listed only once within that route group.
  B. Each gateway can belong to only one route group and can be listed multiple times within that route group.
  C. Each gateway can belong to multiple route groups and can be listed only once within each route group.
  D. Each gateway can belong to multiple route groups and can be listed multiple times within each route group.
  C. Each gateway can belong to multiple route groups and can be listed only once within each route group.

• Question 15:

  Which of these is a characteristic of the Cisco Unified Communications Manager Bulk Administration Tool in Cisco Unified Communications Manager 6.0?

  A. Cisco Unified Communications Manager Auto-Register Phone Tool is part of Bulk Administration.
  B. Cisco Unified Communications Manager BAT needs to be installed from the plug-in page.
  C. Cisco Unified Communications Manager BAT pages are available from the Serviceability page.
  D. Cisco Unified Communications Manager Auto-Register Phone Tool requires a Customer Response System.
  A. Cisco Unified Communications Manager Auto-Register Phone Tool is part of Bulk Administration.

• Question 16:

  Which three steps need to be performed on a third party SIP phone device when adding it to Cisco Unified Communications Manager 6.0? (Choose three.)

  A. Select XML as the method to send the third party SIP phone its configuration file.
  B. Add the MAC address of the Cisco Unified Communications Manager server to the SIP phone configuration.
  C. Set the directory numbers to match the directory numbers configured in Cisco Unified Communications Manager.
  D. Set the digest user ID in the SIP device to match the digest user ID in Cisco Unified Communications Manager.
  E. Set the TLS user ID and password in the SIP phone to match the TLS user ID and password in Cisco Unified Communications Manager.
  F. Set the proxy address in the SIP phone to match the IP address or fully qualified domain name of Cisco Unified Communications Manager.
  C. Set the directory numbers to match the directory numbers configured in Cisco Unified Communications Manager.
  D. Set the digest user ID in the SIP device to match the digest user ID in Cisco Unified Communications Manager.
  F. Set the proxy address in the SIP phone to match the IP address or fully qualified domain name of Cisco Unified Communications Manager.

  ---

  Third party SIP In the proxy address field ofthe third-party phone, specify the IP address or fully qualified domain name ofCisco Unified Communications Manager. The User Name has to be set to the director} number that is assigned to the IP phone in Cisco Unified Communications Manager. The Authorization username lias to match the Digest User that was assigned to the phone.

• Question 17:

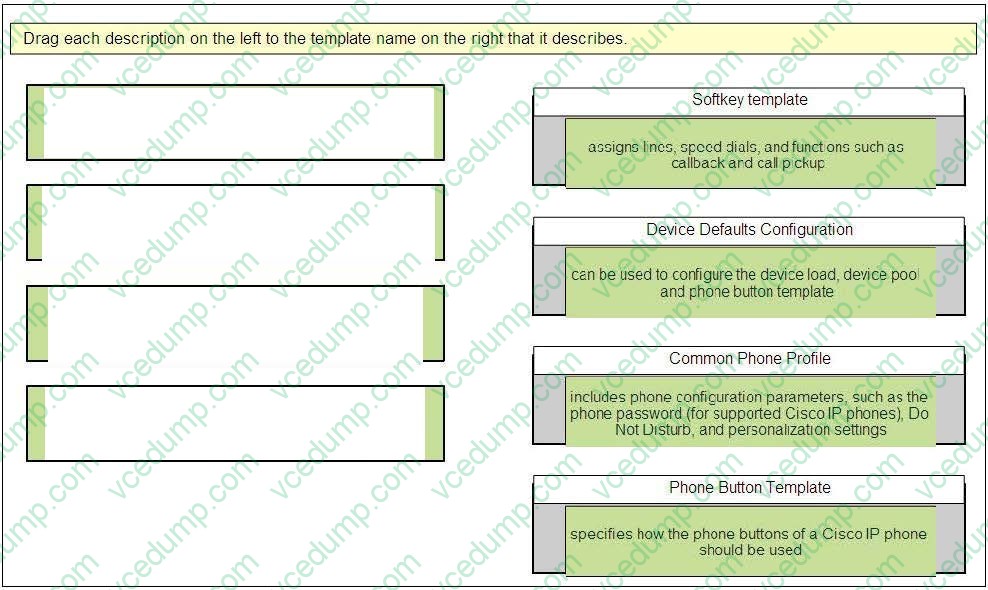

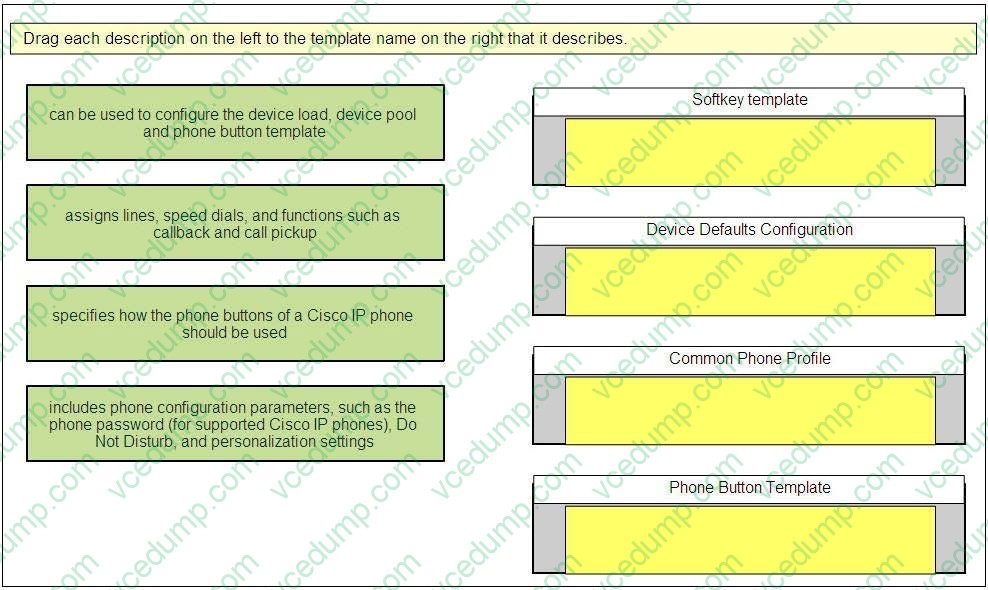

  Drag each description on the left to the template name on the right that it description.

  Select and Place:





• Question 18:

  Which three steps are needed to enable time-of-day call routing? (Choose three.)

  A. Configure a time schedule.
  B. Configure an access list.
  C. Configure a partition.
  D. Configure a time period.
  E. Configure a calling search space.
  F. Configure a route pattern.
  G. Configure dial rules.
  A. Configure a time schedule.
  C. Configure a partition.
  D. Configure a time period.

• Question 19:

  Refer to the exhibit.



  Which conference resource is Conference 2 using assuming the MRGL has just been reset and all 6 conferences have become active?

  A. HW_CFB_1
  B. HW_CFB_2
  C. SW_CFB_1
  D. SW_CFB_2
  E. SW_CFB_3
  A. HW_CFB_1

• Question 20:

  Which option in the Cisco Unified Communications Manager IP phone configuration settings will specify the devices, end users, and application users that can monitor this directory number?

  A. presence list
  B. monitor group
  C. presence group
  D. monitor list
  C. presence group
