Cisco 642-447 Online Practice Questions and Exam Preparation

Cisco 642-447 Online Questions & Answers

• Question 21:

  Which two steps are required to configure LDAP authentication? (Choose two.)

  A. Add a Cisco Unified Communications Manager directory user and assign administrator access rights to the user in the LDAP directory.
  B. Activate Cisco Dir Sync service.
  C. Configure a synchronization schedule.
  D. Configure the LDAP server type in Cisco Unified Communications Manager Administration.
  E. Configure LDAP server addresses in Cisco Unified Communications Manager Administration.
  A. Add a Cisco Unified Communications Manager directory user and assign administrator access rights to the user in the LDAP directory.
  E. Configure LDAP server addresses in Cisco Unified Communications Manager Administration.

• Question 22:

  You plan to activate Simple Network Management Protocol service in the Service Activation window in Cisco Unified Communications Manager Serviceability. You want to monitor all nodes in a cluster. On which node should you activate this service?

  A. on any node
  B. only on the first node
  C. on each nodes
  D. on a separate node outside the cluster
  C. on each nodes

• Question 23:

  Which type of server maintains the read/write version of the configuration database and provides database services to the remaining servers in a Cisco Unified Communications Manager cluster?

  A. publisher
  B. subscriber
  C. primary
  D. standby
  A. publisher

• Question 24:

  Which Cisco Unified Communications Manager tool would be the most appropriate to use to manage phones that autoregister?

  A. DRF
  B. BAT
  C. TAPS
  D. BPS
  C. TAPS

• Question 25:

  Which two statements regarding CUCM user privileges are correct?

  A. a use can be a member of more than one user group
  B. a role can only be assigned to one user group
  C. a role refers to one or more applications
  D. an application can be referred to by only one role
  E. a resource is assigned one privilege per role.
  A. a use can be a member of more than one user group
  E. a resource is assigned one privilege per role.

  ---

  Each role refers to one application, and each application has one or more resources (static list per application). Per role, access privileges are configured per application resource. Roles are assigned to user groups.

• Question 26:

  If no SIP dial rules are configured on an IP phone, at what point in the collection of digits does a Type A SIP phone send digits to the Cisco Unified Communications Manager? (Choose two.)

  A. when the interdigit timer expires
  B. when the collected digits match a SIP dial rule
  C. when the user presses the Dial softkey
  D. as each digit is collected (it is sent for analysis)
  E. when the user presses the # key
  C. when the user presses the Dial softkey
  E. when the user presses the # key

• Question 27:

  You have two groups of managers that need to hold Meet-Me conferences. You want each group to have access to a range of 10 Meet-Me numbers. What are the two best ways to accomplish this? (Choose two.)

  A. Ensure that the 10 Meet-Me conference numbers overlap with existing ad hoc conferencing numbers.
  B. Create two different partitions and add both groups of 10 Meet-Me conference numbers to the partitions.
  C. Create two groups of 10 Meet-Me conference numbers that do not overlap with any other number in the numbering plan.
  D. Create a different partition for each group of managers and assign a set of 10 Meet-Me conference numbers to each.
  E. Create two different groups of Meet-Me conference numbers, add them to the partition, and add the partition to the two manager groups to provide limited access.
  C. Create two groups of 10 Meet-Me conference numbers that do not overlap with any other number in the numbering plan.
  D. Create a different partition for each group of managers and assign a set of 10 Meet-Me conference numbers to each.

  ---

  Link:

  http://www.cisco.com/en/US/docs/voice_ip_comm/cucm/admin/8_5_1/ccmcfg/b03meet.html Reference:

  Cisco Unified Communications Manager Administration Guide Release 8.6(1), page- 313.

• Question 28:

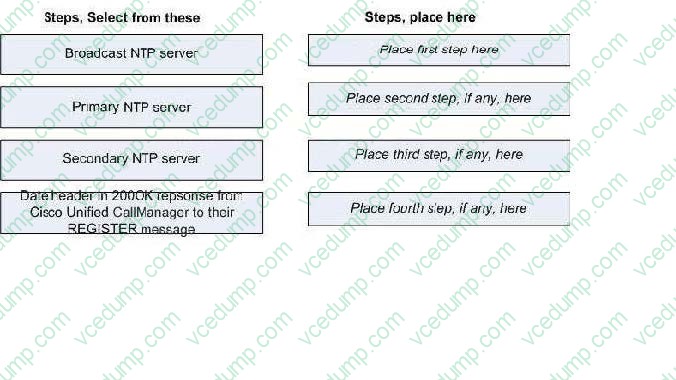

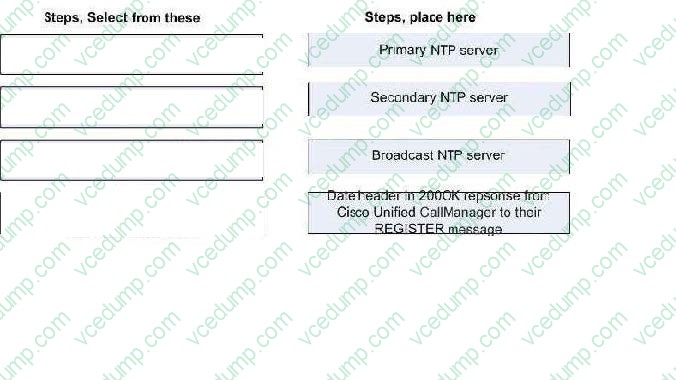

  You work as a network technician at Abc.com. Your boss, Miss ABC, is interested in 8.0 SIP phones and the NTP clock. Place the sources in the appropriate sequence.

  Select and Place:





• Question 29:

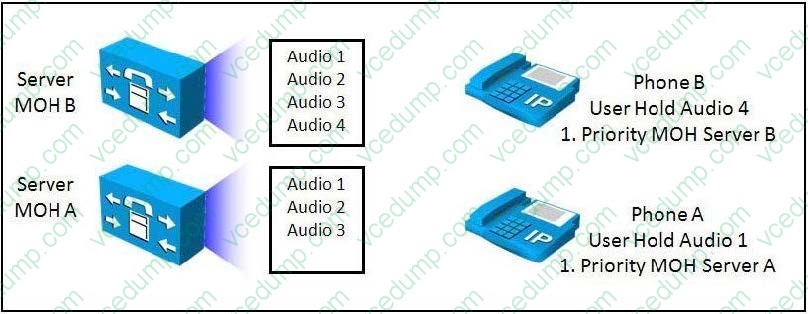

  Refer to the exhibit.



  When Phone B places Phone A on hold which audio stream will be heard and from which server will it be delivered? (Choose two.)

  A. Audio 1
  B. Server A
  C. Server B
  D. Audio 4
  E. Audio 2
  F. Audio 3
  G. No audio will be delivered
  B. Server A
  G. No audio will be delivered

• Question 30:

  Managers have asked to be able to have an extension call them back if it is busy when they try to call it. In what two places can this feature be assigned to the Managers phone? (Choose Two)

  A. Device Setting > Device Defaults
  B. Device Setting > Phone button Template
  C. Device Setting > Firmware Load Information.
  D. Device Setting > Default Device Profile Configuration.
  E. Device Setting > Device Profile.
  F. Device Setting > Softkey Template.
  E. Device Setting > Device Profile.
  F. Device Setting > Softkey Template.
