Cisco 642-447 Online Practice Questions and Exam Preparation

Cisco 642-447 Online Questions & Answers

• Question 281:

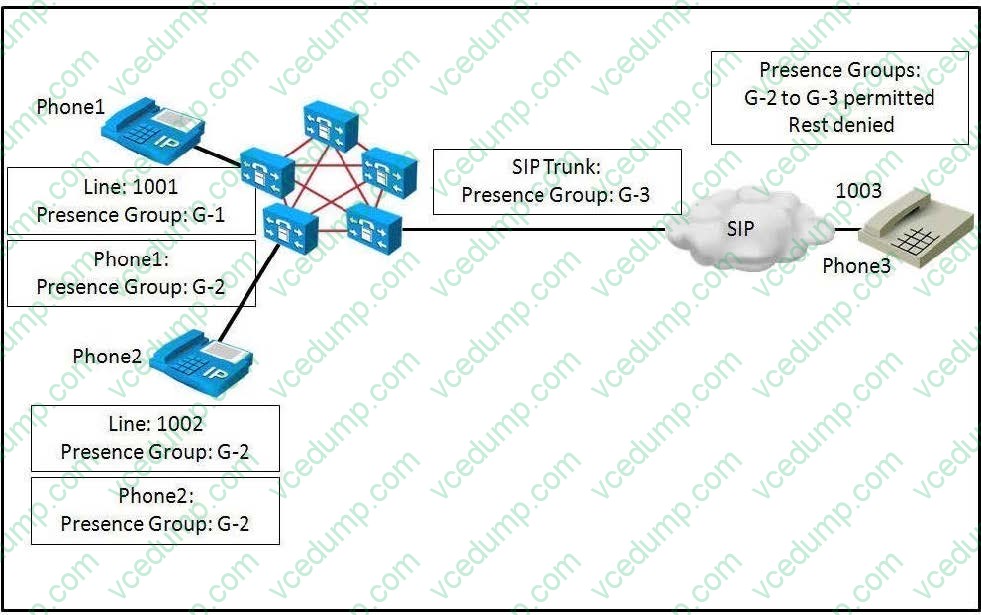

  Refer to the exhibit. Which of these statements are true?



  A. 1001 can watch 1002, but not 1003.
  B. 1002 can only watch 1003.
  C. 1003 can only watch 1001.
  D. 1001 can watch 1002 and 1003.
  E. 1002 cannot watch any extension.
  A. 1001 can watch 1002, but not 1003.
  C. 1003 can only watch 1001.

• Question 282:

  Which component is required when deploying Music on Hold with recorded or live audio?

  A. Any sound card compatible with the MCS server
  B. Media Termination Point
  C. Conferencing resources
  D. Cisco MOH USB sound card
  E. Transcoder
  D. Cisco MOH USB sound card

  ---

  Link : http://www.cisco.com/en/US/docs/voice_ip_comm/cucm/srnd/8x/media.html Reference : Cisco Unified Communications System Release 8.x SRND , page- 797. : A Unified CM MoH server can generate a MoH stream from the following two types of sources:



  An audio file uploaded to the Unified CM MoH server



  A fixed (live) music source through a USB sound card

• Question 283:

  Refer to the Exhibit



  Which two of these statements about call lists enabled for Cisco Unified Presence are true? (Choose two)

  A. 1001 can watch 1002
  B. 1001 cannot watch 1003
  C. 1002 can watch 1001
  D. 1002 can watch 1003
  E. 1003 can watch 1001
  A. 1001 can watch 1002
  D. 1002 can watch 1003

• Question 284:

  Which option describes where you set up the toll-fraud prevention feature that drops any calls from a conference if no on-net users are still connected?

  A. in the service parameters for the Ad Hoc Conference Service
  B. in the service parameters for Cisco IP Voice Media Streaming App
  C. in the service parameters for Cisco CallManager
  D. in the enterprise parameters
  C. in the service parameters for Cisco CallManager

• Question 285:

  What is the maximum number of devices that are supported when running a DHCP server on the same machines as Cisco Unified Communications Manager?

  A. 150
  B. 250
  C. 500
  D. 1000
  D. 1000

• Question 286:

  A user's phone Call Forward No Answer setting has been configured to forward to a hunt pilot. If all call hunting options have been exhausted and the Forward Hunt No Answer feature has been configured to use Personal Preference settings,

  to which of these will calls to this phone be forwarded?

  A. the default destination configured under Service Parameters
  B. any destination configured under the user's DN Personal Settings configuration
  C. the destination specified under the user's Call Forward No Coverage settings
  D. voice mail
  E. no other destination; each call will continue to ring until the caller hangs up
  C. the destination specified under the user's Call Forward No Coverage settings

  ---

  you can implement the personal preferences option. To do so, configure a user phone so that the Forward No Answer field redirects the call to a hunt pilot, which searches for someone else to answer the call. If call hunting fails because all the hunting options are exhausted or because a timeout period expires, the call can be sent to a personalized destination for the person who was originally called. For example, if you set the Forward No Coverage field in the Directory Number Configuration page to a voice-mail number, the call will be sent to the voice mailbox of that person if hunting fails.

• Question 287:

  abc.com's Bicycles has three manufacturing plants and 145 retail stores. Each of the manufacturing plants has a Cisco Unified CallManager cluster. The retail stores use a mix of Cisco Unified CallManager Express and key systems with gateways. What is the recommended trunk type to use on the Cisco Unified CallManager clusters for full intersite calling capability?

  A. gatekeeper-controlled interclustertrunks
  B. gatekeeper-controlled H.225 trunks
  C. non-gatekeeper-controlled intercluster trunks
  D. SIP trunks
  B. gatekeeper-controlled H.225 trunks

• Question 288:

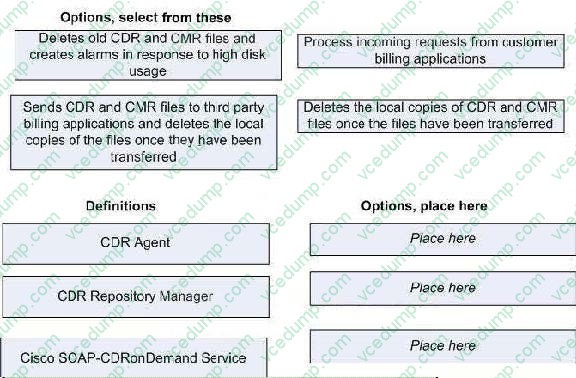

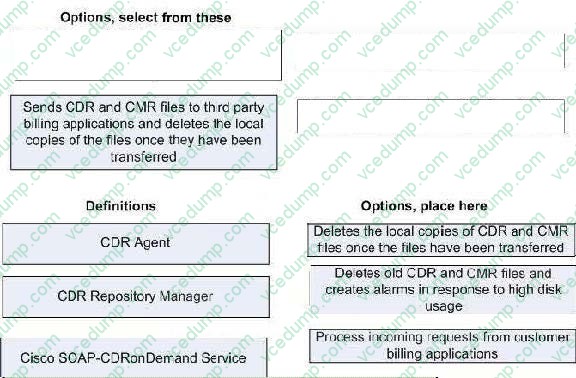

  You work as a network technician at Abc.com. Your boss, Miss ABC, is interested in Cisco Services. Match the proper Cisco Service term with appropriate function.

  Select and Place:





• Question 289:

  When creating your own CSV file to be used by Cisco Unified Communications Manager BAT, which three rules do you need to follow? (Choose three.)

  A. Do not enter blank lines; otherwise, errors occur during the insert transaction.
  B. Edit the Excel macro for each separate Unified Communications Manager BAT transaction.
  C. Use a separate line for each data record.
  D. Separate each data field with a comma and include comma separators for blank fields.
  E. Disable Excel macros after adding data and prior to the CSV file upload to the Unified Communications Manager BAT service.
  A. Do not enter blank lines; otherwise, errors occur during the insert transaction.
  C. Use a separate line for each data record.
  D. Separate each data field with a comma and include comma separators for blank fields.

  ---

  Reference : Cisco Unified Communications Manager Bulk Administration Guide Release 8.6(1), page-588.

  :

  Step 1 Open a text editor (such as Microsoft Notepad) or any application that allows you to export or create a CSV file.

  Step 2 Use a separate line to enter the values for each phone, IP telephony device, or user combination that you want to add to Cisco Unified Communications Manager. You must create separate CSV files for each type of device. Keep in

  mind the following rules when you create the CSV data file.

  ?Always include comma separators, even if a field is blank. ?Specify the user ID if the phone is to be associated to a user. ?Directory Number fields are optional only when you are creating the CSV file for use with a BAT

  template that has no lines. If lines are configured on the BAT phone template, you must supply directory numbers in the CSV file for each device.

  ?An error occurs when you insert a CSV file with blank lines. ?While saving your CSV file, choose to save it as `UTF-8' encoded. In Notepad, you can select encoding as `UTF-8' from the Encoding dropdown. Step 3 Upload the CSV file to the

  first node of Cisco Unified Communications Manager.

• Question 290:

  Users that are subscribed to the default corporate directory are complaining that when they press the Directories button, they receive an error message regarding the URL. Which two parameters need to be edited? (Choose two.)

  A. Reset the Service Parameter > Phone URL Parameters.
  B. Reset the Enterprise Phone URL Parameters.
  C. Select the Service Parameter for the appropriate server and Cisco CallManager (active) and change the URLs for each service to match the DNS name or IP address of the server being configured.
  D. Change the URL under URL Directories field under Enterprise Parameters to match the DNS name or the IP address being used by the server and reset the IP phones.
  E. Verify that the corporate directory service has the Enabled check box checked in the IP Phone Services Configuration.
  F. Verify that the corporate directory has the Enabled check box checked in the Enterprise Parameter > Phone URL Parameters page.
  D. Change the URL under URL Directories field under Enterprise Parameters to match the DNS name or the IP address being used by the server and reset the IP phones.
  E. Verify that the corporate directory service has the Enabled check box checked in the IP Phone Services Configuration.
