• Question 131:

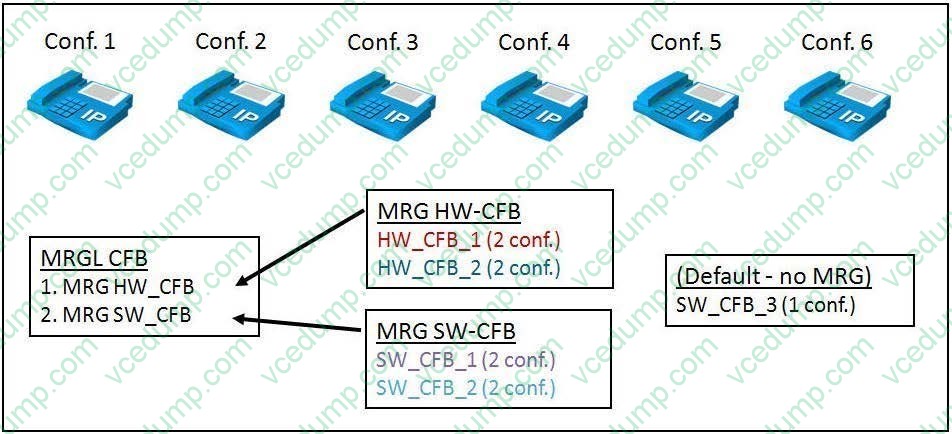

  Refer to the exhibit. Each of the IP phones needs to use conferencing resources at the same time. Which conference resource will conference 2 use?

  A. HW_CFB_1
  B. HW_CFB_2
  C. SW_CFB_1
  D. SW CFB 2
  A. HW_CFB_1

• Question 132:

  The abc.com Corporation is experiencing poor, choppy audio quality on voice calls placed across their WAN link to and from Madison. What can be done to the Location parameter for Madison to help alleviate this problem?

  A. Nothing, the audio bandwidth Location parameter for Madison is not related to the problem.
  B. Increase the audio bandwidth setting in the Location configuration window for Madison.
  C. Decrease the audio bandwidth setting in the Location configuration window for Madison.
  D. Remove the audio bandwidth parameter in the Location configuration window for Madison.
  C. Decrease the audio bandwidth setting in the Location configuration window for Madison.

• Question 133:

  Which option is a requirement for Cisco Unified Communications Manager clustering?

  A. Multiple servers run the exact same version of Cisco Unified Communications Manager.
  B. The Publisher runs the same or a newer version of Cisco Unified Communications Manager as the Subscribers.
  C. The Subscribers run the same or a newer version of Cisco Unified Communications Manager as the Publisher.
  D. Multiple servers run any version of Cisco Unified Communications Manager as long as they belong to the same major release.
  A. Multiple servers run the exact same version of Cisco Unified Communications Manager.

• Question 134:

  What is the purpose of using device pools?

  A. to provide an easily modified set of system parameters for the Cisco Unified CallManager server and endpoints
  B. to provide all the IP phone parameters required for auto-registration
  C. to consolidate the dial plan for a set of IP phones in the same location
  D. to provide a convenient way to define a set of common characteristics that can be assigned to devices
  D. to provide a convenient way to define a set of common characteristics that can be assigned to devices

  ---

  device pool definition Device pools define sets of common characteristics for devices, the device pool structure supports the separation of user and location information. The device pool contains only device- and location-related information

• Question 135:

  You want to deploy a mixture of unicast and multicast MOH streams. You need to configure 12 multicast streams, each supporting two codecs. How many unicast streams can be configured, assuming 250 is the maximum number of MOH streams supported on your MOH server?

  A. 204
  B. 214
  C. 226
  D. 250
  E. 202
  C. 226

  ---

  Maximum Half Duplex Streams determine the number of devices that can be placed on unicast MOH. The parameter should be set to the value derived from the following formula: (Server Capacity) - [(Number of Multicast MOH sources) x (Number of MOH codecs enabled)] 250 - [12 x 2] = 250 - 24 = 226

  REF: Cisco Press CIPT1 Foundation Learning Guide, Second Edition, pg 374

• Question 136:

  When you configure an external Network Time Protocol server that will be used by the Cisco Unified Communications Manager subscriber, which version of Network Time Protocol does Cisco recommended?

  A. Version 1.0
  B. Version 2.0
  C. Version 3.0
  D. Version 4.0
  D. Version 4.0

• Question 137:

  Which navigation window should you use to restart the server and view the version of the Cisco Unified CallManager 5.0 software?

  A. Cisco Unified CallManager Serviceability
  B. Cisco Unified CallManager Administration
  C. Platform Administration
  D. Disaster Recovery System
  C. Platform Administration

  ---

  correct. if Platform Administration = Cisco Unified OS Administration if both Platform Administration and Cisco Unified OS Administration are present, choose OS Administration

• Question 138:

  Which three options correctly describe the role of a subsequent node in a Cisco Unified CallManager 5.0 cluster? (Choose three.)

  A. processes IP telephony calls
  B. collects CDRS
  C. replicates the database to other Cisco Unified CallManager servers
  D. maintains read-only copies of the configuration database
  A. processes IP telephony calls
  B. collects CDRS
  D. maintains read-only copies of the configuration database

• Question 139:

  Which three of these are considered to be Cisco Unified Communications Manager feature services? (Choose three.)

  A. Cisco CallManager
  B. Cisco CDP
  C. Cisco DB Replicator
  D. Cisco CallManager Admin services
  E. Cisco TFTP
  F. Cisco DirSync services
  A. Cisco CallManager
  E. Cisco TFTP
  F. Cisco DirSync services

• Question 140:

  The Ajax Corporation is designing an IP telephony network using Cisco MCS 7845 Series servers, each one capable of supporting 7500 devices. The design must meet these requirements:

  be cost-effective support up to 7500 phones provide a minimal level of redundancy

  Which configuration will meet Ajax Corporation needs?

  A. two Cisco Unified Communications Manager servers: 1 publisher and TFTP server combined 1 primary subscriber
  B. three Cisco Unified Communications Manager servers: 1 publisher and TFTP server combined 1 primary subscriber 1 backup subscriber
  C. four Cisco Unified Communications Manager servers: 1 publisher 1 TFTP server 1 primary subscriber 1 backup subscriber
  D. five Cisco Unified Communications Manager servers 1 publisher 1 TFTP server 1 primary subscriber 2 backup subscribers
  B. three Cisco Unified Communications Manager servers: 1 publisher and TFTP server combined 1 primary subscriber 1 backup subscriber
