• Question 211:

  Which two applications require the network to have the least amount of jitter, delay, and packet loss? (Choose two.)

  A. FTP
  B. SSH
  C. VoIP
  D. email
  E. Cisco TelePresence
  F. web browsing
  C. VoIP
  E. Cisco TelePresence

• Question 212:

  DRAG DROP

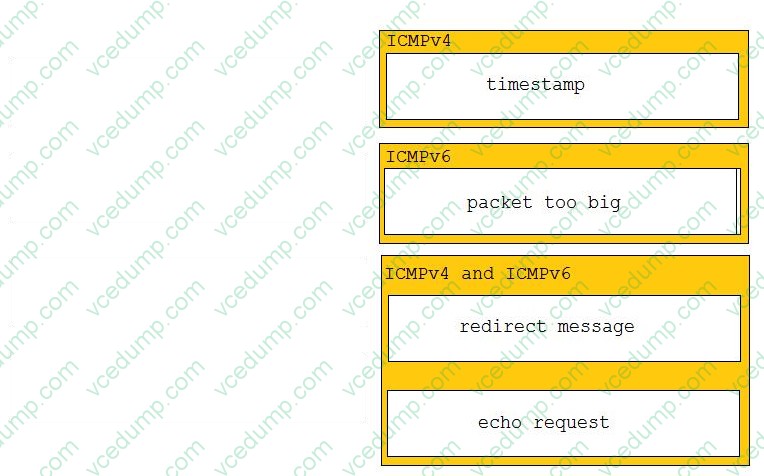

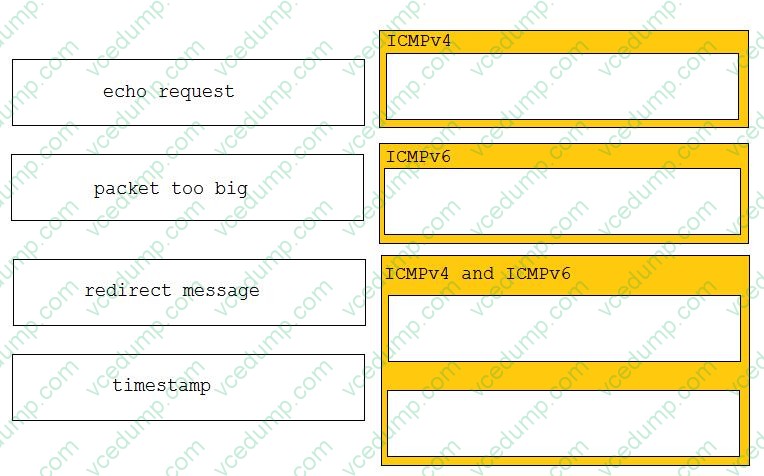

  Drag and drop the ICMP message types from the left onto the ICMP versions that use them on the right.

  Select and Place:





• Question 213:

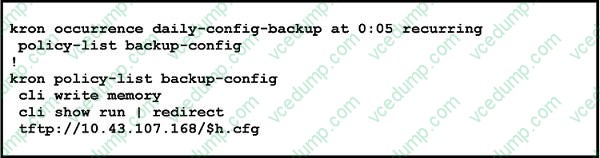

  Refer to the exhibit.



  A new policy requires all configurations to be saved to flash and backed up to a TFTP server based off the hostname at 12:05am every day. Based upon the configuration, which two commands are required to accomplish this? (Choose two.)

  A. kron occurrence daily-config-backup at 0:05 recurringpolicy-list backup-config
  B. kron occurrence daily-config-backup at 12:05 recurringpolicy-list backup-config
  C. kron policy-list backup-configcli write memorycli show running-config| redirect tftp://209.165.200.226/$h.cfg
  D. kron policy-list backup-configcli write memorycli show running-config| redirect tftp://209.165.200.226/$hostname.cfg
  A. kron occurrence daily-config-backup at 0:05 recurringpolicy-list backup-config
  C. kron policy-list backup-configcli write memorycli show running-config| redirect tftp://209.165.200.226/$h.cfg

• Question 214:

  An engineer with employee is planning the subnetting layout for their company and must create 30 networks each with 200 hosts. Which IP address meets this requirement using the longest prefix length possible?

  A. 10.10.0.0/17
  B. 10.10.0.0/18
  C. 10.10.0.0/19
  D. 10.10.0.0/20
  D. 10.10.0.0/20

• Question 215:

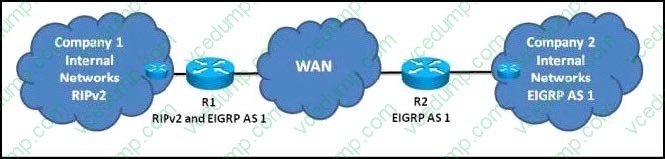

  Refer to the exhibit.



  Company 1 has merged with Company 2. Company 1 is using RIPv2 as its IGP and Company 2 is using EIGRP as its IGP. EIGRP also is running between R1 and R2 over the WAN link. Which action must be taken to allow these two configurations?

  The Company 1 RIP routes appear as external EIGRP routes within Company 2. The Company 2 EIGRP routes appear as RIPv2 routes within Company 1.

  A. Enable RIPv2 on the R2 router.
  B. Enable RIPv2 on the R2 router and on all internal routers of Company 2. Enable EIGRP on all internal routers of Company 1.
  C. Configure mutual route redistribution between RIPv2 and EIGRP on the R1 and R2 routers.
  D. Configure mutual route redistribution between RIPv2 and EIGRP on the R1 router.
  E. Configure mutual route redistribution between RIPv2 and EIGRP on the R2 router.
  D. Configure mutual route redistribution between RIPv2 and EIGRP on the R1 router.

• Question 216:

  DRAG DROP

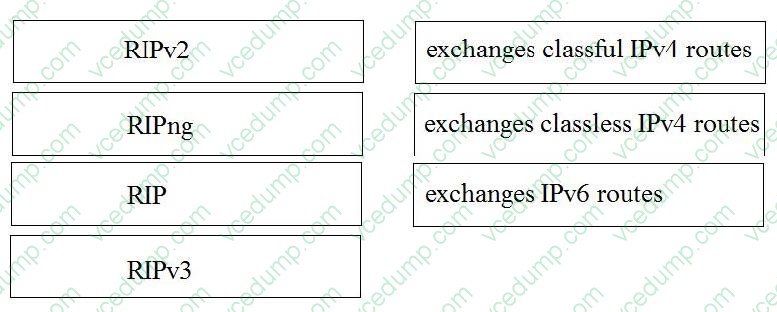

  Drag and drop the routing protocols from the left onto the description that best describes them in the right. Not all options are used.

  Select and Place:





• Question 217:

  Which two statements about Cisco IOS XE operations are true? (Choose two.)

  A. Cisco IOS XE uses a two-stage configuration method.
  B. Using the commit global configuration command, all the committed changes will be persistent across reboots.
  C. The copy run start command makes the configuration changes persistent across reboots.
  D. The erase start command followed by the reboot command brings up the router without any configurations.
  E. There is no concept of a startup-config in Cisco IOS XE.
  C. The copy run start command makes the configuration changes persistent across reboots.
  D. The erase start command followed by the reboot command brings up the router without any configurations.

• Question 218:

  Which statement is true when using VRF?

  A. Overlapping IP addresses can be used without conflict
  B. Multiple instances of a routing table cannot coexist on the same router
  C. Routing instances must not contain overlapping address space
  D. Two interfaces on the same router cannot be configured with the same IP address
  A. Overlapping IP addresses can be used without conflict

• Question 219:

  Which statement about how data is transmitted in a GPON environment is true?

  A. Nodes provide optical to electrical conversion between the OLT and the ONTs
  B. Optical splitters are used to separate wavelengths assigned to different ONTs
  C. Each ONT receives the traffic intended for all ONTs on the same PON
  D. The OLT sends traffic to specific ONTs based on an assigned timeslot
  B. Optical splitters are used to separate wavelengths assigned to different ONTs

• Question 220:

  DRAG DROP

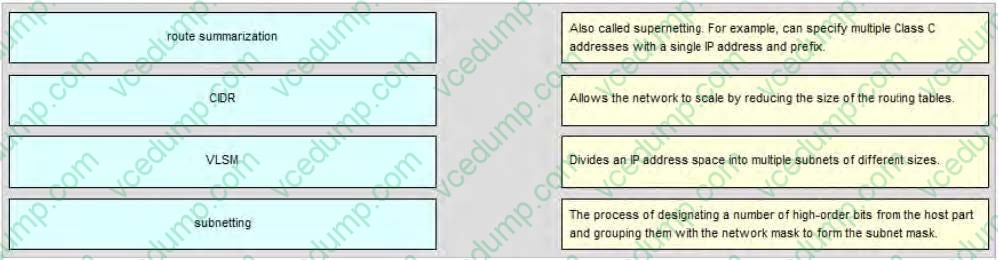

  Drag the methods from the left and drop them on the best descriptions on the right.

  Select and Place:
