Cisco 500-601 Online Practice Questions and Exam Preparation

Cisco 500-601 Online Questions & Answers

• Question 1:

  In the Cisco APIC, how are fabric-wide unique identifiers managed?

  A. dme
  B. coop
  C. eltmc
  D. idmgr
  A. dme

• Question 2:

  At which point during VMM integration do you need to create the vDS switch within vCenter?

  A. when starting up the VM
  B. No need to create the vDS, the Cisco APIC controller does that automatically.
  C. after assigning the EPG to the VMM controller
  D. before defining the VLAN pool that is assigned to the VMM controller
  B. No need to create the vDS, the Cisco APIC controller does that automatically.

• Question 3:

  Which statement about the Cisco APIC cluster in minority state is true?

  A. Policy/Config changes are possible each cluster member in leader state.
  B. Policy/Config changes are possible on cluster leader APIC1.
  C. Policy/Config changes are not possible on any cluster member.
  D. Policy/Config changes are possible on any cluster member.
  A. Policy/Config changes are possible each cluster member in leader state.

• Question 4:

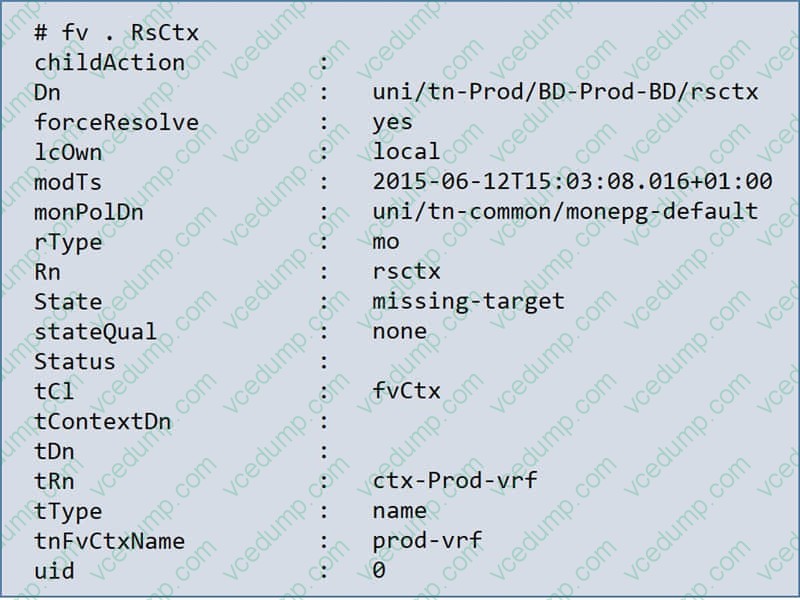

  Refer to the exhibit



  The configured bridge domain with name "Prod-BD" m tenant Prod is not functioning property Which option describes a possible reason for that failure?

  A. The context "Prod-vrf" does not exist m the fabric.
  B. The "missing-target" state field indicates that there are not leaves with endpoint in the bridge domain, so it is not configured anywhere.
  C. Someone has deleted the monitoring object "monepg default".
  D. The tenant "Prod" has been deleted.
  A. The context "Prod-vrf" does not exist m the fabric.

• Question 5:

  Which action is needed on a Cisco UCS to make ACI dynamic discovery work?

  A. Enable VLAN grouping on the fabric interconnect uplinks.
  B. Enable the Cisco Discovery Policy on the Cisco UCSM vNICs
  C. Forward the infrastructure VLAN toward the ESX.
  D. Use MTU 9000.
  D. Use MTU 9000.

• Question 6:

  Which option describes the correct sequence to discover an ESX server in the fabric without a blade switch or multiple Layer 2 hops?

  A. The leaf sends LLDP/CDP to the ESX, the ESX sends parsed UDP/CDP information to the vCenter, the AP1C receives LLDP/CDP information from the vCenter, and the APIC downloads the policy for VMs behind the ESX to the leaf node.
  B. The APIC downloads the policy for VMs behind ESX to the leaf node, the leaf sends LLDP/CCP to the ESX, the ESX sends parsed LLDP/CDP information to the vCenter, and the APIC receives LLDP/CDP information from the vCenter.
  C. The ESX sends parsed LLDP/CDP information to the vCenter, the leaf sends LLDP/CCP to the ESX, the APIC downloads the policy for VMs behind the ESX to the leaf node, and the APIC receives LLDP/CDP information from the vCenter.
  D. The ARC receives LLDP/CDP information from the vCenter, the APIC downloads policy for VMs behind ESX to the leaf node, the leaf sends LLDP/CCP to the ESX, and the ESX sends parsed LLDP/CDP information to the vCenter.
  B. The APIC downloads the policy for VMs behind ESX to the leaf node, the leaf sends LLDP/CCP to the ESX, the ESX sends parsed LLDP/CDP information to the vCenter, and the APIC receives LLDP/CDP information from the vCenter.

• Question 7:

  A VMM endpoint off of a UCSB is unable to hit its anycast gateway, but the MAC address of the VM can be seen in one of the fabric interconnects Wh1Ch option is the cause of the issue?

  A. The active NIC on the host has gone down and the host has not yet failed over.
  B. There is no native VLAN configured within the data path of the Cisco UCS.
  C. LLDP is not enabled in the vSwitch policies.
  D. The VLAN tag is being changed at the vNIC or uplink port.
  D. The VLAN tag is being changed at the vNIC or uplink port.

• Question 8:

  Which two statements about contract policy enforcement are true? (Choose two)

  A. The class ID (or PCTag) of the source EPG is inserted by the ingress leaf into any packets going into the fsbric.
  B. Contracts are always enforced m the ingress leaf
  C. The class ID (or PCTag) of the destination EPG is inserted by the ingress leaf into any packets going into the fabric
  D. Contracts are sometimes enforced in the ingress leaf and sometimes in the egress leaf.
  E. Contracts are always enforced m the egress leaf
  B. Contracts are always enforced m the ingress leaf
  C. The class ID (or PCTag) of the destination EPG is inserted by the ingress leaf into any packets going into the fabric

• Question 9:

  When you use a Cisco UCS fabric interconnect, which protocol must be configured between the fabric interconnect and the ESX/ server?

  A. PFC
  B. vPC
  C. HSRP
  D. Cisco Discovery Protocol
  B. vPC

• Question 10:

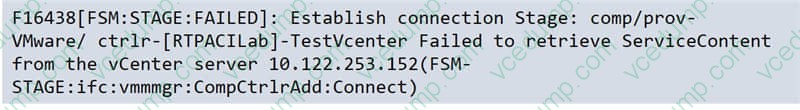

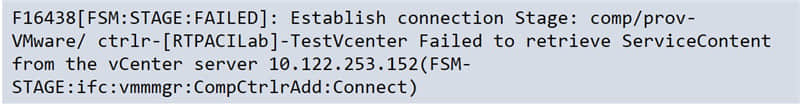

  Refer to the exhibit

  F16438[FSM:STAGE:FAILED]: Establish connection Stage: comp/prov-VMware/ ctrlr-[RTPACILab]-TestVcenter Failed to retrieve ServiceContent from the vCenter server 10.122.253.152(FSM-STAGE:ifc:vmmmgr:CompCtrlrAdd:Connect)



  Which option is a potential reason why you would see this output while provisioning a DVS?

  A. The specified data center does not exist on the vCenter m question.
  B. The Cisco APIC(s) cannot reach the vCenter host/vm.
  C. The Service Content process has crashed.
  D. Cisco Discovery Protocol is disabled on the vswitch policy tied to the corresponding AAEP.
  A. The specified data center does not exist on the vCenter m question.
