Nokia 4A0-C04 Online Practice Questions and Exam Preparation

Nokia 4A0-C04 Online Questions & Answers

• Question 271:

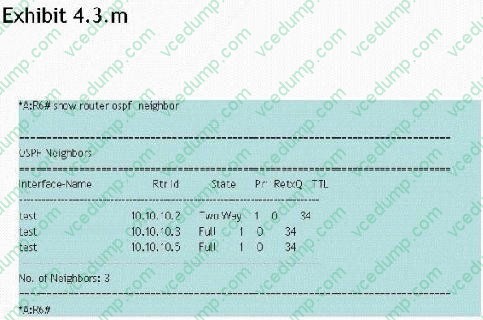

  Click the exhibit button.



  What can you deduce from the show command on router R6?

  A. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment. The DR for this segment would be the router with router ID 10.10.10.5.
  B. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment; however, this command does not indicate whether 10.10.10.3 or 10.10.10.5 is the DR or BDR.
  C. The router R6 interface is in a multi-access segment. It is the BDR, which is why it is not adjacent to the other routers.
  D. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment. The DR for this segment would be the router with router ID 10.10.10.3.
  B. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment; however, this command does not indicate whether 10.10.10.3 or 10.10.10.5 is the DR or BDR.

• Question 272:

  In a Layer 2 encapsulation using T-LDP, what does the second (bottom) label represent?

  A. Tunnel Label
  B. VC Label
  C. Operational Control Word
  D. VPI
  E. VCI
  B. VC Label

• Question 273:

  In a Layer 2 encapsulation using T-LDP, what does the first (top) label represent?

  A. Tunnel Label
  B. VC Label
  C. Operational Control Word
  D. UNI
  E. NNI
  A. Tunnel Label

• Question 274:

  Choose the Distance Vector Protocols from the list below:

  A. OSPF
  B. RIPv1
  C. RIPv2
  D. IS-IS
  B. RIPv1
  C. RIPv2

• Question 275:

  Which of the following about RSVP-TE summary refresh messages is TRUE?

  A. They list the RSVP session names that the router is refreshing,
  B. They list the Message IDs that the router is refreshing,
  C. They list the Tunnel IDs that the router is refreshing.
  D. They list the LSP I Ds that the router is refreshing.
  B. They list the Message IDs that the router is refreshing,

• Question 276:

  In an OSPF Hello packet what fields must match all neighbor routers on the segment? (Choose 3) A. Area ID

  B. Hello and Dead Intervals
  C. Stub flag
  D. DR and BDR addresses
  E. The list of neighbors
  B. Hello and Dead Intervals
  C. Stub flag

• Question 277:

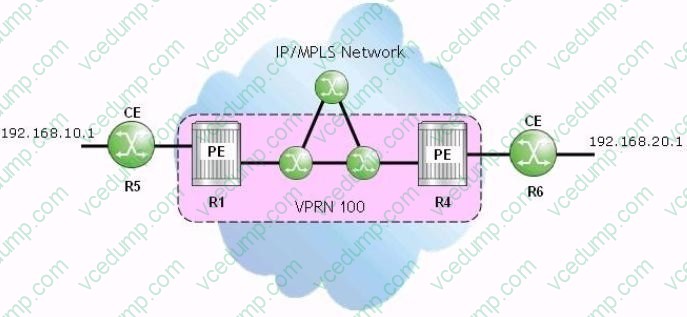

  Click the exhibit.



  The CEs use BGP and export policies to advertise their local prefixes with the VPRN on their PEs. If the VPRN is functioning properly, which of the following commands will succeed when performed on router R1?

  A. "ping 192.168.20.1"
  B. "oam vprn-ping 100 source 192.168.10.1 destination 192.168.20.1"
  C. "oam vprn-ping 100 source 192.168.20.1 destination 192.168.10.1"
  D. "ping 10.10.10.6" (router R6's system IP)
  B. "oam vprn-ping 100 source 192.168.10.1 destination 192.168.20.1"

• Question 278:

  Which of the following defines an FEC in traditional IP?

  A. A group of packets that will be forwarded by the router in the same manner, over the same path.
  B. A group of packets that arrive at the router on the same interface,
  C. A group of packets that leave the router on the same interface.
  D. A group of packets that arrive at the router on the same interface, from the same source.
  A. A group of packets that will be forwarded by the router in the same manner, over the same path.

• Question 279:

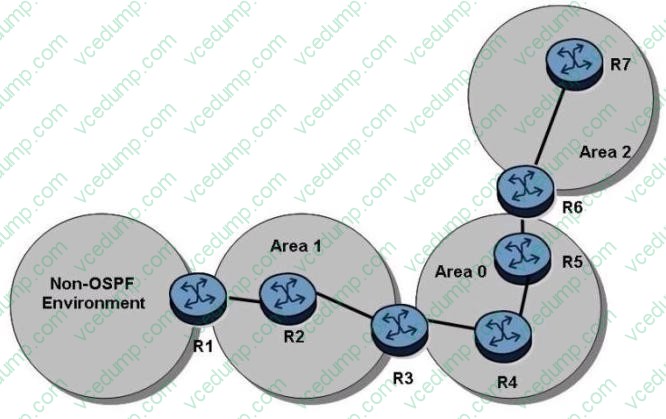

  Click the exhibit button.



  In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Assuming that there are no stub networks, which of the following statements regarding Type 4 LSA generation is true?

  A. Router R1 generates a Type 4 LSA that is flooded to areas 0, 1, and 2.
  B. Router R3 generates a Type 4 LSA that is flooded to areas 0, 1, and 2.
  C. Router R3 generates a Type 4 LSA that is flooded to areas 0 and 2.
  D. Router R3 generates a Type 4 LSA that is flooded to area 0, and router R6 generates a Type 4 LSA that is flooded to area 2.
  D. Router R3 generates a Type 4 LSA that is flooded to area 0, and router R6 generates a Type 4 LSA that is flooded to area 2.

• Question 280:

  AS 65540 routers are iBGP fully-meshed. Prefixes advertised by router R2 have a local preference of 200. Router R1 advertises the prefix 192.168.1.0/27 to routers R2 and R3. Assuming that router R3 is configured with "advertise-external", what is the expected output of "show router bgp routes" when executed on router R4?

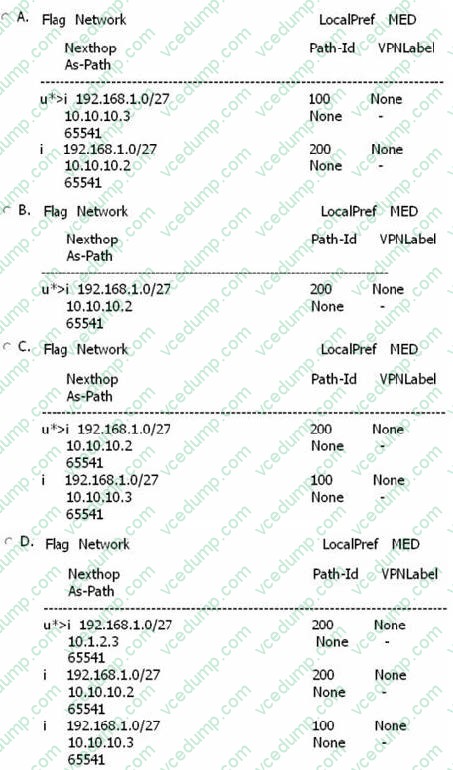

  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

  ---

  Explanation/Reference:
