Nokia 4A0-C04 Online Practice Questions and Exam Preparation

Nokia 4A0-C04 Online Questions & Answers

• Question 241:

  Which of the following about SDPs is FALSE?

  A. An SDP is not required for a local service.
  B. A single SDP can carry different types of services.
  C. An SDP can simultaneously support GRE and MPLS encapsulation.
  D. An SDP can use the system IP address to indicate the far-end router.
  C. An SDP can simultaneously support GRE and MPLS encapsulation.

• Question 242:

  An autonomous system has 7 routers configured with BGP. How many iBGP sessions are required for a fully meshed configuration?

  A. 7
  B. 13
  C. 21 D. 42
  C. 21 D. 42

• Question 243:

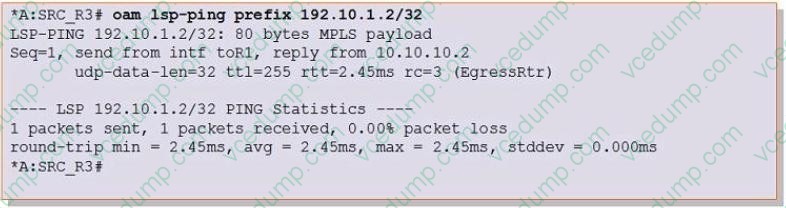

  Click on the exhibit.



  After the Isp-ping command is executed, which of the following best describe the router's action?

  A. MPLS Echo Request packets are sent unlabeled to the prefix 192.10.1.2.
  B. MPLS Echo Request packets are sent within the LDP tunnel that are signaled for 192.10.1.2.
  C. MPLS Echo Request packets are sent within the RSVP-TE tunnel that are signaled for 192.10.1.2.
  D. MPLS Echo Request packets are sent over TCP.
  B. MPLS Echo Request packets are sent within the LDP tunnel that are signaled for 192.10.1.2.

• Question 244:

  What will happen if an update is received with an unrecognized optional non-transitive attribute?

  A. The router will accept the update and send a notification.
  B. The router will not accept the update and send a notification.
  C. The router will accept the update and ignore the attribute.
  D. The router will accept the update and propagate the attribute.
  C. The router will accept the update and ignore the attribute.

• Question 245:

  What are some of the characteristics of Nokia's implementation of non-stop routing? (Choose two)

  A. No protocol extensions required
  B. Only supported by OSPF and IS-IS
  C. Transparent to routing neighbors
  D. Uses Graceful Restart to inter-operate with other vendors
  A. No protocol extensions required
  C. Transparent to routing neighbors

• Question 246:

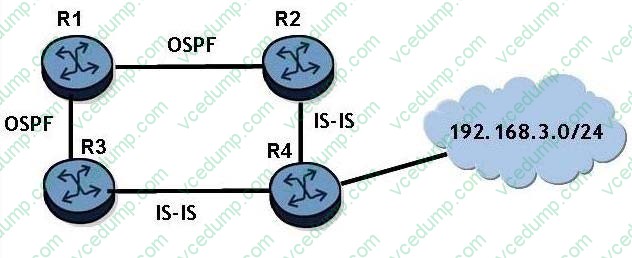

  Click the exhibit button.



  If router R2 redistributes the IS-IS route to 192.168.3.0/24 into OSPF, router R3 will receive two routes to 192.168.3.0/24. What will be the preference of these two routes? Assume that all IS-IS routers are L1/L2 capable and are in the same area. Choose two answers.

  A. The OSPF internal preference
  B. The IS-IS Level 1 internal preference
  C. The IS-IS Level 2 internal preference
  D. The OSPF external preference
  E. The IS-IS Level 2 external preference
  F. The IS-IS Level 1 external preference
  B. The IS-IS Level 1 internal preference
  D. The OSPF external preference

• Question 247:

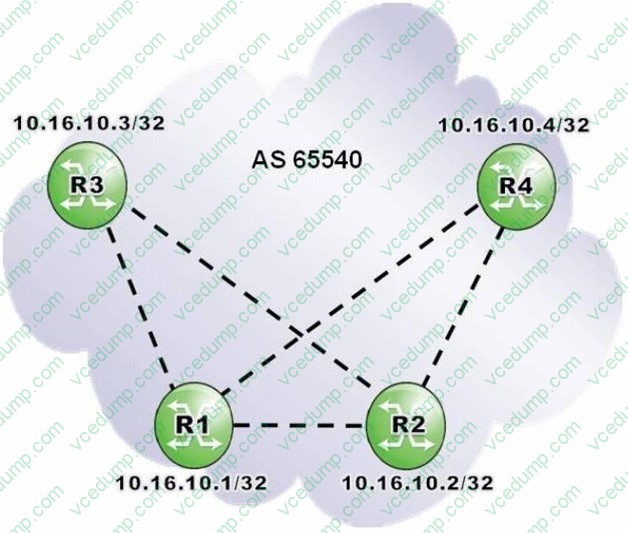

  Click the exhibit.

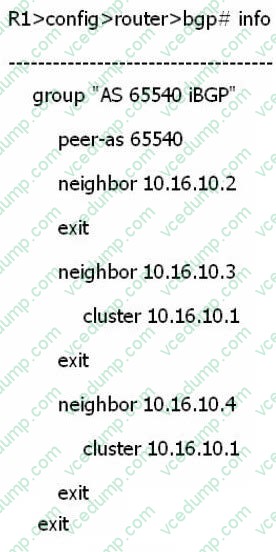

  Given the following configuration of router R1, what can be said about the function of each of AS 65540s routers?



  A. Routers R1 and R2 are redundant route reflectors with clients R3 and R4.
  B. Routers R3 and R4 are route reflectors with clients R1 and R2.
  C. Router R1 is a route reflector with clients R2, R3 and R4.
  D. Router R1 is a route reflector with clients R3 and R4.
  D. Router R1 is a route reflector with clients R3 and R4.

• Question 248:

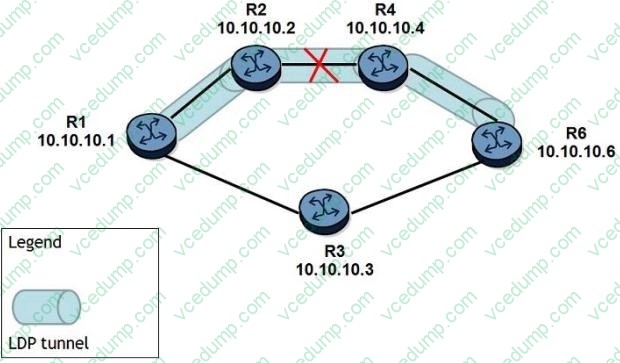

  Click on the exhibit.



  An LDP tunnel is established on router R1 towards router R6. The link between routers R2 and R4 goes down. What will happen to the MPLS data traffic to router R6 IMMEDIATELY after the link goes down?

  A. MPLS data traffic will be discarded until the IGP finds a new next-hop to router R3.
  B. MPLS data traffic will be discarded unless the LDP tunnel has a standby secondary path.
  C. MPLS data traffic will not be discarded because router R1 received labels from both next-hops, routers R2 and R3.
  D. MPLS data traffic will not be discarded because of fast reroute capability on router R2.
  B. MPLS data traffic will be discarded unless the LDP tunnel has a standby secondary path.

• Question 249:

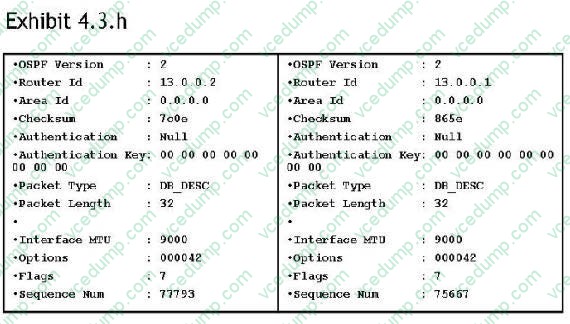

  Click the exhibit button.



  The OSPF packets shown have been exchanged between two neighbors. What state is the OSPF adjacency in?

  A. The adjacency state is two way because both routers have received a database description packet.
  B. The adjacency is in the exchange state. The next step is to exchange link state request and link state update packets.
  C. The adjacency is in the ex start state. The routers have exchanged database description packets, but still have to negotiate the starting sequence number.
  D. The adjacency state is full. The routers are exchanging database description packets to notify each other that all link state advertisements have been received.
  C. The adjacency is in the ex start state. The routers have exchanged database description packets, but still have to negotiate the starting sequence number.

• Question 250:

  What is the default Nokia 7750 SR TTL of a BGP advertisement between confederation members?

  A. 1
  B. 32
  C. 64
  D. 255
  A. 1
