Nokia 4A0-C01 Online Practice Questions and Exam Preparation

Nokia 4A0-C01 Online Questions & Answers

• Question 861:

  Which of the following about 6VPE is FALSE?

  A. To advertise VPN-IPv4 and VPN-IFV6 routes, two MP-BGP sessions are required.
  B. PE routers must support both IPv4 and IPv6 addresses; customer routers can use either one.
  C. MP-BGP is used to advertise IPv6 prefixes and the associated VPRN labels.
  D. The provider core routers are IPv6-unaware.
  A. To advertise VPN-IPv4 and VPN-IFV6 routes, two MP-BGP sessions are required.

• Question 862:

  An IS-IS TE enabled router has an interface on a 500Mbps link and it is configured with a 25% subscription. If this interface is not used by any LSPs. what value will be shown in the Reservable Bandwidth sub-TLV?

  A. 125 Mbps
  B. 500 Mbps
  C. 625 Mbps
  D. 2000 Mbps
  A. 125 Mbps

• Question 863:

  Which of the following steps is mandatory when enabling an MP-BGP session between PE routers in a VPRN?

  A. Configure an autonomous system number in the global context.
  B. Configure a BGP group and peer parameters.
  C. Configure a VPN-IPv4 address family.
  D. All of the above steps are mandatory.
  E. None of the above steps are mandatory.
  D. All of the above steps are mandatory.

• Question 864:

  Which of the following is NOT an advantage of RSVP-TE compared to LDP?

  A. RSVP-TE supports Connection Admission Control (CAC).
  B. RSVP-TE enables simplified configuration of LSPs.
  C. RSVP-TE supports path calculations that do not use IGP cost.
  D. RSVP-TE provides support for traffic protection features.
  B. RSVP-TE enables simplified configuration of LSPs.

• Question 865:

  What is the protocol number for OSPF in the IP header?

  A. OSPF uses TCP, so the protocol number is 6.
  B. OSPF uses UDP, so the protocol number is 17.
  C. OSPF does not use IP.
  D. OSPF has its own protocol number of 89.
  D. OSPF has its own protocol number of 89.

• Question 866:

  Initially, all ports on an Alcatel-Lucent 7750 SR have 10Gbps bandwidth. RSVP configuration limits reservable bandwidth to 30 percent on all interfaces. An LSP is signaled reserving 1 Gbps bandwidth. How much unreserved bandwidth is left on the interface?

  A. 10 Gbps
  B. 7 Gbps
  C. 3 Gbps
  D. 2 Gbps
  D. 2 Gbps

• Question 867:

  Click on the exhibit.

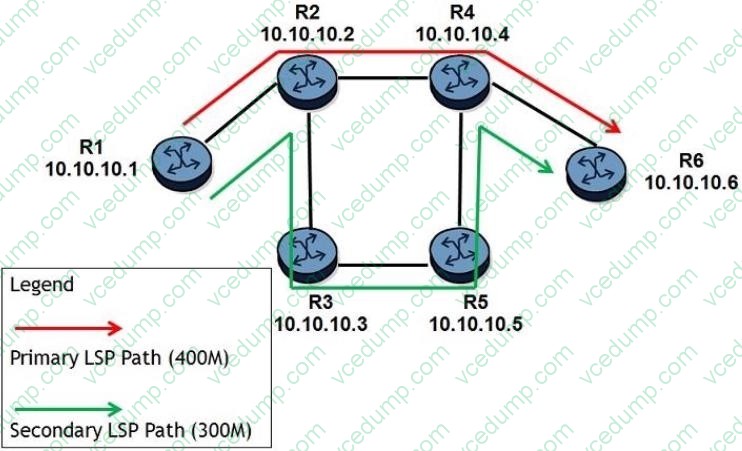

  All links have 1Gbps unreserved bandwidth initially and Shared Explicit reservation style is used. After the LSP's primary and standby secondary paths are signaled, how much unreserved bandwidth is left on the links?

  A. R1-R2 will have 300Mbps left and R2-R4 will have 400Mbps left.
  B. R1-R2 will have 400Mbps left and R2-R4 will have 400Mbps left.
  C. R1-R2 will have 600Mbps left and R2-R4 will have 600Mbps left.
  D. R1-R2 will have 300Mbps left and R2-R4 will have 600Mbps left.
  C. R1-R2 will have 600Mbps left and R2-R4 will have 600Mbps left.

• Question 868:

  A router running a link-state protocol sends an update to a neighbor. The neighbor sends an update back. Why would the neighbor do this?

  A. The neighbor's link-state database has newer information than what it received in the update.
  B. The neighbor sends the update as an acknowledgement.
  C. The neighbor's update indicates that it has run out of space in its LSDB.
  D. The neighbor's update indicates that the sequence number received is the same as the one already in its link-state database.
  A. The neighbor's link-state database has newer information than what it received in the update.

• Question 869:

  Which of the following modes are used by RSVP-TE on an Alcatel-Lucent 7750 SR?

  A. Independent control mode, downstream on demand
  B. Independent control mode, downstream unsolicited
  C. Ordered control mode, downstream on demand
  D. Ordered control mode, downstream unsolicited
  C. Ordered control mode, downstream on demand

• Question 870:

  Click on the exhibit.

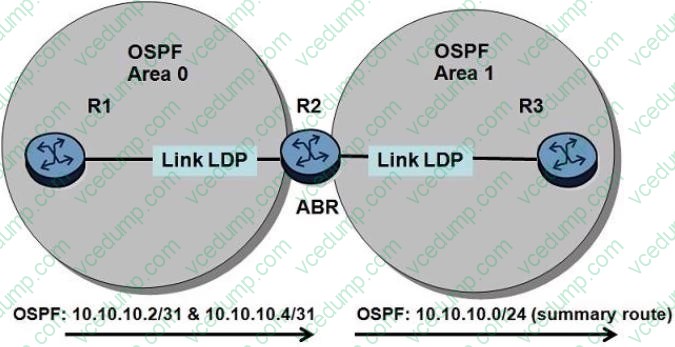

  Router R2 advertises an OSPF summary route 10.10.10.0/24 into Area 1. Router R3 receives labels for individual FECs 10.10.10.2/32 and 10.10.10.4/32. These two FECs are installed in router R3's LIB but not in the LFIB. What needs to be done on router R3 to install these labels into its LFIB?

  A. Disable route summarization on router R3.
  B. Enable LDP aggregate prefix match.
  C. Create an import policy to accept 10.10.10.2/32 and 10.10.10.4/32.
  D. Disable LDP exact match on 10.10.10.2/32 and 10.10.10.4/32.
  B. Enable LDP aggregate prefix match.
