Nokia Nokia Certifications 4A0-C01 Questions & Answers

• Question 791:

  What is the metric and maximum routable value for RIP?

  A. Hop count and 16

  B. Hop count and 15

  C. Link cost and 15

  D. Link cost and 16

  Correct Answer: B

• Question 792:

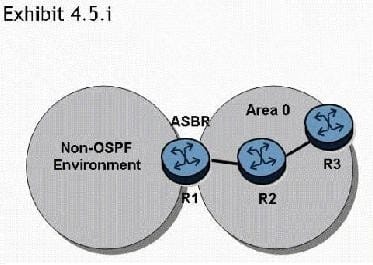

  Click the exhibit button.



  In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. How many type 4 LSAs will be present in the network?

  A. One.

  B. One for each of the routers in area 0

  C. One for each of the external routes exported by router R1.

  D. Type 4 LSAs are not generated in this network topology.

  Correct Answer: D

• Question 793:

  What command could be used to verify proper configuration of a static route in an Alcatel- Lucent 7750 SR router?

  A. Show route-table

  B. Show router routing-table

  C. Show router route-table

  D. Show static

  Correct Answer: C

• Question 794:

  A router is configured with the command "configure router ecmp 4". There are two best paths to a given destination with an equal cost in the IGP. Which of the following best describes the handling of traffic to this destination?

  A. The router installs two routes for the destination with two different next hops. A hashing algorithm is used to distribute traffic over the two paths.

  B. The router installs two routes for the destination with two different next hops. Traffic is evenly distributed over the two paths.

  C. The router installs four routes for the destination with four different next hops. A hashing algorithm is used to distribute traffic over the four paths.

  D. The router installs four routes for the destination with four different next hops. Traffic is evenly distributed over the four paths.

  E. The router installs one route for the destination. Traffic is evenly distributed over the two paths.

  Correct Answer: A

• Question 795:

  What are some of the characteristics of Alcatel-Lucent's implementation of non-stop routing? (Choose two)

  A. No protocol extensions required

  B. Only supported by OSPF and IS-IS

  C. Transparent to routing neighbors

  D. Uses Graceful Restart to inter-operate with other vendors

  Correct Answer: AC

• Question 796:

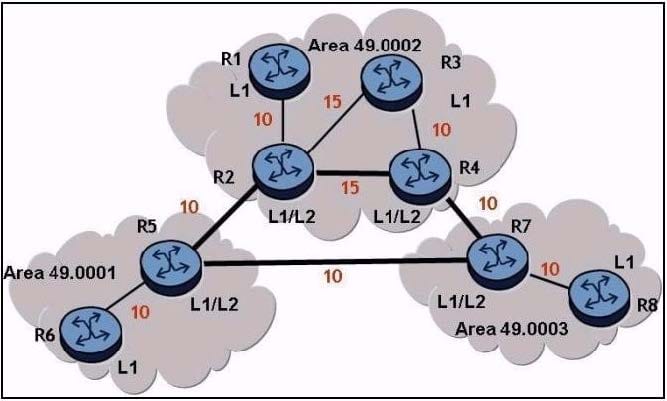

  Click the exhibit button.



  Given the diagram below, what path will traffic follow from router R6 to router R3, and from router R3 to router R6, if IS-IS is the routing protocol? The numbers beside the links are the metrics for that link.

  A. Router R6 to router R3 will follow (R6-R5-R2-R3). Router R3 to router R6 will follow (R3- R2-R5-R6).

  B. Router R6 to router R3 will follow (R6-R5-R2-R3). Router R3 to router R6 will follow (R3- R4-R2-R5R6).

  C. Router R6 to router R3 will follow (R6-R5-R2-R3). Router R3 to router R6 will follow (R3- R4-R7-R5R6).

  D. Router R6 to router R3 will follow (R6-R5-R7-R4-R3). Router R3 to router R6 will follow (R3-R4-R7-R5R6).

  Correct Answer: C

• Question 797:

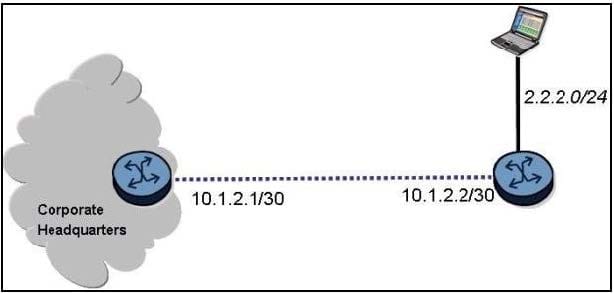

  Click the exhibit button.



  Given the diagram in the exhibit, what would be the correct static route configuration on the router on the right, if it is an Alcatel-Lucent 7750 SR?

  A. config> static-route 0.0.0.0/0 next-hop 10.1.2.2

  B. config>router> static-route 0.0.0.0 255.255.255.255 next-hop 10.1.2.1

  C. config>router> static-route 0.0.0.0/0 next-hop 10.1.2.2

  D. config>router> static-route 0 0.0 0/0 next-hop 10.1.2.1

  Correct Answer: D

• Question 798:

  What are the similarities between OSPF and IS-IS? Choose two.

  A. Metric is cost based

  B. Slow convergence

  C. Automatic summarization

  D. Support CIDR

  Correct Answer: AD

• Question 799:

  What best describes the type of packets used by OSPF routers to exchange updates on a pointto-point link?

  A. IP packets sent to an IP multicast address.

  B. Ethernet frames sent to an Ethernet multicast address.

  C. IP packets sent to an IP unicast address.

  D. UDP packets sent to an IP multicast address.

  Correct Answer: A

• Question 800:

  What address is used when RIPv2 uses multicast to send its updates?

  A. 224.0.0.5

  B. 224.0.0.6

  C. 224.0.0.9

  D. 224.0.0.10

  E. RIPv2 does not have support for multicast

  Correct Answer: C
