Nokia 4A0-C01 Online Practice Questions and Exam Preparation

Nokia 4A0-C01 Online Questions & Answers

• Question 31:

  Which mode does the following statement describe? An LSR will advertise a label mapping immediately, without waiting for a label mapping from the FEC's next-hop.

  A. Liberal label retention mode
  B. Conservative label retention mode
  C. Ordered control mode
  D. Independent control mode
  D. Independent control mode

• Question 32:

  Which of the following commands is used to configure a new MPLS SDP?

  A. configure router sdp sdp-id
  B. configure service sdp sdp-id create
  C. configure service mpls sdp sdp-id create
  D. configure service gre sdp sdp-id create
  E. configure service sdp sdp-id mpls create
  E. configure service sdp sdp-id mpls create

• Question 33:

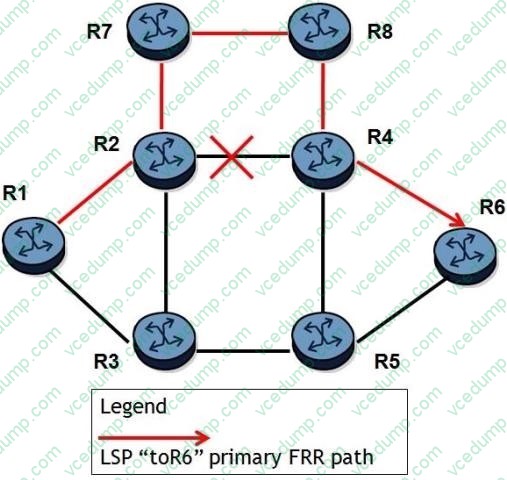

  Click on the exhibit.



  A fully loose LSP "toR6" is enabled with FRR protection. All links have the same cost. After the link between R2 and R4 goes down, FRR protection repairs the LSP and traffic traverses on R1-R2-R7-R8-R4-R6. Which of the following about this CSPF-enabled LSP on an Alcatel-Lucent 7750 SR is TRUE?

  A. The LSP will stay on the current path indefinitely unless another failure occurs.
  B. The LSP will stay on the current path until the resignal timer expires.
  C. The LSP will switchover to R1-R2-R3-R5-R6 after the resignal timer expires.
  D. The LSP will switchover to R1-R3-R5-R6 after the retry timer expires.
  D. The LSP will switchover to R1-R3-R5-R6 after the retry timer expires.

• Question 34:

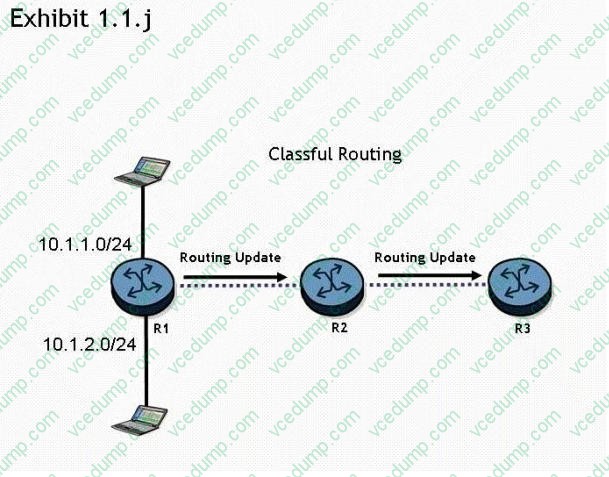

  Click the exhibit button.



  Routers R1 ,, R2, and R3 are running a classful routing protocol between them. Assuming that router R1 advertises all directly connected networks, how will these networks be represented in router R3's routing table?

  A. Router R3's routing table can only contain one of the routes, which will result in route flapping.
  B. Router R3's routing table will have one entry for 10.1.1.0/24 and one entry for 10.1.2.0/24.
  C. The networks will be represented with one entry of 10.0.0.0/8 in router R3's routing table.
  D. The networks will be represented with one entry of 10.0.0.0/24 in router R3's route table.
  C. The networks will be represented with one entry of 10.0.0.0/8 in router R3's routing table.

• Question 35:

  Which of the following represents a SAP on a physical port configured with Q-in-Q encapsulation?

  A. sap 1/1/1
  B. sap 1/1/1:5
  C. sap 1/1/1:5:5
  D. sap 1/1/1:10.100
  D. sap 1/1/1:10.100

• Question 36:

  Which of the following statements are true? Choose two answers

  A. Selected labels from the FIB are populated to the LIB.
  B. Selected labels from the LIB are populated to the LFIB.
  C. Selected routes from the RIB are populated to the FIB.
  D. Selected routes from the FIB are populated to the RIB.
  E. All labels from the LIB are populated to the LFIB.
  B. Selected labels from the LIB are populated to the LFIB.
  C. Selected routes from the RIB are populated to the FIB.

• Question 37:

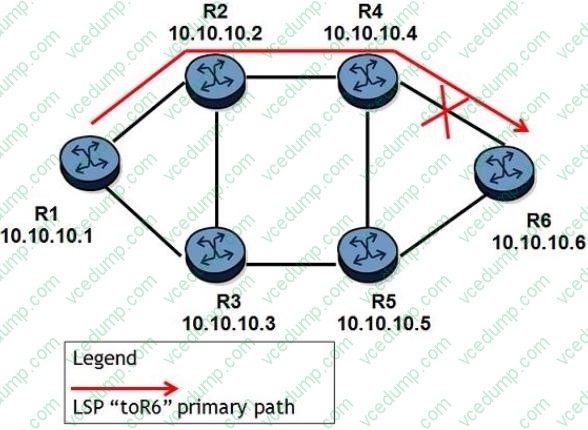

  Click on the exhibit.



  An LSP path is established on router R1 toward router R6. After router R4 detects that the link between routers R4 and R6 goes down, which of the following will affect the failure propagation time?

  A. The time router R4 takes to send a PATH Error message toward the head-end router.
  B. The time router R4 takes to detect RSVP Hello message timeout from router R6.
  C. The time router R4 takes to send a RESV Error message to the head-end router.
  D. The time router R1 takes to signal an alternate path through router R3.
  A. The time router R4 takes to send a PATH Error message toward the head-end router.

• Question 38:

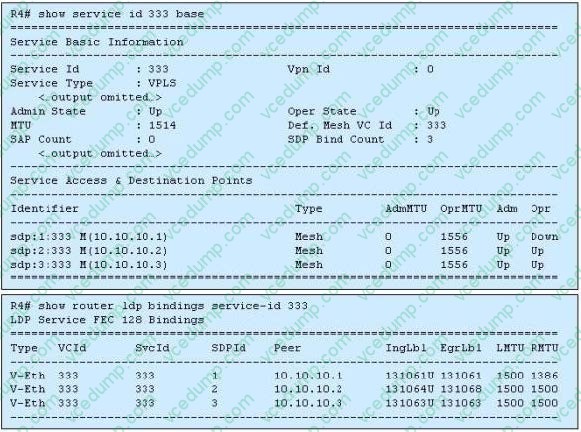

  Click the exhibit.



  Both clips of output are from router R4. The show service command indicates that an SDP is down. What might be the cause?

  A. The mesh SDP on router R4 has been shutdown.
  B. The mesh SDP on 10.10.10.1 has been shutdown.
  C. The service MTU on 10.10.10.1 has been set to a different value.
  D. The IngLbl and EgrLbl that router R4 has for 10.10.10.1 are identical.
  C. The service MTU on 10.10.10.1 has been set to a different value.

• Question 39:

  Which of the following statements regarding the IS-IS CSNP is false?

  A. CSNPs are used to maintain consistency in the link state database.
  B. CSNPs are advertised before an adjacency is formed with another router.
  C. There are two types of CSNPs: Level 1 and Level 2.
  D. CSNPs are advertised after an adjacency is formed with another router.
  B. CSNPs are advertised before an adjacency is formed with another router.

• Question 40:

  Which of the following conditions are necessary in order for service labels to be signaled between two PE routers? (Choose 3)

  A. LDP must be enabled on both PE routers.
  B. RSVP must be enabled on both PE routers.
  C. Traffic engineering must be enabled in the IGP.
  D. The VC-ID must match between the two PE routers in both directions.
  E. The transport tunnel must be operationally up between the two PE routers in both directions.
  F. The SDP ID must match between the two PE routers in both directions.
  A. LDP must be enabled on both PE routers.
  D. The VC-ID must match between the two PE routers in both directions.
  E. The transport tunnel must be operationally up between the two PE routers in both directions.
