Nokia 4A0-110 Online Practice Questions and Exam Preparation

Nokia 4A0-110 Online Questions & Answers

• Question 11:

  What are the possible logging destinations supported on the Alcatel 7x50?

  A. Syslog
  B. Session
  C. FTP server
  D. Memory log
  E. Compact flash
  A. Syslog
  B. Session
  D. Memory log
  E. Compact flash

• Question 12:

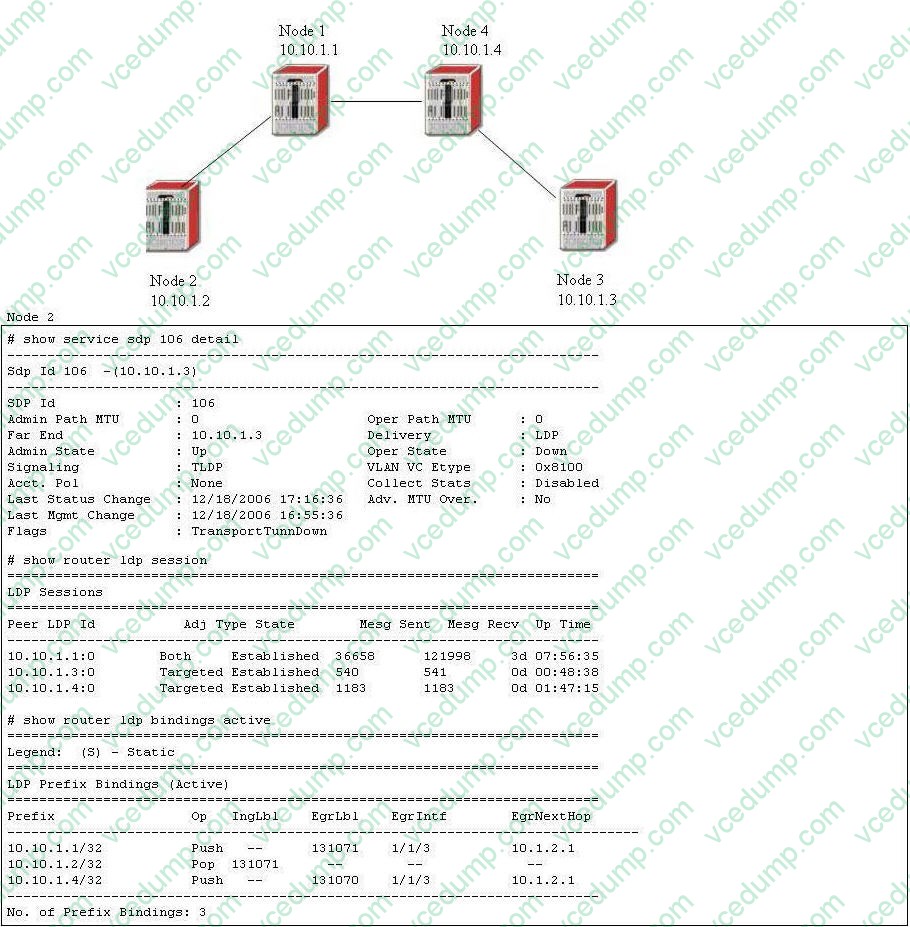

  A SDP is created on Node-2 with the far end address set to Node-3. The SDP stays down on Node-2. Based on the following CLI output from Node 2, what is the caused of the problem?



  A. No LDP link session between Node 2 and Node 4
  B. No LDP link session between Node 4 and Node 3
  C. No LDP link session between Node 1 and Node 4
  D. No LDP link session between Node 3 and Node 2
  E. None of the above
  B. No LDP link session between Node 4 and Node 3

• Question 13:

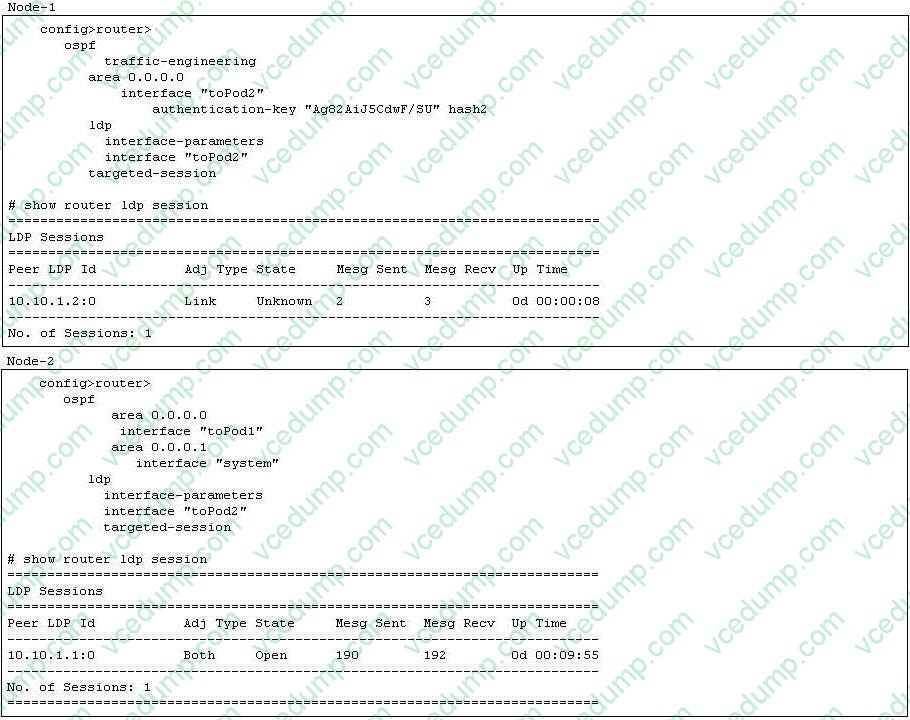

  The LDP session is not down between Node-1 and Node-2. Based on the following configurations, what is the cause of the problem?



  A. LDP targeted-session is enabled with no service configured
  B. OSPF adjacency is not up between Node-1 and Node-2
  C. Router id is not advertised by OSPF
  D. LDP is disabled on Node-1
  E. Traffic-engineering is not enabled on Node-2
  C. Router id is not advertised by OSPF

• Question 14:





  A. VRF policy configured on Node 3 does not match with vrf-target configured on Node 4
  B. No SDP defined in the VPRN configuration on both nodes
  C. VRF-target mismatch on Node 3 and Node 4
  D. Route-distinguisher mismatch on Node 3 and Node 4
  E. Encapsulation type mismatch on SAPs on Node 3 and Node 4
  A. VRF policy configured on Node 3 does not match with vrf-target configured on Node 4

• Question 15:

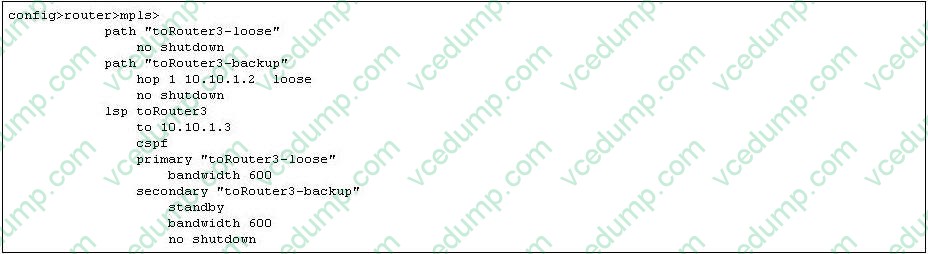

  A LSP is configured with one primary path and one secondary path as below. What configuration is required to make the LSP non-revertive. Choose the best answer.



  A. Turn off CSPF and remove all the bandwidth reservations
  B. Remove the primary path and configure both paths as secondary
  C. Under asp toRouter3? configure on-revertive
  D. It is not possible to configure the LSP as non-revertive
  E. MPLS fast re-route has to be enabled to make it non-revertive
  B. Remove the primary path and configure both paths as secondary

• Question 16:

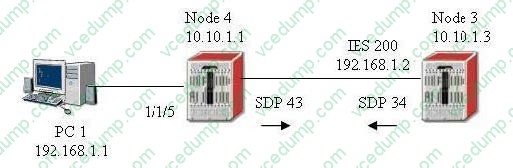

  A spoke-sdp terminated IES configured on Node 3 is down due on SDP serviceMTUMismatch error. The same error is found on the corresponding SDP on Node 4. The VPLS is using the default service MTU. Which MTU value should be modified to bring the SDP up on both Nodes?



  A. IP MTU of the IES Interface on Node3
  B. Port MTU on Node 3 and Node 4
  C. SDP Path MTU on Node 3 and Node 4
  D. Service MTU on Node 4
  E. Path MTU on Node 3 and Node 4
  A. IP MTU of the IES Interface on Node3

• Question 17:

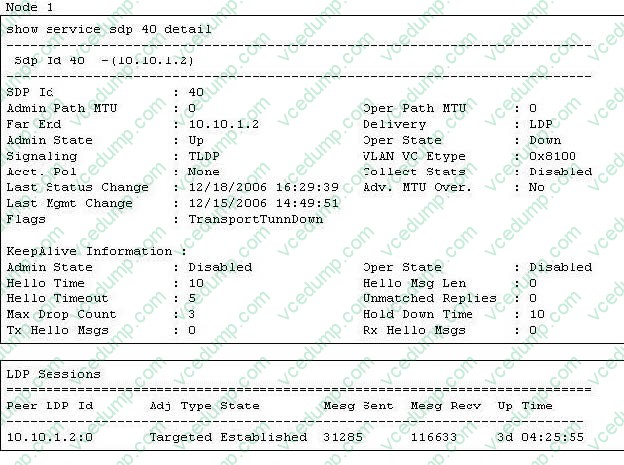

  Node 1 and Node 2 are directly connected running LDP. The system ip address of Node 2 is 10.10.10.1.2. Based on the following display, why is the sdp down?



  A. Local SDP id does not match with the remote sdp id.
  B. Far End IP address is not reachable.
  C. Keepalive has to be enable on the SDP.
  D. LDP is not enable on the remote node's interface.
  E. Targeted LDP session is disabled on the remote node.
  A. Local SDP id does not match with the remote sdp id.

• Question 18:

  Which one of the following routes should be the best BGP route according to the Alcatel VPRN route selection criteria?



  A. The 1st route
  B. The 2nd route
  C. The 3rd route
  D. The 4th route
  E. Node of the above
  D. The 4th route

• Question 19:

  VPRN 300 is configured between Node 3 and Node 4. Node 4 receives VPN routes from Node 3 and imports them into the VRF. The entire route-table is displayed below for VPRN 300 on Node

  4. When attempting a ping from VPRN 300 on Node 4 to 30.1.1.1 the ping fails. A ping from Node 3 within VPRN 300 to 30.1.1.1 is successful. What is the cause of the problem?



  A. No local interface existed in VPRN 300 route-table on Node 4
  B. Syntax problem in the ping command
  C. Prefix 30.1.1.1 does not exist on the far-end
  D. Source address has to be specified in the ping command
  E. Next-hop address has to be specified in the ping command
  A. No local interface existed in VPRN 300 route-table on Node 4

• Question 20:

  Node 1 receives some VPRN routes from Node 2, but Node 2 is not receiveing any VPRN routes from Node 1. Routes in VPRN 400 route table are found on Node 1 as follows: Based on the configuration below, why is Node 2 not receiving BGP VPN routes from Node 1?



  VPRN 300 is confiugred on Node 3 and Node 4 with LDP as the transport. No VPN routes are exchanged between Node 3 and Node 4. What is the cause of the problem?

  A. VRF import and export policies defined on Node 1 do not match with vrf-target defined on Node 2
  B. Prefix-list exportVPRN100 is applied on Node 1 but not on Node 2
  C. More than one import route targets are defined on Node 1 and only one defined on Node 2
  D. VRF target has to be defined on Node 1 as well
  E. Community target:65535:101 is not defined on Node 1
  E. Community target:65535:101 is not defined on Node 1
