• Question 171:

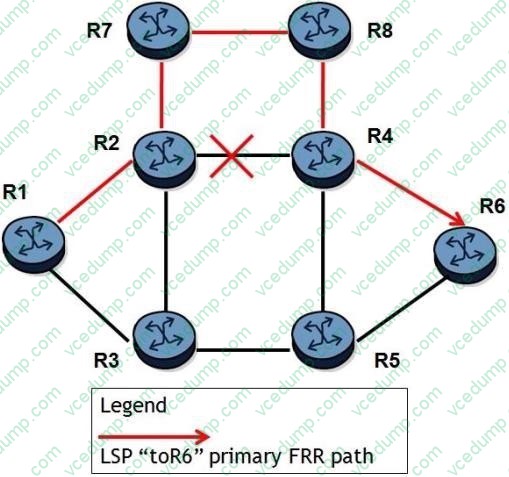

  Click on the exhibit.



  A fully loose LSP MtoR6" is enabled with FRR protection. All links have the same cost. After the link between R2 and R4 goes down, FRR protection repairs the LSP and traffic traverses on R1-R2-R7-R8-R4- R6. By default, which of the following about this LSP on an Alcatel-Lucent 7750 SR is FALSE?

  A. The LSP will switch to R1-R3-R5-R6 after the resignal timer expires.
  B. The old primary path and its detours are torn down after the new primary path is established.
  C. CSPF must be enabled to find a more optimal path.
  D. The traffic is switched to R1-R3-R5-R6 in an MBB fashion.
  A. The LSP will switch to R1-R3-R5-R6 after the resignal timer expires.

• Question 172:

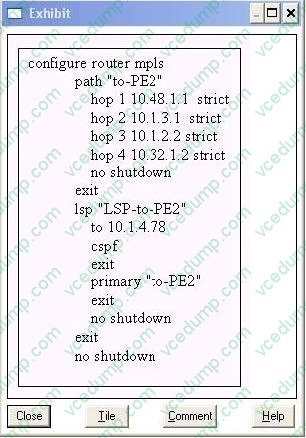

  Click on the exhibit button below.



  Given the configuration below, which of the following commands would enable fast reroute on the LSP? Choose two answers

  A. This configuration already is configured for FRR.
  B. fast-reroute facility
  C. fast-reroute one-to-one
  D. secondary
  E. standby
  B. fast-reroute facility
  C. fast-reroute one-to-one

• Question 173:

  Which of the following about RSVP refresh reduction on a Alcatel-Lucent 7750 SR is FALSE?

  A. RSVP generates a summary refresh message for each LSP.
  B. Message-IDs replace individual refresh messages.
  C. An LSP state change causes the Message-ID to be incremented.
  D. RSVP refresh reduction is disabled by default.
  A. RSVP generates a summary refresh message for each LSP.

• Question 174:

  In MPLS, how is the label range 0 ?15 used?

  A. Static LSPs
  B. Reserved use
  C. Vendor proprietary use
  D. Management LSPs
  E. Dynamic LSPs
  B. Reserved use

• Question 175:

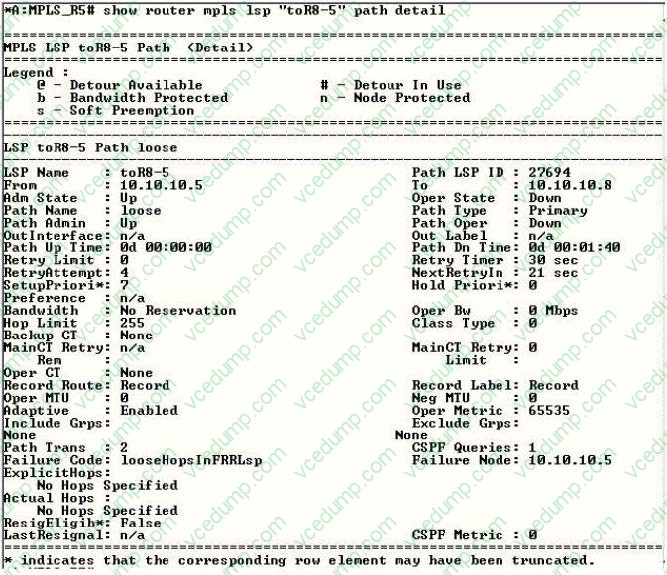

  Click on the exhibit.



  LSP " to R8-5 " requests fast reroute protection. What could be done to remove the Failure Code shown?

  A. The LSP must be enabled with CSPF on the head-end router.
  B. Fast reroute must be enabled on the downstream routers.
  C. A mixture of strict and loose hops must be defined in the primary path.
  D. CSPF and fast reroute must be enabled on all downstream routers.
  A. The LSP must be enabled with CSPF on the head-end router.

• Question 176:

  Which of the following about Fast Reroute node protection tunnels is FALSE?

  A. Node protection tunnels detour around a failed next downstream router.
  B. Node protection tunnels can only be requested for a primary LSP path.
  C. Node protection tunnels are only used by one-to-one Fast Reroute.
  D. Link protection tunnels are established if a router is unable to establish node protection tunnels.
  C. Node protection tunnels are only used by one-to-one Fast Reroute.

• Question 177:

  Router R3 signals an LSP, reserving 1Gbps bandwidth on a 10Gbps link. RSVP configuration limits reservable bandwidth to 20 percent on the egress interface. Which of the following statements is true?

  A. The egress RSVP interface has 80 percent bandwidth unreserved.
  B. LSPs can reserve an additional 9.9 Gbps bandwidth on this RSVP interface.
  C. The head end reserves 100Mbps for the LSP.
  D. The egress RSVP interface has 1Gbps bandwidth unreserved.
  D. The egress RSVP interface has 1Gbps bandwidth unreserved.

• Question 178:

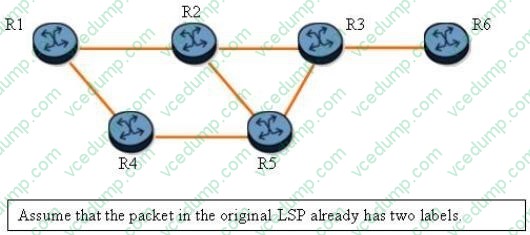

  Click on the exhibit.



  An LSP traverses R1-R2-R3-R6 and one-to-one fast reroute is enabled. If the protected LSP transports two labels, and router R2 has failed, how many labels will be on the detour path?

  A. 1
  B. 2 C. 3
  D. 4
  B. 2 C. 3

• Question 179:

  Which of the following timers can be adjusted to reduce the time a router waits between attempts to re- establish an LSP after it has failed?

  A. Isp retry-timer
  B. Isp retry-limit
  C. mpls resignal-timer
  D. rsvp refresh-time
  E. router rsvp keep-multiplier
  A. Isp retry-timer

• Question 180:

  Which of the following are characteristics of ECMP LSPs in LDP? Choose three answers

  A. Liberal label retention mode
  B. T-LDP enabled with peers to which load balancing is desired.
  C. ECMP enabled in the config>router context.
  D. Hashing used to select the egress label.
  E. Export policy applied to advertise multiple labels for a given FEC.
  A. Liberal label retention mode
  C. ECMP enabled in the config>router context.
  E. Export policy applied to advertise multiple labels for a given FEC.
