Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 601:

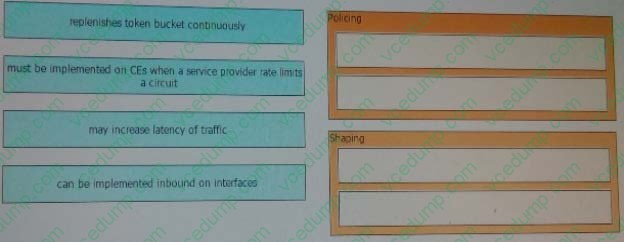

  Drag and drop the QoS characteristics on the left onto its correct QoS mechanism on the right

  Select and Place:





  ---

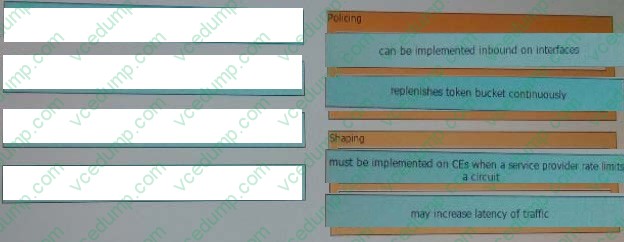

  Policing:

  *can be implemented inbound on interfaces *replenishes token bucket continuously

  Shaping:

  *must be implemented on CE's when a service provider rate limits a circuit *may increase latency of traffic

• Question 602:

  A service provider must avoid packet loss when an IGP adjacency is established before the LDP label exchange completes between the peers on that link. Which feature must be implemented that fulfills this requirement?

  A. LDP Session Protection
  B. IP-FRR
  C. MPLS LDP-IGP Sync
  D. MPLS TE Metric
  E. MPLS TE Fast Reroute
  C. MPLS LDP-IGP Sync

• Question 603:

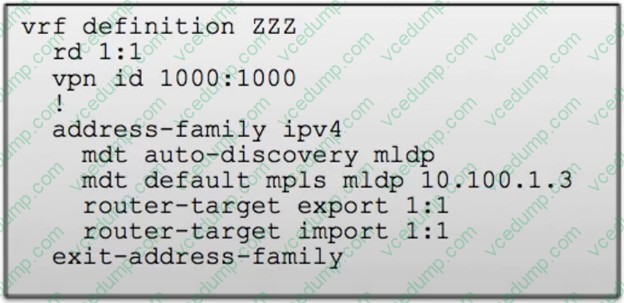

  Refer to the exhibit. Which option describes the role of the 10.100.1.3 router?

  A. ingress router for the point-to-multipoint mLDP tree
  B. root router for a multipoint-to-multipoint mLDP tree
  C. initiates the upstream mLDP trees
  D. holds the mLDP database
  B. root router for a multipoint-to-multipoint mLDP tree

• Question 604:

  Which two options are characteristics of MoFRR? ( Choose two) A. Uses additional PIM join toward source

  B. Based on multicast forward error correction feature
  C. Based on PIM Fast Route
  D. Requires MPLS TE FRR enabled with link protection and node protection
  E. Utilizes two equal-cost paths toward source
  E. Utilizes two equal-cost paths toward source

• Question 605:

  A service provider has a requirement to prevent and prevent spoofing attacks by verifying the reachability of the sources address in a packet that is forwarded into its network. Which method must be the service provider use?

  A. CoPP
  B. iACL
  C. uRPF
  D. RTBH
  C. uRPF

• Question 606:

  In the Dual Stack lite solution, what is the function of the B4 component?

  A. It acts as an endpoint for the IPv6 in IPv4 encapsulation and forwarding
  B. It decapsulates the tunneled IPV4 packets, translate the network address, and routes to the IPv4 network
  C. It encapsulates the customer IPv4 packets using IPv6 tunnel and second to the AFTR
  D. It reverses network address translated of the eipv4 packets coming from the internet and it sends the resultant IPv4 packets to AFTR
  C. It encapsulates the customer IPv4 packets using IPv6 tunnel and second to the AFTR

• Question 607:

  Which three statements about 6VPE are true? (Choose three.)

  A. An additional address family was added to MP-BGP to support 6VPE.
  B. 6VPE routes are installed in the global routing table.
  C. MP-BGP can be used to propagate routes between the PE and the CE.
  D. 6VPE is functionally equivalent to VPNv4.
  A. An additional address family was added to MP-BGP to support 6VPE.
  C. MP-BGP can be used to propagate routes between the PE and the CE.
  D. 6VPE is functionally equivalent to VPNv4.

• Question 608:

  An MPLS VPN service is deployed over an MPLS provider. A customer wants all sites to run BGP with his provider, given that all CEs have the same AS value. Which feature on the service provider PEs can allow communication among different sites?

  A. BGP allow-AS
  B. BGP weight
  C. BGP multihop
  D. BGP AS-override
  D. BGP AS-override

• Question 609:

  Which technology encapsulates customer Ethernet frames with a service provider MAC header?

  A. VPLS
  B. Q-in-Q
  C. MAC-in-MAC
  D. EVPN
  C. MAC-in-MAC

• Question 610:

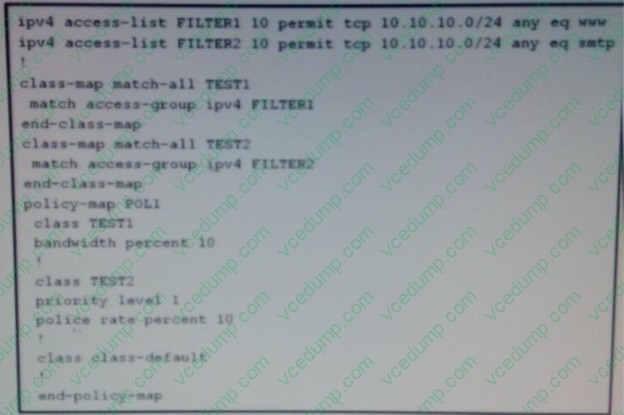

  Refer to the exhibit, An engineer is asked to troubleshoot packet drops inside a network which option is true?

  A. HTTP traffic originated by the 10.10.10.0/24 subnet uses up to 10% of the interface bandwidth. However, if no congestion is present, no more bandwidth is allocated to HTTP traffic
  B. SMTP traffic originated by the 10.10.10.0/24 subnet uses up to 10% of the bandwidth, however, if no congestion is present, more bandwidth is allocated to SMTP traffic
  C. SMTP traffic originated by the 10.10.10.0/24 subnet uses up to 10% of the bandwidth. However , if no congestion is present, SMTP traffic above 10% of link bandwidth is dropped
  D. HTTP traffic originated by the 10.10.10.0/24 subnet uses up to 10% of the interface bandwidth. However, if congestion is present, less bandwidth is allocated to HTTP traffic
  C. SMTP traffic originated by the 10.10.10.0/24 subnet uses up to 10% of the bandwidth. However , if no congestion is present, SMTP traffic above 10% of link bandwidth is dropped
