Cisco 400-201 Online Questions & Answers

• Question 591:

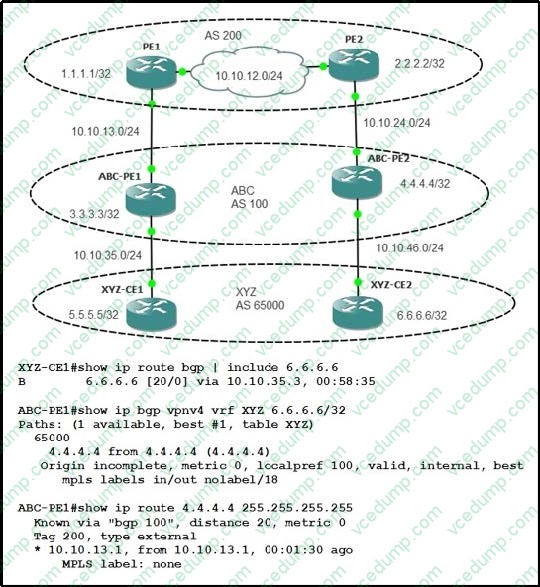

  Refer to the exhibit.



  AS 100 for ABC sites is used to carry XYZ customer traffic over ISP network. All routing between CEs to PEs are BGP-based. XYZ site 1 reports that it cannot reach XYZ site 2, although the destination network is installed in its routing table. Which statement describes the cause of the problem?

  A. LDP is not running between XYZ-CE1 and ABC_PE1.
  B. LDP is not running between ABC_PE1 and PE1.
  C. ABC_PE1 does not have an inbound label for subnet 6.6.6.6/32.
  D. send-label command is missing from PE1 to ABC-PE1.
  D. send-label command is missing from PE1 to ABC-PE1.

• Question 592:

  In an end-to-end layer 2 service, Which technology provides the capability to detect verify isolate and report faults across a provider network?

  A. CFM
  B. Carrier detect
  C. UDLD
  D. BFD
  A. CFM

• Question 593:

  Select the 3 best answers describing operation and configuration of Frame-Relay Inverse ARP.

  A. Dynamic address mapping uses Frame Relay Inverse ARP to request the next-hop protocol address for a specific connection on its known DLCI.
  B. Responses to Inverse ARP requests are entered in an address-to-DLCI mapping table on the router or access server which is used to supply the next-hop protoco address or the DLCI for outgoing traffic.
  C. Inverse ARP is enabled by default for all protocols enabled on the physical interface.
  D. Inverse ARP is configured using the following command under the Interface configuration 'frame-relay mapdlci (dlci number) protocol protocol-address'.
  E. Inverse ARP in Frame-Relay is synonymous of ARP in Ethernet.
  A. Dynamic address mapping uses Frame Relay Inverse ARP to request the next-hop protocol address for a specific connection on its known DLCI.
  B. Responses to Inverse ARP requests are entered in an address-to-DLCI mapping table on the router or access server which is used to supply the next-hop protoco address or the DLCI for outgoing traffic.
  C. Inverse ARP is enabled by default for all protocols enabled on the physical interface.

• Question 594:

  MPLS label mapping on an LSR is displayed by which IOS command?

  A. Show mpls Idp neighbor detail
  B. Show mpls Idp bindings
  C. Show mpls Idp parameters
  D. Show mpls Idp discovery
  B. Show mpls Idp bindings

• Question 595:

  In PIM-SM operations, to which device does the first router that connects with the multicast source send the register message?

  A. RP
  B. multicast source
  C. IGMP router
  D. multicast receiver
  E. PIM designated router
  A. RP

• Question 596:

  Which technology is a forwarding decision point in a PE router that provides flexibility to make many Layer 2 flow decisions within an interface?

  A. pseudowire
  B. AToM
  C. VPLS
  D. local connect
  E. EFP
  E. EFP

• Question 597:

  How many content definitions does CSG allow?

  A. 40
  B. 400
  C. 4000
  D. 40,000
  C. 4000

• Question 598:

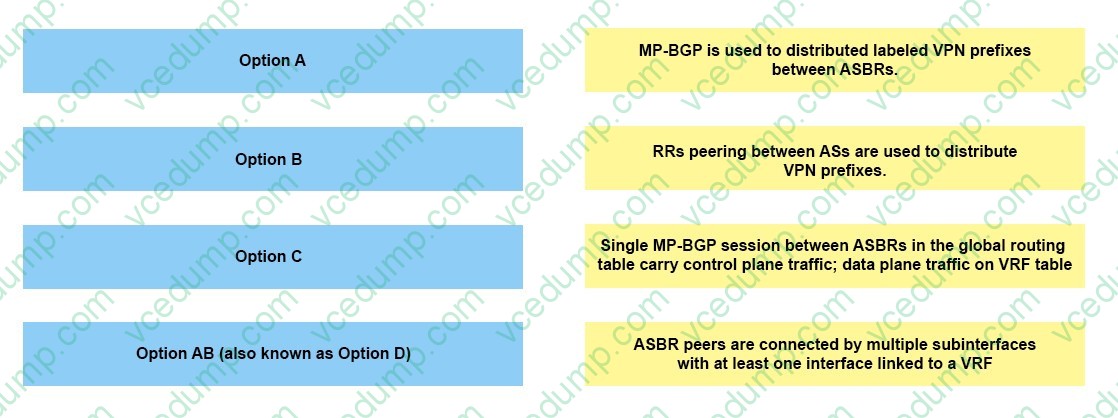

  Drag and drop the MPLS Inter-AS VPN options on the left onto the correct description on the right

  Select and Place:





• Question 599:

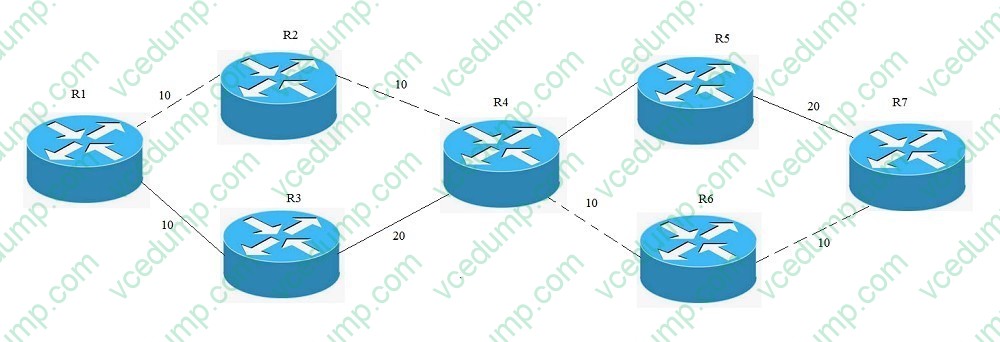

  Refer to the exhibit. An engineer deployed an MPLS TE tunnel where R1 is the head-end of the tunnel and R7 is the tail-end of the tunnel. All links marked as dashed red in the topology must be avoided. Which MPLS TE feature accomplishes this task?

  A. Use explicit paths to set up the Traffic Engineering tunnel and exclude R3 and R4 in the explicit path at R1.
  B. Use explicit paths to set up the Traffic Engineering tunnel and include R3 and R4 in the explicit path at R1.
  C. Use loose-hop-expansion EROs and select R4 and R7 as the loose hops.
  D. Use affinity bits to mark these links and exclude them during CSPF computation.
  B. Use explicit paths to set up the Traffic Engineering tunnel and include R3 and R4 in the explicit path at R1.

• Question 600:

  Which two models are used in MPLS TE bandwidth constraints? (Choose two)

  A. mdm
  B. rdm
  C. bdm
  D. mam
  E. tem
  B. rdm
  D. mam
