Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 491:

  Which statement is true about Cisco IOS XR commit command?

  A. The commit force command merges the target configuration with the running configuration and commits only valid changes
  B. The commit replace command applies all the changes of the file configuration that were loaded previously. The final configuration applied is the merged configuration between the previous running configuration and the file configuration loaded
  C. The commit confirmed 30 command applies the changes, however it initiates a configuration rollback after 30 seconds
  D. The rollback configuration to ID08252015 command and commit command completely replaces the running configuration with the target configuration specified in the file name as ID08252015
  C. The commit confirmed 30 command applies the changes, however it initiates a configuration rollback after 30 seconds

• Question 492:

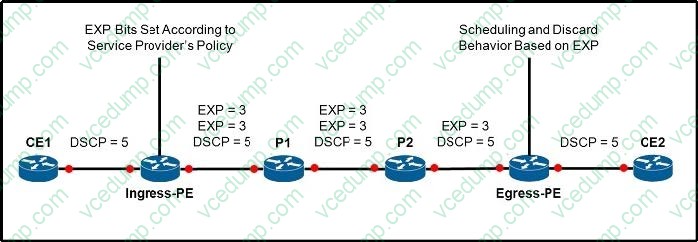

  Refer to the exhibit.



  An MPLS-based service provider wants to deploy QoS over its backbone. Original customer QoS information must be preserved when the packet leaves the MPLS network. In addition, the egress LSR must forward packets according to the LSP Diff-Service information, as depicted in the topology. Which QoS model satisfies these requirements?

  A. uniform model
  B. pipe model
  C. short-pipe model
  D. IntServ model
  B. pipe model

• Question 493:

  Which feature allows an MPLS TE tunnel to be used by an IGP at the headend of the tunnel ?

  A. MPLS TE Forwarding Adjacency
  B. Generalized MPLS
  C. Different Services traffic Engineering
  D. MPLS TE link management
  E. MPLS TE autoroute announce
  E. MPLS TE autoroute announce

• Question 494:

  In MPLS VPN, where must MP-BGP peering be configured?

  A. in all CE routers within a VPN community
  B. in all CE routers across a VPN community
  C. in all PE routers within a VPN community
  D. in all PE routers across a VPN community
  E. in all PE and CE routers within a VPN community
  F. in all PE and CE routers across a VPN community
  C. in all PE routers within a VPN community

• Question 495:

  BGP is used for PE-CE routing protocol and all CEs in the same VPN use the same AS number. Which command can be applied on PE router that eliminates the need to configure the AS override feature for the service provider in order to provide full connectivity amongst all CEs in the same VPN?

  A. neighbor allowas-in
  B. neighbor SoO
  C. maximum-paths ibgp maximum-number
  D. neighbor internal-vpn-client
  A. neighbor allowas-in

• Question 496:

  A service provider is in the process of providing Layer 2 and Layer 3 VPN services through a MPLS LDP-enabled backbone. With load increasing in the service provider domain, scalability become the most important. Based on the local label allocation filtering failure, which subnet of prefixes must be selected to meet these requirements?

  A. CE loopbacks only that are used as BGP next hop
  B. PE loopbacks that are used as BGP next hop
  C. RR, P , and PE loopbacks that are used as BGP next hop
  D. all /32 prefixes advertised in the IGP
  C. RR, P , and PE loopbacks that are used as BGP next hop

• Question 497:

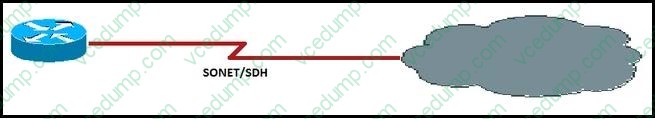

  Refer to the exhibit.



  The link payload rate is subdivided into multiple fixed-rate channels. In addition, the data rate of a single cell or packet flow is limited by the bandwidth of an individual channel. If the link is an OC-48, into how many channels can the link be subdivided?

  A. four OC-12 channels
  B. two OC-24 channels
  C. one OC-48 channel
  D. three OC-16 channels
  A. four OC-12 channels

• Question 498:

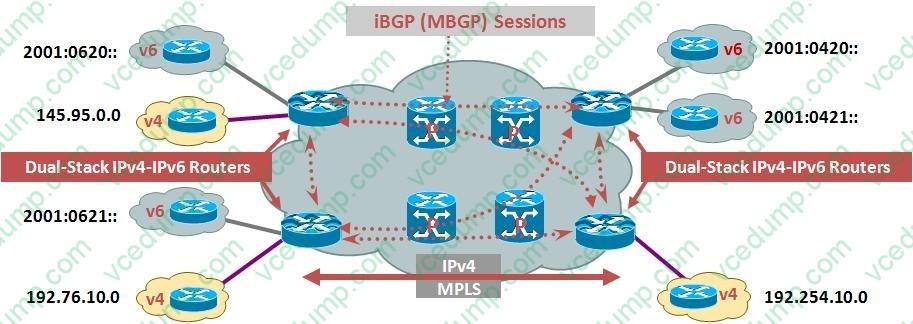

  Refer to the exhibit.



  Which IPv6 deployment feature is displayed?

  A. MPLS 6PE
  B. MPLS 6VPE
  C. 6 to 4 Replay Service
  D. native IPv6 over MPLS
  E. 6 to 4 Tunnel
  A. MPLS 6PE

• Question 499:

  Which two things are correct about QinQ technology? (Choose two.)

  A. The Outer.1Q tag represents customer VLAN ID and inner.1Q tag represents Service Provider VLAN (PVLAN)
  B. It is an effective way to achieve VLAN transparency between Provider and enterprise customer by tunneling one ser of VLAN tags inside a second VLAN tag
  C. The Outer.1Q tag represents Service Provider VLAN (PVLAN) and inner.1Q tag represents customer VLAN
  D. QinQ is a way to hide native VLAN which can conflict with Provider native VLAN
  B. It is an effective way to achieve VLAN transparency between Provider and enterprise customer by tunneling one ser of VLAN tags inside a second VLAN tag
  C. The Outer.1Q tag represents Service Provider VLAN (PVLAN) and inner.1Q tag represents customer VLAN

• Question 500:

  What are two components of SFC service chaining architecture? (Choose two.)

  A. Service Overlay
  B. Service Forwarder
  C. Service Flow Table
  D. Service Function Table
  C. Service Flow Table
  D. Service Function Table
