Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 471:

  A service provider offers four classes of service for MPLS VPN customer with the following IPP/EXP values

  A. voice=5 ii. video=4 iii. priority-data =3 iv. best-effort data=0 The service provider also supports multicast VPN services in the priority data and best- effort classes. Multicast VPN is implemented as a draft-rosen profile. On a P router, in the MPLS core, the ingress. QoS policy-map must classify all incoming packets, so that different classes of traffic can be properly handled in fabric queues and egress queues. All types of packets in the core network must be covered' Which ingress classification offers the optimal performance and provides the minimum number of actions that match the service provider QoS requirements?
  B. class-map match-any VOICE match mpls experiment topmost 5 class-map match-any VIDEO match mpls experiment topmost 4 class-map match-any CONTROL match mpls experiment topmost 6 class-map match-any PRIORITY match mpls experimental topmost 3 ! policy-map INGRESS class VOICE set qos-group 5 class VIDEO set qos-group 4 class CONTROL set qos-group 6 class PRIORITY set qos-group 3 class class-default
  C. class-map match-any VOICE match mpls experiment topmost 5 class-map match-any VIDEO match mpls experiment topmost 4 class-map match-any CONTROL match mpls experiment topmost 6 7 match ip precedence ipv4 internet network class-map match-any PRIORITY match mpls experimental topmost 3 match ip precedence ipv4 flash ! policy-map INGRESS class VOICE set qos-group 5 class VIDEO set qos-group 4 class CONTROL set qos-group 6 class PRIORITY set qos-group 3 class class-default
  D. class-map match-any VOICE match mpls experiment topmost 5 match ip precedence ipv4 critical class-map match-any VIDEO match mpls experiment topmost 4 match ip precedence ipv4 flash-override class-map match-any PRIORITY match mpls experimental topmost 3 match ip precedence ipv4 flash ! policy-map INGRESS class VOICE set qos-group 5 class VIDEO set qos-group 4 class PRIORITY set qos-group 3 class class-default
  C. class-map match-any VOICE match mpls experiment topmost 5 class-map match-any VIDEO match mpls experiment topmost 4 class-map match-any CONTROL match mpls experiment topmost 6 7 match ip precedence ipv4 internet network class-map match-any PRIORITY match mpls experimental topmost 3 match ip precedence ipv4 flash ! policy-map INGRESS class VOICE set qos-group 5 class VIDEO set qos-group 4 class CONTROL set qos-group 6 class PRIORITY set qos-group 3 class class-default

• Question 472:

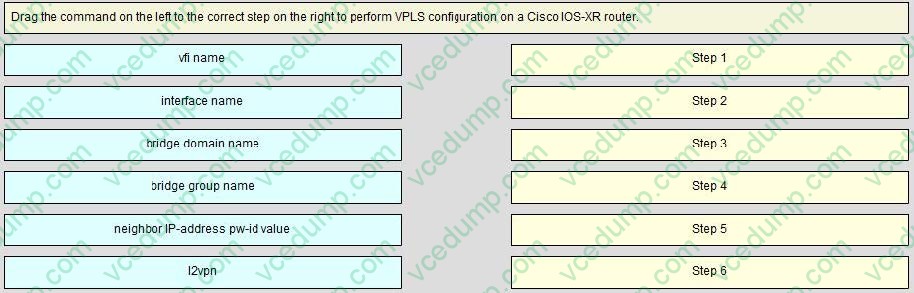

  Drag the command on the left to the correct step on the right to perform VPLS configuration on a Cisco IOS-XR router.

  Select and Place:





• Question 473:

  What are the four key design requirements for mobile IP backhaul? (Choose four)

  A. X2 interface turning point
  B. bandwidth
  C. Layer 2 Tunneling
  D. native IPv6 support
  E. DiffServQoS
  F. MPLS-enabled interface
  G. network timing distribution and recovery
  H. mandatory Layer 3 access up to a cell site
  C. Layer 2 Tunneling
  D. native IPv6 support
  G. network timing distribution and recovery
  H. mandatory Layer 3 access up to a cell site

• Question 474:

  What are the three building blocks of the Cisco VPLS architecture? (Choose three.)

  A. L2VPN
  B. Ethernet Virtual Switch Interface
  C. VLAN Trunk Protocol
  D. State Synchronization Protocol
  E. Label Distribution Protocol
  F. Resource Reservation Protocol
  A. L2VPN
  B. Ethernet Virtual Switch Interface
  E. Label Distribution Protocol

• Question 475:

  When provisioning for Interactive-Video (e.g. video conferencing traffic) which three statements depicts the correct requirements?

  A. Loss should be no more than 1 percent.
  B. One-way latency should be no more than 150 ms
  C. Jitter should be no more than 30 ms
  D. Loss should be no more than 3 percent
  E. One-way latency should be no more than 75 ms
  F. Jitter should be no more than 300 ms
  A. Loss should be no more than 1 percent.
  B. One-way latency should be no more than 150 ms
  C. Jitter should be no more than 30 ms

• Question 476:

  Which ADSL implementation type involves configuring the ATU-R PPP authentication information (Login and Password), Which provides per sessions Authentication, Authorization, and Accounting without requiring PPP client on each PC on the subscriber Side?

  A. PPPoE
  B. PPPoA
  C. RFC 1483 Routing
  D. RFC 1483 Bridge
  B. PPPoA

• Question 477:

  Which three statements about NetFlow are true? (Choose three)

  A. NetFlow records unidirectional IP traffic flow.
  B. NetFlow records MPLS frame flow.
  C. NetFlow export is only over TCP.
  D. NetFlow records is only over UDP.
  E. NetFlow records subinterface information of traffic flow.
  A. NetFlow records unidirectional IP traffic flow.
  B. NetFlow records MPLS frame flow.
  E. NetFlow records subinterface information of traffic flow.

• Question 478:

  Which operational metric to measure the health of the incident management process is critical?

  A. A number of successful changes
  B. Number of incidents per severity level
  C. Mean time to restore service
  D. Mean time to resolve incidents
  C. Mean time to restore service

• Question 479:

  What is the role of OpenStack as defined by ETSI?

  A. a VIM that interacts with multivendor compute and storage resources that are required for building VNFs
  B. an SDN subsystem that handles the data and control planes of network functions
  C. a VNF manager that handles the lifecycle management of VNFs
  D. an NFV orchestrator that handles the lifecycle management of network services
  A. a VIM that interacts with multivendor compute and storage resources that are required for building VNFs

• Question 480:

  Which carrier-grade IPv6 technology helps with IPv4 address depletion?

  A. dual stack and NAT444
  B. NAT444 and 6RD
  C. NAT444 and DS-Lite
  D. 6RD and DS-Lite
  C. NAT444 and DS-Lite
