Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 31:

  DRAG DROP

  Drag and drop the MPLS operation listed on the left to the correct order of the operation on the right.

  Select and Place:





• Question 32:

  For SONET ring switching, the 50ms switch time? (Choose two.)

  A. lncludes the detection time B. Applies to rings smaller than 1200km
  C. Applies to rings smaller than 1000km
  D. Includes up to 16 nodes
  D. Includes up to 16 nodes

• Question 33:



  Refer to the exhibit. A customer is running IS-IS within a network and is using BGP as a CE-PE routing protocol. Which action allows CE1 to get the subnet 10.10.2.0/24 over the CE1-PE1 link, regardless of whether there is a flap in the MPLS link or backdoor link?

  A. Configure the neighbor weight 33768 command on CE1 under the BGP process.
  B. Configure the distance bgp 115 200 200 command on CE1 under the BGP process.
  C. Configure the distance 30 ip command on CE1 under the IS-IS process.
  D. Configure the distance bgp 115 200 200 command on CE2 under the BGP process.
  E. Configure the neighbor weight 33768 command on CE2 under the BGP process.
  B. Configure the distance bgp 115 200 200 command on CE1 under the BGP process.

• Question 34:

  A network engineer is asked to monitor the VPLS services using IP LSP traceroute and ping. Which feature should be used to achieve this goal?

  A. MPLS OAM B. IP SLA
  C. PW
  D. AToM
  A. MPLS OAM B. IP SLA

• Question 35:

  Refer to the exhibit, Which OSPFv3 redistribute configuration provides the equivalent results when redistributing from EIGRP Pv6 onto OSPFv3 as it happens when redistributing from EIGRPv4 to OSPFv2?



  A. ipv6 router ospf 10 redistribute eigrp 10 redistribute connected
  B. ipv6 router ospf 10 redistribute eigrp 10 connected
  C. ipv6 router ospf 10 redistribute eigrp 10 include-connected
  D. ipv6 router ospf 10 redistribute eigrp 10
  C. ipv6 router ospf 10 redistribute eigrp 10 include-connected

• Question 36:

  An Enterprise XYZ company has a requirement to extend the MPLS/Layer 3VPN MAN network to the remote branches using Internet as the transport. Which solution can provide seamless extension of the MPLS/Layer 3 VPN?

  A. LISP
  B. L2TPv3
  C. Cisco Unified MPLS
  D. 2547oDMVPN
  E. Carrier Supporting Carrier
  D. 2547oDMVPN

• Question 37:



  Refer to the exhibit. An operations engineer observed a suboptimal routing between R4 and R5. The engineer decided to apply a route leaking on R2 and R3 into 49.2000 area ID. Yet, the traffic flow between R4 and R5 is not via the shortest path R4---R3----R1----R5(metric 24). Which reason for this behavior is true?

  A. IS-IS metric-narrow style is used
  B. R2 and R3 are still sending the ATT flag to R1
  C. R1 is not part of the IS-IS backbone area
  D. IS-IS multipology is not enabled
  B. R2 and R3 are still sending the ATT flag to R1

• Question 38:

  DRAG DROP

  DND Multicast VPN, Arrange the steps on the left in order of how the P2MP TE traffic is forwarded across the network:

  Select and Place:





• Question 39:

  A Tier 2 ISP provides Internet connectivity to residential and business customers. The Tier 2 ISP uses Internet transit service from multiple Tier 1 ISPs at different locations. Lately, the link utilization on a few links to Tier 1 ISPs has increased to unacceptable levels while other links have low link utilizations. Which two methods can alleviate this issue without deploying additional links? (Choose two.)

  A. Use the BGP AS prepend feature to influence how Internet traffic enters from Tier 1 ISPs.
  B. Use the BGP MED attribute to influence how Internet traffic exits towards Tier 1 ISPs.
  C. Use the BGP Local Preference to influence how Internet traffic exits towards Tier 1 ISPs.
  D. Change the IGP cost metrics in the core.
  E. Use QoS to rate-limit traffic.
  A. Use the BGP AS prepend feature to influence how Internet traffic enters from Tier 1 ISPs.
  C. Use the BGP Local Preference to influence how Internet traffic exits towards Tier 1 ISPs.

• Question 40:

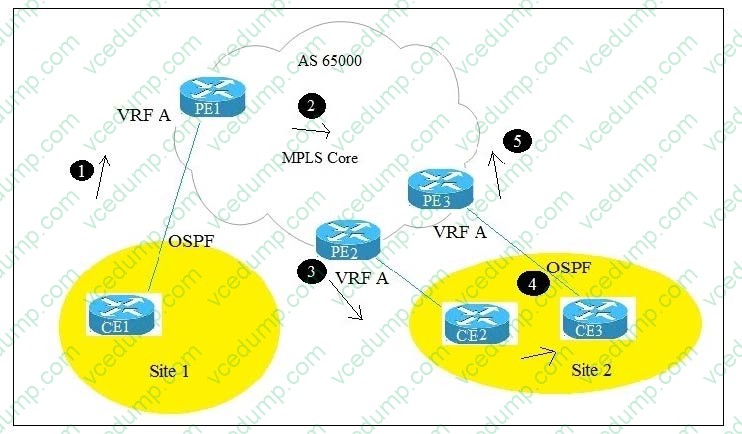

  Refer to the exhibit. Which two statements with regards to the OSPF down bit are true? (Choose two.)



  A. The OSPF filter occurs because of OSPF down bit in the step 5 when PE3 redistributes OSPF prefixes onto MP-BGP.
  B. The OSPF down bit is set in step 1 when PE1 redistributes OSPF into BGP.
  C. The OSPF filter occurs because of the OSPF down bit in step 4 when CE2 advertises OSPF prefixes to CE3.
  D. The OSPF down bit is set in step 3 when PE2 redistribute prefixes from MP-BGP into OSPF.
  E. The OSPF down bit is set in step 2 when PE2 advertises MP-BGP to other MP-iBGP peers.
  E. The OSPF down bit is set in step 2 when PE2 advertises MP-BGP to other MP-iBGP peers.
