• Question 151:

  What is used as label in cell-based MPLS?

  A. VPI and VCI
  B. None of above
  C. VCI
  D. Specific 4 bytes label
  E. VPI
  A. VPI and VCI

• Question 152:

  Which two topologies are supported by the Cisco satellite network virtualization (nV) system? (Choose two.)

  A. Spine and Leaf Topology
  B. Hub and Spoke network topology
  C. Dual Home network topology
  D. Collapsed Core topology
  B. Hub and Spoke network topology
  C. Dual Home network topology

• Question 153:

  Which statement is FALSE concerning Concatenation?

  A. It allows ITCM to send multiple upstream packets in one single large burst.
  B. It reduces upstream data throughput.
  C. It can be enabled/disabled from CMTS on per upstream port basis if desired
  D. Concatenation activity on an interface can be checked by the show controller counters command
  B. It reduces upstream data throughput.

• Question 154:

  VoIP bearer traffic is typically marked to which DSCP value?

  A. af41
  B. af31
  C. 0 (default)
  D. cs7
  E. cs3
  F. ef
  F. ef

• Question 155:

  A service provider NOC engineer received numerous support tickets from their VPN customers. These customers are reporting packet loss between two PE routers. The NOC engineer created a VRF TEMP to run tests between these two PE

  routers, and no errors were reported. ECMP links are used between P and PE routers.

  Which test can quickly identify the core link that is causing the problems?

  A. an extended traceroute with multipath option between the PE's loopbacks
  B. anmpls traceroute with multipath option between the PE's loopbacks
  C. anmpls ping with sweep option between the PE's loopbacks
  D. avrf ping between customer's CE router and service provider's remote PE router
  E. an extended ping with sweep option between the PE's loopbacks
  F. avrf traceroute between customer's CE router and service provider's remote PE router
  B. anmpls traceroute with multipath option between the PE's loopbacks

• Question 156:

  A network engineer deployed Cisco MPLS TE tunnels on the service provider network to steer the traffic over those tunnels to optimize the bandwidth utilization. Which two configurations can send the traffic to the Cisco MPLS TE tunnel interfaces? (Choose two.)

  A. applying the fast-reroute per-prefix command
  B. static route pointing down to the Cisco MPLS TE interface tunnel
  C. applying the autoroute announce command under the Cisco MPLS TE interface tunnel
  D. enabling LFA calculation
  E. applying an explicit-path command under the Cisco MPLS TE interface tunnel
  C. applying the autoroute announce command under the Cisco MPLS TE interface tunnel
  E. applying an explicit-path command under the Cisco MPLS TE interface tunnel

• Question 157:

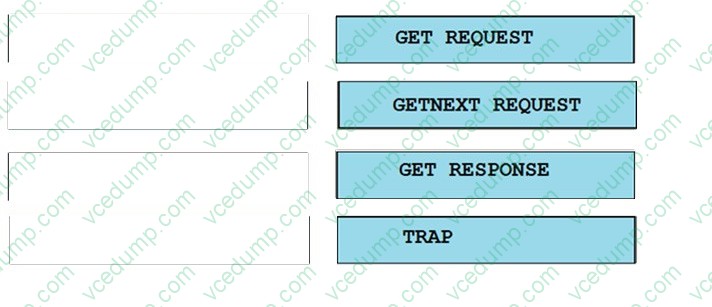

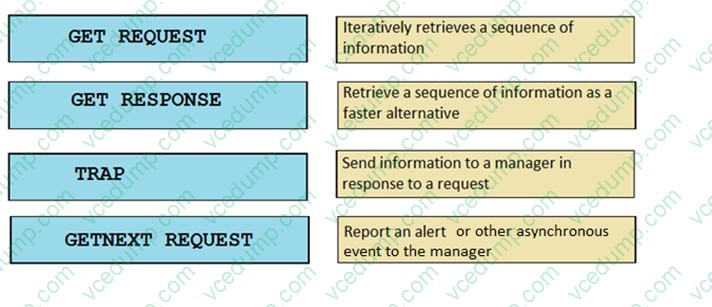

  Drag and drop the SNMP message types on the left onto the corresponding functionality on the right.

  Select and Place:





• Question 158:

  Which statement about the requirements of eBGP multipath is true?

  A. The path should be learned from an external or confederation-external neighbor.
  B. The path should be learned from an internal neighbor.
  C. The IGP metric to the BGP next hop should be equal to the best-path IGP metric, unless the router is configured for unequal-cost iBGP multipath.
  D. The path should be learned from an IGP protocol.
  A. The path should be learned from an external or confederation-external neighbor.

• Question 159:

  Which of the following descriptions about uRPF loose mode is correct? (Choose two).

  A. It is typically used on point-to-point interfaces where the same interface is used for both directions of packet flows; if the source address has a return route in the FIB table, it is then checked against the adjacency table to ensure the same interface receiving the packet is the same interface used for the return path
  B. If a packet fails the uRPF loose mode check, the packet is then transmitted and creates a log message
  C. It is typically used on multipoint interfaces or on routers where asymmetrical routing is used (packets are received on one interface but the return path is not on the same interface); loose mode verifies a source address by looking in forwarding information base(FIB).
  D. If a packet fails the uRPF loose mode check, the packet is then dropped
  C. It is typically used on multipoint interfaces or on routers where asymmetrical routing is used (packets are received on one interface but the return path is not on the same interface); loose mode verifies a source address by looking in forwarding information base(FIB).
  D. If a packet fails the uRPF loose mode check, the packet is then dropped

• Question 160:

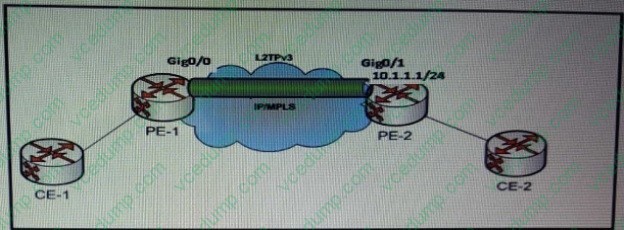

  Refer to the exhibit. The communication between CE-1 and CE-2 is not operational. An operations engineer notice that the L2TP connection failed to establish because inbound ip access list had been applied on the PE-2 Gig0/1 interface. Which ACL entry must be added to control connection successfully established ?

  A. permit udp host 10.1.1.1 any eq 1701
  B. permit tcp any eq 1701 host 10.1.1.1
  C. permit udp any host 10.1.1.1 eq 1701
  D. permit tcp host 10.1.1.1 eq 1701 any
  C. permit udp any host 10.1.1.1 eq 1701
