Cisco 400-151 Online Practice Questions and Exam Preparation

Cisco 400-151 Online Questions & Answers

• Question 301:

  You are configuring an L3Out interface for a VRF for which OSPF is configured on an ACI fabric. You notice that the OSPF routing table us rebuilt every 10 seconds. Which reason for this behavior is true?

  A. A duplex mismatch is on the link on which L3out is configured.
  B. The loopback interfaces of the L3Out are configured with an IP addresses that is already in use.
  C. OSPF timers are set to rebuild the RIB every 10 seconds.
  D. This is the normal behavior of the ACI fabric.
  B. The loopback interfaces of the L3Out are configured with an IP addresses that is already in use.

• Question 302:

  In which three ways can you house Edge Transport servers on their perimeter network in ACI without investing extra cost in buying additional hardware? (Choose three.)

  A. Create an L3Out to route peer with an ASA firewall to isolate traffic with security rules
  B. Create a private VRF with default enforcement policy. Configure a bridge domain with a subnet assigned to a private VRF.
  C. No need to create Contracts. A default enforcement policy allows all traffic to forward.
  D. Choose options "Shared Route Control Subnet" and "Shared Import Security Subnet".
  E. Create Contract to enforce policy between Edge Transport servers EPG and backend mailbox servers EPG.
  A. Create an L3Out to route peer with an ASA firewall to isolate traffic with security rules
  B. Create a private VRF with default enforcement policy. Configure a bridge domain with a subnet assigned to a private VRF.
  C. No need to create Contracts. A default enforcement policy allows all traffic to forward.

• Question 303:

  DRAG DROP

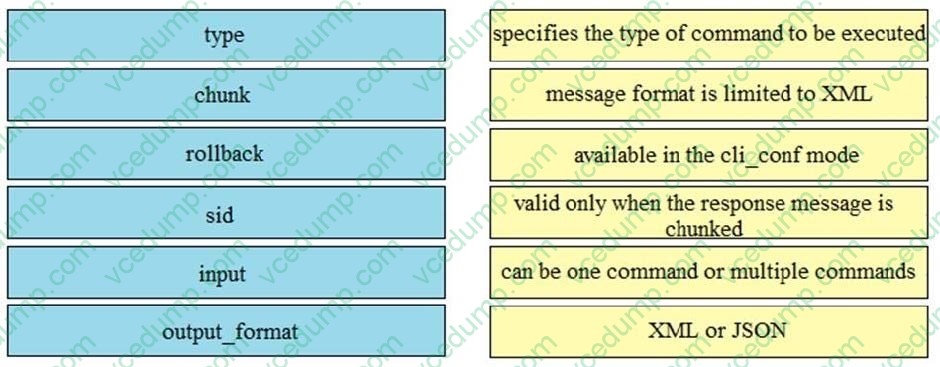

  Drag and drop the nx-api request elements from left onto the correct functions/characteristics on the right.

  Select and Place:





• Question 304:

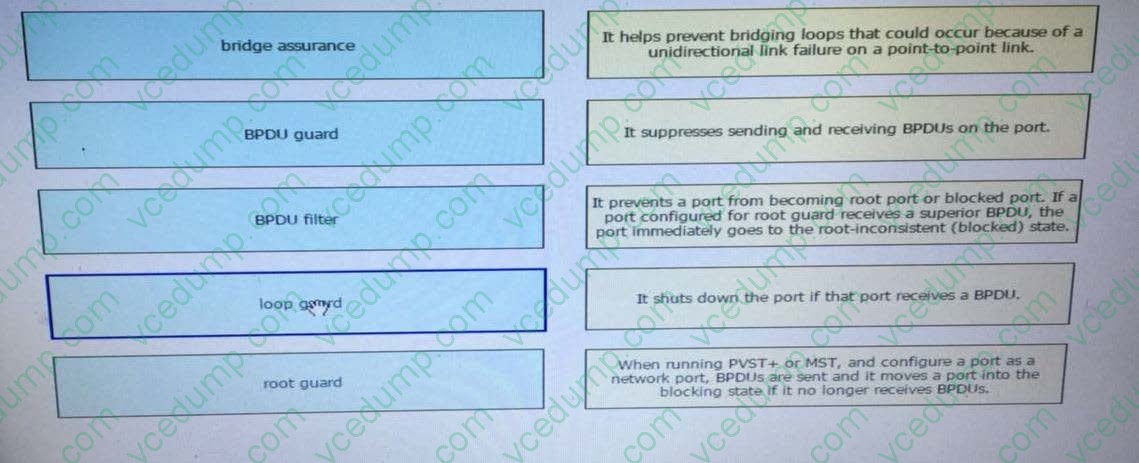

  Drag and drops the feature from the left onto the correct description on the right

  Select and Place:





• Question 305:

  Which option is required by atomic counters to be leveraged in troubleshooting endpoint connectivity?

  A. Endpoint must connect to different leaf switches.
  B. Endpoints must be different endpoint groups.
  C. Endpoints must be in different bridge domains.
  D. Endpoints must be in different VRFs.
  E. Endpoints must connect to the same leaf switch.
  A. Endpoint must connect to different leaf switches.

• Question 306:

  In OpenStack, which project stores and retrieves arbitrary unstructured data objects?

  A. Swift
  B. Nova
  C. Cinder
  D. Keynote
  A. Swift

• Question 307:

  Which three statements about nxapi_auth are true? (Choose three.)

  A. Use of nxapi_auth is optional. This feature can be disabled to reduce authentication time and support large number of API calls.
  B. After the first successful authentication, the username and password are used with the session cookie to bypass performing the full authentication process again.
  C. Expiration time of the nxapi_auth cookie can be changed up to the maximum of 1200 seconds.
  D. After the first successful authentication, the username and password are NOT included in subsequent NX-API requests that are sent to the device.
  E. NX-API performs authentication through a programmable authentication module on the switch. Using cookies reduces the number of PAM authentications, which reduces the load on the PAM.
  F. The nxapi_auth cookie expires in 600 seconds.
  B. After the first successful authentication, the username and password are used with the session cookie to bypass performing the full authentication process again.
  E. NX-API performs authentication through a programmable authentication module on the switch. Using cookies reduces the number of PAM authentications, which reduces the load on the PAM.
  F. The nxapi_auth cookie expires in 600 seconds.

• Question 308:

  Which three options are prerequisites to enable Intelligent Traffic Director on the Cisco Nexus 7000 series? (Choose three)

  A. feature pbr
  B. feature lldp
  C. feature sla sender
  D. feature vlan
  E. feature interface-vlan
  F. lpslaresponder
  A. feature pbr
  C. feature sla sender
  F. lpslaresponder

• Question 309:

  Drag and drop feature on the left onto the appropriate business benefits on the right

  Select and Place:





• Question 310:

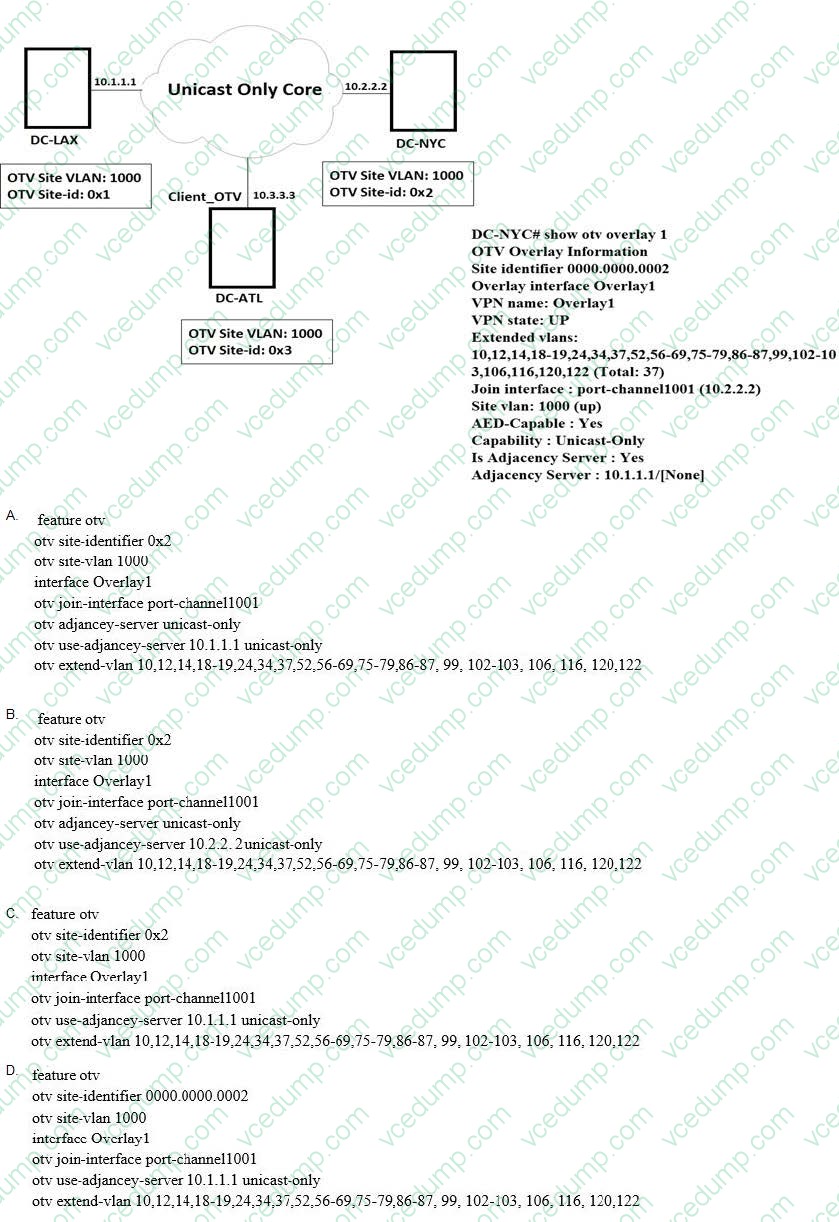

  Refer to the exhibit. Which option is the correct configuration for DC-NYC?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A
