Cisco 400-151 Online Practice Questions and Exam Preparation

Cisco 400-151 Online Questions & Answers

• Question 191:

  Which two statements about the configuration of APIC in the ACL Fabric are true?

  A. Cluster controllers added to the APIC be running the same version ot firmware
  B. When performing planned changes to the cluster, at least one controller in the cluster must be healthy
  C. Commissioning an APIC can be done via the APIC IU, but decommissioning an APIC must be done using CLI
  D. An APIC cluster is comprised of multiple controllers that provide monitoring, diagnostic, and confiquration capability
  E. APIC cluster size is set during the initial setup strip. And after it configured it requiresa nondisruptive re- initialization of the APIC cluster to change
  A. Cluster controllers added to the APIC be running the same version ot firmware
  D. An APIC cluster is comprised of multiple controllers that provide monitoring, diagnostic, and confiquration capability

• Question 192:

  Which statement about hard pinning is true?

  A. When the VLAN validation fails, a VLAN Mismatch fault with a severity of Warning appears.
  B. If no uplink Ethernet port or port channel is configured with all VLANs on the vNIC, Cisco UCS manager brings the link down.
  C. When the VLAN validation fails, a VIF down fault is raised.
  D. If no uplink Ethernet port or port channel is configured with all VLANs on the vNIC, Cisco UCS Manager drops the traffic for all of the VLANs on the vNIC.
  A. When the VLAN validation fails, a VLAN Mismatch fault with a severity of Warning appears.

• Question 193:

  How do you manually configure a vNIC MAC address?

  A. Use theset identity dymanic-maccommand.
  B. Modify the dynamic vNIC connection policy.
  C. Use themac-address-table staticcommand.
  D. Modify the adapter policy.
  A. Use theset identity dymanic-maccommand.

• Question 194:

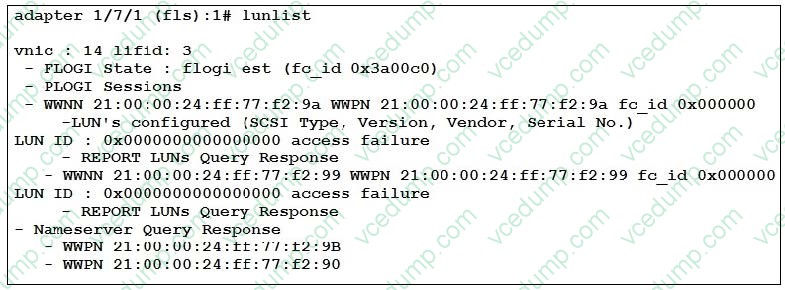

  Refer to the exhibit.



  This output is observed when troubleshooting a blade that is unable to boot from SAN. Which action must the Cisco UCS administrator take to resolve this issue?

  A. Check the LUN masking configuration on the storage array.
  B. Check the zoning configuration on the Fibre Channel switch.
  C. Check the boot LUN ID in Cisco UCS boot order.
  D. Check the vHBA VSAN configuration in service profile.
  B. Check the zoning configuration on the Fibre Channel switch.

• Question 195:

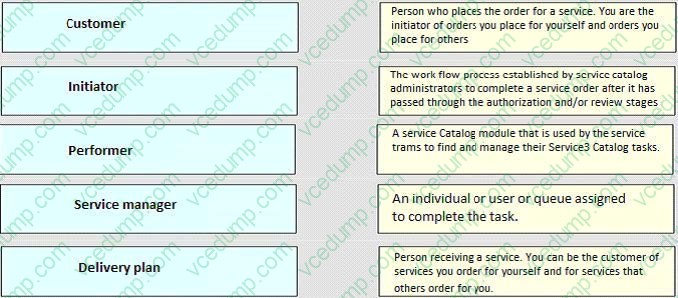

  Drag and drop the term of the Cisco Prime Service Catalog from the left column onto the correct definition on the right.

  Select and Place:





• Question 196:

  Which pair of parameters is used by default to identify the LACP system ID?

  A. LACP port-priority value and the MAC address
  B. LACP system priority value and the MAC address
  C. root bridge priority and MAC address
  D. link cost and root bridge priority
  B. LACP system priority value and the MAC address

• Question 197:

  When configuring quality of service, which mechanism can be used to guarantee bandwidth to EF traffic?

  A. CoPP
  B. priority queuing
  C. IP precedence
  D. policing
  B. priority queuing

• Question 198:

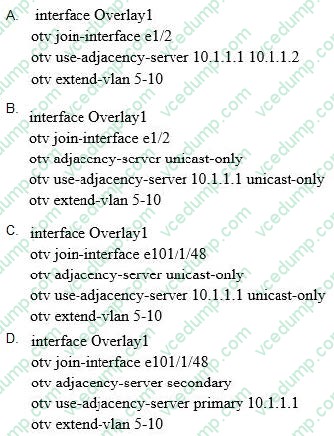

  Which option is a valid overlay interface configuration and configuration and configures the OTV edge device as a secondary OTV adjacency server?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 199:

  Which three statements correctly describe the encoding formats for NETCONF, RESTCONF, and gRPC? (Choose three.)

  A. NETCONF uses JSON encoding
  B. RESTCONF uses GPB encoding
  C. gRPC uses XML encoding
  D. RESTCONF uses JSON encoding
  E. gRPC uses GPB encoding
  F. NETCONF uses XML encoding
  C. gRPC uses XML encoding
  D. RESTCONF uses JSON encoding
  F. NETCONF uses XML encoding

• Question 200:

  A VPC stretched from two leaf switches up to an ASA firewall. You are configuring the VPC as an L3Out interface in a Cisco ACI Fabric. How is the Layer 3 configuration applied?

  A. Each endpoint of the VPC must be configured with an IP address in the same range.
  B. Each link must be configured as a Layer 3 link.
  C. The VPC configuration itself must be seen as a Layer 2 Portchannel stretching over two devices. A subinterface in the port channel configuration of the VPC must be configured at both ends of the VPC.
  D. A separate SVI must be configured in the ACI fabric and the VLAN of the SVI must be allowed on the VPC trunk configuration.
  D. A separate SVI must be configured in the ACI fabric and the VLAN of the SVI must be allowed on the VPC trunk configuration.
