Cisco 400-101 Online Practice Questions and Exam Preparation

Cisco 400-101 Online Questions & Answers

• Question 221:

  Which two operating modes does VPLS support? (Choose two)

  A. Transport mode
  B. Loose mode
  C. VLAN mode
  D. Strict mode
  E. Port mode
  F. Dynamic mode
  C. VLAN mode
  E. Port mode

• Question 222:

  Which Cisco PfR monitoring mode is recommended for Internet edge deployment?

  A. Active mode
  B. fast mode
  C. active throughput mode
  D. passive mode
  D. passive mode

• Question 223:

  Which statements are true about control plane policing? (Choose two.)

  A. Access lists are used in policies for control plane policing must use the log keyword.
  B. The log keyword can be used but the log-input keyword must not be used in policies for control plane policing.
  C. Control plane policing will affect only traffic that is destined to the route processor.
  D. Packets denied by an explicit access control list entry do not progress to the next class in control plane policing.
  D. Packets denied by an explicit access control list entry do not progress to the next class in control plane policing.

• Question 224:

  Which two statements about GETVPN are true? (Choose two.)

  A. It supports non-IP protocols.
  B. It uses stateless failover for high availability.
  C. It can use GRE or DMVPN to support private IP addressing.
  D. It is supported on MPLS networks.
  E. It supports only hub-and-spoke topologies.
  B. It uses stateless failover for high availability.
  D. It is supported on MPLS networks.

• Question 225:

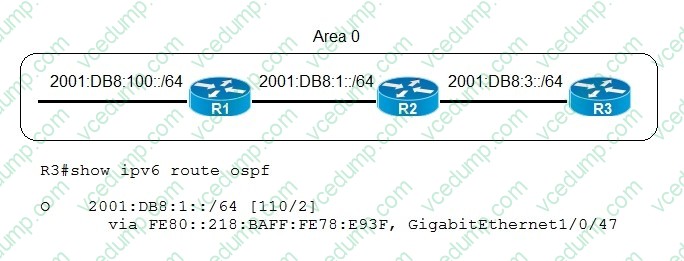

  Refer to the exhibit.



  All routers have FULL OSPF adjacencies. Which reason is likely that R3 is missing the 2001:DB8:100::64 route?

  A. R1 has LSA throttling configured.
  B. R1 has loop-free alternate routing configured.
  C. R1 has prefix suppression configured.
  D. R1 has an incorrect area number configured.
  C. R1 has prefix suppression configured.

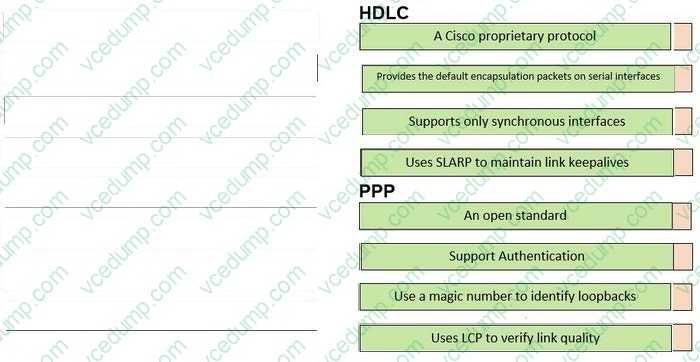

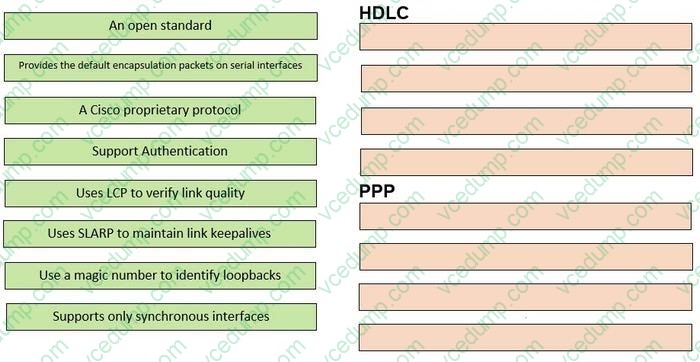

• Question 226:

  Drag and Drop

  Select and Place:





• Question 227:

  Which two statements about DHCP operations are true? (Choose two)

  A. When the DHCP relay agent receives a DHCP messages, If generates a new DHCP message to transmit
  B. The client uses option 125 in a DHCPDISCOVER message to discover the DHCP server
  C. The DHCP server inserts option 150 when it sends a DHCPOFFER message
  D. The client uses TTL to discover a DHCP server and obtain a leased IP address
  E. The DHCP relay agent can insert option 82 with additional information about the client identity
  B. The client uses option 125 in a DHCPDISCOVER message to discover the DHCP server
  E. The DHCP relay agent can insert option 82 with additional information about the client identity

• Question 228:

  Which option describes how a VTPv3 device responds when it detects a VTPv2 device on a trunk port?

  A. It sends VTPv2 packets only
  B. It sends a Special packet that contains VTPv3 and VTPv2 packets information.
  C. It sends VTPv3 packets only.
  D. It sends VTPv3 and VTPv2 packets.
  D. It sends VTPv3 and VTPv2 packets.

• Question 229:

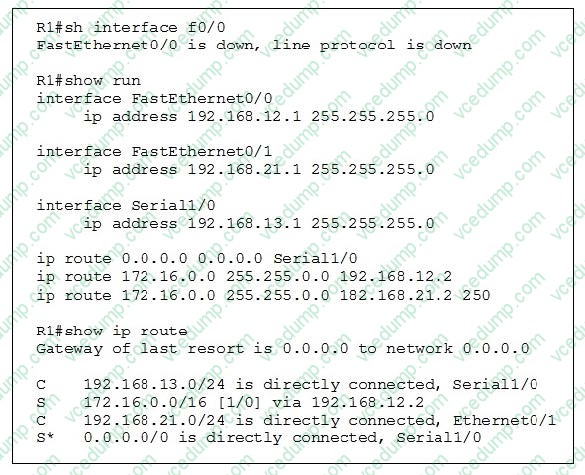

  Refer to the exhibit.



  While troubleshooting a connection failure on R1, you determine that F0/0 is down as shown, but the static route toward 172.16.0.0/16 still uses 192.168.12.2 as the next hop. Which action can you take so that the floating static route through interface F0/1 is used when F0/0 is down?

  A. Configure the floating static route with the egress interface instead of the next hop IP address.
  B. Configure the floating static route with an Administrative Distance of 100 instead of 250.
  C. Configure the floating static route with an Administrative Distance of 255 instead of 250.
  D. Configure the primary route with both the next hop IP address and the egress interface.
  D. Configure the primary route with both the next hop IP address and the egress interface.

• Question 230:

  Which two options about PIM-DM are true? (Choose two)

  A. In a PIM-DM network, routers that have no upstream neighbors prune back unwanted traffic
  B. PIM-DM initially floods multicast traffic throughout the network.
  C. PIM-DM supports only shared trees.
  D. PIM-DM uses a pull model to deliver multicast traffic.
  E. PIM-DM cannot be used to build a shared distribution tree.
  B. PIM-DM initially floods multicast traffic throughout the network.
  E. PIM-DM cannot be used to build a shared distribution tree.
