Cisco 400-101 Online Practice Questions and Exam Preparation

Cisco 400-101 Online Questions & Answers

• Question 211:

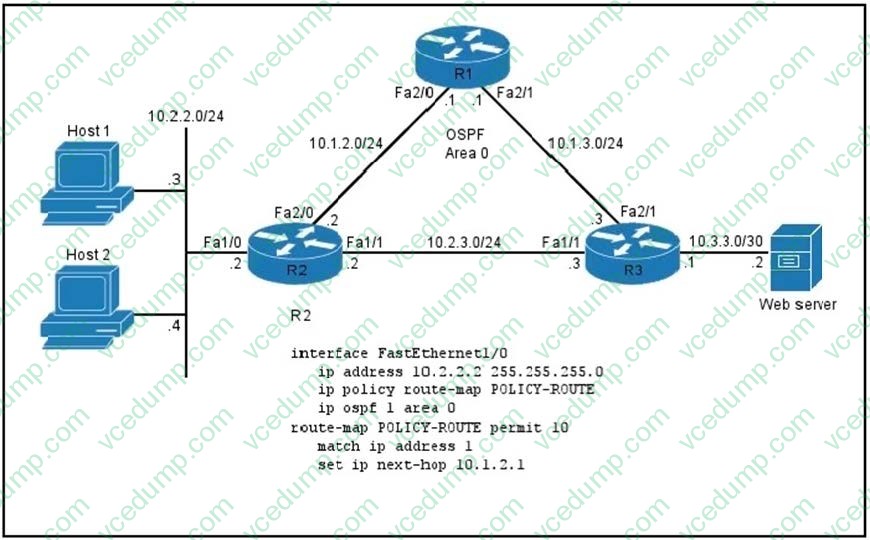

  Refer to the exhibit. Multiple hosts on the 10.2.2.0/24 network are sending traffic to the Web server. Which configuration can you apply to R2 so that traffic from host 1 uses the path R2-R1-R3 to reach the web server, without affecting other hosts?



  A. access-list 1 permit 10.2.2.4 0.0.0.0
  B. access-list 1 permit 10.2.2.0 0.0.0.255
  C. access-list 1 permit 10.2.2.3 255.255.255.255
  D. access-list 1 permit 10.2.2.3 0.0.0.0
  E. ip local policy route-map POLICY-ROUTE
  F. interface FastEthernet2/0 in policy route-map POLICY-ROUTE
  D. access-list 1 permit 10.2.2.3 0.0.0.0

• Question 212:

  DRAG DROP

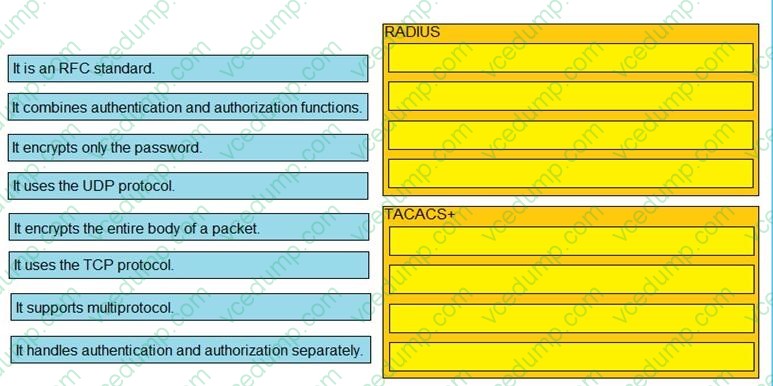

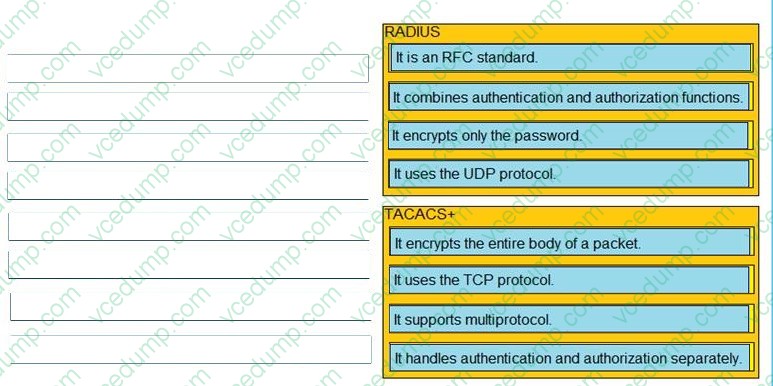

  Drag and drop each statement about AAA from the left onto the correct AAA mechanism on the right.

  Select and Place:





• Question 213:

  Which two options are restrictions of BGP ORF? (Choose two)

  A. It can be used only with eBGP.
  B. It requires access lists to match routes.
  C. Multicast is not supported.
  D. It can be used only with IPv4 multicast.
  E. It can be used only with iBGP
  A. It can be used only with eBGP.
  C. Multicast is not supported.

• Question 214:

  What is used to acknowledge the receipt of LSPs on a point-to-point network in IS-IS?

  A. hello
  B. CSNP
  C. PSNP
  D. IIH
  E. CSH
  C. PSNP

• Question 215:

  You need to modify the IOS L3switch configuration for High Availability operation. What additional configuration is needed, if any?

  A. Modify the configuration to use VRRP, which has additional functionally that works better for High Availability.
  B. Enable HSRP preempt with a delay to allow time for he routing and switching protocols to converge.
  C. Enable HSRP preempt to force the primary L3 switch to resume th master role after a failure.
  D. The shown configuration is sufficient for High functionally.
  B. Enable HSRP preempt with a delay to allow time for he routing and switching protocols to converge.

• Question 216:

  In a DMVPN solution, which component can the GRE tunnel source and destination generate automatically?

  A. pre-shared keys
  B. crypto ACLs
  C. QoS markings
  D. policy maps
  B. crypto ACLs

• Question 217:

  Which two statements about the Cisco Express Forwarding glean adjacency type are true? (Choose two)

  A. Packets destined for the interface are discarded and the prefix is checked.
  B. The adjacency database is used to gather specific prefixes when packets are destined to a specific host.
  C. The router FIB table maintains a prefix for the subnet instead of individual hosts.
  D. Packets destined for the interface are discarded and the prefix check is skipped.
  E. Packets destined for the interface can be dropped, which provide a form of access filtering.
  B. The adjacency database is used to gather specific prefixes when packets are destined to a specific host.
  C. The router FIB table maintains a prefix for the subnet instead of individual hosts.

• Question 218:

  Which IPv6 solution provides network information to clients without providing an IPv6 host address?

  A. autoconfiguration
  B. stateless DHCPv6
  C. stateful DHCPv6
  D. prefix delegation
  A. autoconfiguration

• Question 219:

  In a GETVPN environment, which protocol is used by the key server and group members to manage group keys?

  A. SNMP
  B. SFTP
  C. STP
  D. GDOI
  E. SSH
  F. FTP
  D. GDOI

• Question 220:

  Which technology uses MPLS to provide 1Pv6 connectivity o customers in the core network without the need for dual stack?

  A. 6to4
  B. NAT64
  C. NAT
  D. SPE
  D. SPE
