Cisco 400-101 Online Practice Questions and Exam Preparation

Cisco 400-101 Online Questions & Answers

• Question 101:

  Which three basics types of SD-WAN deployment are out on the market? (Choose three)

  A. Managed service SD-WAN
  B. Policy-Based SD-WAN
  C. SD-WAN as-a-Service
  D. Internet-Based SD-WAN
  E. Secure SD-WAN service
  F. MPLS-based
  A. Managed service SD-WAN
  C. SD-WAN as-a-Service
  D. Internet-Based SD-WAN

• Question 102:

  On a network with multiple VLANs, which three tasks must you perform to configure IP source guard on VLAN 50 only? (Choose three)

  A. Configure the ip dhcp snooping vlan 50 command on the interface
  B. Configure the ip dhcp snooping vlan 50 command globally
  C. Configure the ip dhcp snooping command on the interface
  D. Configure the ip verify source command globally
  E. Configure the ip dhcp snooping command global
  F. Configure the ip verify source command on the interface
  B. Configure the ip dhcp snooping vlan 50 command globally
  E. Configure the ip dhcp snooping command global
  F. Configure the ip verify source command on the interface

• Question 103:

  Which two elements are required to define a class-map? (Choose two.)

  A. A series of match commands.
  B. An attachment to an interface.
  C. A series of set commands.
  D. A command as bandwidth, fair-queue, or random-detect to enable a QoS option.
  E. A traffic policy name.
  F. A traffic-class name.
  A. A series of match commands.
  F. A traffic-class name.

• Question 104:

  Which two limitations of PIM snooping are true? (Choose two)

  A. 224.0.1.39 and 224.0.1.40 are always flooded
  B. If non-PIMv2 multicast routers are on the network, they are flooded with all traffic.
  C. All join and prune messages are flooded to all router ports.
  D. Directly connected sources are supported only for unidirectional PIM groups.
  E. All traffic in sparse group mode is treated as unknown traffic and dropped.
  A. 224.0.1.39 and 224.0.1.40 are always flooded
  B. If non-PIMv2 multicast routers are on the network, they are flooded with all traffic.

• Question 105:

  Drag and Drop

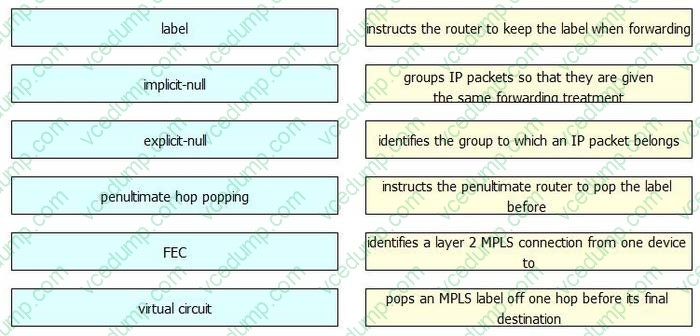

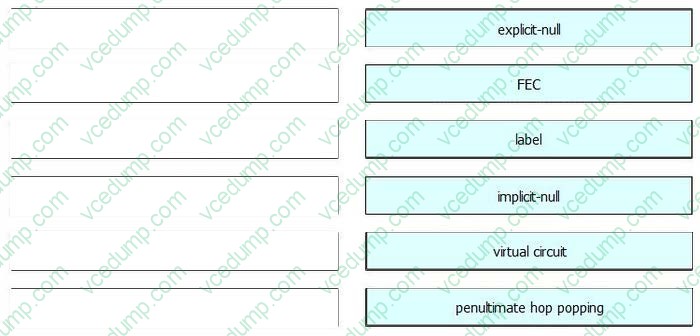

  Drag and drop the MPLS term on the left to the function it performs on the right.

  Select and Place:





• Question 106:

  Which two options are interface requirements for turbo flooding? (Choose two)

  A. The interface is configured for 802.1Q encapsulation
  B. The interface is configured for GRE encapsulation
  C. The interface is PPP
  D. The interface is Ethernet
  E. The interface is configured for ARPA encapsulation
  D. The interface is Ethernet
  E. The interface is configured for ARPA encapsulation

• Question 107:

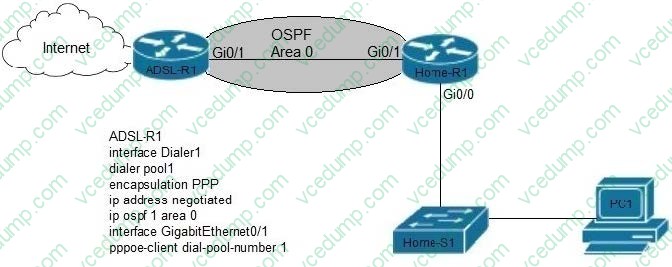

  Refer to the exhibit. The PC is experiencing intermittent connectivity failures to the internet. If ADSL-R1 uses a PPPoE connection, what action can you take to correct the problem?

  A. Configure a system MTU of 1512 on ADSL-R1
  B. Configure OSPF on the connection between PC1 and HomeS1
  C. Replace the dialer interface with a virtual template.
  D. Configure an MTU of 1492 on the dialer interface on ADSL-R1
  E. Configure the same OSPF process on HomeR1 and HomeS1
  D. Configure an MTU of 1492 on the dialer interface on ADSL-R1

• Question 108:

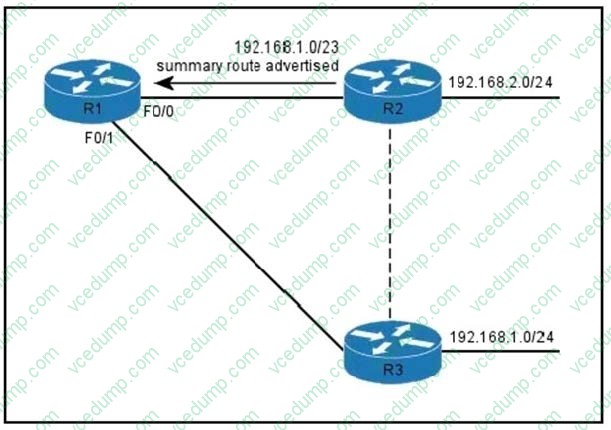

  Refer to the exhibit. You have noticed that when the link between R2 and R3 goes down, traffic to route 192.168.1.0/24 continues to exit R1 through interface F0/0. If all routers on the given network are running EIGRP, what is the most likely reason for the problem?



  A. R2 is failing to properly advertise 192.168.10.0/24 because it is configured as a hub router instead of a sub router
  B. R2 is still advertising the summary route because one child route exists
  C. The R3 metric for 192.168.10.0/24 is too high to be the preferred path
  D. R3 waits until the R2 hold time expires before advertising its path
  B. R2 is still advertising the summary route because one child route exists

• Question 109:

  Which technology must be enabled on an interface before L2TPv3 can operate correctly?

  A. STP
  B. MPLS
  C. OSPF
  D. CEF
  D. CEF

• Question 110:

  When EIGRP Auto-Summary is enabled, what does Auto Summarization do in EIGRP ?

  A. Summarizes all network boundaries
  B. Summarizes network from different network boundaries crossing different major boundary
  C. Summarize network from the same network boundaries
  D. Summarizes networks from different network boundaries crossing the same major boundary
  B. Summarizes network from different network boundaries crossing different major boundary
