Cisco 400-101 Online Practice Questions and Exam Preparation

Cisco 400-101 Online Questions & Answers

• Question 121:

  Which two statements about GLBP are true? (Choose two.)

  A. It uses Hello, Request and Reply packet types.
  B. Each GLBP group supports up to 4 MAC address.
  C. It support stateful switchover.
  D. It communities to multicast address 244.0.0.18.
  E. It allows members to elect up to two gateways as the AVG.
  A. It uses Hello, Request and Reply packet types.
  B. Each GLBP group supports up to 4 MAC address.

• Question 122:

  Which extended ping IP header option allows you to specify one or more hops over which the packets will travel without specifying the full path?

  A. verbose
  B. record
  C. strict
  D. loose
  D. loose

• Question 123:

  Refer to the exhibit.



  The Main 1 and Branch 1 switches are connected directly over over an MPLS pseudowire, and both runn UDLD. After router B1 reloads because of a power failure, the pseudowire. However the Branch 1 switch is unable to reach the Main 1 switch.

  Which two actions can you take to restore connectivity and problem from recurring? (Choose two)

  A. Configure a backup pseudowire between the Main 1 and Branch I Switchs.
  B. Issue the shutdown and no shutdown commands on the Branch 1 switch uplink to the B1 router only.
  C. Configure a backup GRE tunnel between the Main I and Branch 1 switches.
  D. Issue the shutdown and no shutdown commands on both the Branch 1 switch uplink to the B1 router and the Main 1 switch's uplink to the M1 router
  E. Enable errdisable recovery on both the Main I and Branch I switches.
  F. Enable UDLD recovery on both the Main I and Branch I switches.
  B. Issue the shutdown and no shutdown commands on the Branch 1 switch uplink to the B1 router only.
  E. Enable errdisable recovery on both the Main I and Branch I switches.

• Question 124:

  Ping and Traceroute extended options are very useful. What is the difference between using the Record option with the ping command vs. the traceroute command?

  A. The record option is not supported with the ping command B. The record option is not supported with the traceroute command
  C. When leveraged with the ping command, the Record option of this command not only informs you of the hops that the echo request (ping) went through to get the destination, but is also informs you of the hops it visited on the return path
  D. When leveraged with the traceroute command, the Record option of this command not only informs you of the hops that the echo request (ping) went through to get the destination, but is also informs you of the hops it visited on the return path
  C. When leveraged with the ping command, the Record option of this command not only informs you of the hops that the echo request (ping) went through to get the destination, but is also informs you of the hops it visited on the return path

• Question 125:

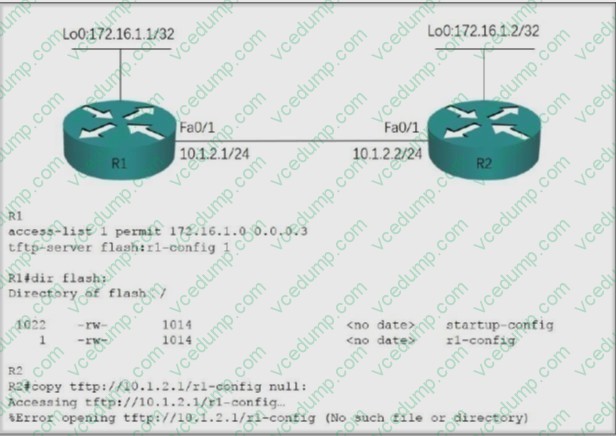

  Refer to the exhibit.



  When R2 attempted to copy a file from the TFTP server, it received this error message. Which action can you take to correct the problem?

  A. Configure the iptftp source-interface Loopback0 command on R1.
  B. Configure the iptftp source-interface Loopback0 command on R2.
  C. Configure the iptftp source-interface Fa0/1 command on R2.
  D. Change the access-list configuration on R1 to access-list 1 permit 172.16.1.0 0.0.0.255
  E. Configure the iptftp source-interface Fa0/1 command on R1.
  B. Configure the iptftp source-interface Loopback0 command on R2.

• Question 126:

  Which two commands should you enter to enable IP Source Guard with source IP and MAC address filtering? (Choose two)

  A. ip verify source tracking
  B. switchport port-security
  C. ip verify unicast source
  D. ip verify source
  E. ip verify source port-security
  B. switchport port-security
  D. ip verify source

• Question 127:

  Which two statements about the command distance bgp 90 60 120 are true? (Choose two.)

  A. The external distance it sets is preferred over the internal distance
  B. The local distance it sets may conflict with the RIP administrative distance
  C. The internal distance it sets may conflict with the EIGRP administrative distance
  D. The internal distance it sets is preferred over the external distance
  E. Implementing the command is a Cisco best practice
  F. The local distance it sets may conflict with the EIGRP administrative distance
  B. The local distance it sets may conflict with the RIP administrative distance
  D. The internal distance it sets is preferred over the external distance

• Question 128:

  What are two features that distance-vector routing protocols can use to address the count-to-infinity problem? (Choose two.)

  A. triggered updates
  B. route poisoning
  C. split horizon
  D. route tagging
  E. adjacency dead timers
  B. route poisoning
  C. split horizon

• Question 129:

  Which two statements about debugging on Cisco routers are true? (Choose two)

  A. Using console logging can reduce the performance impact of the debug command
  B. The debug command can be run in privileged exec mode only
  C. By default, the router logs debug command output to vty lines
  D. The terminal monitor command copies debug output to the terminal
  E. The debug ip packet command can debug IP traffic that is fast-switched on the router
  F. The debug command can be run in user exec mode
  B. The debug command can be run in privileged exec mode only
  D. The terminal monitor command copies debug output to the terminal

• Question 130:

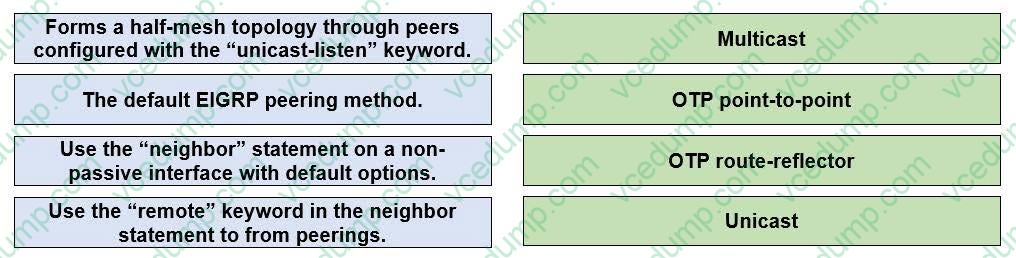

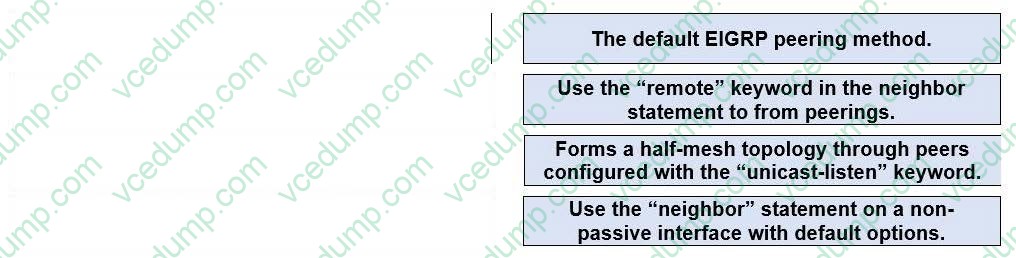

  Drag and Drop

  Select and Place:
