Advanced VMware Cloud Foundation 9.0 vSphere Kubernetes Service

The error shows an admission webhook denial wherevariable validation failedand multiple entries under spec. topology.variables[...] are reported as"variable is not defined". That message indicates the manifest is supplying variables that arenot part of the current Cluster API / topology schemaenforced by the Supervisor during cluster creation. In VKS, cluster provisioning isdeclarative: you invoke the VKS API withkubectl + a YAML file, and "after the cluster is created, you update the YAML to update the cluster." When the API /schema changes between releases, older manifests can contain fields/variables that are no longer recognized, and the admission webhook blocks them to prevent creating an invalid cluster spec.

This aligns with VMware's broader direction that the olderTanzuKubernetesCluster (TKC) API was deprecatedand customers are encouraged to useCluster APIfor bootstrap/config/lifecycle management. In practice, to complete the upgrade/creation successfully, you must update the cluster manifest to match the supported schema:remove the deprecated/unknown topology variablesshown in the error (for example, the undefined storage-policy and trust variables) and re-apply the correctedworkload.yaml.

The topology and networking mode define the intended design, but they do not make its dependencies operational. DNS, time synchronization, address reservations, upstream routing, and sufficient capacity must work before the Supervisor is enabled. Validating these prerequisites first prevents enablement from beginning with unresolved name, time, addressing, reachability, or resource dependencies.

Authentication and namespace access establish identity and entry to the environment, but they do not grant permission to create every Kubernetes resource. A Role must allow the required Deployment verbs in the namespace, and a RoleBinding must associate those rules with the user. That RBAC combination authorizes the Kubernetes API operation that is currently denied.

Setting ENABLE_AUDIT_LOGGING=true records metadata about requests made to the Kubernetes API server. This creates an audit trail of API activity that can be reviewed for operational or security analysis. It does not activate an object-description command, configure Fluent Bit forwarding by itself, or run a general-purpose script that gathers node diagnostics.

Successful inbound access proves that the ingress virtual IP and application-facing route work, but it does not establish outbound connectivity from pods. Pod-to-API traffic follows an egress path that may require routing or address translation, outbound policy permission, DNS resolution, and a valid return route. Those egress dependencies therefore need independent validation.

Cluster backup scope can be defined at three levels of granularity. Selecting the cluster covers the cluster-wide scope, selecting a namespace limits the scope to that namespace, and using a label selector includes the objects that match the label criteria. These choices provide whole-cluster, namespace-bounded, and filtered-object coverage.

The CNI performs the Kubernetes-facing network attachment for a pod, but that attachment relies on the underlying NSX logical networking being valid. If the referenced scope lacks required routing, the CNI cannot complete a usable connection merely by creating an interface. The failed execution therefore reflects an attachment operation blocked by an unmet NSX networking and routing dependency.

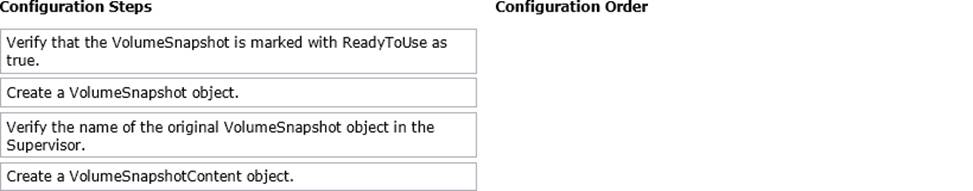

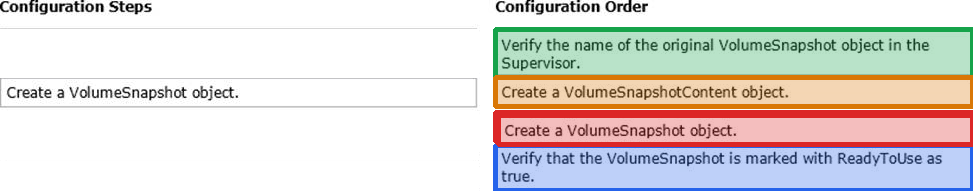

Configuration Order (in order): Verify the name of the original VolumeSnapshot object in the Supervisor.
Create a VolumeSnapshotContent object. Create a VolumeSnapshot object.
Verify that the VolumeSnapshot is marked with ReadyToUse as true.
Apre-provisioned snapshotworkflow means the snapshot already exists at the Supervisor/storage layer, and you are "importing" it into Kubernetes by creating the Kubernetes objects that reference it. That's why the first step is toidentify/verify the exact snapshot nameas it exists in the Supervisor context-this is the authoritative identifier you must point to when you create Kubernetes snapshot metadata. Next, you create theVolumeSnapshotContentobject, which represents theactual snapshot on the storage backendand includes the handle/reference to that pre-existing snapshot. With the content object in place, you then create theVolumeSnapshotobject, which is theuser-facing Kubernetes object(namespaced) that binds to the pre-provisioned VolumeSnapshotContent (either explicitly or via binding rules). Finally, you validate the outcome by checking that theVolumeSnapshot shows ReadyToUse: true, confirming the binding succeeded and Kubernetes can use the snapshot for restore/clone workflows.

cert-manager adds certificate and certificate-issuer resource types to Kubernetes. Administrators declare the required certificate and its issuer as cluster resources, and cert-manager manages issuance and renewal through that model. This directly addresses expiring Ingress certificates and corporate CA integration; HTTP routing and Harbor image scanning belong to other components.

Load-balancer capacity depends on both object growth and traffic-processing demand. Endpoint and VIP growth determine expanding configuration scale, while throughput and connection levels describe data-plane load. Health checks add recurring processing, and HA introduces capacity overhead for resilience. Considering all of these dimensions supports sizing beyond a simple cluster or node count.
