• Question 401:

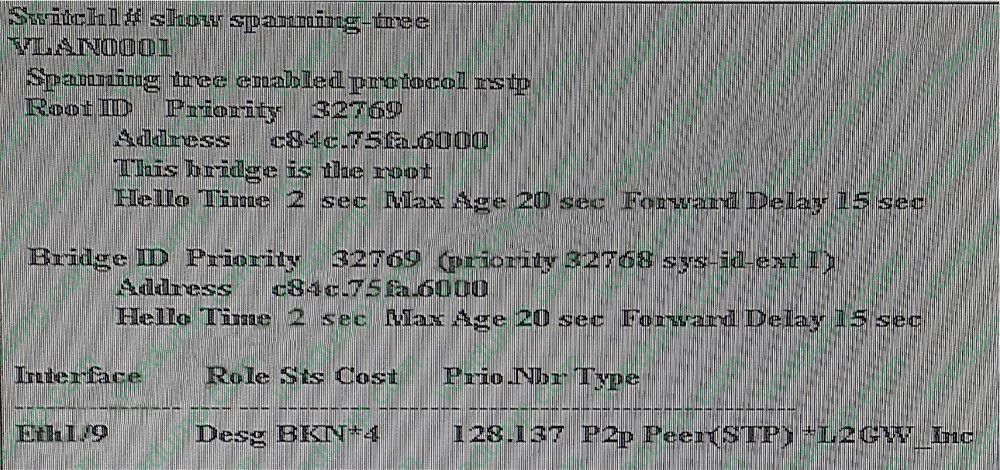

  Refer to the exhibit.



  The switch is running FabricPath, however the CE port e1/9 is not on spanning tree forwarding. Which option describes the possible cause?

  A. Switch 1 is not configured with FabricPath.
  B. Bridge assurance is configured on switch1 E1/9 but not configured on the facing interface.
  C. Switch 1 is receiving better BPDU on E1/9.
  D. Loopguard feature is blocking the port.
  C. Switch 1 is receiving better BPDU on E1/9.

• Question 402:

  When configuring unified ports on a 5548 switch, which port ordering must be respected? (Choose two.)

  A. Fibre Channel ports must be configured from the first port in the module.
  B. Ethernet ports must be configured from the last port in the module.
  C. Fibre Channel ports must be configured from the last port in the module.
  D. Ethernet ports must be configured from the first port in the module.
  C. Fibre Channel ports must be configured from the last port in the module.
  D. Ethernet ports must be configured from the first port in the module.

• Question 403:

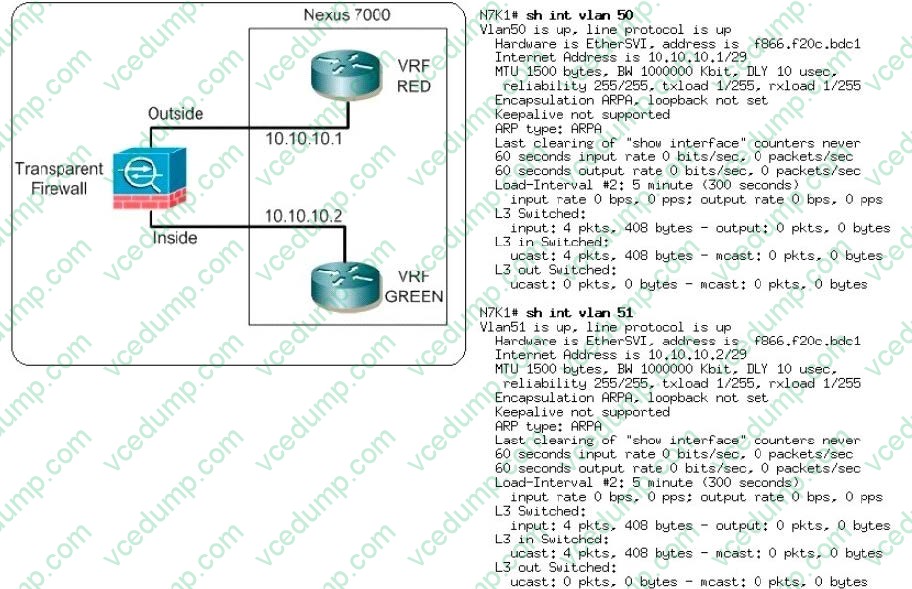

  A Cisco Nexus 7000 switch is used with the VRF feature to provide separation between the inside and outside interfaces of a transparent firewall.

  The VRF RED is used for an untrusted network of the virtual data center, and it is connected to the outside interface of the firewall. The VRF GREEN is used as a trusted network of the virtual data center and is connected to the inside

  interface of the firewall. Subnet 10.10.10.0/20 is used to communicate between two VRFs across the transparent firewall.

  The firewall is configured correctly. The network administrator configured the VRFs and IP addressing correctly, but you are still unable to communicate across the firewall.



  What is a likely cause of the problem?

  A. This topology is incorrect. A transparent firewall cannot be used with VRF.
  B. On Cisco Nexus 7000, policy-based routing is required to communicate between two VRFs.
  C. The issue is related to software licensing; an Enterprise Services license is required on Cisco Nexus 7000.
  D. The issue is related to the MAC address of the SVI.
  E. The issue is related to keepalive, which is not supported on the SVI.
  D. The issue is related to the MAC address of the SVI.

• Question 404:

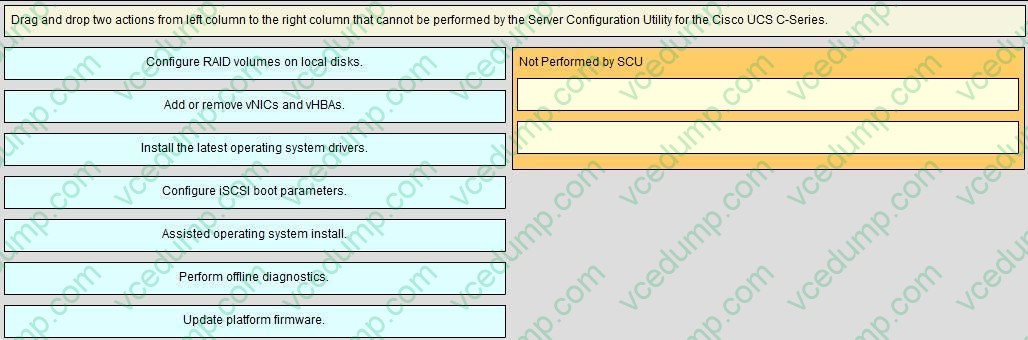

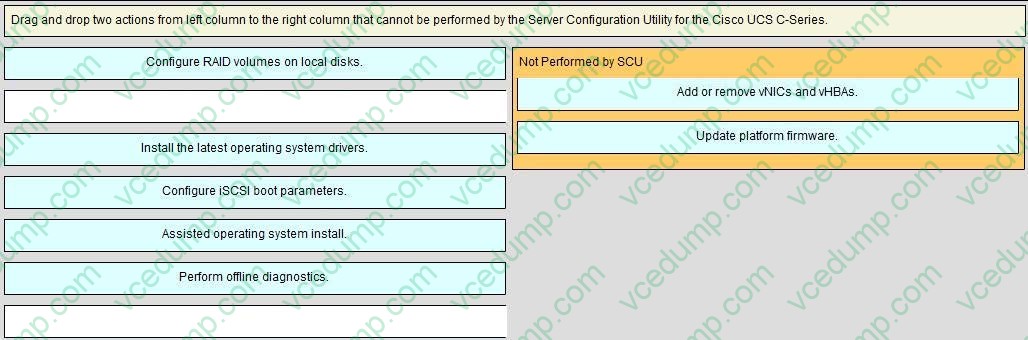

  Drag Drop

  Select and Place:





• Question 405:

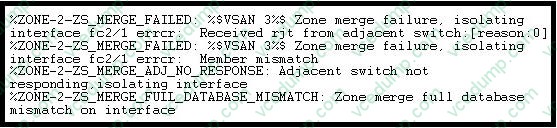

  Refer to the exhibit.



  Which two options describe possible causes of the failure shown in the exhibit? (Choose two.)

  A. Two switches have the same zone set name, but different zone names and different zone members.
  B. Two switches have the same zone set name and zone name, but different zone members.
  C. The zoneset export interface command is used for the wrong interface.
  D. The zoneset merge command can only be executed for VSAN 1.
  E. The adjacent switch is down at the point of the zone merge.
  A. Two switches have the same zone set name, but different zone names and different zone members.
  B. Two switches have the same zone set name and zone name, but different zone members.

• Question 406:

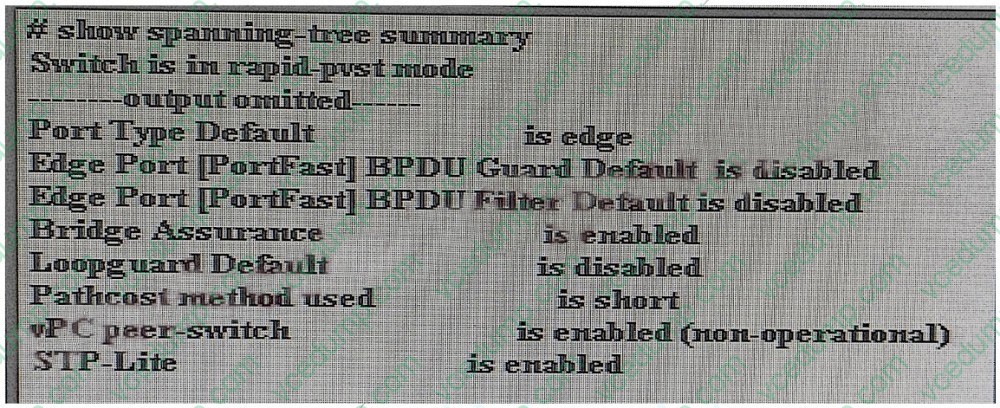

  Refer to the exhibit.



  Which two reasons explain why vPC peer-switch is not working? (Choose two.)

  A. The feature is not enabled on the vPC peer.
  B. The peer keepalive link is down.
  C. Cisco Discovery Protocol is not configured.
  D. vPC peers are not the root of spanning tree topology.
  E. LoopGuard is disabled.
  A. The feature is not enabled on the vPC peer.
  D. vPC peers are not the root of spanning tree topology.

• Question 407:

  On a 32-port 10 Gigabit Ethernet module, each set of four ports can handle 10 Gb/s of bandwidth.

  What can you use the rate-mode parameter for?

  A. to limit the speed on any port
  B. to dedicate all the group bandwidth to the first port
  C. to dedicate all the group bandwidth to the last port
  D. to limit the speed on all ports
  B. to dedicate all the group bandwidth to the first port

• Question 408:

  Which two statements about SAN port channels configured on Cisco Nexus 5000 Series switches are true? (Choose two.)

  A. The bring up protocol automatically detects and overrides any misconfiguration.
  B. You can manually configure channel groups, or they can be automatically created.
  C. Changes in configuration to the SAN port channel interface must also be made to all members of the channel group.
  D. The port channel protocol uses the exchange fabric parameters command to communicate across peer ports in an ISL.
  E. The port channel protocol ensures that a set of ports is eligible to be part of the same SAN port channel.
  B. You can manually configure channel groups, or they can be automatically created.
  E. The port channel protocol ensures that a set of ports is eligible to be part of the same SAN port channel.

• Question 409:

  With Cisco NX-OS on a Cisco Nexus platform, which command shows memory usage, total processes, and CPU state?

  A. show memory detailed
  B. show process cpu sorted
  C. show system resources
  D. show hardware capacity
  C. show system resources

• Question 410:

  Which two port profiles are used in VSM? (Choose two.)

  A. VEM
  B. VMkernels
  C. Ethernet
  D. vEthernet
  E. vNIC
  C. Ethernet
  D. vEthernet
