Cisco 351-080 Online Practice Questions and Exam Preparation

Cisco 351-080 Online Questions & Answers

• Question 221:

  Which three predictors are supported on ACE to select the best server to fulfill a client request? (Choose three.)

  A. Hash Address, which selects the server by using a hash value that is based on the source IP address, the destination IP address, or both
  B. Hash URL, which selects the server by using a hash value that is based on the requested URL
  C. Hash MAC, which selects the server by using a hash value that is based on the source MAC address, the destination MAC address, or both
  D. Hash Header, which selects the server by using a hash value that is based on the HTTP header name
  E. Highest bandwidth, selects the server that processed the highest amount of network traffic based on the average bandwidth that the server used over a specified number of samples
  F. First Come First Server, always selects the first server in the list of real servers.
  A. Hash Address, which selects the server by using a hash value that is based on the source IP address, the destination IP address, or both
  B. Hash URL, which selects the server by using a hash value that is based on the requested URL
  D. Hash Header, which selects the server by using a hash value that is based on the HTTP header name

• Question 222:

  Which three statements about the vTracker feature after it is enabled on the Cisco Nexus 1000V switch are true? (Choose three.)

  A. The vTracker feature provides information about the virtual network environment.
  B. The vTracker feature provides information about the virtual machines that are managed by all Cisco NexusSwitches.
  C. The vTracker feature uses the link Layer Discovery Protocol.
  D. All vTracker views are valid for a given time only.
  E. The VSM and vCenter must be on same subnet.
  F. The VSM must be connected with the vCenter to collect information.
  A. The vTracker feature provides information about the virtual network environment.
  D. All vTracker views are valid for a given time only.
  F. The VSM must be connected with the vCenter to collect information.

• Question 223:

  On Cisco Nexus 7000 Series Switch Cisco FabricPath domain, one switch becomes the root for the multidestination tree. Cisco FabricPath IS-IS will automatically select root switches for each multidestination tree. One of the parameters used to select the root is system ID.

  Which statements are true about system ID? (Choose two.)

  A. System ID is a unique 12-bit SID.
  B. System ID is a 48-bit value composed of the VDC MAC address.
  C. Higher system ID is preferred.
  D. Lower system ID is preferred.
  B. System ID is a 48-bit value composed of the VDC MAC address.
  C. Higher system ID is preferred.

• Question 224:

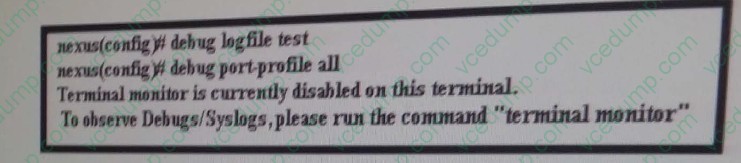

  Refer to the exhibit.



  Which statement about these commands is true?

  A. The outputs of the debug are redirected on file test on the "log." directory.
  B. The outputs of the debug are redirected to the logging buffer.
  C. The command does not have an effect unless you configure "debug enable".
  D. If you are on a console connection, the outputs are shown after the event occurs.
  A. The outputs of the debug are redirected on file test on the "log." directory.

• Question 225:

  In a FabricPath topology, each device is identified by a switch ID, and all Layer 2 forwarding tables are built based on the reachability of the switch ID. Which protocol is used to assign the switch ID?

  A. No protocol is used. The switch ID is always assigned manually.
  B. The Dynamic Resource Allocation Protocol is used to assign the switch ID.
  C. The Switch ID Assignment Protocol is used to assign the switch ID.
  D. The switch ID is assigned based on the system ID of the device.
  B. The Dynamic Resource Allocation Protocol is used to assign the switch ID.

• Question 226:

  Server load balancing (SLB) is the process of deciding to which server a load-balancing device should send a client request for service. Which predictors are supported on ACE in order to select the best server to fulfill a client request? (Choose three.)

  A. Hash address: Selects the server by using a hash value based on either the source or destination IP address, or both
  B. Hash URL: Selects the server by using a hash value based on the requested URL
  C. Hash MAC. Selects the server by using a hash value based on either the source or destination MAC address, or both
  D. Hash header: Selects the server by using a hash value based on the HTTP header name
  E. Hash IP: Selects the server using a hash value based on the IP address
  A. Hash address: Selects the server by using a hash value based on either the source or destination IP address, or both
  B. Hash URL: Selects the server by using a hash value based on the requested URL
  D. Hash header: Selects the server by using a hash value based on the HTTP header name

• Question 227:

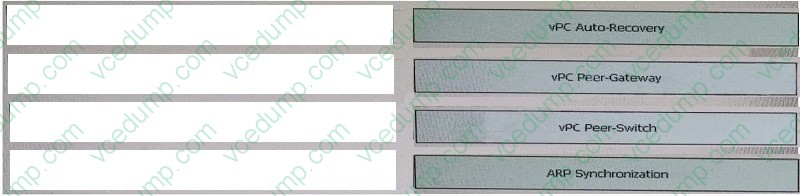

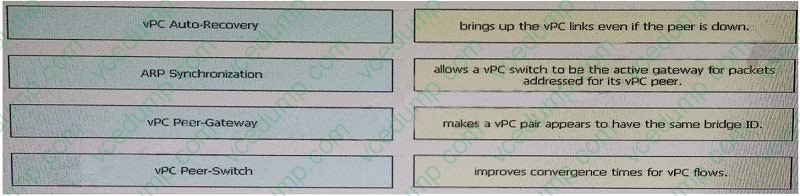

  Drag and drop the vPC features.

  Select and Place:





• Question 228:

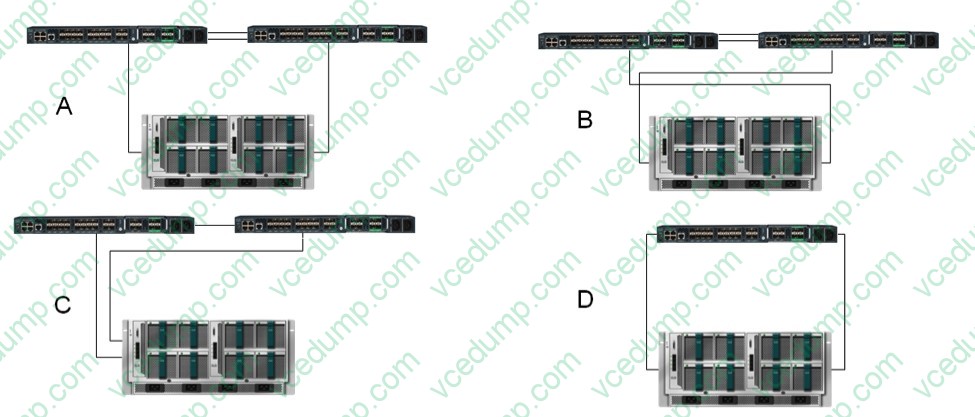

  Refer to the exhibit.



  Which option is valid for connecting the fabric interconnects to the I/O module?

  A. A, B, C, and D are valid.
  B. A and B are valid.
  C. A, B, and D are valid.
  D. Only A is valid.
  B. A and B are valid.

• Question 229:

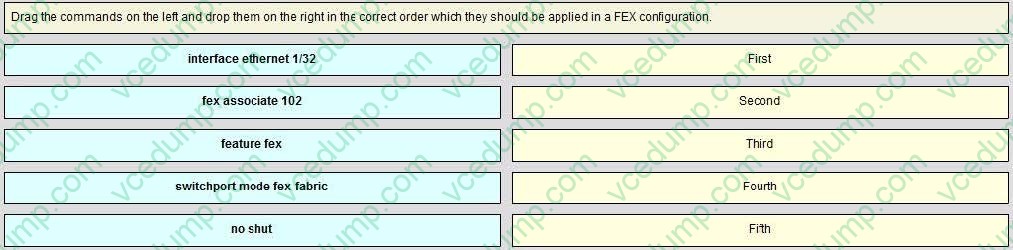

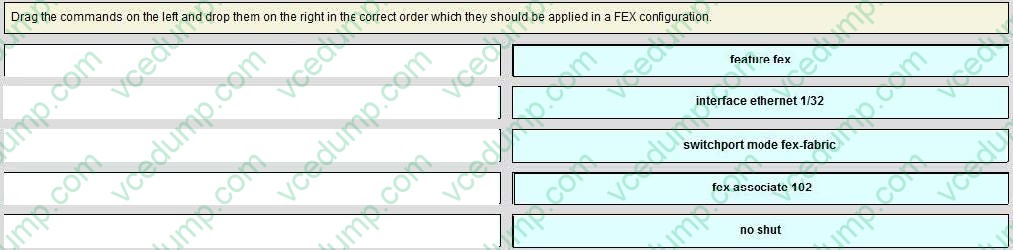

  Drag Drop

  Select and Place:





• Question 230:

  You have a customer with an MDS fabric that is experiencing a performance problem. You suspect that the problem is due to a BB credit starvation issue with a host HBA. The customer has both a DS-PAA-2 and a Fibre Channel Analyzer on location. You want to collect a trace and look at the R_RDY flows between the MDS and the host. Which of the following actions is the best way to start troubleshooting this problem?

  A. Collect a Fibre Channel Analyzer local brief trace on the MDS and look for missing R_RDYs.
  B. Collect a Fibre Channel Analyzer local trace with full detail on the MDS, because the detail is needed to examine the R_RDY flow.
  C. Use the DS-PAA-2 and the MDS span feature to capture a trace and examine the R_RDY flow between the host and MDS.
  D. Use the Finisar and the MDS span feature to capture a trace because the DS-PAA-2 cannot decode R_RDYs.
  E. Break the physical connection between the host and MDS and insert the Fibre Channel Analyzer inline.
  E. Break the physical connection between the host and MDS and insert the Fibre Channel Analyzer inline.
