Cisco 351-001 Online Practice Questions and Exam Preparation

Cisco 351-001 Online Questions & Answers

• Question 801:

  Which two statements about OSPF are true? (Choose two.)

  A. External type 2 routes are preferred over interarea routes.
  B. Intra-area routes are preferred over interarea routes.
  C. External type 1 routes are preferred over external type 2 routes.
  D. External type 1 routes are preferred over intra-area routes.
  E. External type 2 routes are preferred over external type 1 routes.
  B. Intra-area routes are preferred over interarea routes.
  C. External type 1 routes are preferred over external type 2 routes.

• Question 802:

  Which two statements about SoO checking in EIGRP OTP deployments are true? (Choose two).

  A. During the import process, the SoO value in BGP is checked against the SoO value of the site map.
  B. During the reception of an EIGRP update, the SoO value in the EIGRP update is checked against the SoO value of the site map on the ingress interface.
  C. At the ingress of the PE/CE link, the SoO in the EIGRP update is checked against the SoO within the PE/CE routing protocol.
  D. At the egress of the PE/CE link, the SoO is checked against the SoO within the PE/CE routing protocol.
  E. The SoO is checked at the ingress of the backdoor link.
  F. The SoO is checked at the egress of the backdoor link.
  A. During the import process, the SoO value in BGP is checked against the SoO value of the site map.
  B. During the reception of an EIGRP update, the SoO value in the EIGRP update is checked against the SoO value of the site map on the ingress interface.

  ---

  ?SoO checking: ?During the import process the SoO value in BGP update is checked against the SoO value of the site-map attached to VRF interface. The update is propagated to CE only if there is no match (this check is done regardless of protocol used on PE/CE link). ?At reception of EIGRP update, the SoO value in the EIGRP update is checked against the SoO value of site-map attached to the incoming interface. This update is accepted only if there is no match (this check can optionally be done on backdoor router). Reference: http://www.cisco.com/c/en/us/products/collateral/ios-nx-os-software/ip- routing/whitepaper_C11-730404.html

• Question 803:

  Which two values are needed to configure NTP authentication? (Choose two.)

  A. the encryption method
  B. the key number
  C. the burst mode
  D. the key string
  E. the Diffie-Hellman group
  B. the key number
  D. the key string

• Question 804:

  If EIGRP and OSPF are configured within an administrative domain for the same network, which value can you change so that the OSPF becomes the installed routing protocol for all routes?

  A. Local preference
  B. Metric
  C. MED
  D. Administrative distance
  E. Prefix length
  E. Prefix length

• Question 805:

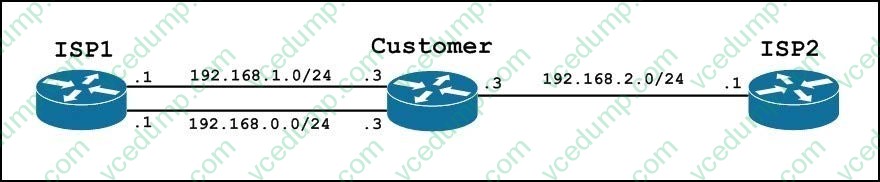

  Refer to the exhibit.



  The customer wants to use IP SLA to create a failover to ISP2 when both Ethernet connections to ISP1 are down. The customer also requires that both connections to ISP1 are utilized during normal operations.

  Which IP route configuration accomplishes these requirements for the customer?

  A. ip route 0.0.0.0 0.0.0.0 192.168.0.1 track 1 ip route 0.0.0.0 0.0.0.0 192.168.1.1 track 2 ip route 0.0.0.0 0.0.0.0 192.168.2.1 track 3
  B. ip route 0.0.0.0 0.0.0.0 192.168.0.1 track 1 ip route 0.0.0.0 0.0.0.0 192.168.1.1 track 2 ip route 0.0.0.0 0.0.0.0 192.168.2.1 track 4 100
  C. ip route 0.0.0.0 0.0.0.0 192.168.0.1 track 1 ip route 0.0.0.0 0.0.0.0 192.168.1.1 track 2 ip route 0.0.0.0 0.0.0.0 192.168.2.1 track 3 100
  D. ip route 0.0.0.0 0.0.0.0 192.168.0.1 track 1 1 ip route 0.0.0.0 0.0.0.0 192.168.1.1 track 2 2 ip route 0.0.0.0 0.0.0.0 192.168.2.1 track 3 3
  C. ip route 0.0.0.0 0.0.0.0 192.168.0.1 track 1 ip route 0.0.0.0 0.0.0.0 192.168.1.1 track 2 ip route 0.0.0.0 0.0.0.0 192.168.2.1 track 3 100

• Question 806:

  Which two statements about TCP are true? (Choose two.)

  A. TCP option must be divisible by 32.
  B. It has a 16-bit window size.
  C. Its maximum data offset is fifteen 32-bit words.
  D. It has a 32-bit window size.
  E. Its maximum data offset is ten 32-bit words.
  F. It has a 32-bit checksum field.
  B. It has a 16-bit window size.
  C. Its maximum data offset is fifteen 32-bit words.

• Question 807:

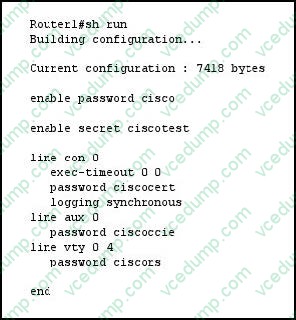

  Refer to the exhibit.



  What password will be required to enter privileged EXEC mode on a device with the given configuration?

  A. ciscotest
  B. ciscocert
  C. cisco
  D. ciscors
  E. ciscoccie
  A. ciscotest

• Question 808:

  Which Carrier Ethernet service supports the multiplexing of multiple point-to-point EVCs across as a single UNI?

  A. EPL
  B. EVPL
  C. EMS
  D. ERMS
  B. EVPL

  ---

  Ethernet Relay Service (ERS or EVPL)

  An Ethernet Virtual Circuit (EVC) is used to logically connect endpoints, but multiple EVCs could exist per single UNI. Each EVC is distinguished by 802.1q VLAN tag identification. The ERS network acts as if the Ethernet frames have crossed

  a switched network, and certain control traffic is not carried between ends of the EVC. ERS is analogous to Frame Relay where the CE-VLAN tag plays the role of a Data-Link Connection Identifier (DLCI).

  The MEF term for this service is EVPL.

  Reference: http://www.cisco.com/c/en/us/td/docs/net_mgmt/ip_solution_center/5- 1/carrier_ethernet/user/guide/l2vpn51book/concepts.html

• Question 809:

  Which two options are EEM policies? (Choose two.)

  A. applets
  B. event detectors
  C. scripts
  D. syslogs
  E. actions
  A. applets
  C. scripts

• Question 810:

  Refer to the exhibit.



  All switches have default bridge priorities, and originate BPDUs with MAC addresses as indicated. The numbers shown are STP link metrics.

  After STP converges, you discover that traffic from switch SWG toward switch SWD takes a less optimal path. What can you do to optimize the STP tree in this switched network?

  A. Change the priority of switch SWA to a lower value than the default value.
  B. Change the priority of switch SWB to a higher value than the default value.
  C. Change the priority of switch SWG to a higher value than the default value.
  D. Change the priority of switch SWD to a lower value than the default value.
  D. Change the priority of switch SWD to a lower value than the default value.

  ---

  In this topology, we see that all port paths and priorities are the same, so the lowest MAC address will be used to determine the best STP path. From SWG, SWE will be chosen as the next switch in the path because it has a lower MAC address than SWF. From SWE, traffic will go to SWC because it has a lower MAC address, and then to SWD, instead of going from SWE directly to SWD. If we lower the priority of SWD (lower means better with STP) then traffic will be sent directly to SWD.
