Cisco 351-001 Online Practice Questions and Exam Preparation

Cisco 351-001 Online Questions & Answers

• Question 821:

  What are two of the commands that you can enter to gracefully shut down OSPF and notify neighbors? (Choose Two)

  A. router(config-if)#ip ospf graceful shutdown
  B. router(config)#ip notify
  C. router(config-router)#shutdown
  D. router(conf-router)#graceful shutdown
  E. router(config-if)#ip ospf shutdown
  C. router(config-router)#shutdown
  E. router(config-if)#ip ospf shutdown

• Question 822:

  Which two statements about 802.1Q tunneling are true? (Choose two.)

  A. It requires a system MTU of at least 1504 bytes.
  B. The default configuration sends Cisco Discovery Protocol, STP, and VTP information.
  C. Traffic that traverses the tunnel is encrypted.
  D. It is supported on private VLAN ports.
  E. MAC-based QoS and UDLD are supported on tunnel ports.
  F. Its maximum allowable system MTU is 1546 bytes.
  A. It requires a system MTU of at least 1504 bytes.
  E. MAC-based QoS and UDLD are supported on tunnel ports.

• Question 823:

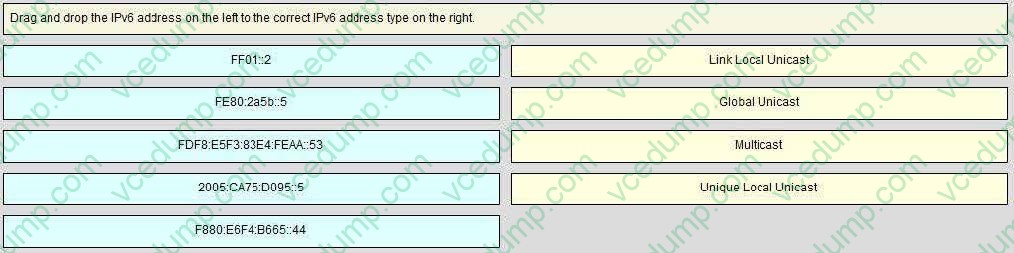

  DRAG DROP

  Drag and drop the IPv6 address on the left to the correct IPv6 address type on the right.

  Select and Place:





• Question 824:

  Which value is the maximum segment size if you start with an MTU of 1500 bytes and then remove the overhead of the Ethernet header, IP header, TCP header, and the MAC frame check sequence?

  A. 1434 bytes
  B. 1460 bytes
  C. 1458 bytes
  D. 1464 bytes
  B. 1460 bytes

• Question 825:

  Which two options are differences between TACACS+ and RADIUS using AAA? (Choose two.)

  A. Only TACACS+ limits the protocols that are supported.
  B. Only RADIUS combines accounting and authentication.
  C. Only TACACS+ uses TCP.
  D. Only RADIUS combines authorization and accounting.
  E. Only RADIUS encrypts the password in packets from the client to the server. But leaves the body of the message unencrypted.
  C. Only TACACS+ uses TCP.
  E. Only RADIUS encrypts the password in packets from the client to the server. But leaves the body of the message unencrypted.

• Question 826:

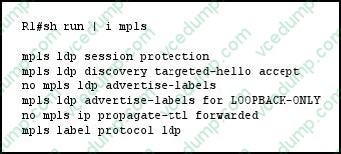

  Refer to the exhibit.



  Which two statements about the R1 configuration are true? (Choose two.)

  A. The IP TTL value is copied to the MPLS field during label imposition.
  B. The structure of the MLPS network is hidden in a traceroute.
  C. The LDP session interval and hold times are configured for directly connected neighbors.
  D. R1 protects the session for 86400 seconds.
  E. All locally assigned labels are discarded.
  B. The structure of the MLPS network is hidden in a traceroute.
  D. R1 protects the session for 86400 seconds.

• Question 827:

  An NSSA area has two ABRs connected to Area 0. Which statement is true?

  A. Both ABRs translate Type-7 LSAs to Type-5 LSAs.
  B. The ABR with the highest router ID translates Type-7 LSAs to Type-5 LSAs.
  C. Both ABRs forward Type-5 LSAs from the NSSA area to backbone area.
  D. No LSA translation is needed.
  B. The ABR with the highest router ID translates Type-7 LSAs to Type-5 LSAs.

• Question 828:

  Which three topologies are standardized by the Metro Ethernet Forum? (Choose three)

  A. E-LAN
  B. VPWS
  C. E-Tree
  D. E-Line
  E. NPE
  F. PNNI
  A. E-LAN
  C. E-Tree
  D. E-Line

• Question 829:

  The no ip unreachables command is configured on interfaces to protect the control plane of a router. Which mechanism is impacted by using this command?

  A. ICMP redirects
  B. path MTU discovery
  C. source routing
  D. ICMP router discovery protocol
  B. path MTU discovery

• Question 830:

  Which option is a correct match criterion for policy-based routing?

  A. length
  B. interface type
  C. interface
  D. cost
  A. length
